CTAC Système de Réservoirs Couplés, Contrôlé par Ordinateur (PC)

6.1.1.3.- APPLICATIONS DU SYSTÈME INDUSTRIEL 10.3.- SYSTÈMES INDUSTRIELS ET APPLICATIONS
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

Unit: CTAC. Computer Controlled Coupled Tanks System

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

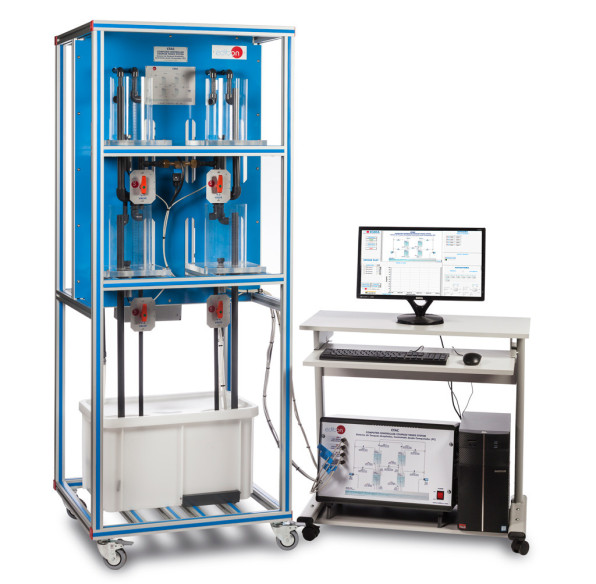

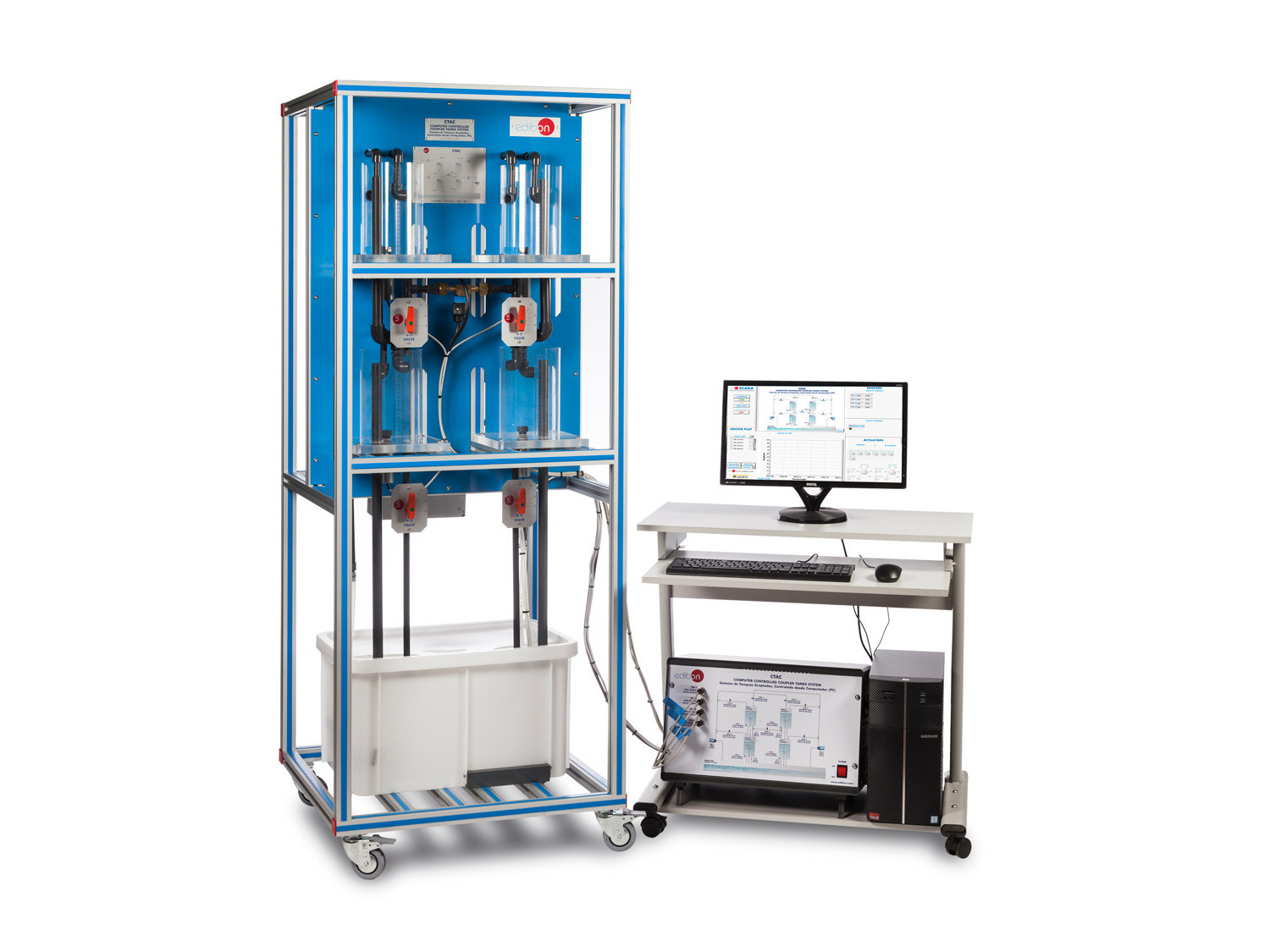

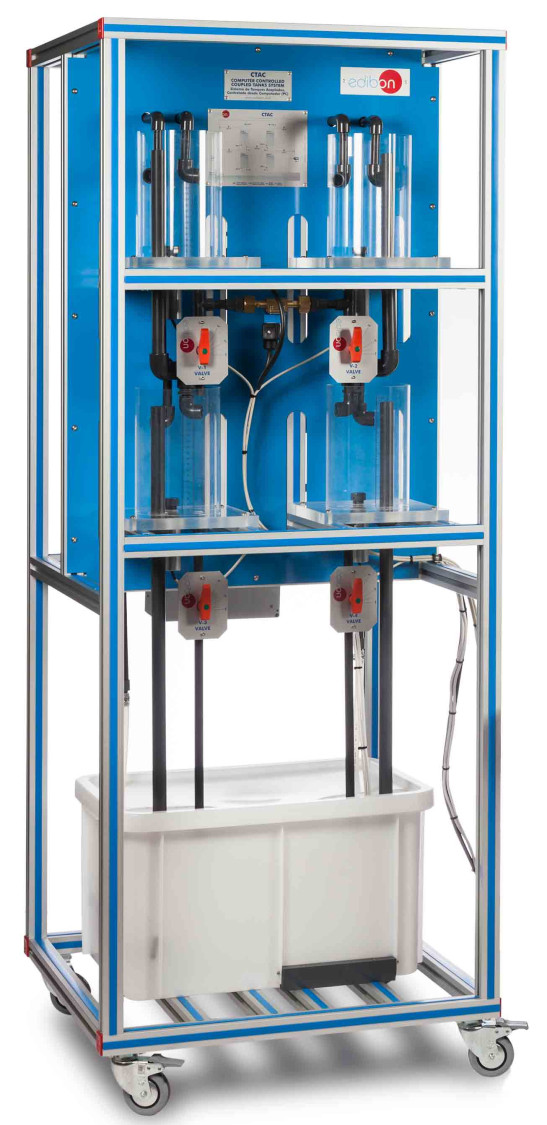

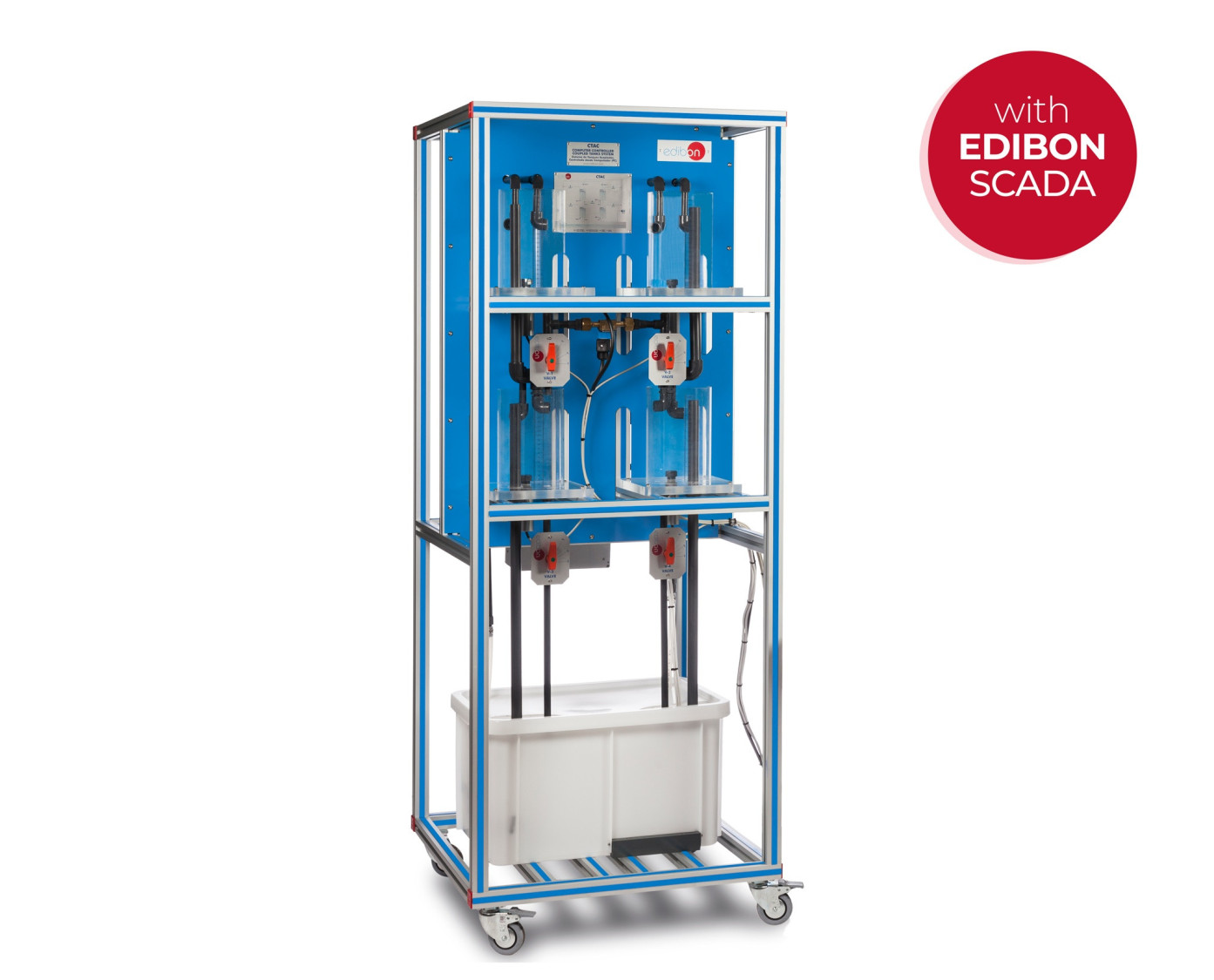

Complete CTAC unit

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

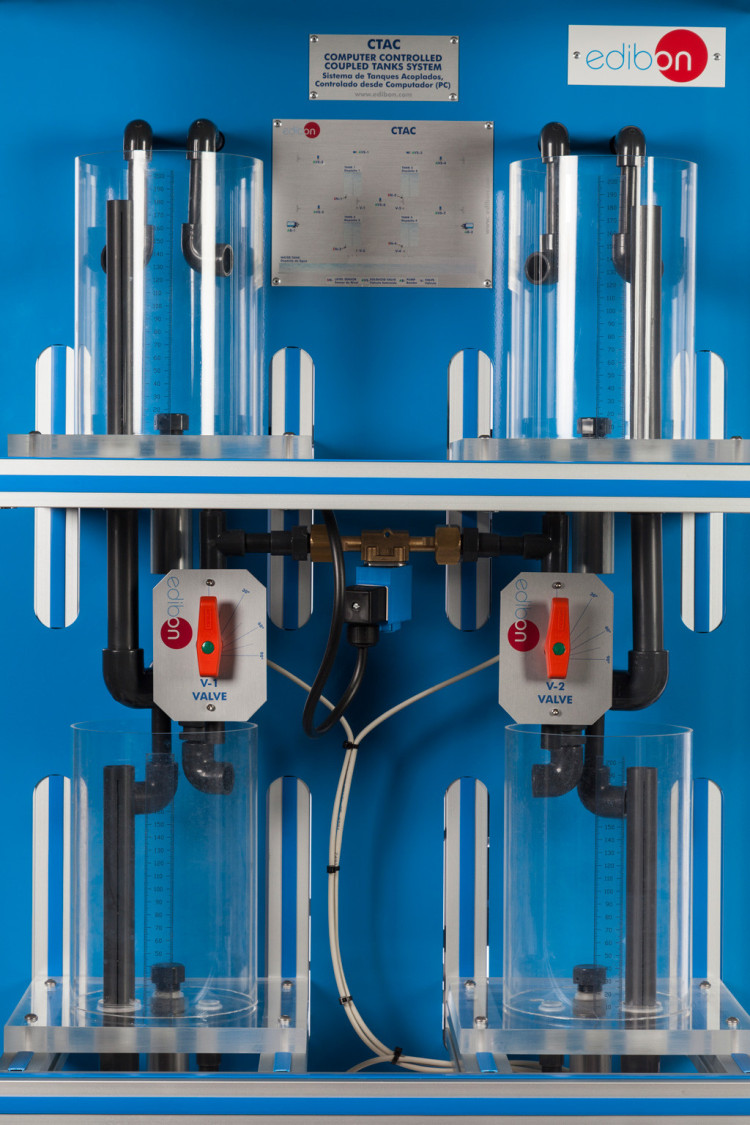

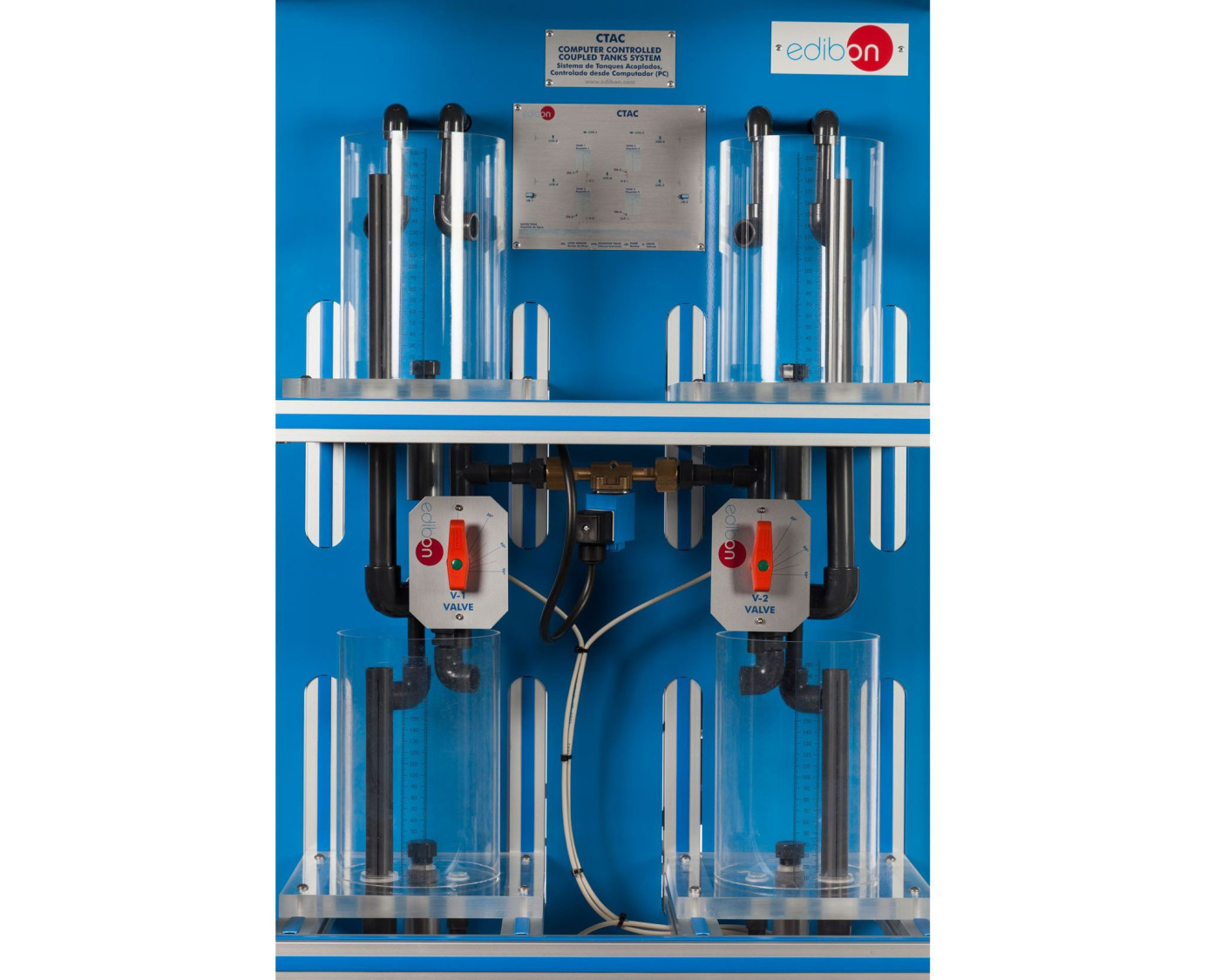

Unit details

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

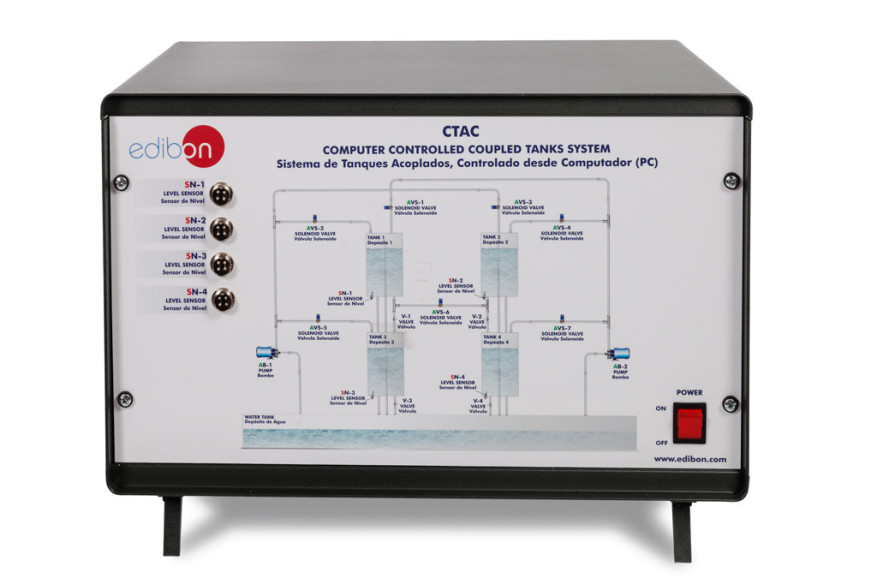

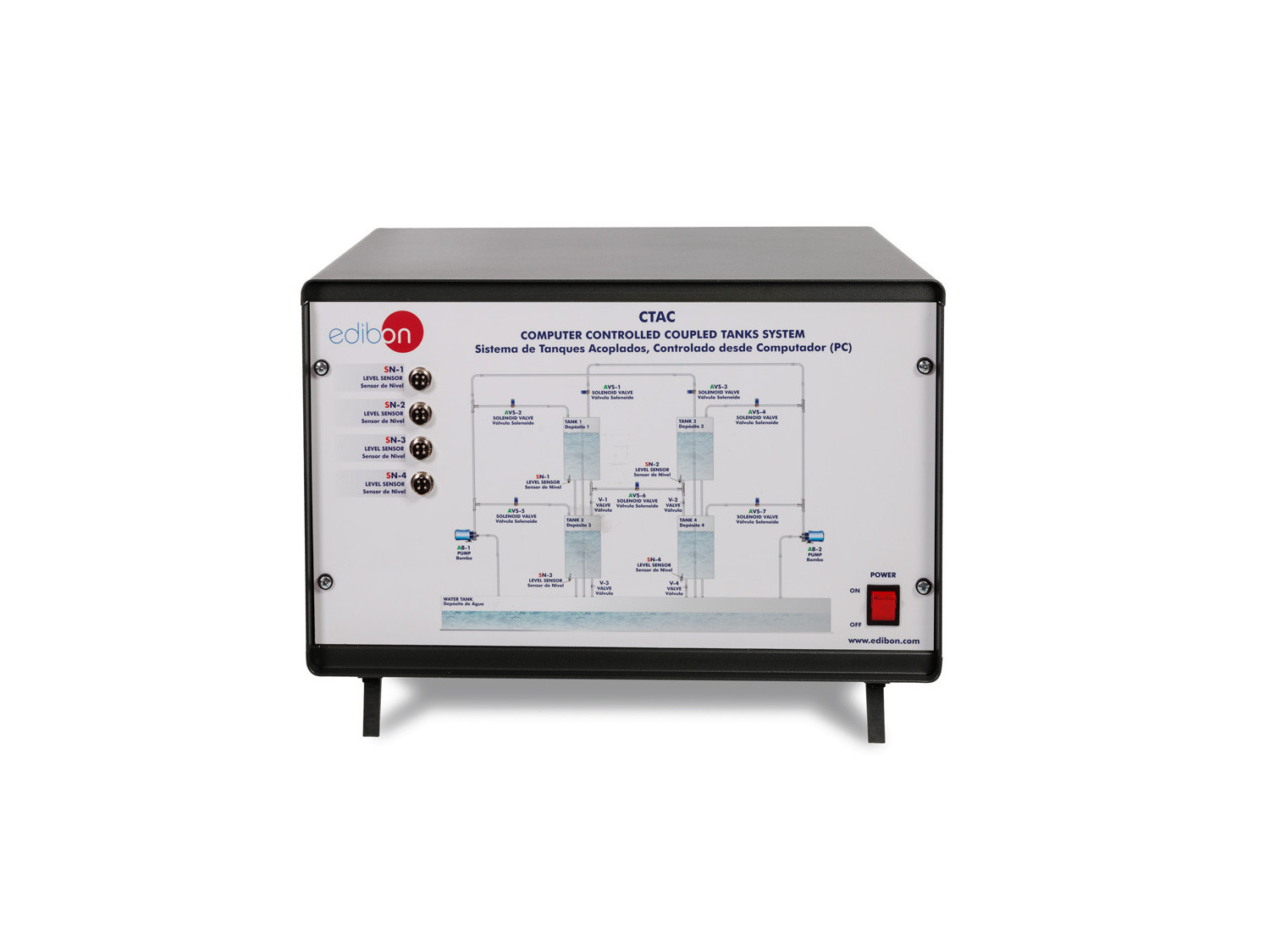

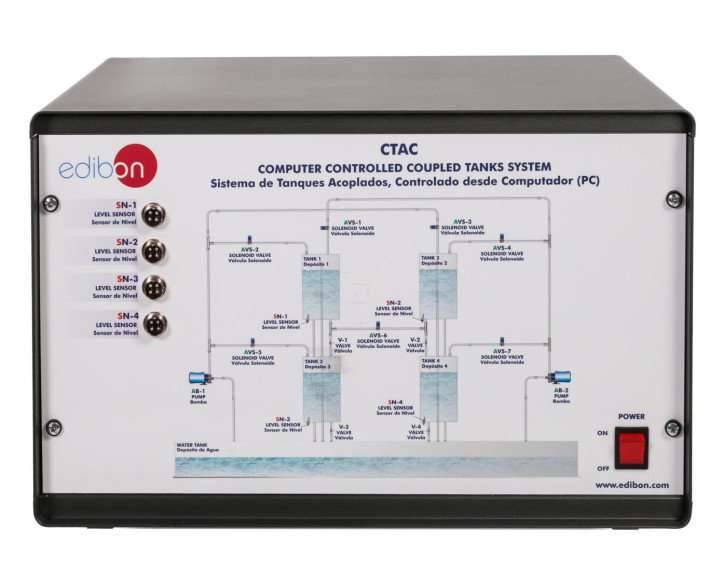

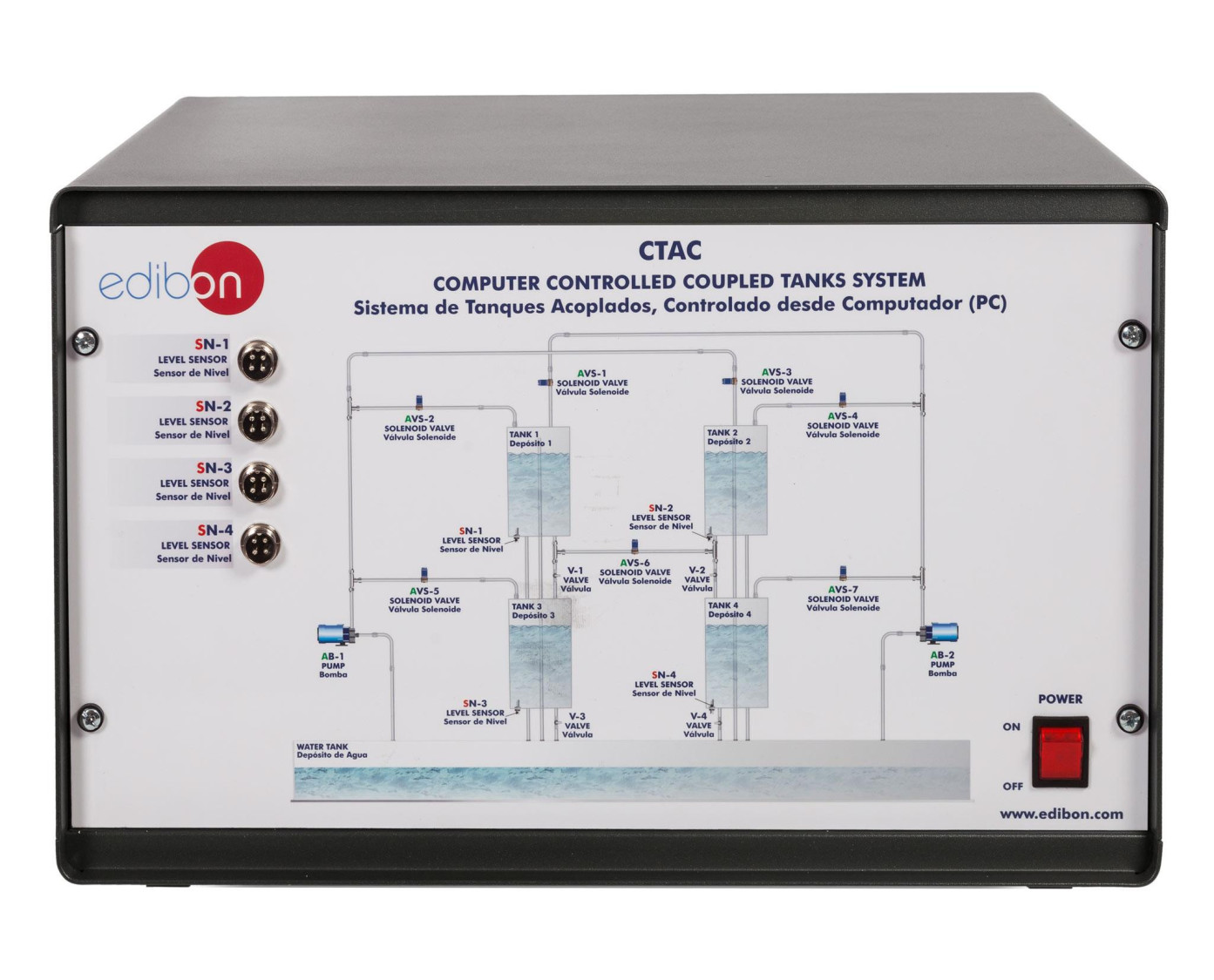

CTAC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

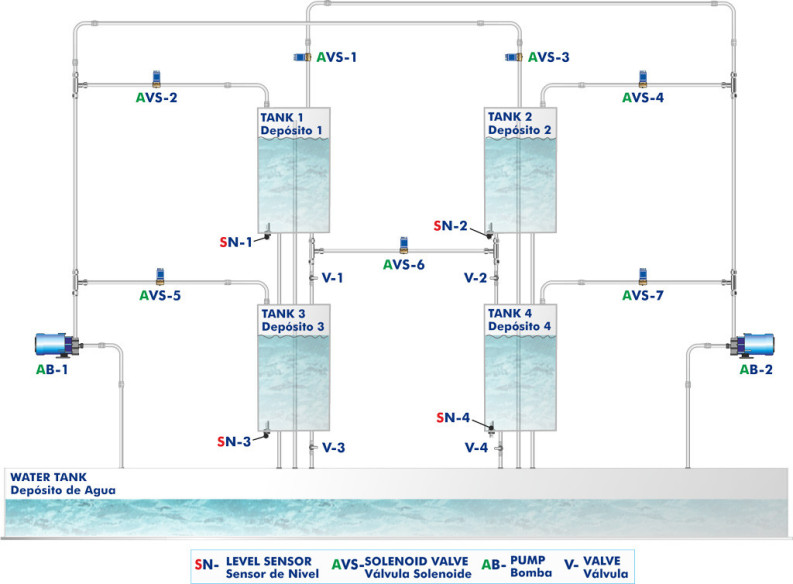

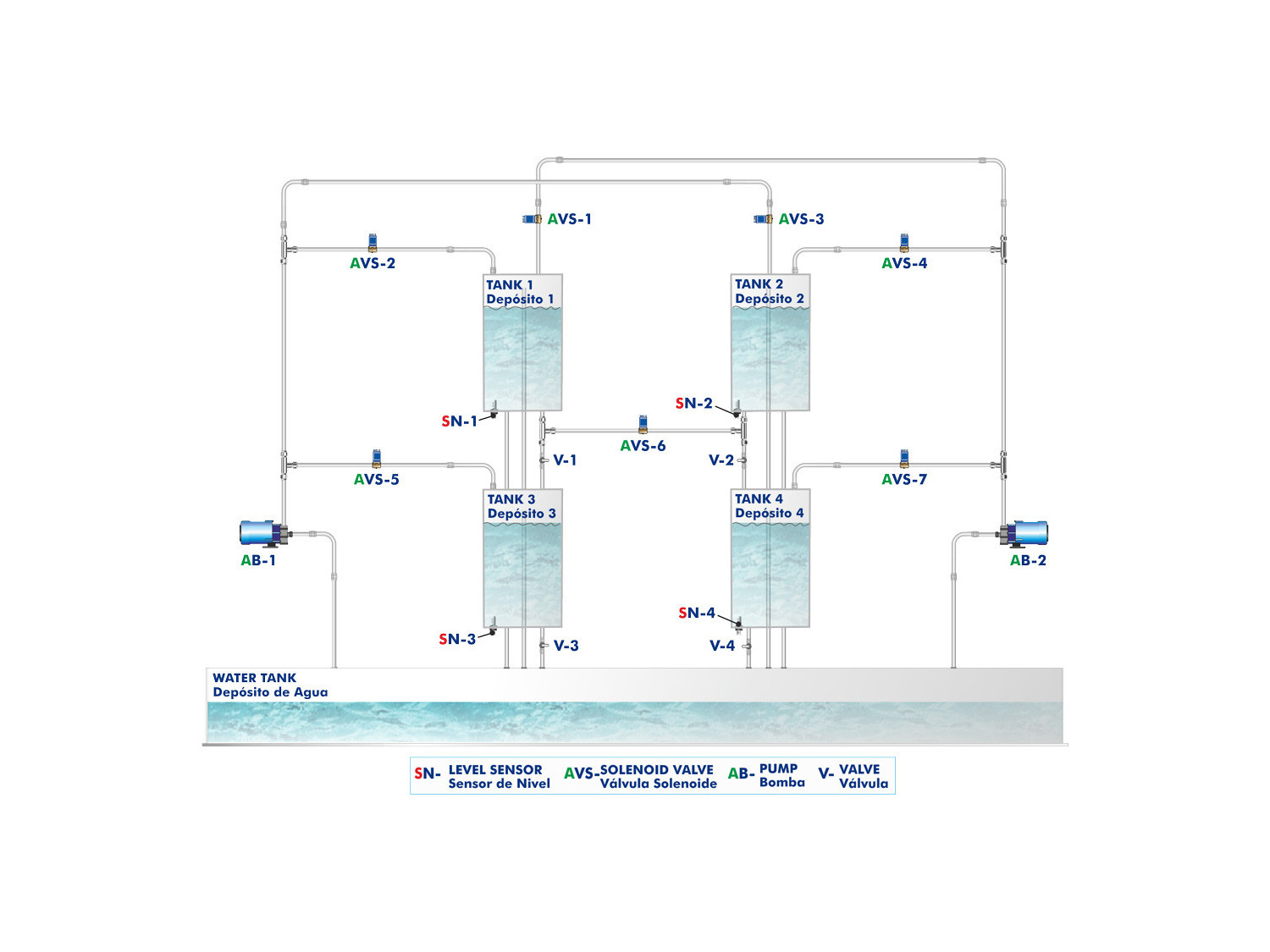

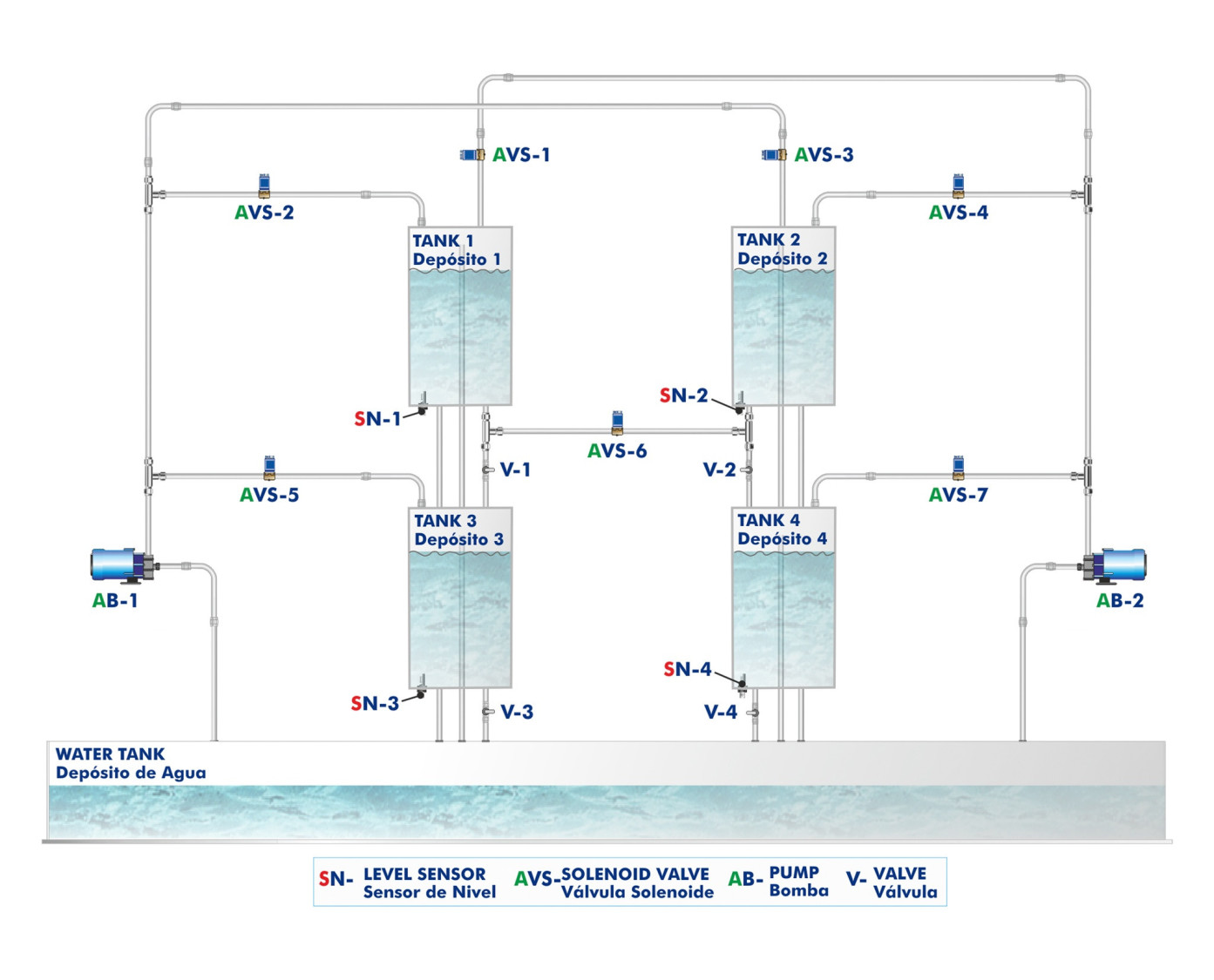

Process diagram and unit elements allocation

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

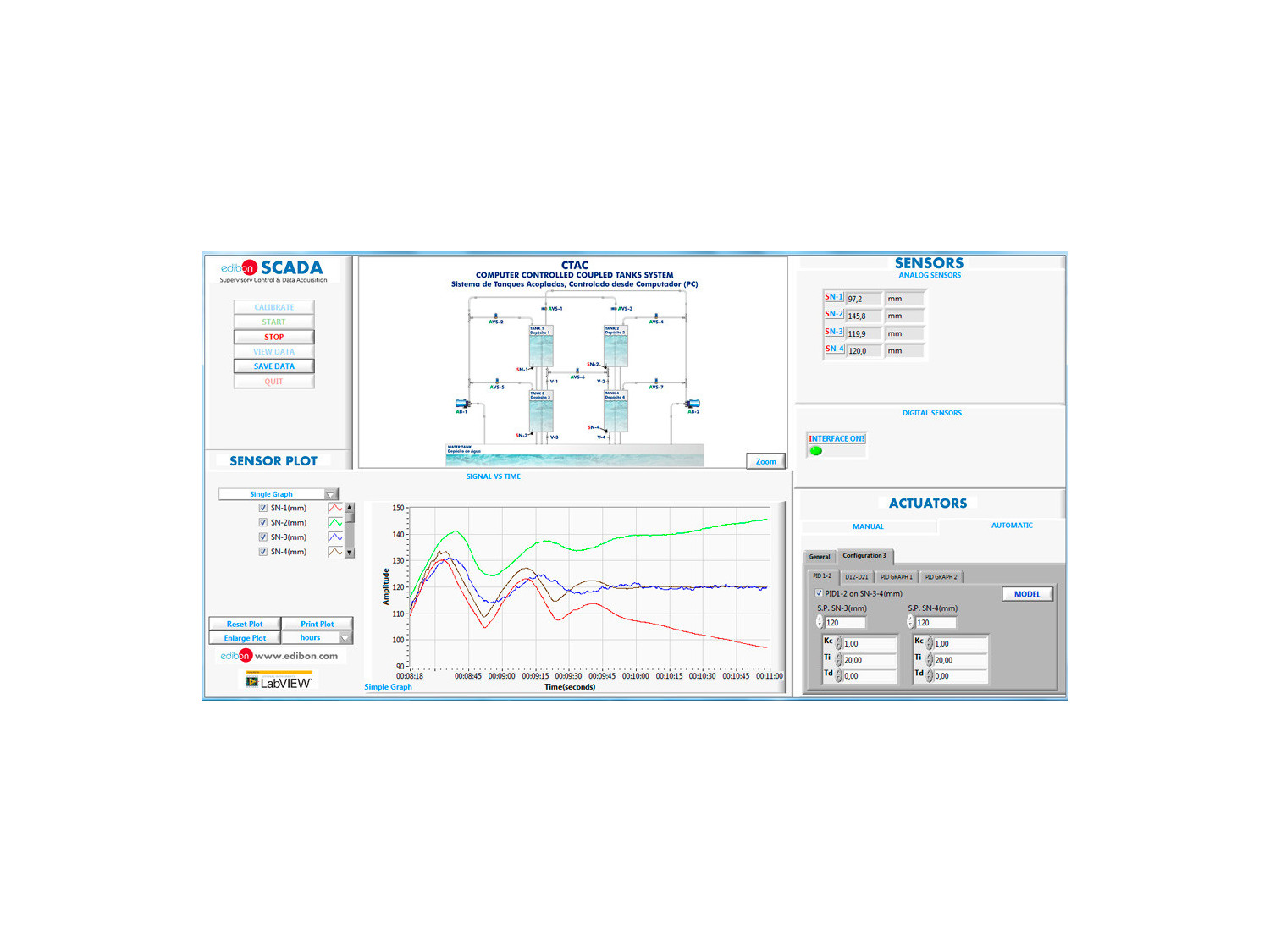

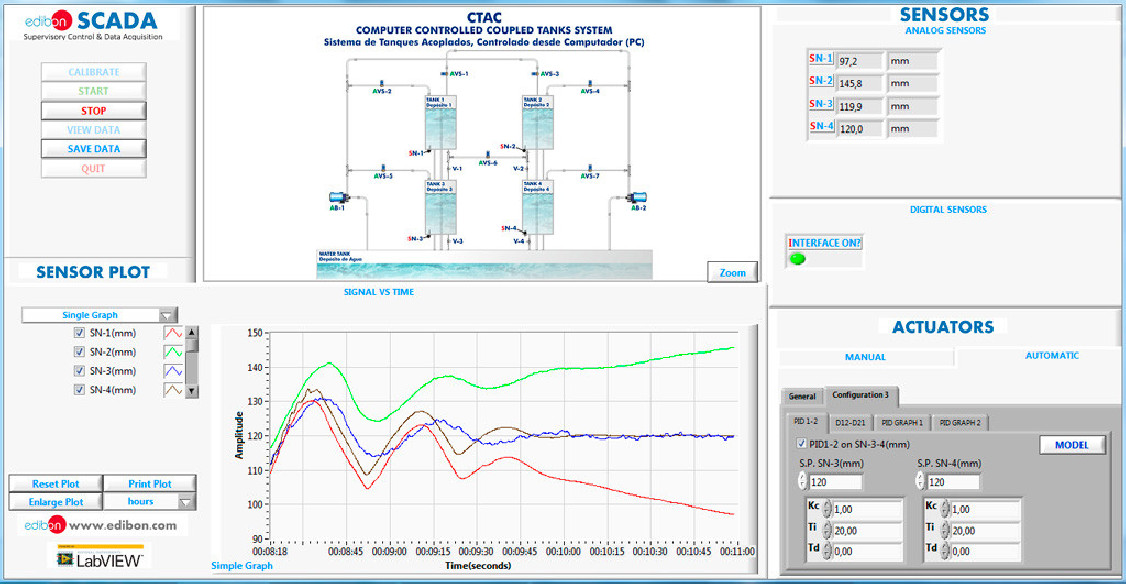

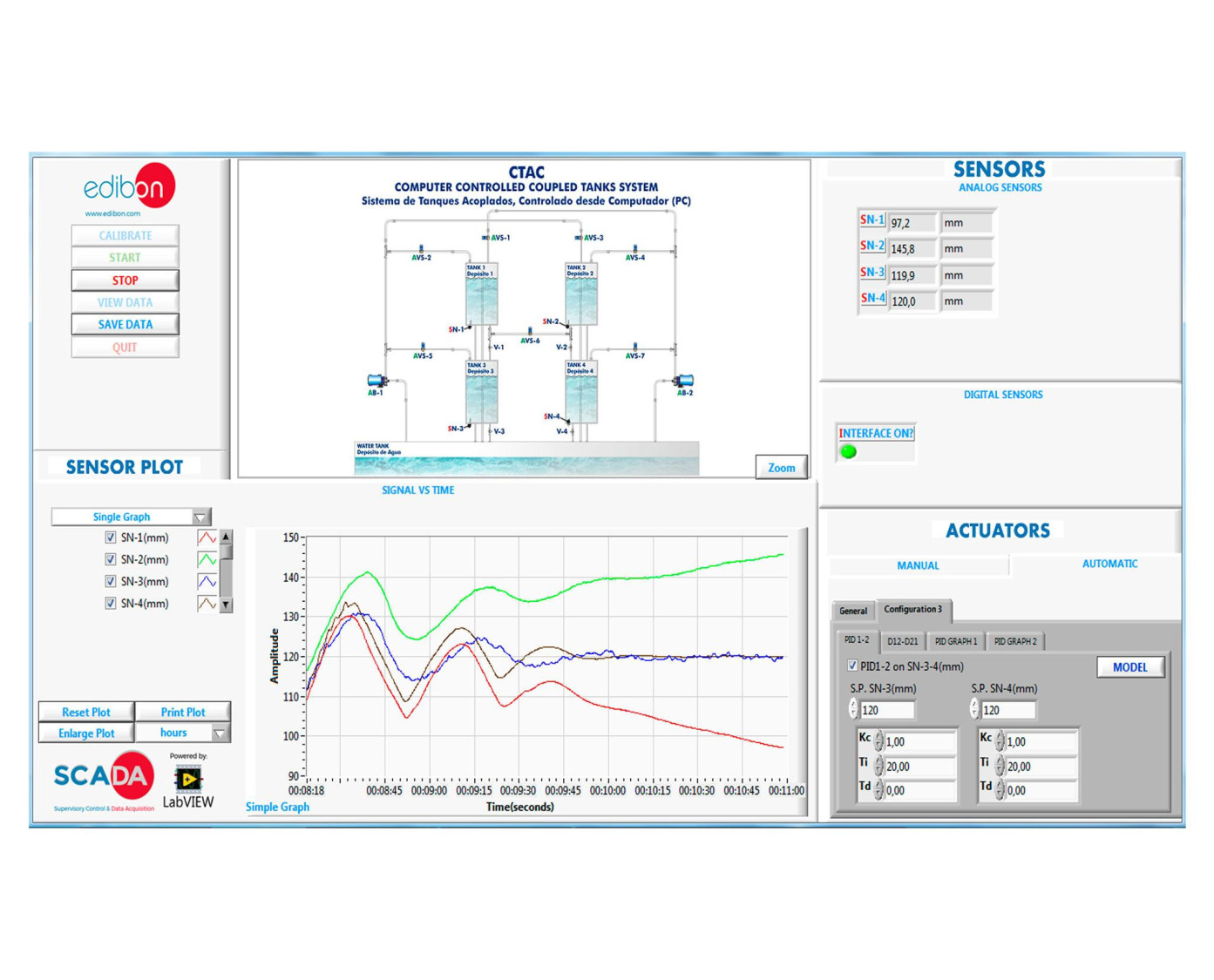

CTAC/SOF. CTAC Software. Main Screen

COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC
COMPUTER CONTROLLED COUPLED TANKS SYSTEM - CTAC

SYSTEMES INNOVANTS

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
EMAK

Kit Matlab d'EDIBON
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

6TV
 Laboratoire de Mécatronique et d'automatisation pour l'enseignement Technique et Professionnel
6HE
 Laboratoire de Mécatronique et d'automatisation pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Lire plus

Description Générale

The Computer Controlled Coupled Tanks System, "CTAC", consists of four transparent tanks, each with a pressure sensor to measure the water level.

The coupling configuration between tanks can be modified by the use of computer controlled solenoid valves.

Two independently computer controlled pumps drive the water from the bottom to the tanks and, depending on how the valves are configured, from one tank to another.

Besides, the outlet of each tank includes a manual valve to introduce non measurable perturbations in the system.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of nonlinear systems.
  2. Determination of the linear model of a tank: linearization.
  3. Determination of the linear model of a system with two coupled tanks.
  4. Study of the structure of a PID controller.
  5. PID control of the water level in a tank.
  6. Simultaneous control of the water level in a system formed by two tanks.
  7. Identification of systems.
  8. Study of different tanks coupling configurations.
  9. Study of the influence of some tanks on others in a four tanks system.
  10. Study of decouplers.
  11. Disturbance rejection.
  12. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the CTAC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the CTAC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
