PIPES, VALVES AND FITTINGS ASSEMBLY UNIT - PVFA

SYSTEMES INNOVANTS

The Pipes, Valves and Fittings Assembly Unit, "PVFA", designed by EDIBON, consists of a solid and rigid U-shaped frame where a series of real pipes and fittings are mounted to form a complete hydraulic system.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Setting up at Southern University Shreveport Louisiana (SUSLA)
Setting up at Southern University Shreveport Louisiana (SUSLA)
We present the installation that we have recently carried out in Southern University Shreveport Louisiana (SUSLA) in Baton Rouge.
Lire plus
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

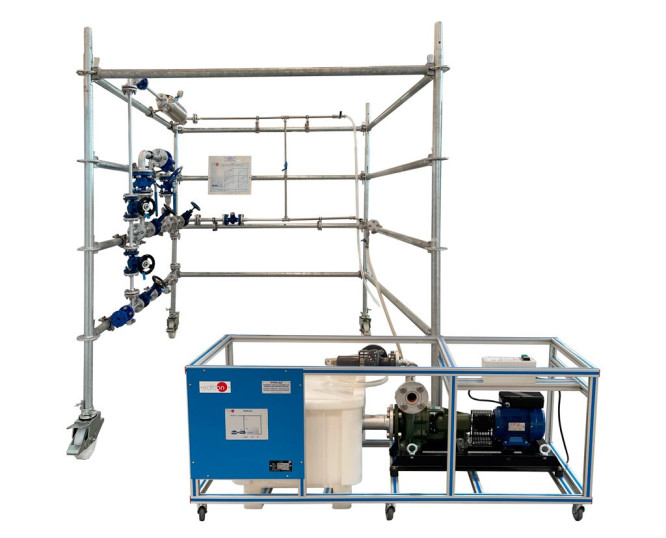

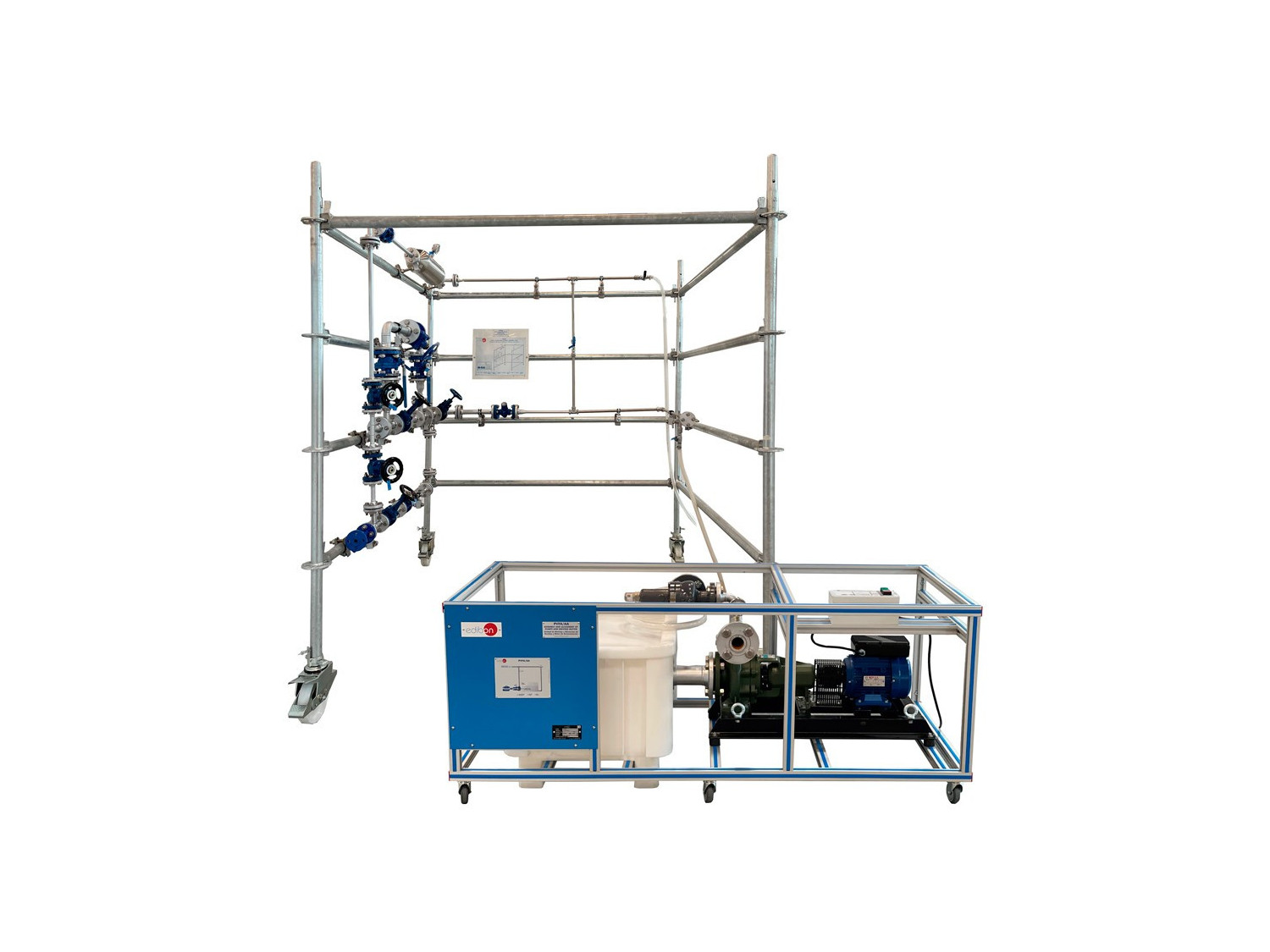

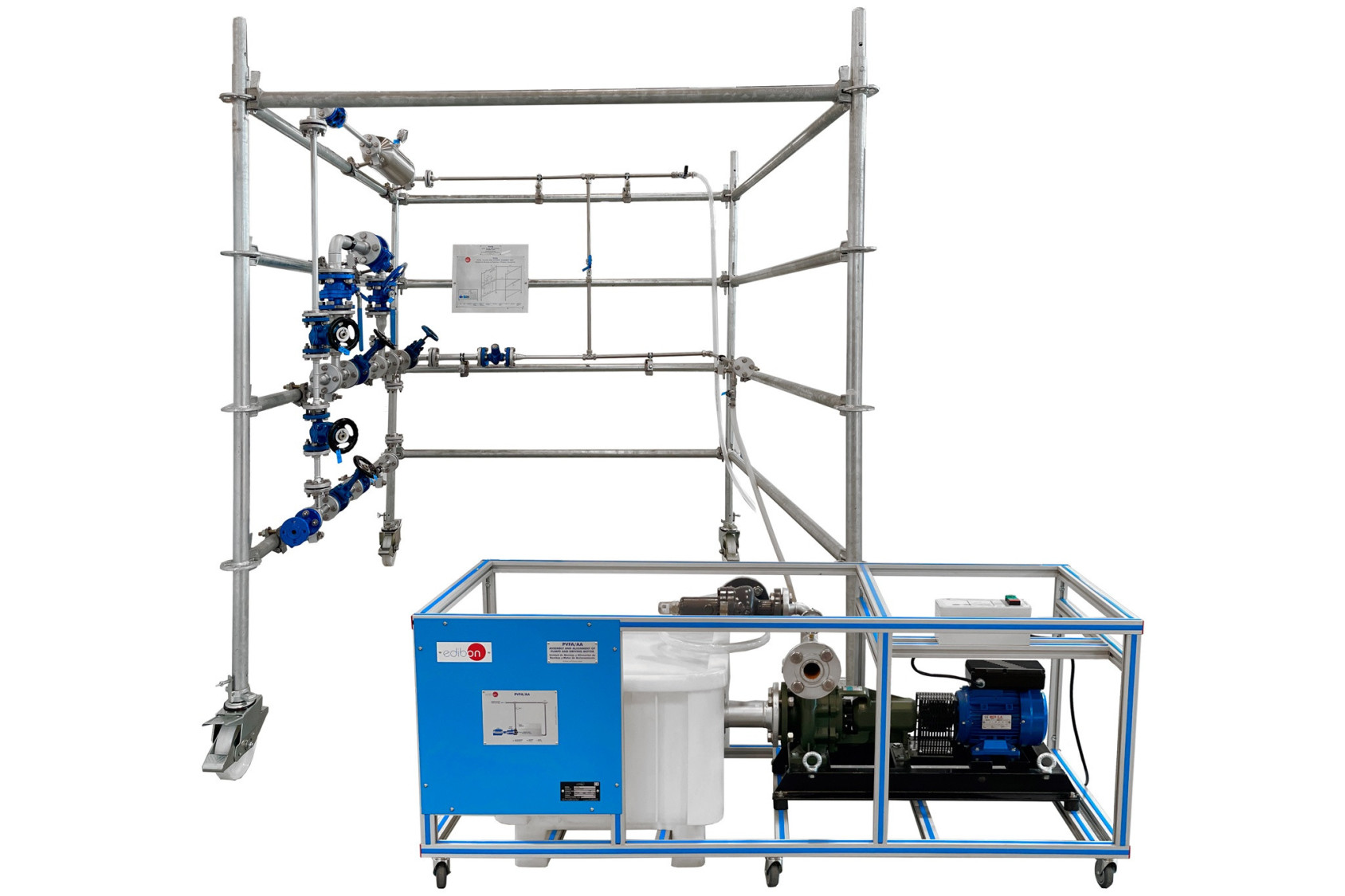

The Pipes, Valves and Fittings Assembly Unit, "PVFA", designed by EDIBON, consists of a solid and rigid U-shaped frame where a series of real pipes and fittings are mounted to form a complete hydraulic system.

A filter, a sight glass and a pressure vessel, as well as a technical description of all the components, useful to design and size the installation, are included together with a great amount of different valves.

All the elements include connection flanges that allow for working in group to easily mount and dismount each accessory repeatedly.

After mounting the system, it can be tested with the water supplied by a portable Unit for Assembly and Alignment of Pumps and Driving Motor, "PVFA/AA". It is equipped with a centrifugal pump driven by an electric motor, an additional tank and a manometer to measure the water pressure at its outlet. Apart from supplying water, the portable unit will enable the user to practice with the aligning and starting process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Principles and main elements of a hydraulic system.
  2. Construction and operation of fittings and valves, pipes and system accessories.
  3. Design of diagrams and planning of installations according to requirements.
  4. Selection of elements and material required for the assembly.
  5. Assembly of the installation in accordance to the diagram.
  6. Understanding and interpretation of industrial diagrams and associated technical documentation.
  7. Start up and operation of the constructed system (required PVFA/AA accessory).
