M99-6 Unité d'Électronique des Moteurs et Générateurs

2.3.1.- CONCEPTS DE BASE DES LOIS ÉLECTRIQUE
ELECTRONICS FOR MOTORS AND GENERATORS UNIT - M99-6

SYSTEMES INNOVANTS

With the Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, the student is allowed to learn the most important concepts related to motors and generators and the differences between them.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

Laboratories

2TV
 Laboratoire d'électronique pour l'enseignement Technique et Professionnel
2HE
 Laboratoire d'électronique pour l'enseignement Supérieur
11PTC
 Laboratoire pour le Centre de Formation Pétrolière

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Lire plus

Description Générale

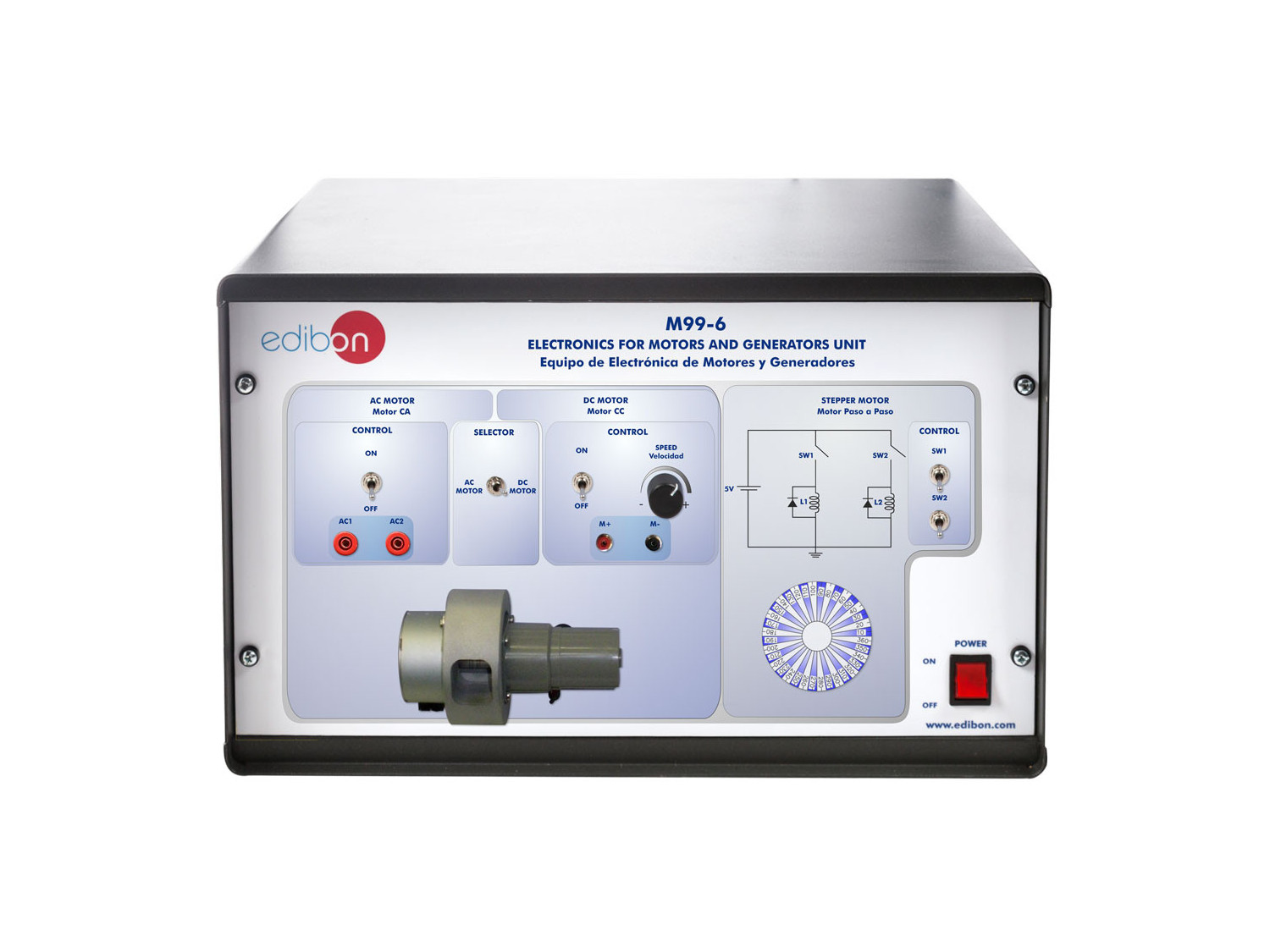

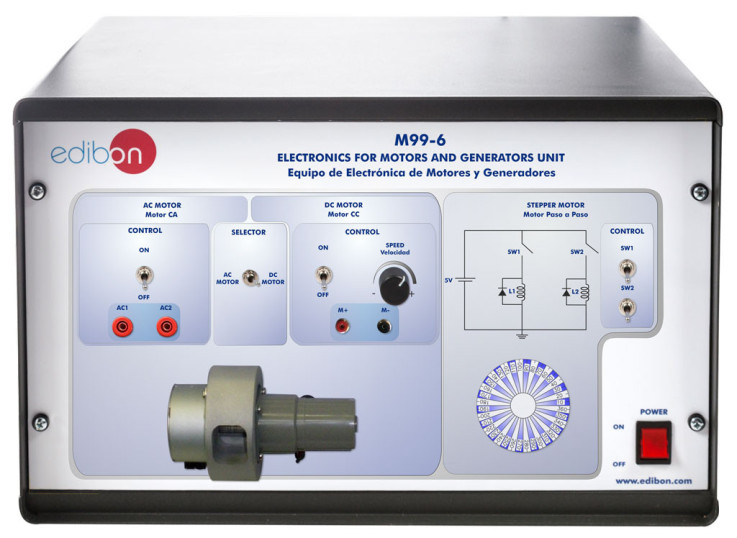

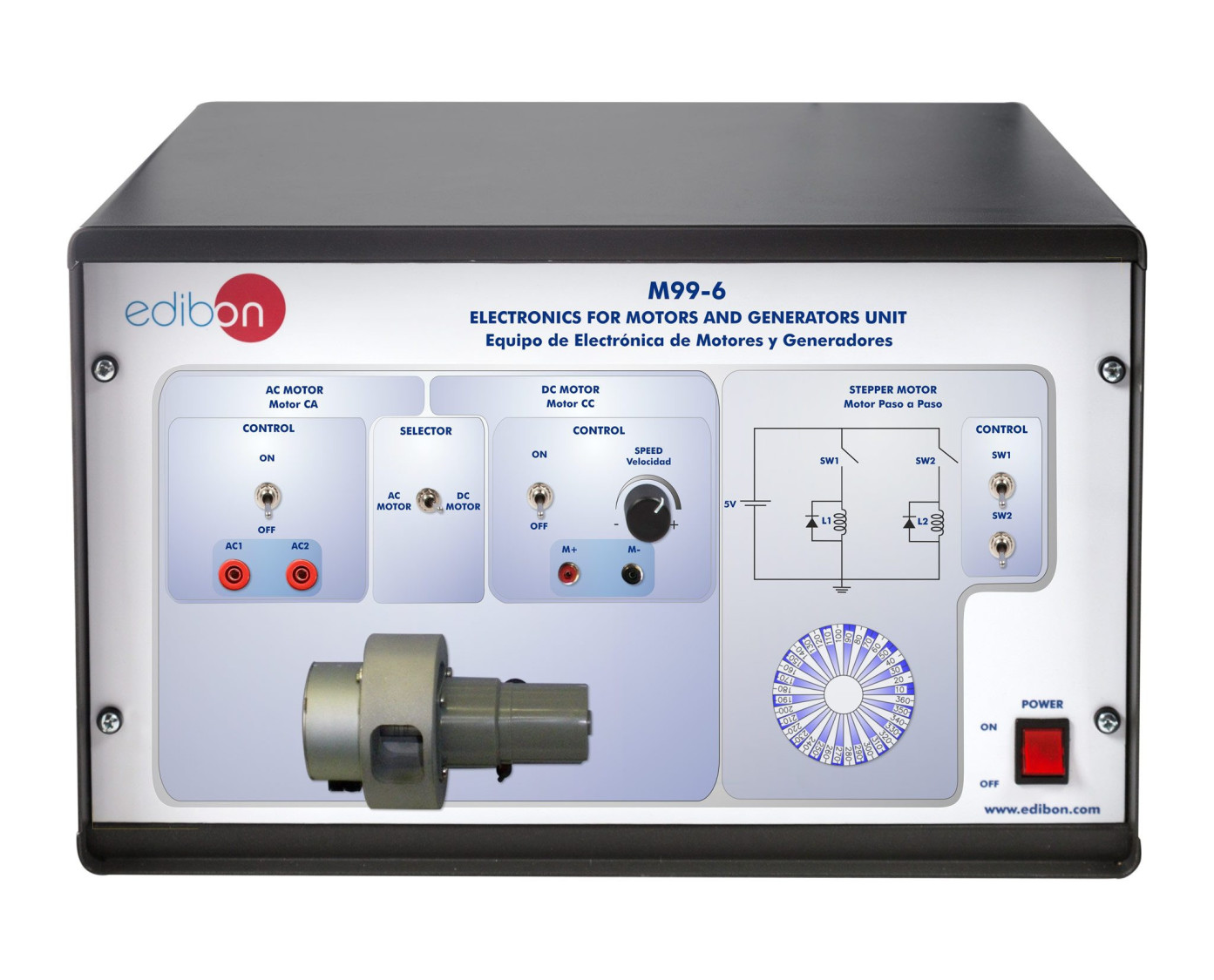

The Electronics for Motors and Generators Unit, "M99-6", designed by EDIBON, enables to carry out different practices related with motors and generators. The unit has different different types of motors: DC motor, AC motor and stepper motor.

The "M99-6" unit mainly consists of:

  • DC Motor. Includes a potentiometer to control the speed of the motor. There is a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "M+" and "M-" terminals.
  • AC Motor. Includes a switch to enable the motor to run. The voltage internally applied to the motor or generated can be observe using the "AC1" and "AC2" terminals.
  • Stepper Motor. Includes two switches to control the rotation of the motor. To perform a rotation some determined steps must be carried out.

The unit is provided with a set of practices through which the user will understand how to work different electronics circuits.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. DC Motor.
  2. AC Motor.
  3. DC Generator.
  4. AC Generator.
  5. Stepper motor.
