SJBA Unité d'Étude d'Un Arbre Avec Montage de Paliers Lisses
SYSTEMES INNOVANTS
The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", enables the study of practical assembly and disassembly, maintenance and repair tasks of a simple slide bearing, so that the student will know perfectly both the unit operation and all of its components.
Expansions
NOUVELLES LIÉES
Description Générale

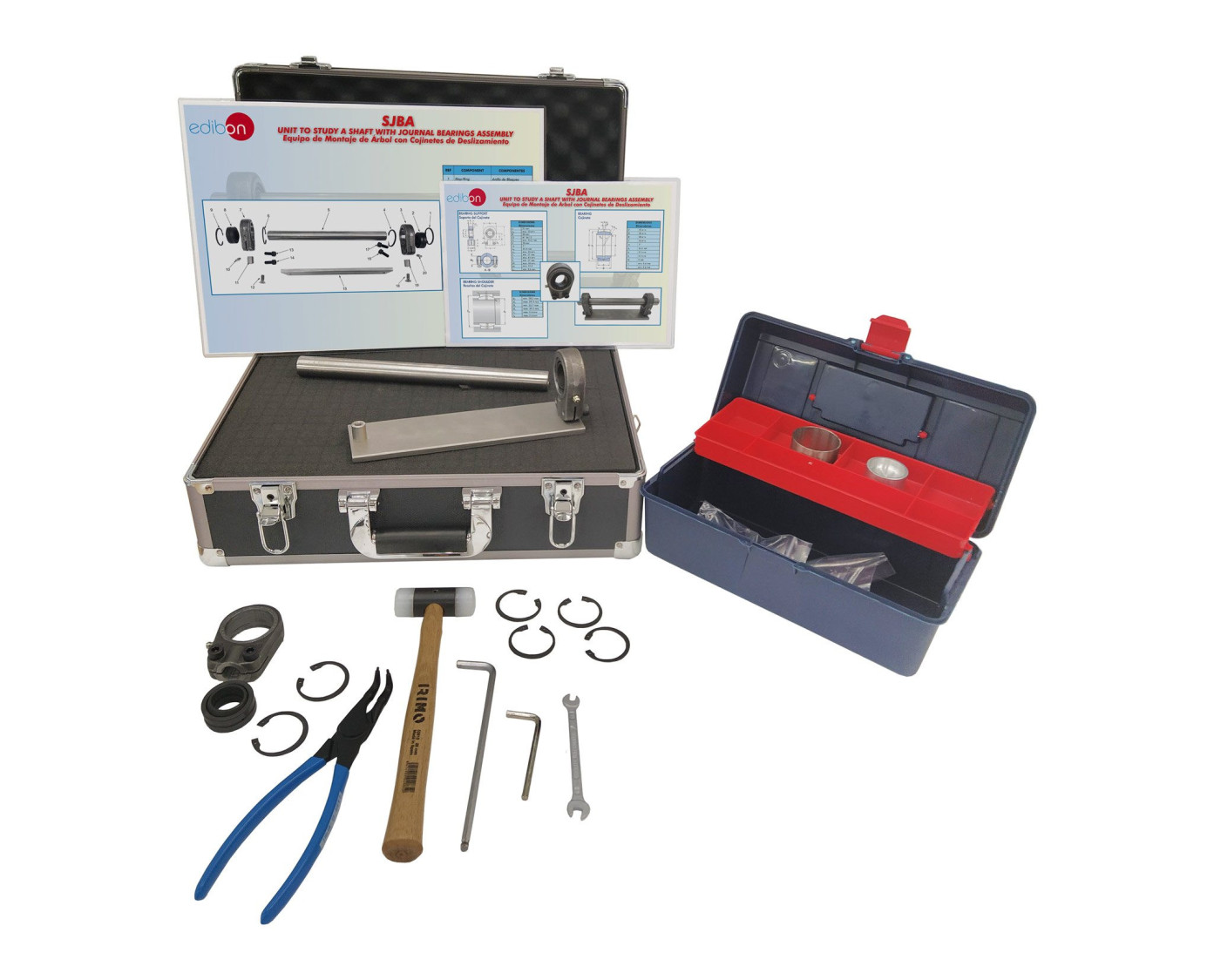

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit consists of two shaft bearings at the ends and a ground steel shaft. The slide bearing consists of two parts, the bearing itself, which is the part of the assembly that is in contact with the shaft, and the support that surrounds it.
The study of bearings is intimately linked to the study of the lubricant film that is placed between the moving parts. An easy construction of the bearings is possible thanks to the lubrication. This lubrication can be provided, for example, by a grease that is supplied to the bearing through the Stauffer bushing that is screwed into a lubrication channel.

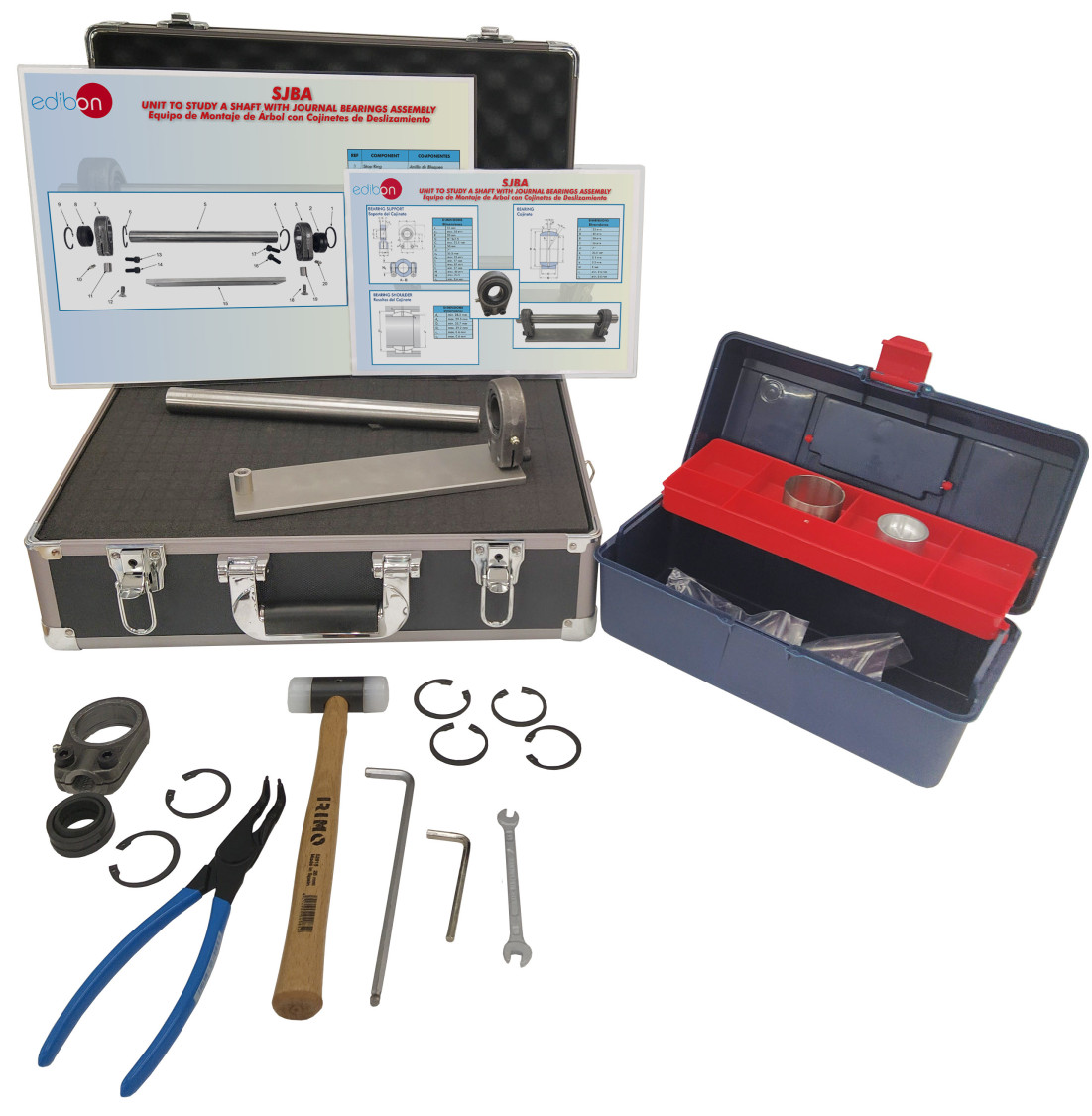

The Unit to Study a Shaft with Journal Bearings Assembly, "SJBA", unit is a mechanism with two bearings and a dismountable ground steel shaft, with which dimensional and exploded drawings are enclosed for identification of its parts. In addition, the necessary tools and a series of instructions for the correct assembly and disassembly of the unit are supplied.
A case is provided to facilitate transportation and to ensure the protection of components needed.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Study of the operation of a simple slide bearing.
- Analysis of the structure of a simple slide bearing.
- Study and understanding of the sealing components.
- Study and analysis of the principles and different types of lubrication.
- Study and performance of assembly and disassembly exercises, as well as repair and maintenance.
- Reading comprehension of technical drawings and instruction manuals.
PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT
- Study and analysis of the sliding qualities of the slide bearing (requires ADSG).
EQUIPEMENT COMPLEMENTAIRE
7.4.2.- MODÈLES DÉTACHABLES
HJBA
L’Unité d’Étude de Roulement à Glissière Hydrodynamique, "HJBA", est un palier hydrodynamique à section horizontale. Pour un transfert uniforme des forces générées vers la partie inférieure du corps de palier, les paliers dans ledit corps sont...
7.4.2.- MODÈLES DÉTACHABLES
SGA
Unité d'assemblage d'Engrenages

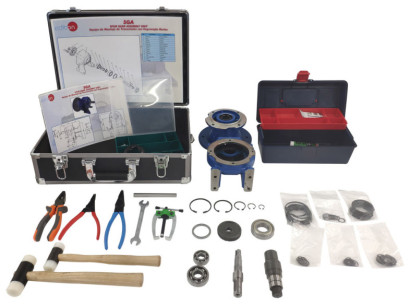

The Spur Gear Assembly Unit, "SGA", consists of a spur gear with spiral gearing. The gear consists of a single reduction stage and a fixed transmission ratio. It is a gear unit composed of: driving and driven shafts, drive wheel and pinion,...
7.4.2.- MODÈLES DÉTACHABLES
CGA
Unité d'Assemblage d'Engrenages Combinés
A combined gear is a two or more stage gear with different types of gears. Combined gears play an important role in all kinds of industrial machines. Some of the most noteworthy applications are, for example, in elevators, car industry, transport...
