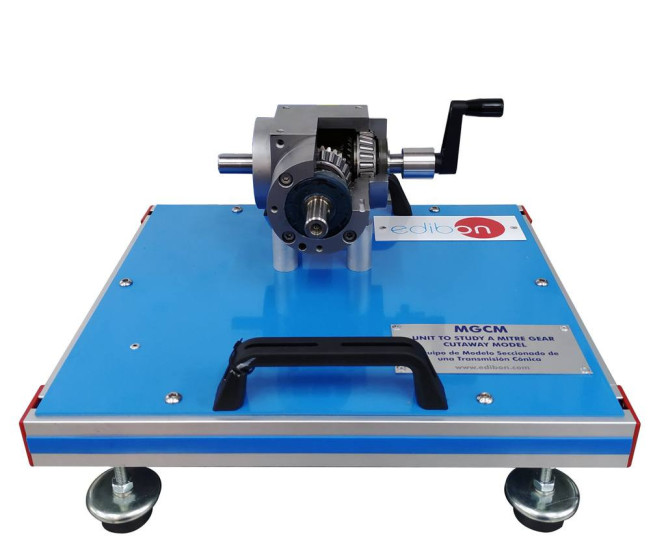

MGCM Unité d'étude d'un Modèle en Coupe à Engrenages à Onglets

7.4.1.- MODÈLES EN COUPE

UNIT TO STUDY A MITRE GEAR CUTAWAY MODEL - MGCM

SYSTEMES INNOVANTS

The Unit to Study a Mitre Gear Cutaway Model, designed by EDIBON, allows for the study of this type of transmission, which uses bevel gears to transmit motion between intersecting shafts, typically at a right angle.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

MSAC

Système Modulaire d'Acquisition et de Contrôle

NOUVELLES LIÉES

Description Générale

The Unit to Study a Mitre Gear Cutaway Model provides a detailed study of this transmission system, composed of two conical cogwheels, designed to transmit motion between two intersecting shafts, usually positioned at a right angle.

Due to their ability to change the direction of rotation and adjust torque transmission efficiently, mitre gear transmissions are widely used in automotive differentials, industrial machinery, and mechanical power transmission systems, where precise and stable motion control is required.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Identify the components of a mitre gear transmission.
Study of the operation of a mitre gear transmission.
Fault analysis and maintenance of a mitre gear transmission.
