MFPG Unité d'Étude de Forces en Grues Fixes

7.1.6.- MÉCANIQUE DES STRUCTURES 14.1.6.- MÉCANIQUE DES STRUCTURES
UNIT FOR STUDYING FORCES IN A JIB CRANE - MFPG

SYSTEMES INNOVANTS

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Setting up at South Mountain Community College (MARICOPA)
Setting up at South Mountain Community College (MARICOPA)
We have moved to the engineering lab of South Mountain Community College (MARICOPA) to install some of our units. With these new units, we hope that students in the engineering lab can learn the concepts in a practical way.
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.

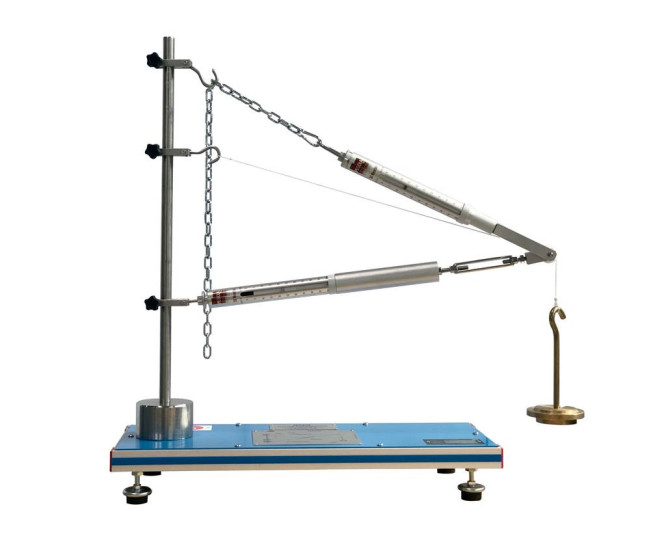

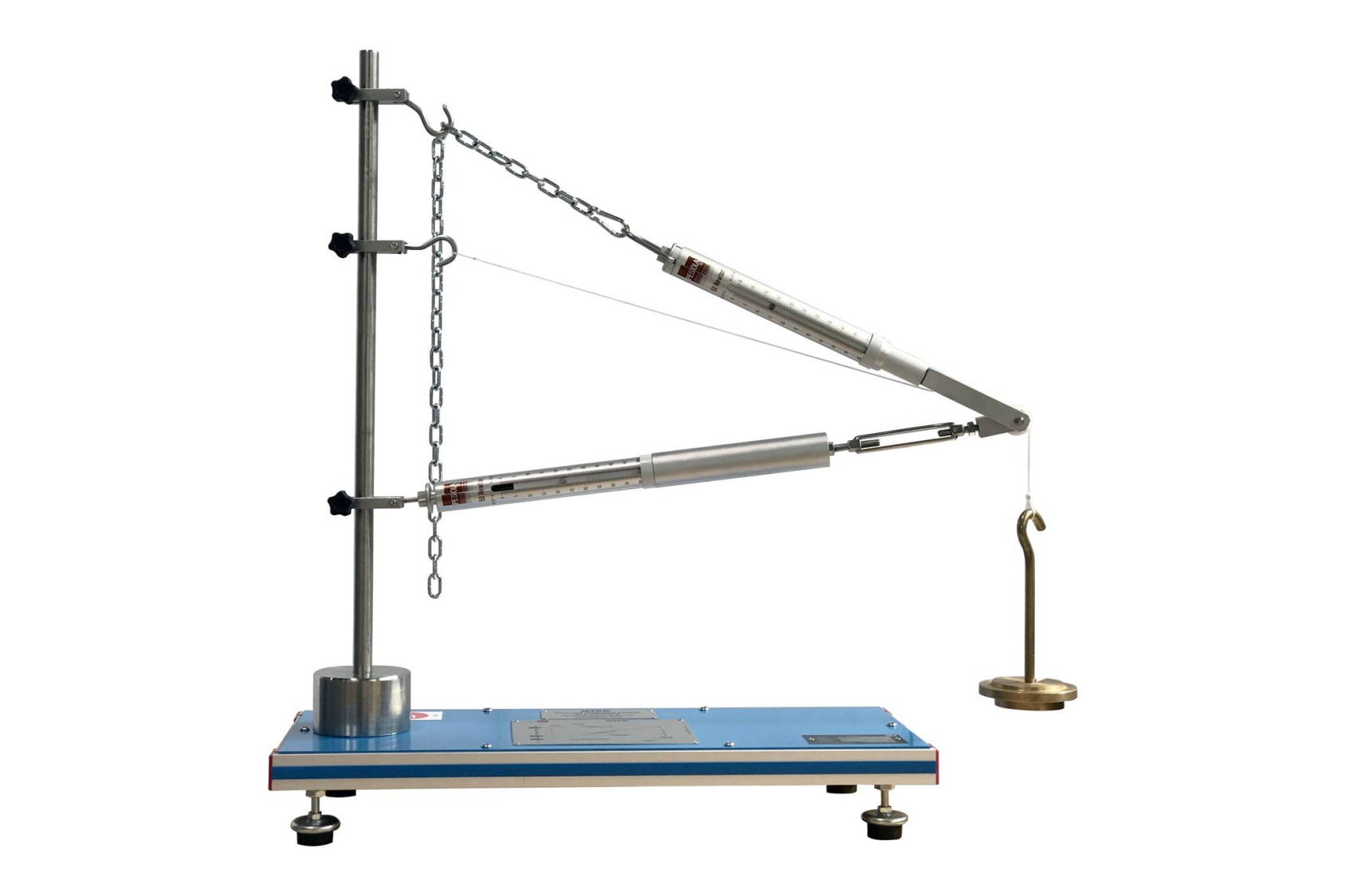

The unit represents a planar central force system in which multiple forces act on a single point of application. It consists of an adjustable length bar and a chain, which make the jib of the crane. This jib is attached to a vertical member (support bar) by adjustable clamp elements.

A weight holder and a set of weights apply loads to the jib of the crane.

The force of the bars is measured with two spring balances installed on the adjustable length bar and the chain (elements that represent the jib).

Based on the example of a crane jib, forces are determined experimentally, theoretically and graphically: cable force, tensile force and compressive force. The magnitudes and directions of the forces are graphically determined with a force parallelogram.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the force parallelogram.
  2. Graphical breakdown of forces by force parallelogram.
  3. Determination of the bar forces on various jib forms: cable force, tensile force and compressive force.
  4. Comparison of results obtained in the practical exercises, the theoretical values and the values obtained from the graphical method with the force parallelogram.
  5. Comprehension of the action of the crane cable forces on the jib and the effect of the jib inclination.
