MEVLB Unité d'Étude de Vibration Libre en Barres

7.1.4.- VIBRATIONS ET OSCILLATIONS 14.1.4.- VIBRATIONS ET OSCILLATIONS

SYSTEMES INNOVANTS

The Unit for Studying Free Vibration of a Bar,"MEVLB", allows to study the features of the free vibrations of a bending bar.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

MSAC

Système Modulaire d'Acquisition et de Contrôle

NOUVELLES LIÉES

Description Générale

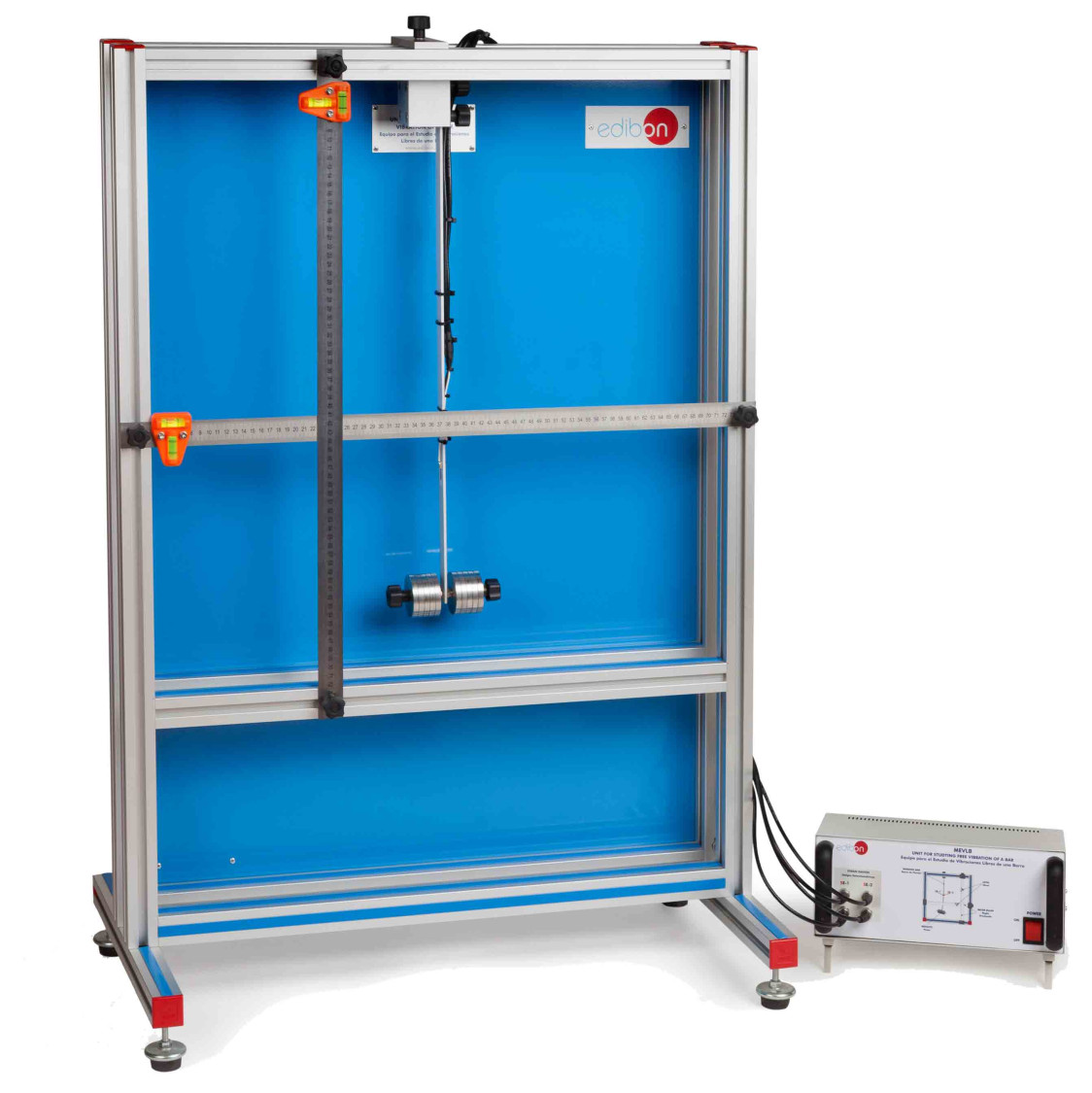

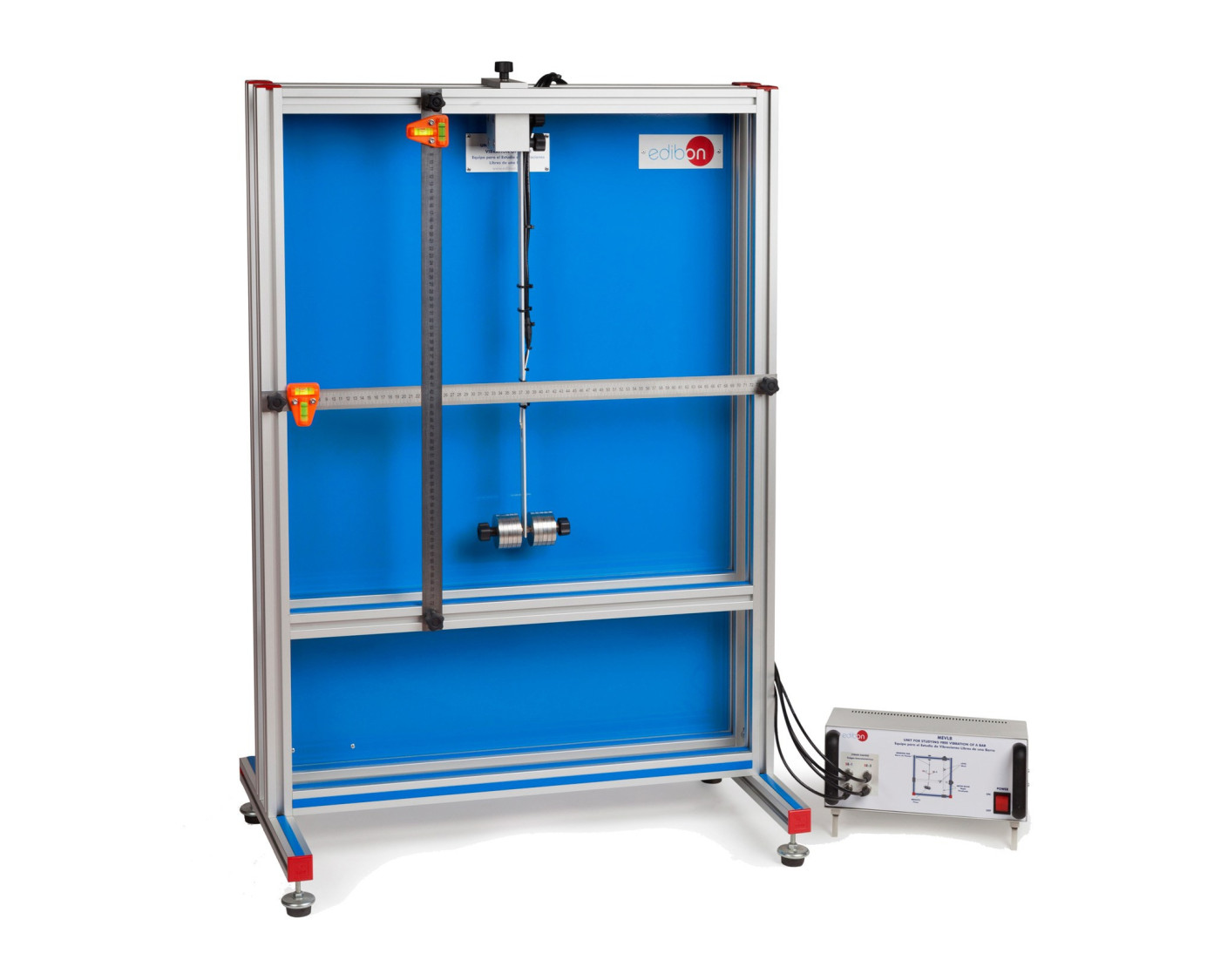

The Unit for Studying Free Vibration of a Bar,"MEVLB", allows to study the features of the free vibrations of a bending bar.

The natural frequency of the bending bar can be modified adding additional loads at the free end of a bar or varying the free clamping length.

The bar is manually deviated to start damped vibrations. The oscillation amplitudes can be measured with the strain gauges. The initial amplitude and free length of the bar are measured with two metering rules.

The bending bar can be mounted horizontally or vertically in any side of the frame.

The unit includes software for data acquisition and to study the oscillation motion, allowing the plotting of the oscillations and the obtaining of the main parameters that define them.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Study of free vibration of a horizontal bending bar.
Study of free vibration of a vertical bending bar.
Determination of natural frequencies of a bending bar according to Rayleigh's method and comparison with the experiment.
Study of the influence of weight on natural frequencies and other parameters of oscillation.
Study of the influence of clamping length on natural frequencies and other parameters of oscillation.

EQUIPEMENT COMPLEMENTAIRE

COMPUTER CONTROLLED TORSIONAL VIBRATION UNIT - MEVTC

MEVTC

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MEVTC

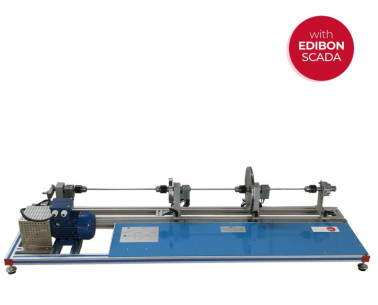

Unité pour Étude de Vibrations Torsionnelles, Contrôlée par Ordinateur (PC)

The Computer Controlled Torsional Vibration Unit, "MEVTC" is designed to study torsion suffered by some shafts with rotation motion, apart from studying the torsional rigidity and the behavior of a torsional vibration system with one, two or three...

MVRE

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MVRE

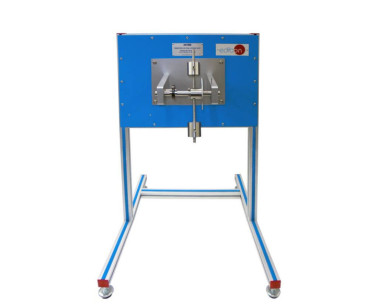

Unité de Vibration de Ressorts Hélicoïdaux

The Vibration of Coil Spring Unit, "MVRE", unit has been designed to study and understand a coil torsion spring, a mass-spring system and the fundamental properties of its characteristic periodic motion. In this sense, the unit consists of a rigid...

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MVL

Unité de Vibrations Libres

The Free Vibration Unit, "MVL", has been developed to cover a range of demonstrations and experiments which provide the user with an understanding of the free vibrations of a simple spring-mass-damper system. Simple adjustments can be made to the...

MVLF

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MVLF

Unité de Vibrations Libres et Forcées

The Free and Forced Vibration Unit, "MVLF", has been developed to cover a range of demonstrations and experiments which provide the user with an understanding of the free and forced vibrations of a simple spring-mass-damper system. Simple...

MSHU

Available

7.1.3.- STATIQUE ET DYNAMIQUE

MSHU

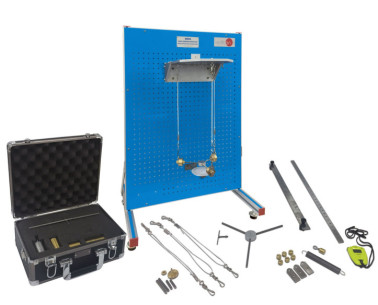

Unité de Mouvement Harmonique Simple

This Simple Harmonic Motion Unit, "MSHU", allows many experiments using several pendulums and devices, such as different types of pendulums (simple, bifilar, trifilar and Kater’s pendulum) and springs.Consists of a panel with a support that allows...

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MOT

Unité d'Oscillation de Torsion

The Torsional Oscillations Unit, "MOT", is intended for easy experiments. It enables to illustrate and investigate the torsional oscillation in single rotor, multi-rotor and geared systems. The unit basically consists of a rigid frame that have...

COMPUTER CONTROLLED CRITICAL SPEED INVESTIGATION UNIT - MVCC

MVCC

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MVCC

Unité pour l'Étude de la Vitesse Critique, Contrôlée par Ordinateur (PC)

Some phenomena that appear in mechanical systems, such as vibration, self-centering and resonance in rotary shafts, can be clearly demonstrated with the Computer Controlled Critical Speed Investigation Unit, "MVCC". The operation of the "MVCC"...

MEER

Available

7.1.4.- VIBRATIONS ET OSCILLATIONS

MEER

Unité d'Étude de Rotation d'Axes

The Whirling of Shafts Unit, "MEER", has been designed by EDIBON to demonstrate and determine different modes of oscillation and resonance of shafts with continuous distribution of mass under different conditions.The operation of the Whirling of...
