TSAC Unité de Climatisation avec Chambre Climatique, Contrôlé par Ordinateur (PC)

9.2.- CHAUFFAGE, VENTILATION, CLIMATISATION ET EAU CHAUDE
COMPUTER CONTROLLED AIR CONDITIONING UNIT WITH CLIMATIC CHAMBER - TSAC

SYSTEMES INNOVANTS

The objective of the Computer Controlled Air Conditioning Unit with Climatic Chamber, "TSAC", is to introduce the student into the complex field of air conditioning systems, as well as to study and determine the optimum parameters for the operation of the unit in function of the environmental demands (humidity, heat, temperature and refrigeration, etc.)

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

9TV
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Technique et Professionnel
9HE
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Supérieur

NOUVELLES LIÉES

La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique sont des domaines fondamentaux de l’ingénierie qui jouent un rôle crucial dans de nombreuses industries, de la production d’énergie à la climatisation. Comprendre leurs concepts de base est non seulement essentiel pour les ingénieurs, mais fournit...
Lire plus
EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Nous sommes ravis de célébrer la publication de l'article du Prof. Dr. Nina Penkova intitulé 'Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable'. L'étude explore comment les réfrigérateurs à absorption, qui utilisent l'énergie résiduelle ou solaire...
Lire plus
Setting up at Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU)
Setting up at Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU)
We had the opportunity to install some of our equipment in Al Imam Mohammad Ibn Saud Islamic University, Riyadh (IMAMU). Specifically, we installed our UCP, TSAC, FME20 and our FME00.
Lire plus

Description Générale

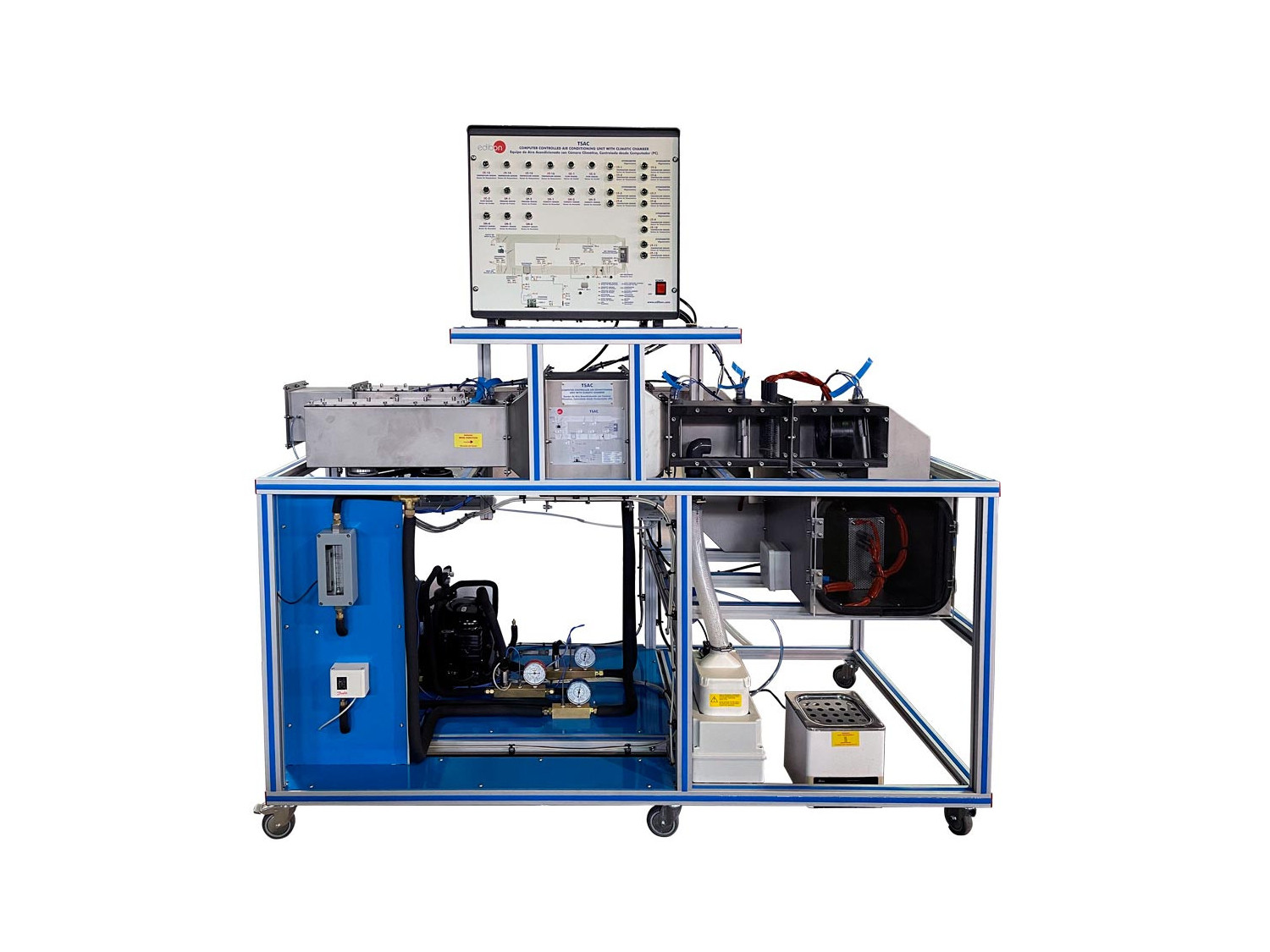

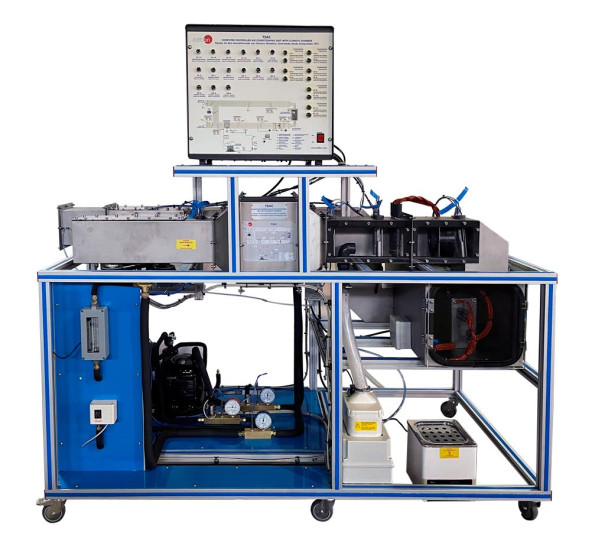

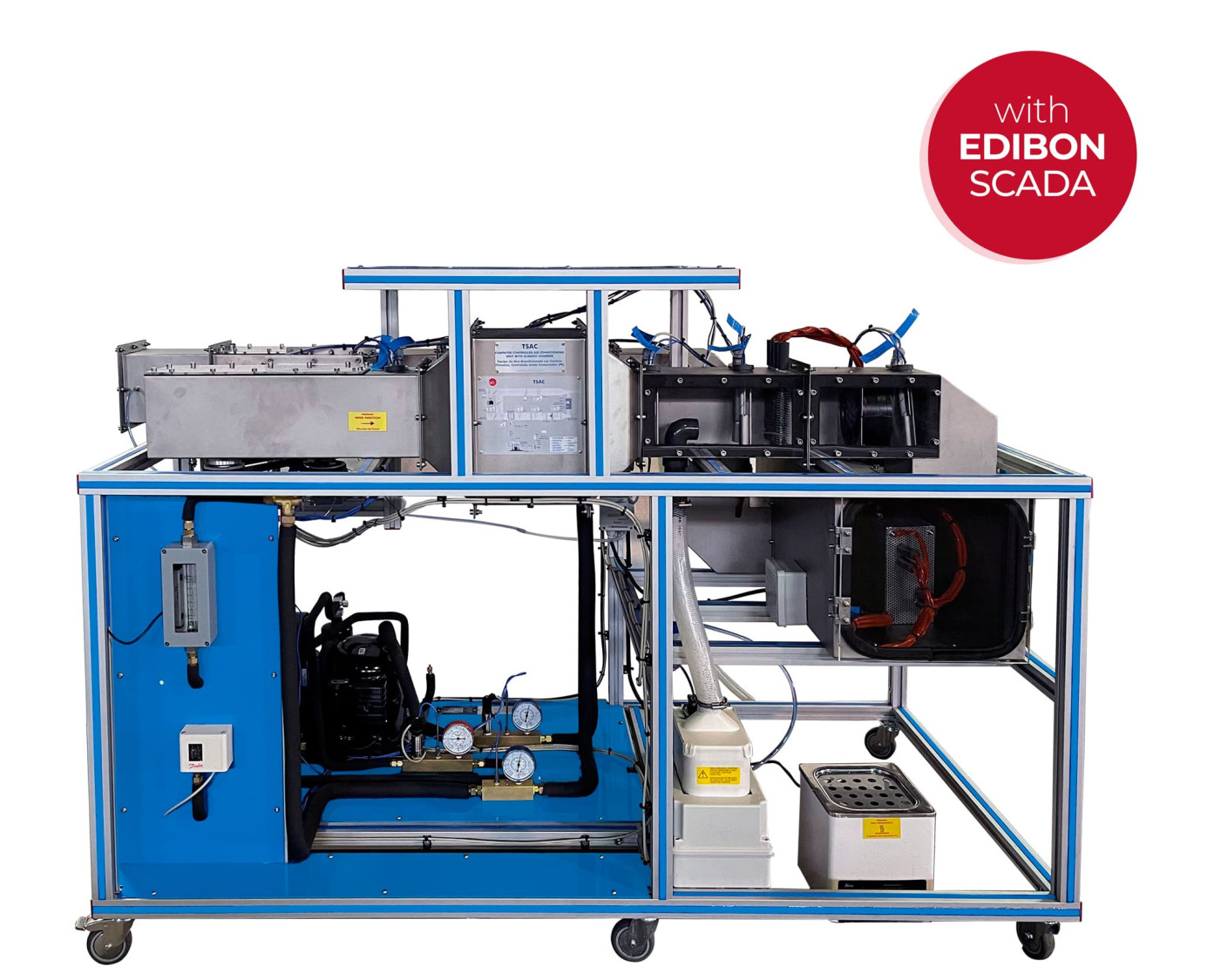

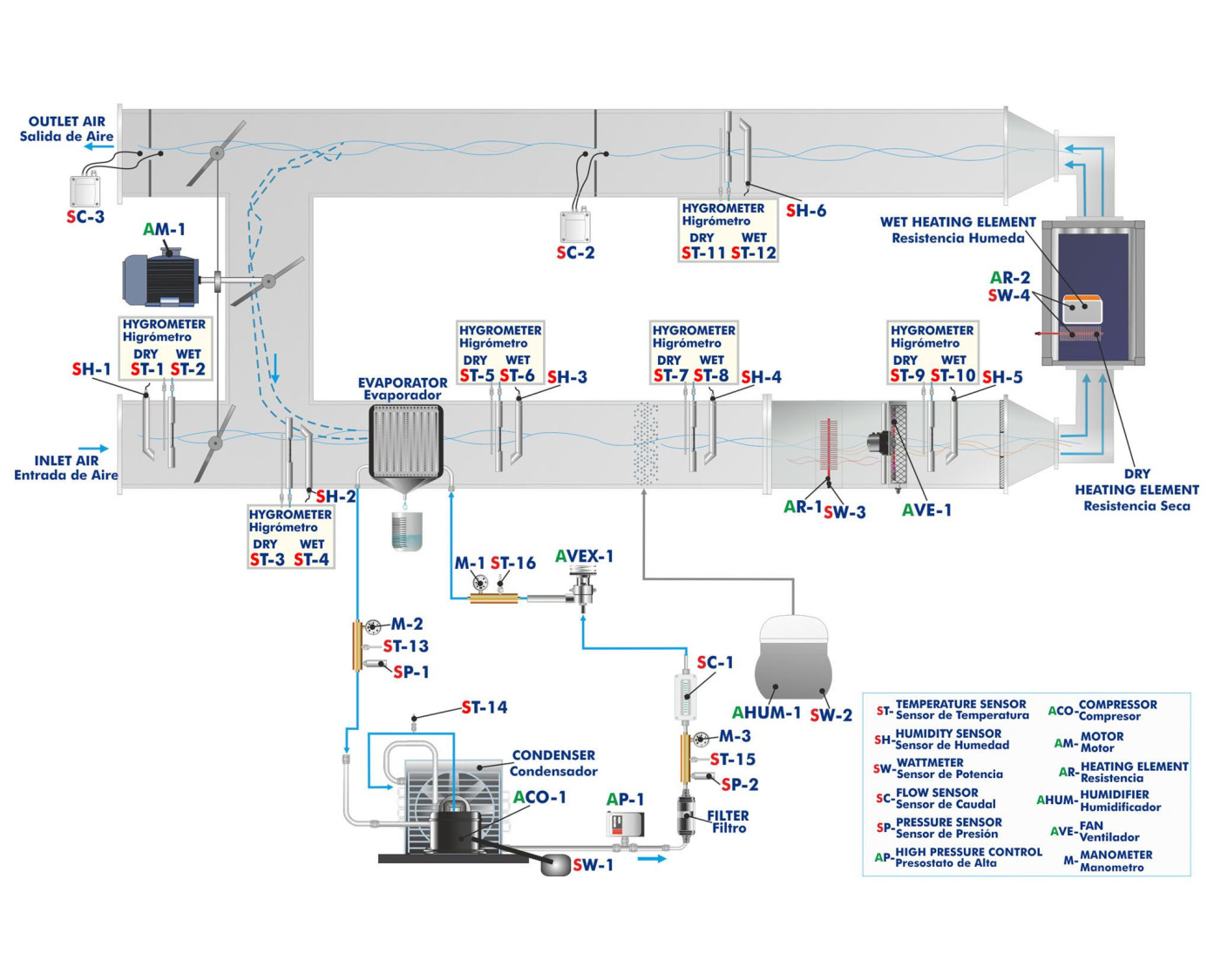

The Computer Controlled Air Conditioning Unit with Climatic Chamber, "TSAC", designed by EDIBON, is clearly arranged and represents a complete air conditioning system with an air duct and a climatic chamber.

The main components of the air conditioning system are the air cooler with condensing unit, fan, steam humidifier and air heater.

The air cooled condensing unit includes a compressor, condenser and expansion valve.

Three motorized ventilation flaps control the air distribution in the air conditioning system.

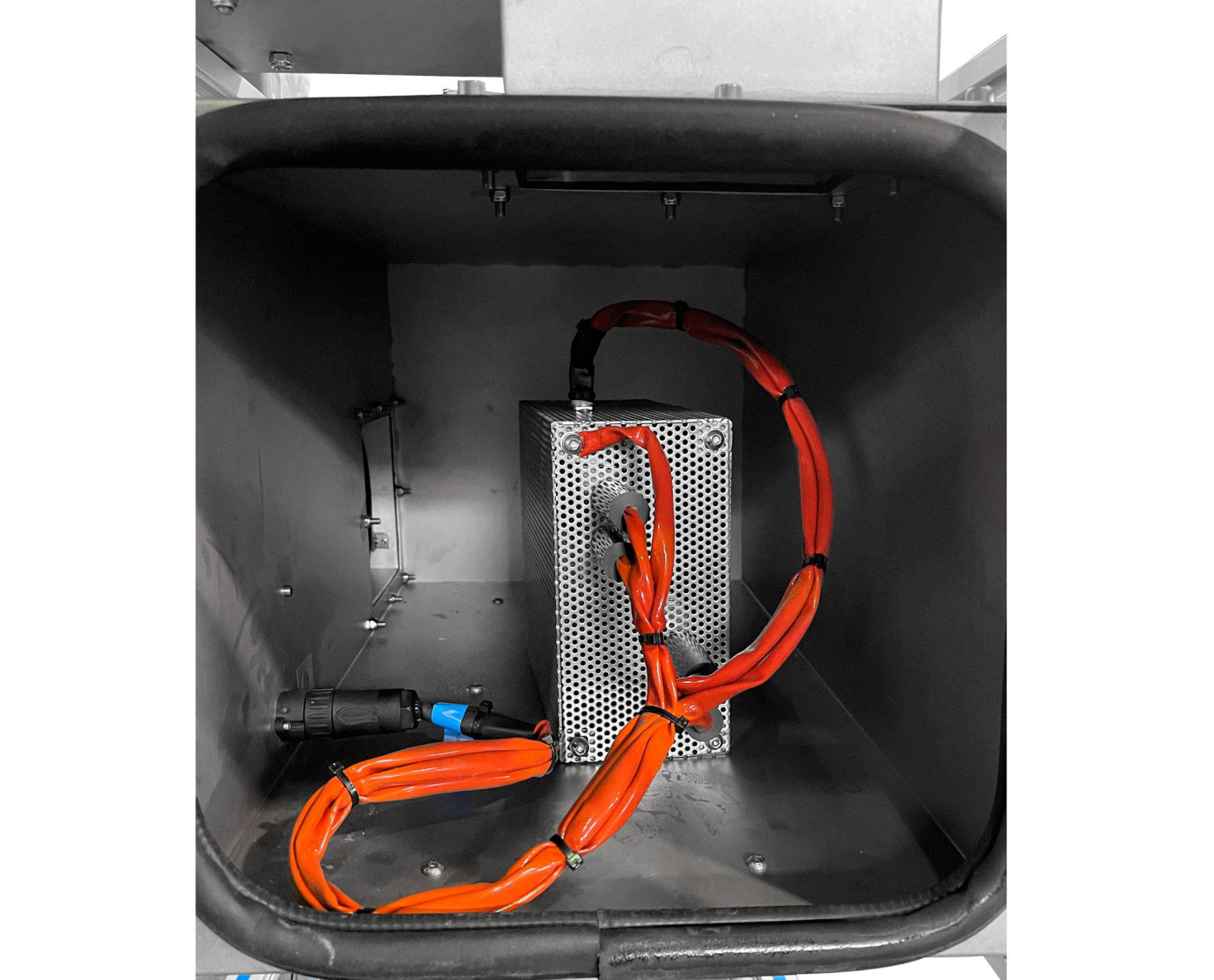

The climatic chamber is equipped with two different heat sources (wet and dry).

For the refrigeration circuit two manometers with integrated temperature scale and a flow meter provide all relevant measurements.

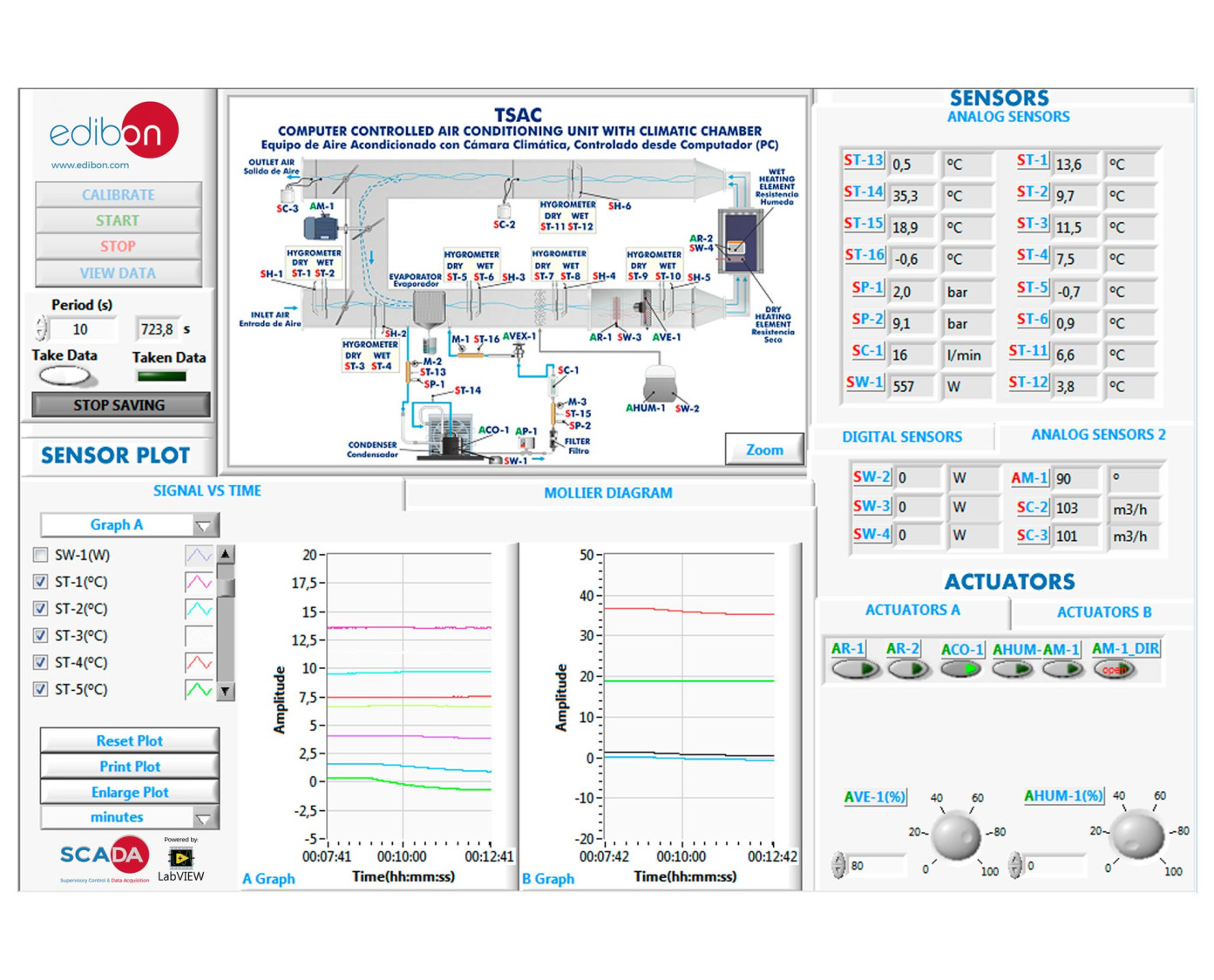

The SCADA software developed by EDIBON has a data acquisition system and a climatic controller that enables the automation of the air conditioning system, offering great teaching advantages. The software regulates the components, so the temperature and humidity preset by the user are reached inside the climatic chamber. Besides, the software of the "TSAC" unit allows versus time:

The recording, analysis and representation of all the measured values.

The representation in the psychrometric chart of the obtained humidity values.

The selection of the periods of use of the air conditioning system for each day in a time program.

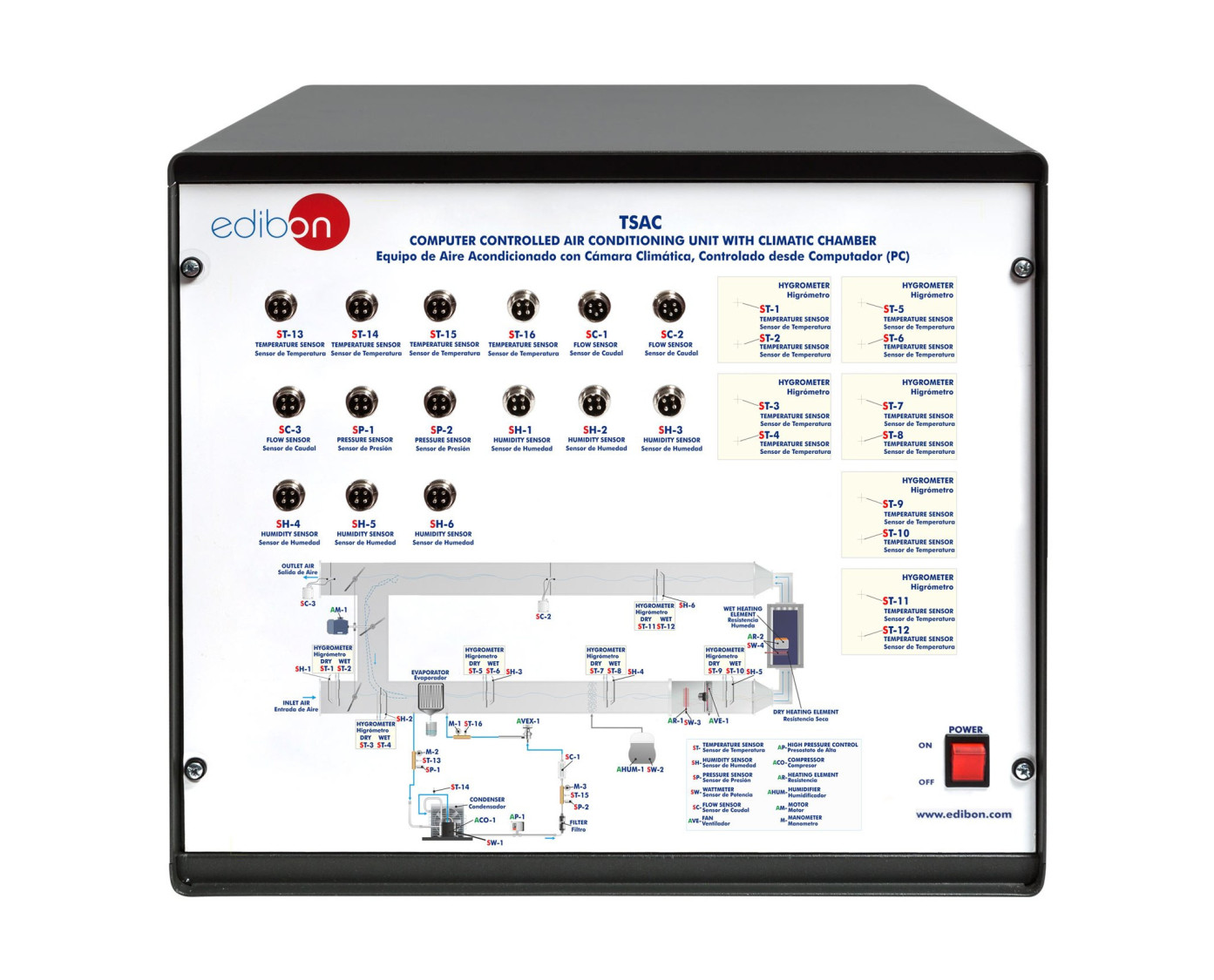

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of the operation and behaviour of an air conditioningsystem.
  2. Study of an air conditioning system and its components.
  3. Recirculating and outer air operation.
  4. Mixing different air flows.
  5. Study of the conditioning room air.
  6. Demonstration of the processes of air heating, cooling,humidifying and dehumidifying.
  7. Representation in the h-x diagram for humid air: heating andcooling, humidifying and dehumidifying.
  8. Representation of the circuit in the log p-h diagram.
  9. Humidity control.
  10. Temperature control.
  11. Study of the effect of a cooling load (dry and wet).
  12. Study of different control and automation solutions in an airconditioning system.
  13. Study of the effect of recirculating and outer air operation.
  14. Familiarization and use of the automatic solution via software forthe air conditioning system.
  15. Representation of:
  • Temperatures.
  • Humidity (relative and absolute).
  • Air speed.
  • Heating capacity of the heat source (latent heat and sensitiveheat).
  • Position of the ventilation flaps.
  • Operating phases of air cooler.
  • Operating phases of air heater.
  • Operating phases of air fan.
  • Operating phases of air humidifier.
  1. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Example of the air properties determination.
  2. Usage of psychrometric chart.
  3. Determination of the airflow.
  4. Properties of the Refrigerant R-513a.
  5. Enthalpy-Pressure diagram for the refrigerant R-513a.
  6. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  7. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  8. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  9. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  10. This unit can be used for doing applied research.
  11. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  12. Control of the TSAC unit process through the control interface box without the computer.
  13. Visualization of all the sensors values used in the TSAC unit process.
  14. By using PLC-PI additional 19 more exercises can be done.
  15. Several other exercises can be done and designed by the user.
