PCCAC Unité de Contrôle de la Qualité de l'Eau, Contrôlée par Ordinateur (PC)

12.3.- TRAITEMENT D'EAU POTABLE 13.3.- TRAITEMENT DES EAUX USÉES
COMPUTER CONTROLLED WATER QUALITY CONTROL UNIT - PCCAC

SYSTEMES INNOVANTS

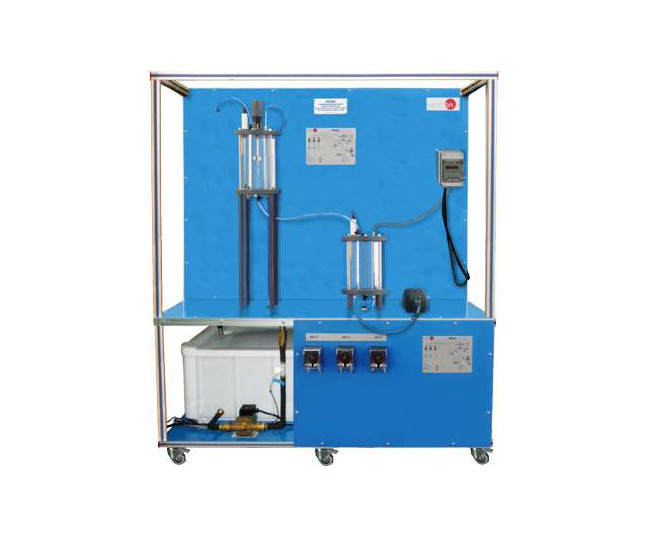

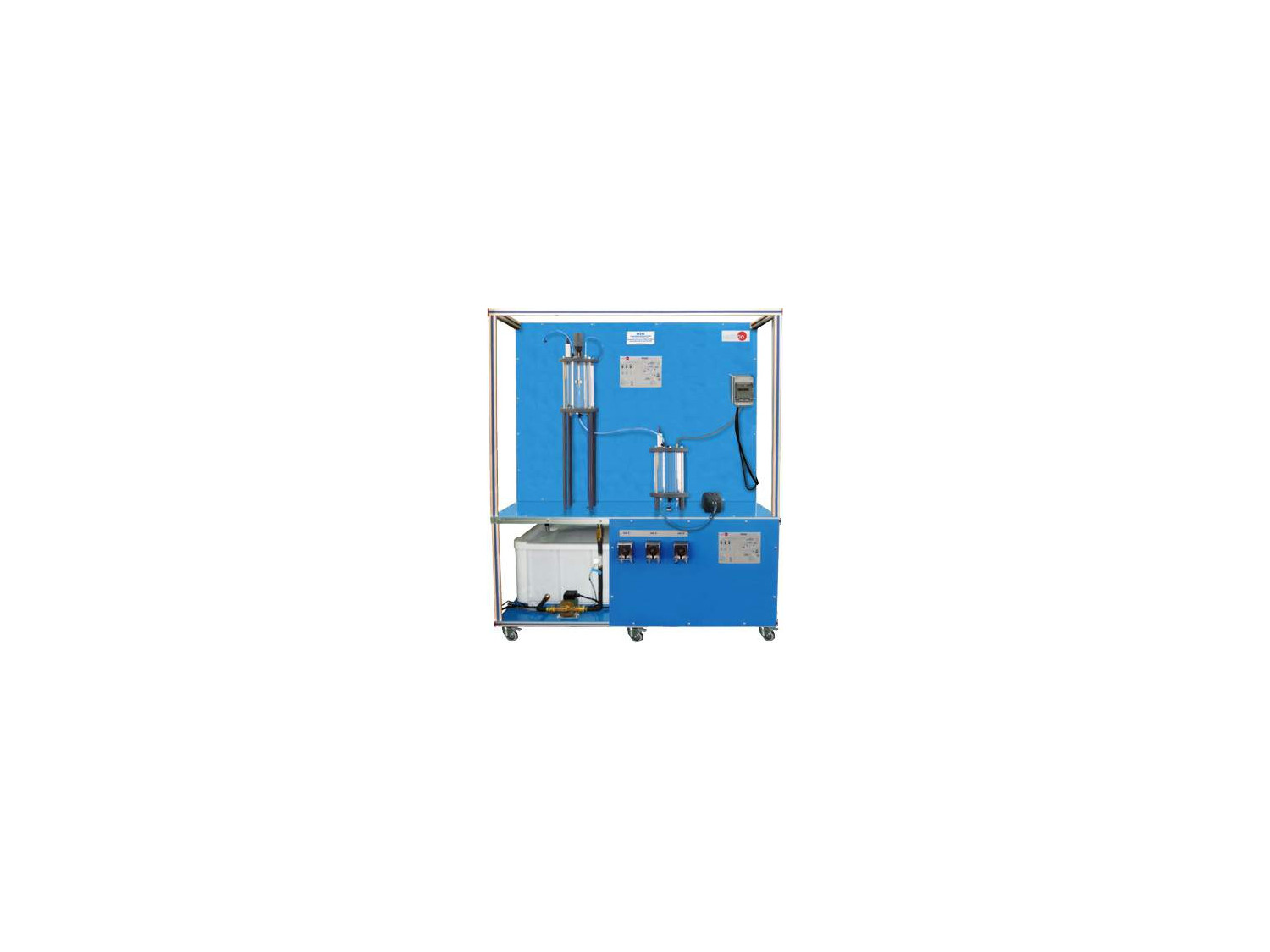

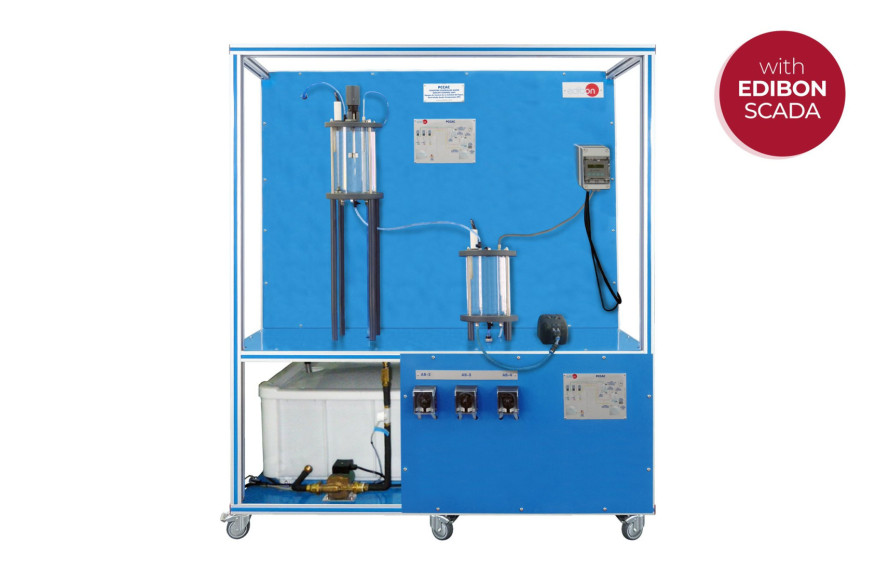

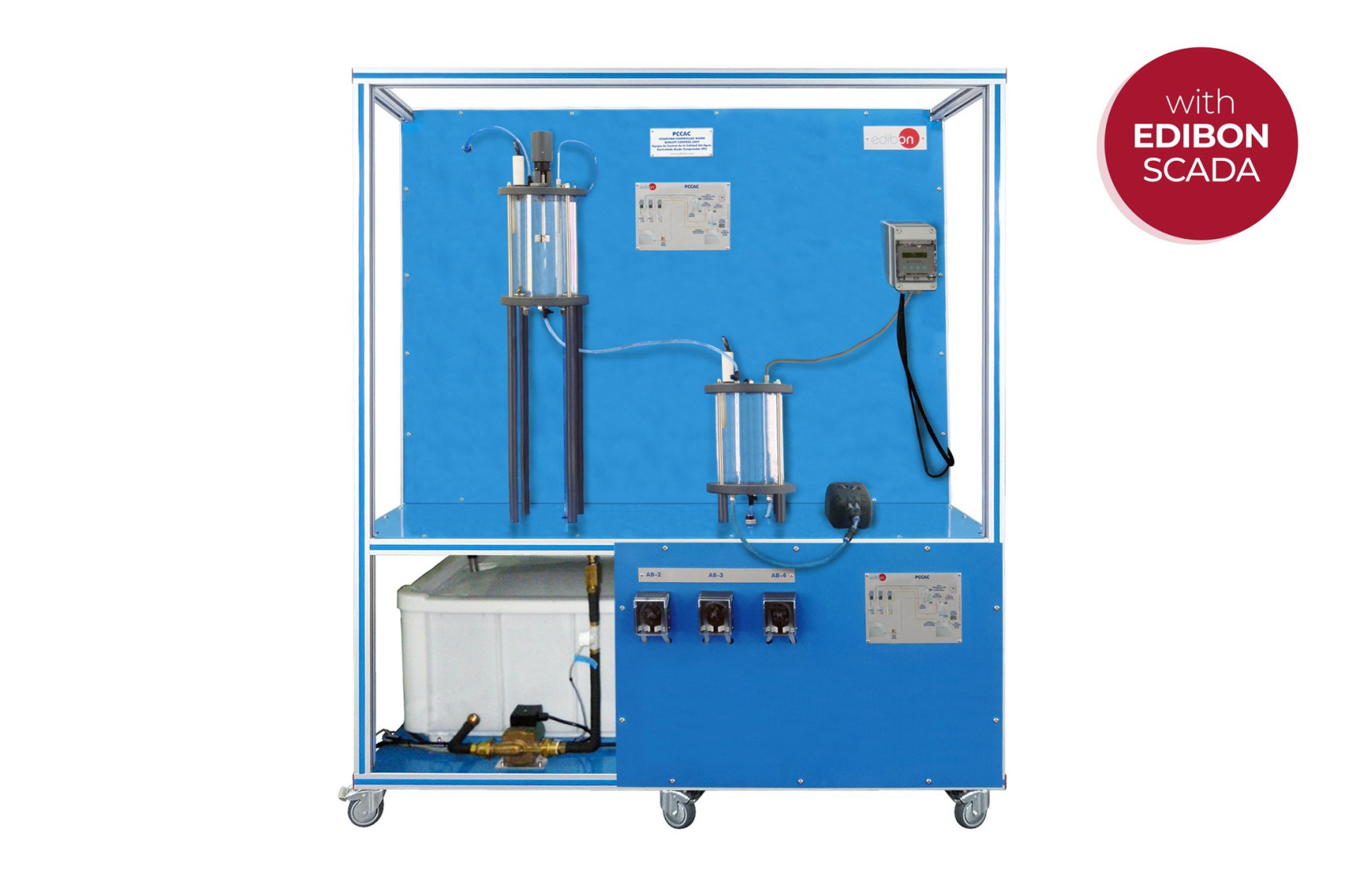

Water is impelled by a pump from a supply tank towards a first transparent tank equipped with a stirrer and a conductivity sensor.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
FSS

Système de Simulation de Défauts
PLC

Contrôle des Processus Industriels par PLC
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

NOUVELLES LIÉES

Comprendre et Améliorer les Systèmes de Traitement de l'Eau Potable
Comprendre et Améliorer les Systèmes de Traitement de l'Eau Potable
Installations de Traitement des Eaux Usées Alors que les usines de traitement de l'eau potable se concentrent sur la fourniture d'eau potable sûre, les installations de traitement des eaux usées gèrent le traitement de l'eau usée avant qu'elle ne soit à nouveau libérée dans l'environnement. Ces...
Lire plus
NEW Food & Water technologies leaflets
NEW Food & Water technologies leaflets
Food Technology is a branch of Food Science based on multidisciplinary knowledge of nutrition, chemical analysis, physics, biochemistry and engineering. Water treatment technologies obtain drinking water, so necessary for our life. Both disciplines have become in recent years an indispensable...
Lire plus
NEW Environmental leaflets
NEW Environmental leaflets
Due to the growing awareness of environmental problems, not only individuals but also governments and companies have started to develop activities that tend to preserve or limit the damage to the environment. Thus, some disciplines of the environmental science, such as hydrology, hydrogeology,...
Lire plus

Description Générale

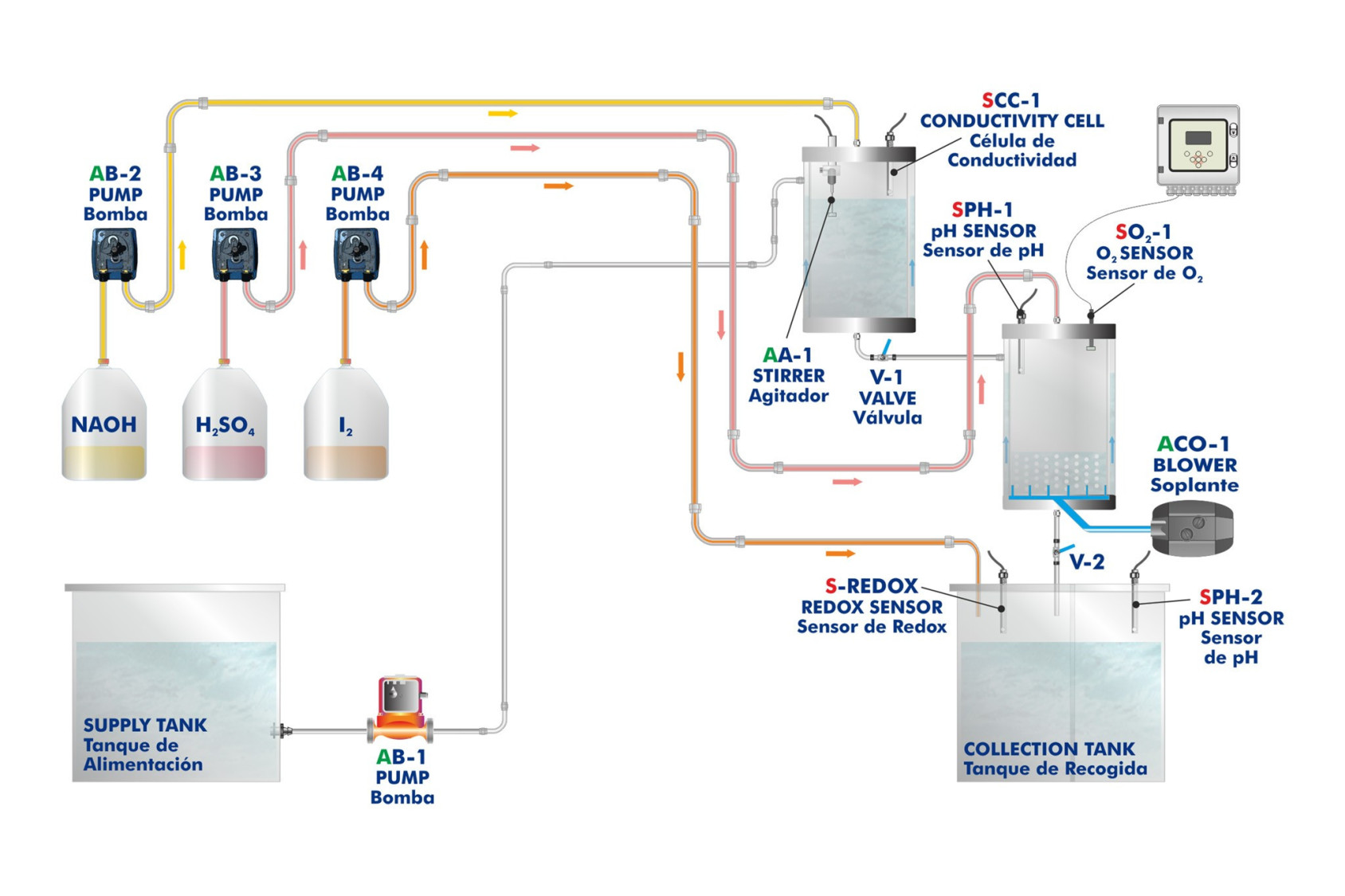

Water is impelled by a pump from a supply tank towards a first transparent tank equipped with a stirrer and a conductivity sensor.

Conductivity is regulated in this tank by the addition of diluted caustic soda impelled by a computer controlled peristaltic pump.

Afterwards, water flows by gravity towards a second transparent tank equipped with a pH sensor and a dissolved oxygen sensor. Due to the caustic soda added to the first tank, the pH increases considerably. Diluted sulfuric acid is added with a computer controlled peristaltic pump to neutralize water to a suitable pH. A computer controlled compressor will inject compressed air in this second tank to regulate dissolved oxygen.

Finally, water flows towards a collection tank, where the redox potential and the pH are measured through sensors. Other computer controlled peristaltic pump allows the addition of an iodine solution to regulate the redox potential.

P, PD, PI and PID controls for the different stages.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study and influence of the main physical-chemical parameters on the water quality.
  2. Analysis of the conductivity, pH, oxygen concentration and redox potential of water.
  3. Influence of caustic soda on the electric conductivity of water.
  4. Influence of caustic soda on the water pH.
  5. Influence of sulfuric acid on the water pH.
  6. Influence of air injection on the water oxygen concentration.
  7. Influence of iodine on the water redox potential.
  8. Analysis and study of different types of control P, PD, PI, PID.
  9. Sensors calibration

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Sensors calibration.
