BFPT Unité de Formation sur la Prévention de Refoulements d'Eau
SYSTEMES INNOVANTS

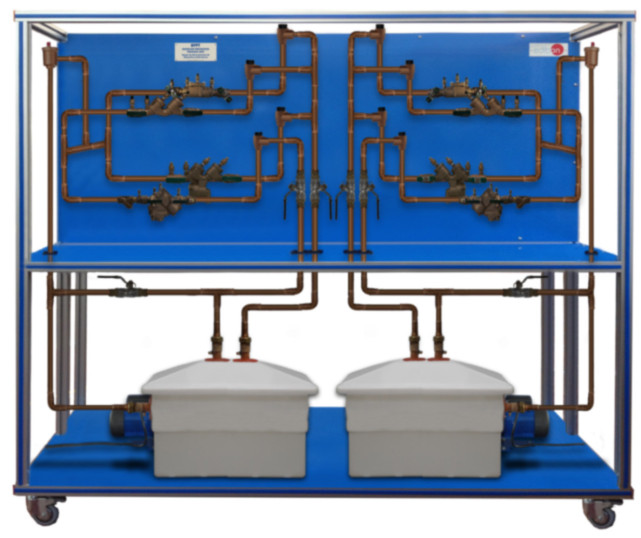

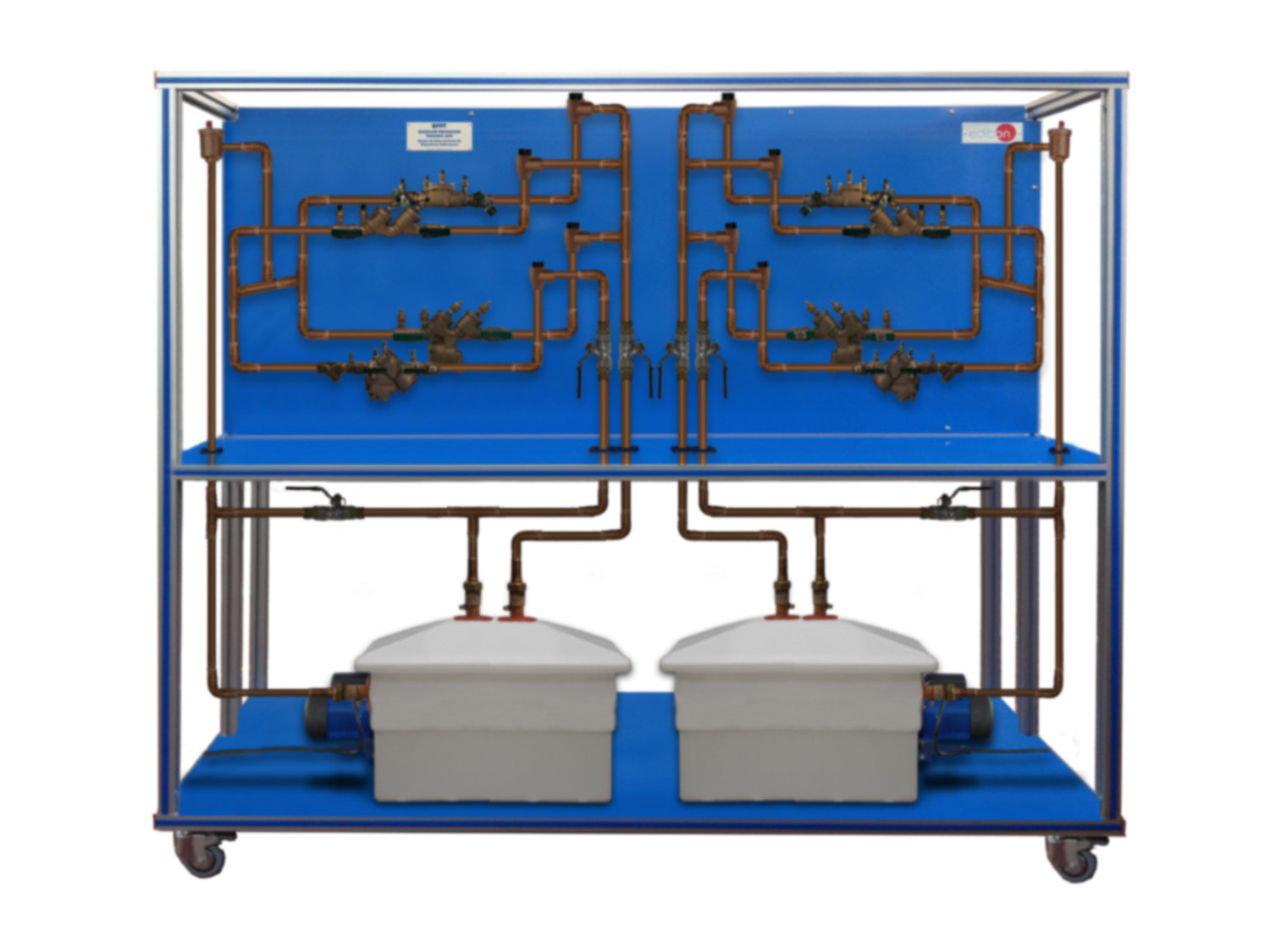

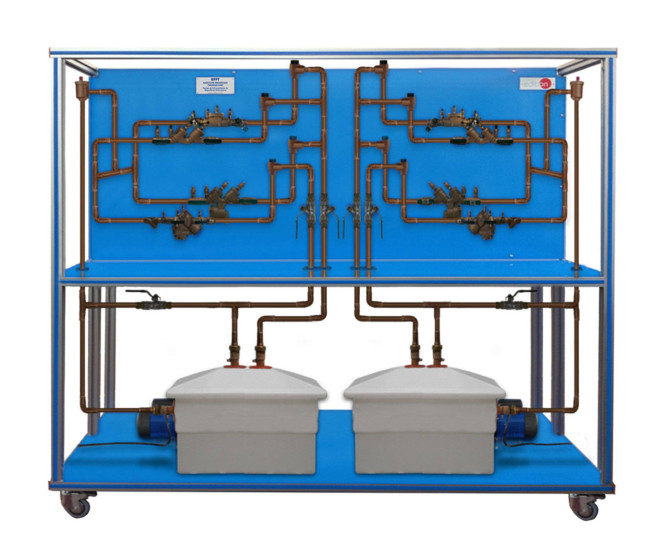

The Backflow Prevention Training Unit, "BFPT", allows verifying the operation of multiple non-return devices.
NOUVELLES LIÉES
Description Générale
The Backflow Prevention Training Unit, "BFPT", allows verifying the operation of multiple non-return devices.
The system contains the most common backflow prevention devices used in the industry. The main objective is to recognize each element and study its function.
It is a unit designed to allow both a group of students and two to work, since it has a circuit on each side of the structure. Both circuits contain the same elements and their operation is the same.
Each circuit is composed of a water storage tank and a circulatory water pump that allows the flow of fluid through the circuit, driving from the tank and returning the water to it.
The water flows through the pipes crossing different backflow preventers such as standard check valves, two types of double check valve assemblies, two types of reduced pressure assembly, pressure vacuum breakers and gate valves.
In addition, it has ball valves to regulate the passage of fluid through the different pipes.
There is the possibility of forcing the change of flow direction to check the proper operation of each element included in the circuit.
Des exercices et pratiques guidées
EXERCICES GUIDÉS INCLUS DANS LE MANUEL
- Test the water circuit with backflow prevention devices.
- Study of the circuit changing the direction of the flow.
- Show flow indicator and drain return.
- Study of the operation of a gate valve.
- Study of the differences between a standard and double check valve.
- Study of the differences between a double check valve assembly and a reduced pressure assembly.
- Demonstration of the operation of ball valves to change the flow.
EQUIPEMENT COMPLEMENTAIRE
8.9.3.- INSTALLATIONS ET MAINTENANCE
PVFA

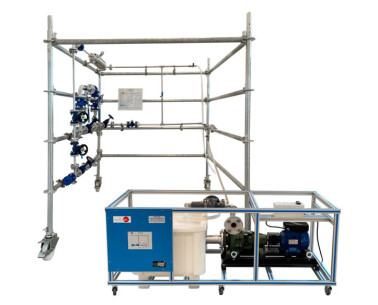

The Pipes, Valves and Fittings Assembly Unit, "PVFA", designed by EDIBON, consists of a solid and rigid U-shaped frame where a series of real pipes and fittings are mounted to form a complete hydraulic system. A filter, a sight glass and a...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TEV3V
Unité de Formation de Valvule Mélangeuse de 3 Voies
The Three-Way Mixing Valve Training Unit, "TEV3V", allows to demonstrate the function of a three-way mixing valve in a hot water heating system. The three-way mixing valve in the heating system regulates the supply water temperature to a heating...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TEV4V
Unité de Formation de Valvule Mélangeuse de 4 Voies
The Four-Way Mixing Valve Training Unit, "TEV4V", allows to demonstrate the function of a four-way mixing valve in a hot water heating system. The four-way mixing valve in the heating system regulates the circulation and feed flow temperatures of...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TEIS
Unité de Formation de Raccords Sanitaires
The Sanitary Fittings Training Unit, "TEIS", has been designed by EDIBON for training in the plumbing sector. It consists of an anodized aluminum frame and panels in painted steel in which tests can be carried out with the most common systems of...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TIAP
Unité d'Installation d'Eau Potable
The Drinking Water Installation Unit, "TIAP", has been designed to demonstrate domestic water heating from the cold water supply. A typical domestic drinking water system is attached to the front panel of the unit. The unit includes the most...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TPAP
Unité de Protection en Installations d'Eau Potable
The Protection of Drinking Water Training Unit, "TPAP", has been designed by EDIBON to study cases in which the drinking water system is contaminated with wastewater. It is specially designed for the training of students in the plumbing sector.The...
9.10.3.- PRATIQUES D'INSTALLATION ET DE MAINTENANCE
TELT
Unité d'Étude de Systèmes de Nettoyage de Tubes

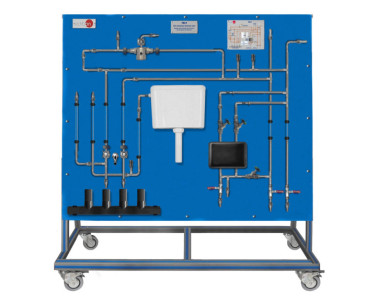

The Pipe Cleaning Training Unit, "TELT", designed by EDIBON, simulates a real house piping system, so original components used in plumbing systems are employed.The objective of this unit is to study the cleaning of pipes from the sanitation...
