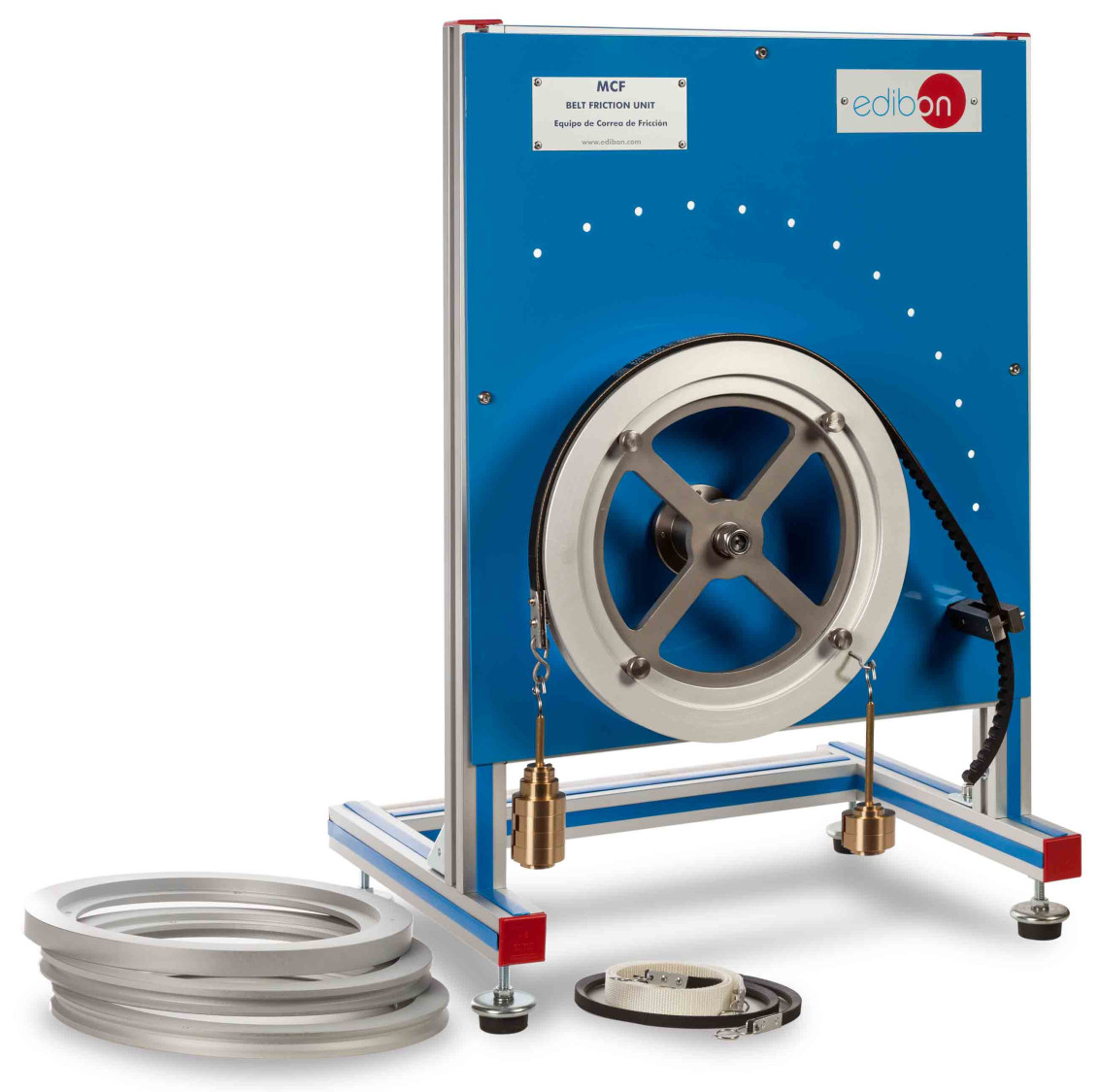

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV

Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel

7HE

Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

Description Générale

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.

With this unit the relationship between the tensions in the two sides of a belt can be observed, to evaluate the differences between flat (leather or rope) and V belts and to investigate the effect of the angle lap, among others.

Tension is introduced into the belt by hanging masses or weights. The slipping torque is determined by the addition of suitable masses attached to a cord wrapped round the drum.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Investigation of the relationship between the belt tensions and the angle of lap for a flat belt.
Comparison of the driving torque for a given angle of lap.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

Evaluation of the differences between flat belts and V-shaped belts.
Evaluation of the differences between V-shaped toothed and flat belts.
Determination of the coefficient of friction between the pulley and belt for the belt sections.
Verification of the belt tension equation.

UNITÉS SIMILAIRES DISPONIBLES

BELT FRICTION UNIT WITH DYNAMOMETERS - MCF/A

MCF/A

Available

7.1.5.- TRIBOLOGIE (FRICTION, USURE, LUBRIFICATION)

MCF/A

Unité de Frottement des Courroies Avec Dynamomètres

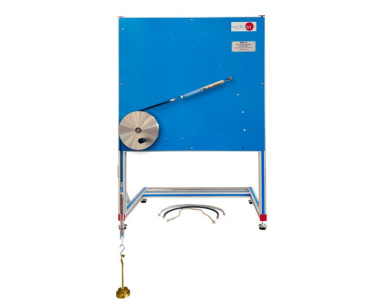

The Belt Friction Unit with Dynamometers, "MCF/A", allows studies and investigations to compare the friction coefficient for a given contact angle of a flat belt and a V-belt.With this unit it is possible to observe the relationship between...
