SNVCM Unité de Modèle en Coupe d'une Vanne à Aiguille en Ligne Droi

8.9.1.- MODÈLES EN COUPE
UNIT TO STUDY A STRAIGHT-WAY NEEDLE VALVE CUTAWAY MODEL - SNVCM

SYSTEMES INNOVANTS

The Unit to Study a Straight-Way Needle Valve Cutaway Model, "SNVCM", allows the students to visualize the inner parts of a needle valve, to evaluate the relation with each other accurately and to understand their function.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

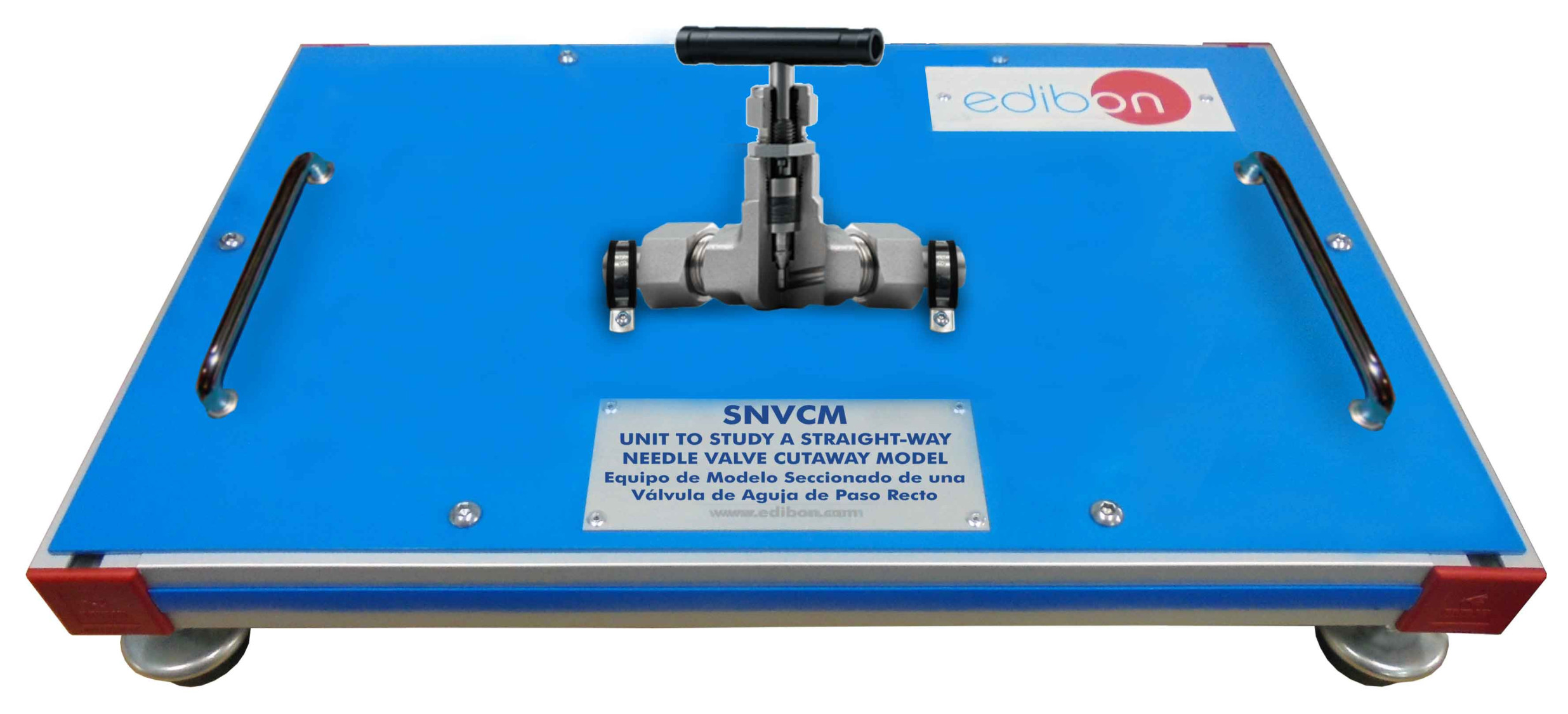

The Unit to Study a Straight-Way Needle Valve Cutaway Model, "SNVCM", allows the students to visualize the inner parts of a needle valve, to evaluate the relation with each other accurately and to understand their function.

It is a device with mobile features that allows opening and closing a circulation path in order to allow, prevent or control the flow of fluids. Needle valves are important for controlling the flow of a fluid in both on / off (open-closed) operation and when regulating the flow of it.

What characterizes this type of needle valves is that the ports of entry and exit of the valve are arranged at an angle of 0 °.

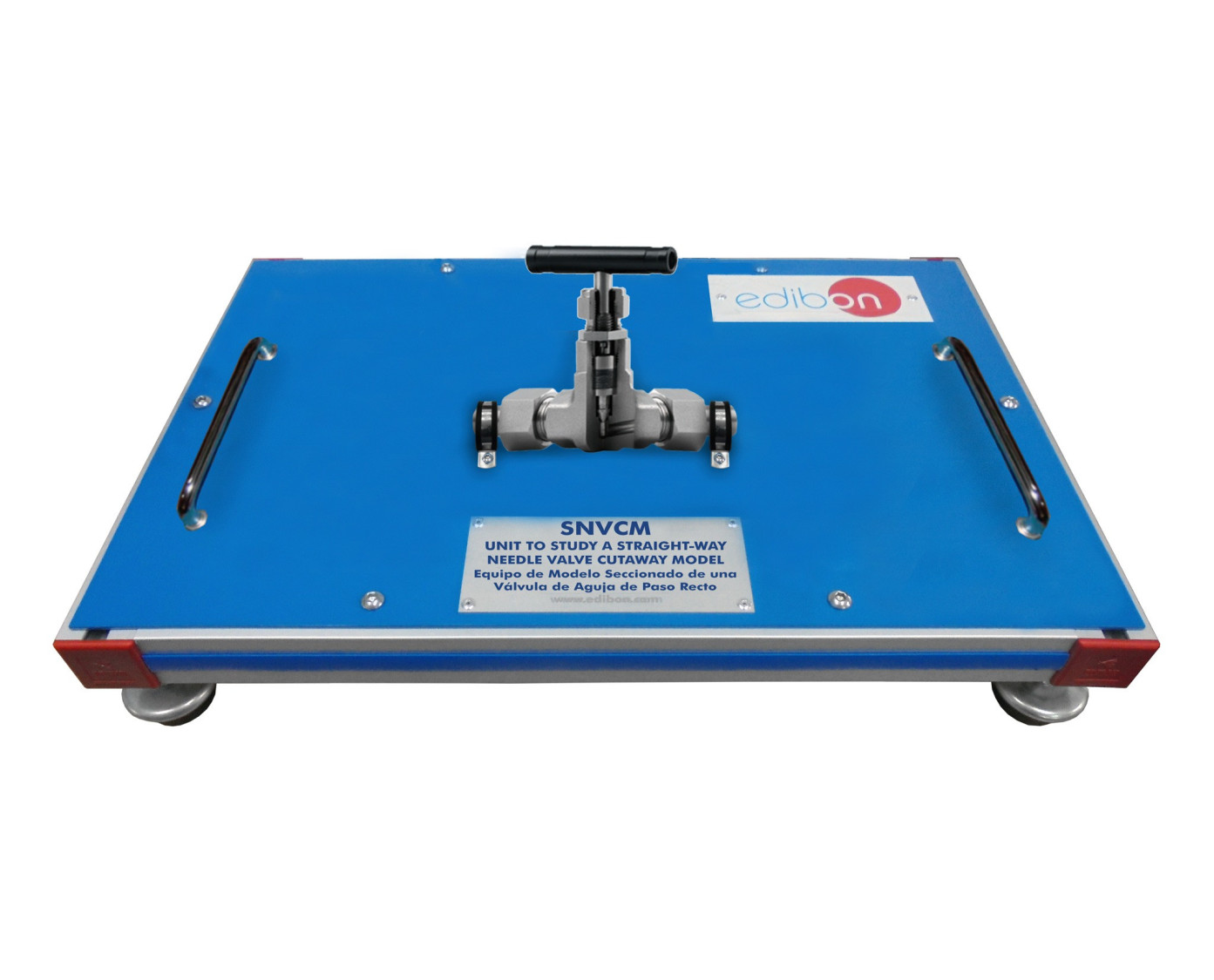

The cutaway model of a needle valve is composed of real industrial elements designed in such a way that its inner parts can be observed by the user, maintaining its mechanical and functional capacity.

The unit is attached to a base plate with handles for easy transport.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Identification of straight-through needle valves in industrial diagrams.
  2. Identification of the industrial components in an industrial plane (joint, exploded and exploded plane).
  3. Identification of the main components of a straight-through needle valve.
  4. Operation of a straight-through needle valve.
  5. Study and understanding of the maintenance of a straight-through needle valve.
