EULER BUCKLING MODES UNIT - MEBM

SYSTEMES INNOVANTS

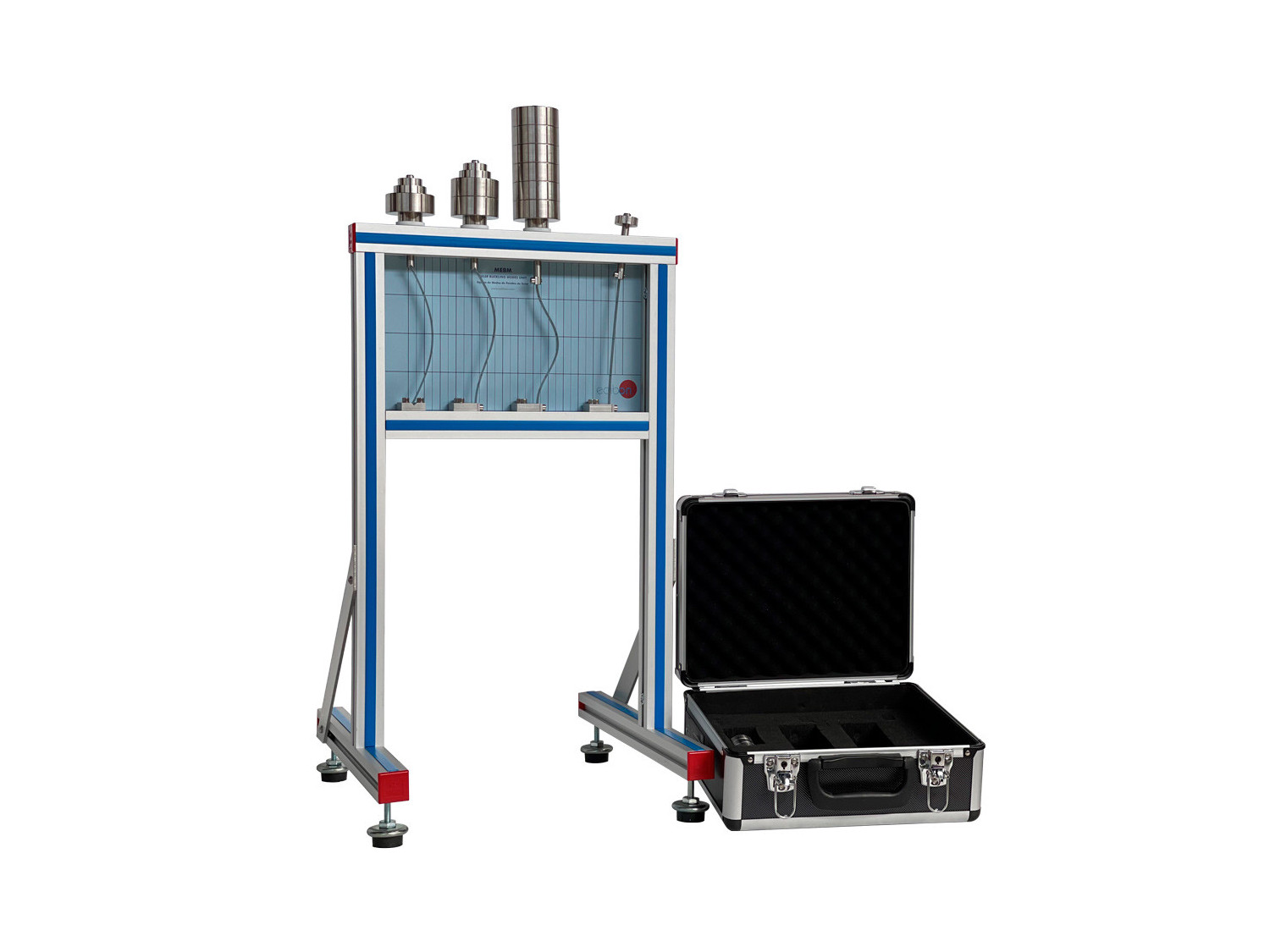

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Lire plus

Description Générale

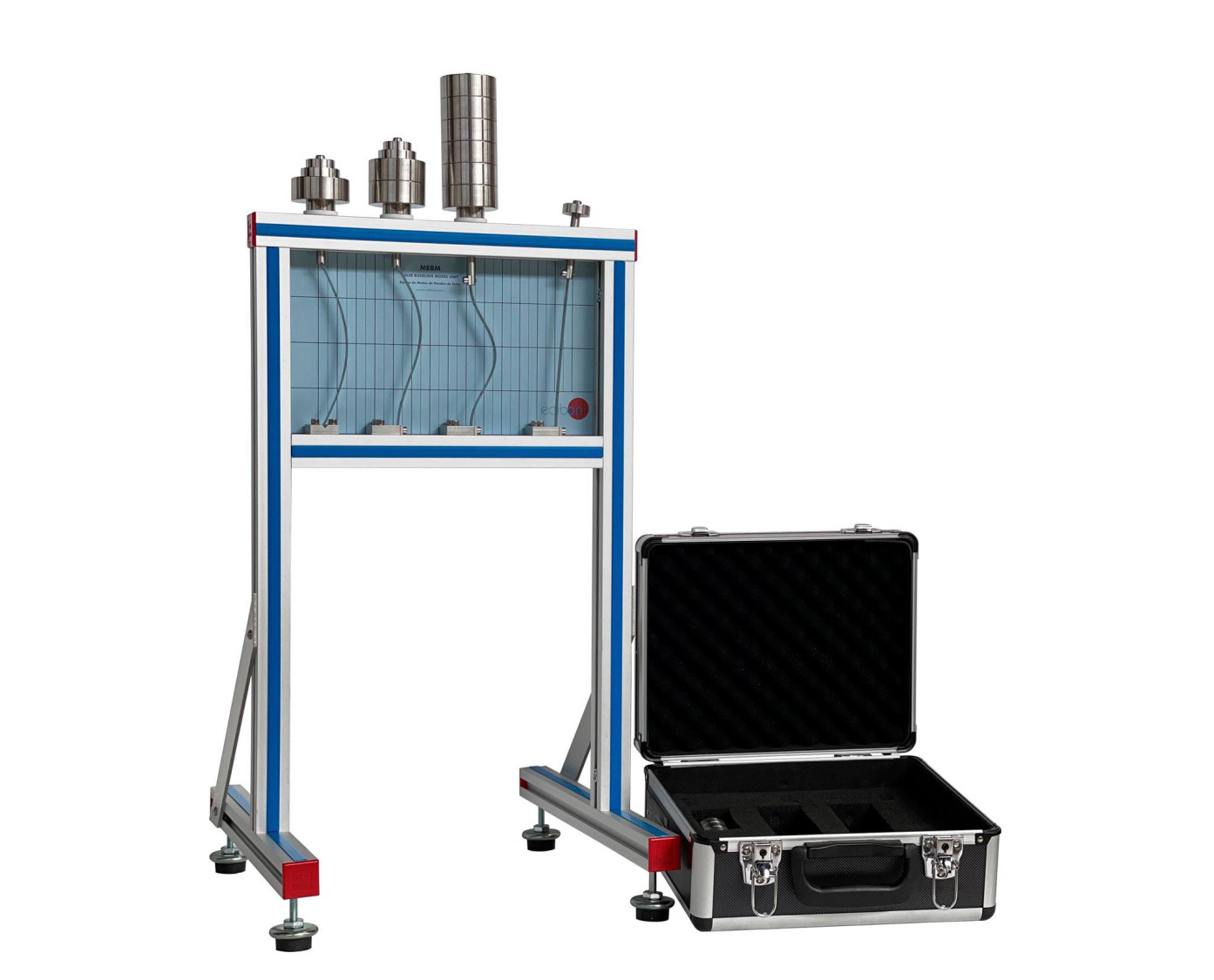

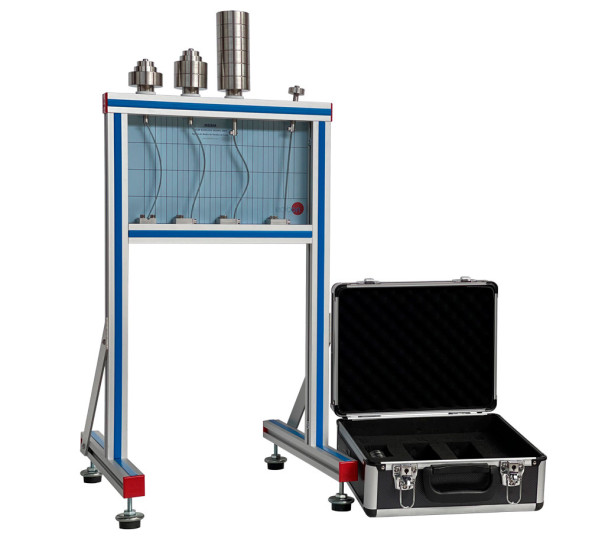

With the Euler Buckling Modes Unit, "MEBM", the four Euler buckling cases are demonstrated, for which four elastic bars are fixed or supported in a frame and subjected to compression load with a system of weights.

The elastic bars can be free or supported by embedment or articulation and different weights can be placed on the upper supports in a staggered manner to apply the compression load until buckling starts and the axes of the bars are laterally deformed determining the critical buckling load.

The different supports of the elastic bars allow the study of:

  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.

The buckling length can be easily determined with the help of a grid located on the rear wall of the frame.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Representation of the Euler buckling cases:
  • Free - fixed end.
  • Pinned - pinned end.
  • Fixed - pinned end.
  • Fixed - fixed end.
  1. Study of the relationship between the buckling length and the critical buckling load.
  2. Study of the relationship between the critical buckling load and the various forms of support.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Study of the relationship between the buckling length and the different forms of support.

UNITÉS SIMILAIRES DISPONIBLES

UNIVERSAL BUCKLING UNIT - MUP
  • MUP
Available
7.3.2.1.- TEST MÉCANIQUE
MUP
Unité de Flambage Universelle
The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...
Voir l'Unité
STRUT BUCKLING UNIT - MFLT
  • MFLT
Available
7.3.2.1.- TEST MÉCANIQUE
MFLT
Unité de Flambement des Jambes de Force

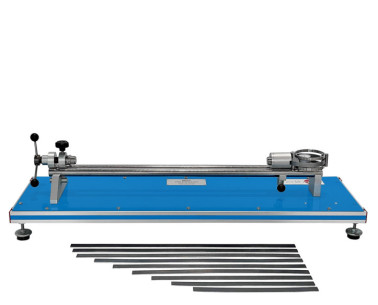

L'Unité de Flambement des Jambes de Force, "MFLT", permet à l'étudiant d'obtenir expérimentalement la charge critique de flambage d'entretoises élancées soumises à la compression. à la compression.L'unité permet d'étudier le flambage de pièces de...
