UNSYMMETRICAL CANTILEVER UNIT - MVV

SYSTEMES INNOVANTS

The Unsymmetrical Cantilever Unit, "MVV", is designed to demonstrate the unsymmetrical bending of beams.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

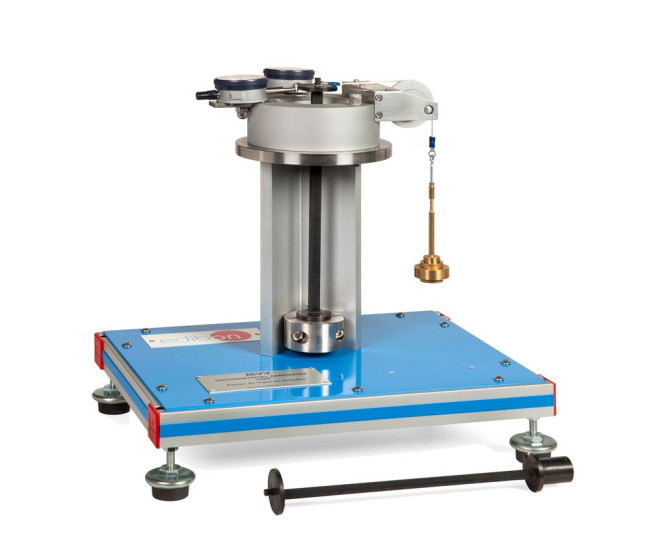

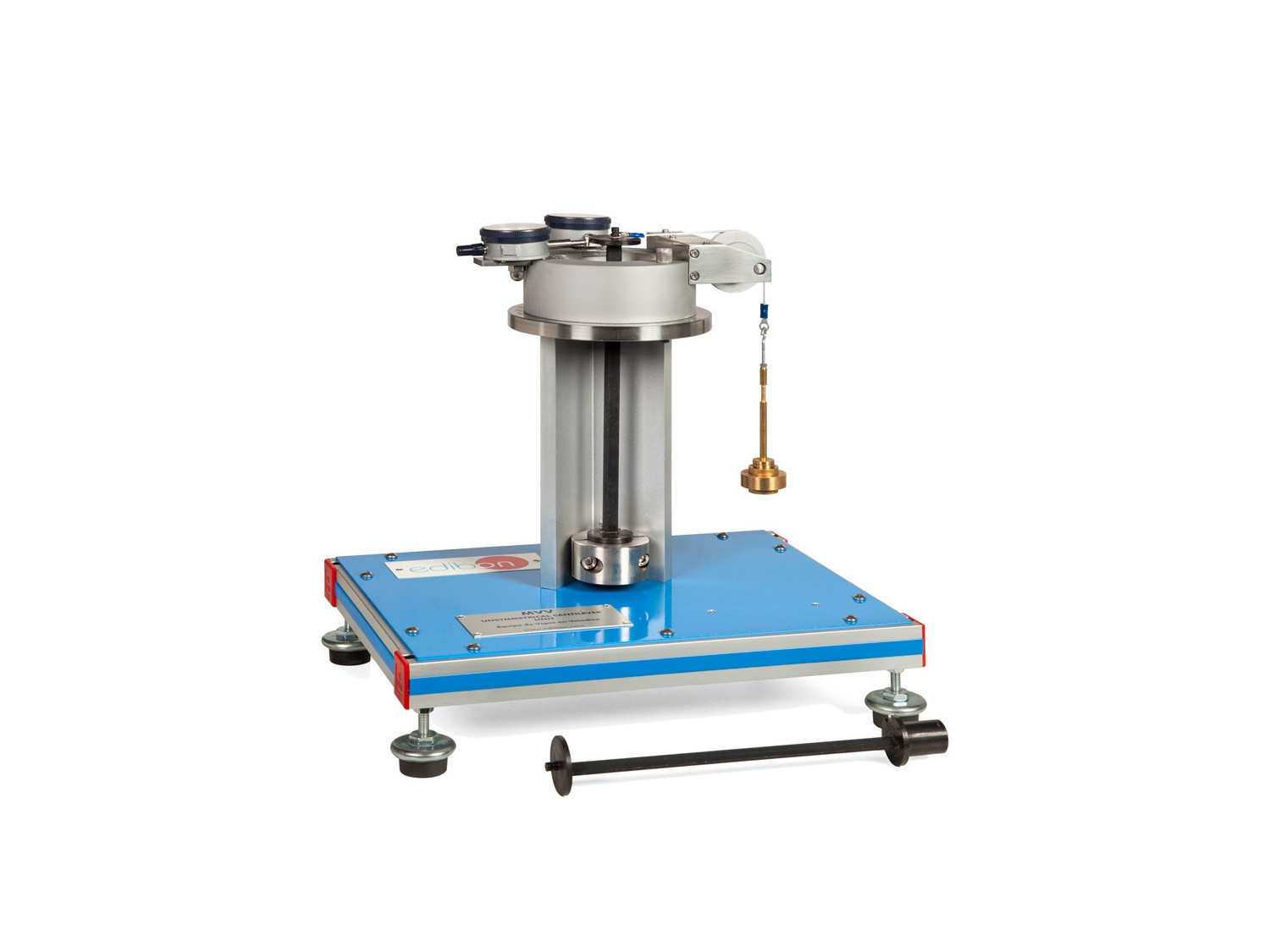

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.

A loading head, located at the upper end of the column, can rotate freely around the vertical axis of the beam at 15º intervals. A horizontal load may be applied to the free end of the beam by means of a cord attached to the beam and passing over a pulley mounted on the rotating head.

The Δu and Δv deflections of the beam are measured by means of two dial gauges mounted perpendicularly to each other on the head. To compensate any lateral deflection of the beam, the line of action of the applied load can be adjusted by lateral adjustment of the load pulley.

Two steel beams are supplied, one with rectangular section and the other one with L shape section.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Determining the deflection of the beam depending on theintensity of the force applied.
  2. Determining the deflection of the beam depending on thedirection of the force applied.
  3. Determining the Δu and Δv deflections at free ends of cantilevers.
  4. Studying the deflections at two planes, for several sections.
  5. Determining deflections for different angles of force applied.
  6. Studying the rigidity variation.
  7. Determining the position of the torsion centre of the beam (Itrequires the optional accessory MVV/1).
