TSPC Unité de Pression de Saturation, Contrôlée par Ordinateur (PC)

9.1.- FONDEMENTS ET CONCEPTS FONDAMENTAUX DE LA THERMODYNAMIQUE
COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

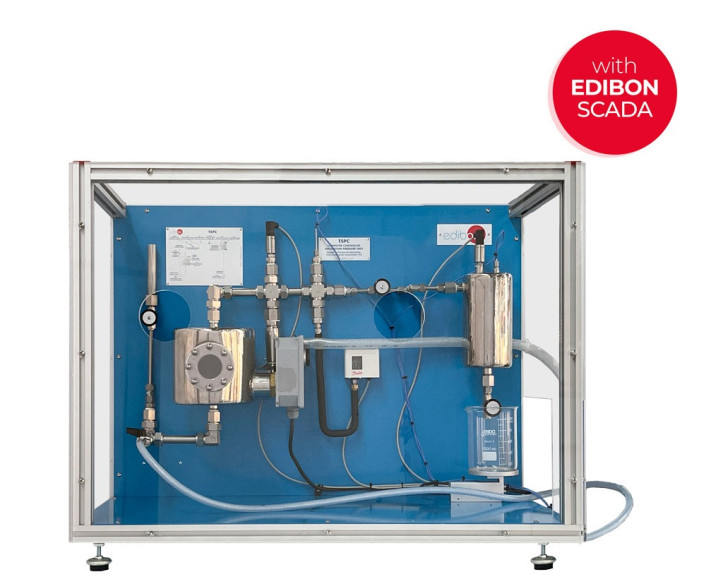

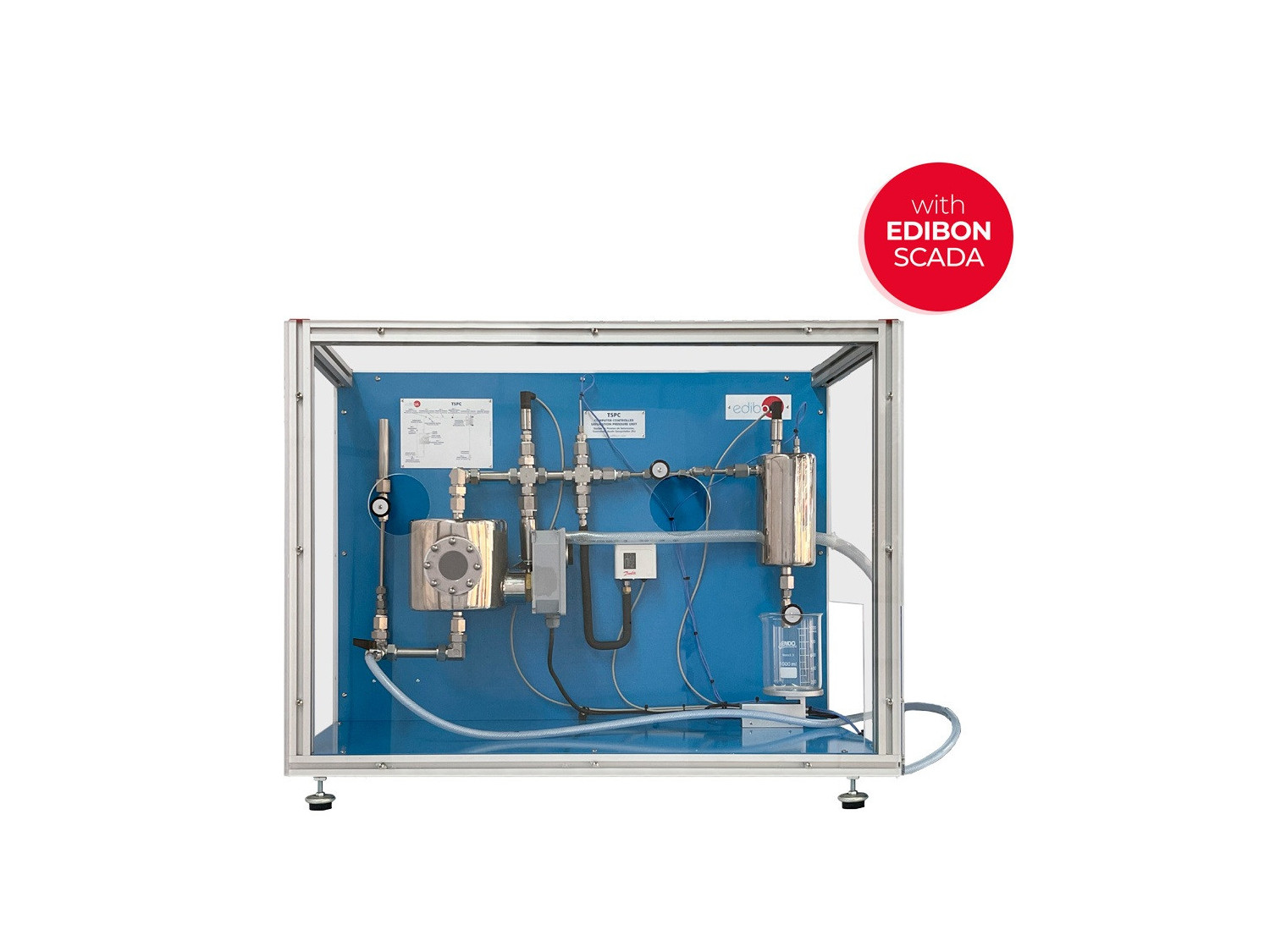

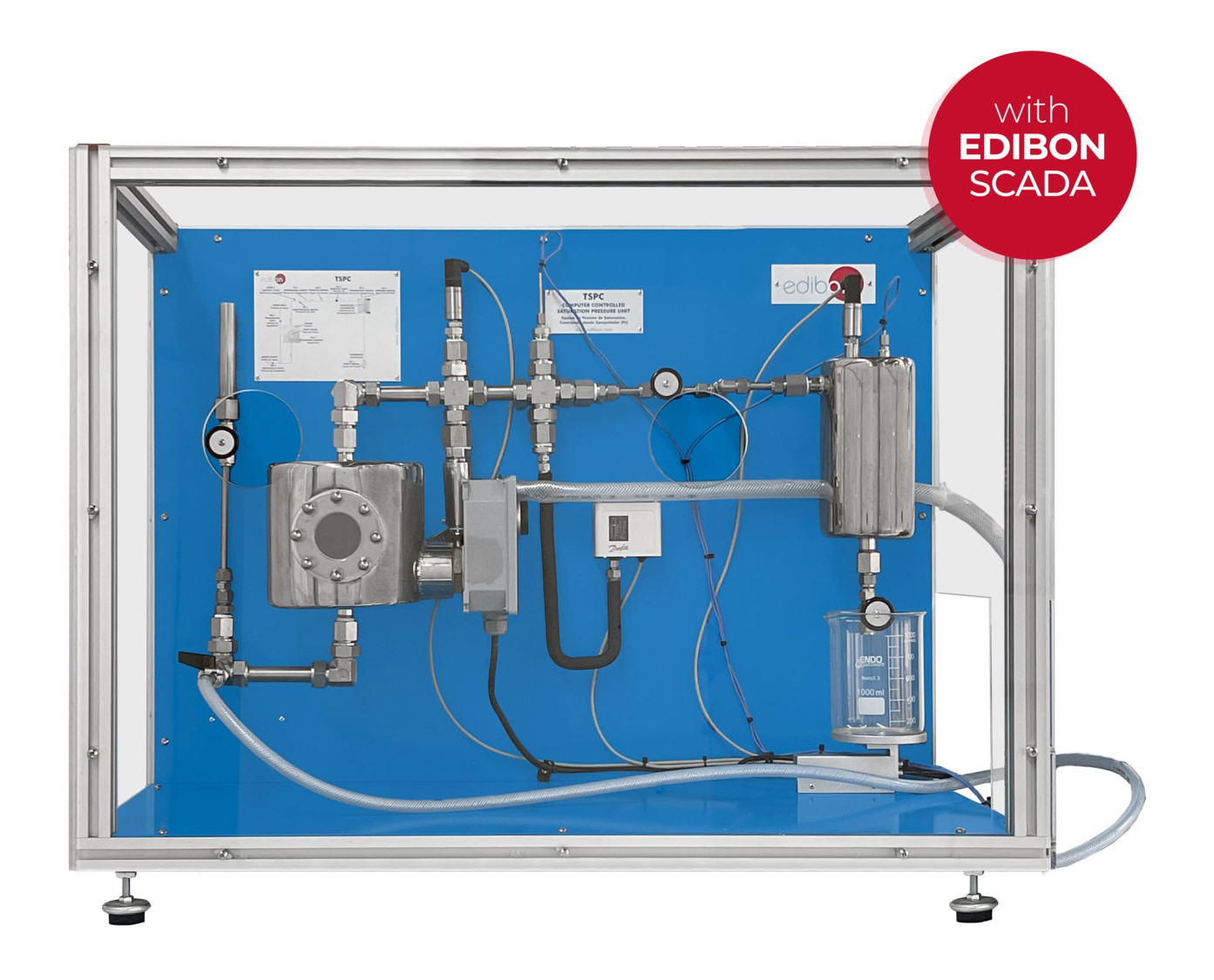

Unit: TSPC. Computer Controlled Saturation Pressure Unit

COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

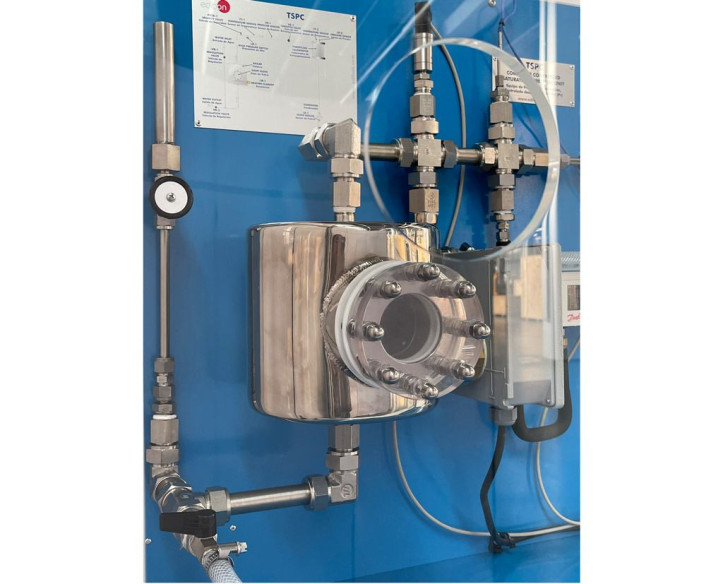

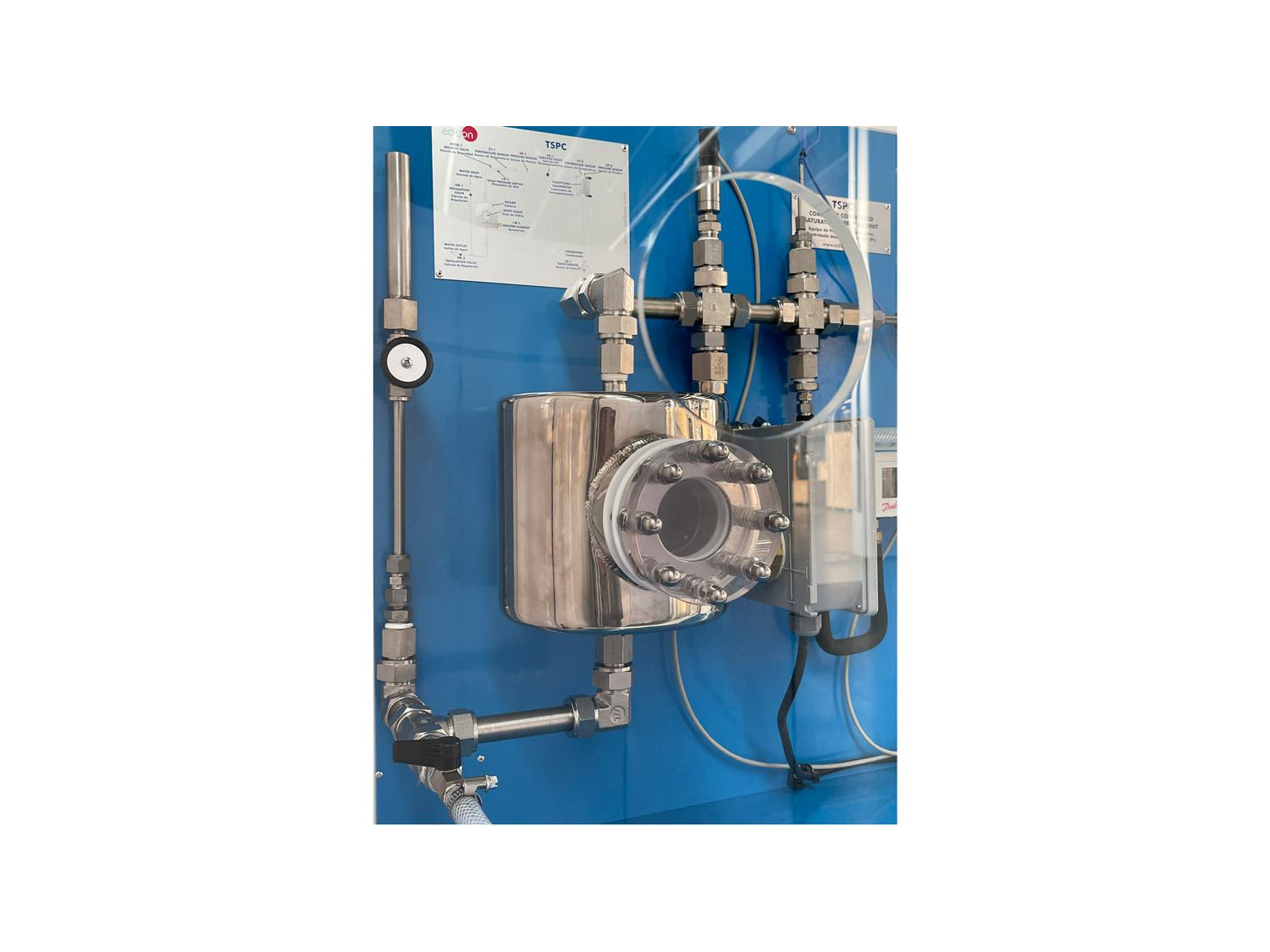

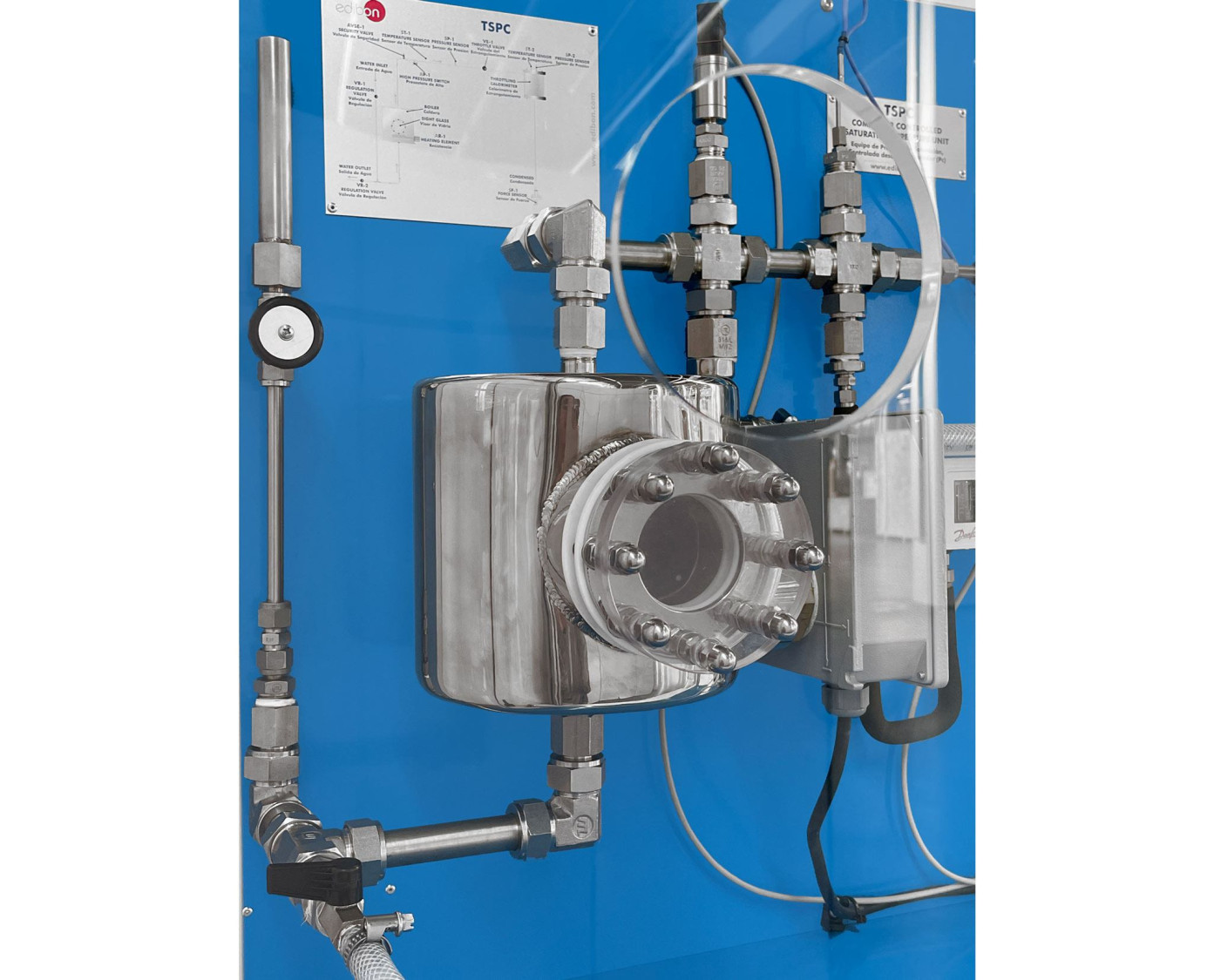

Unit details

COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

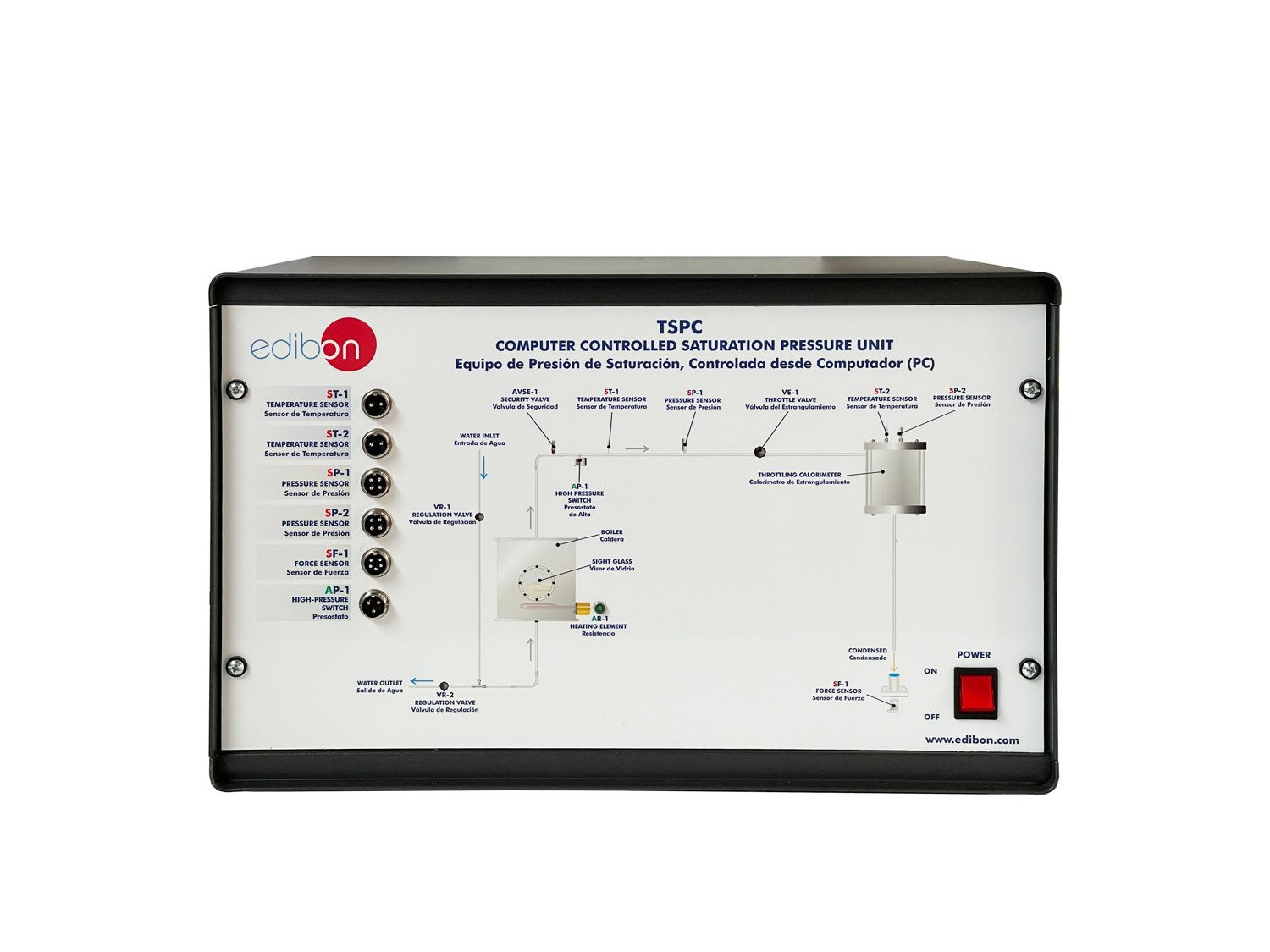

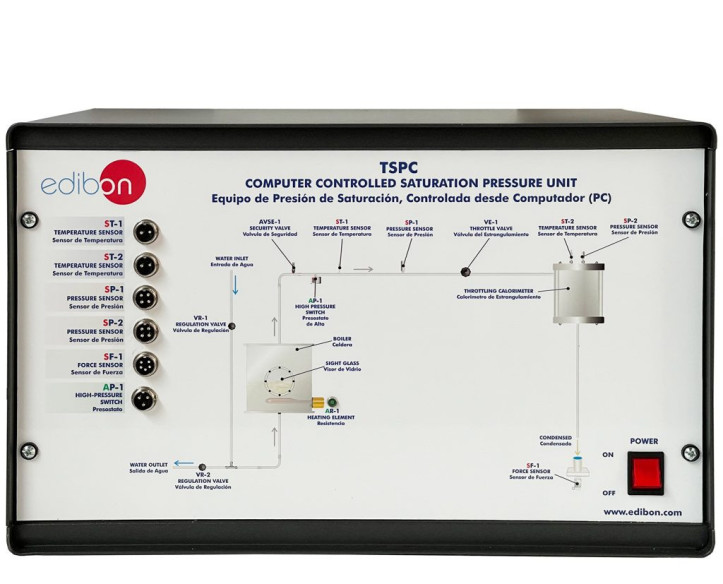

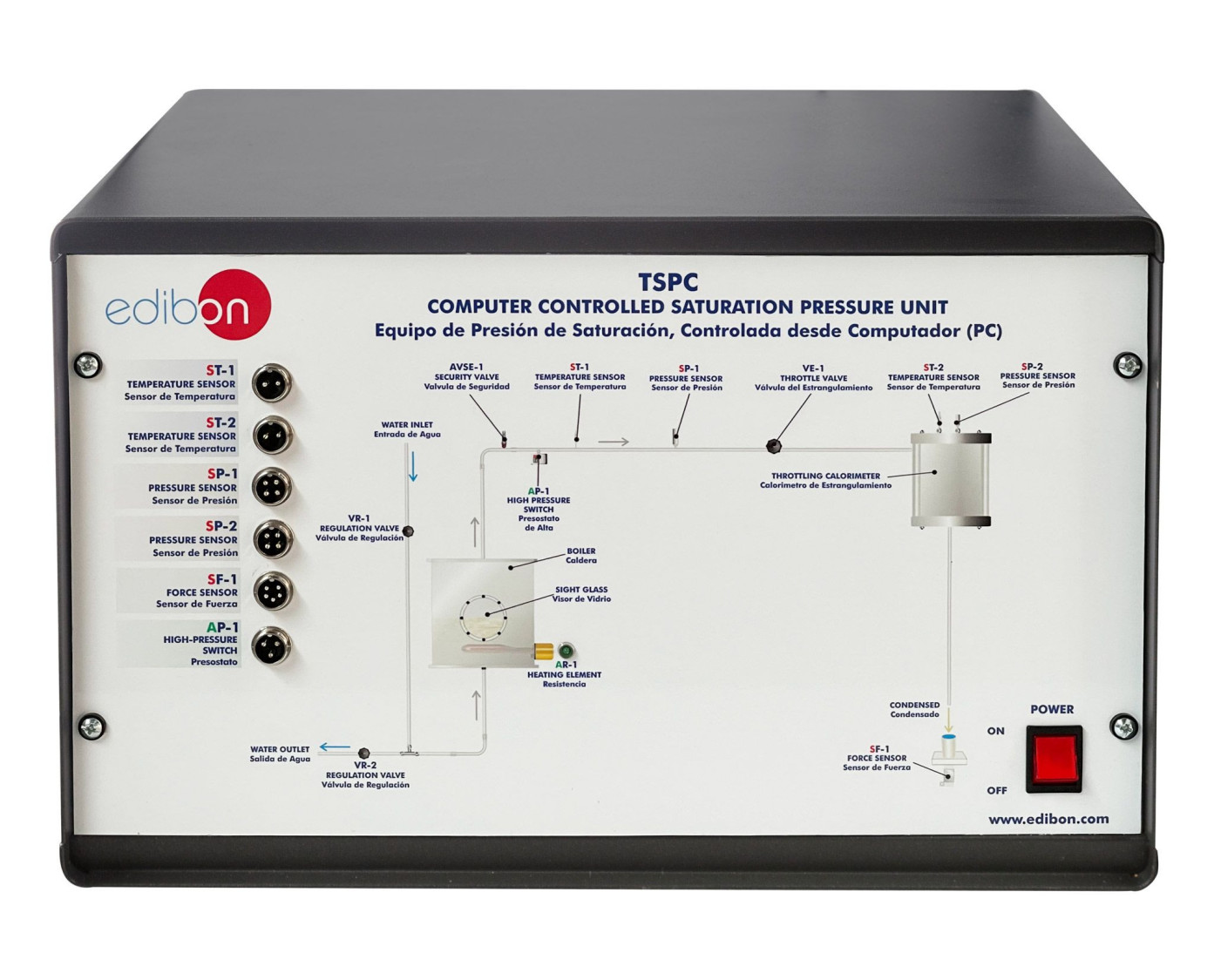

TSPC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

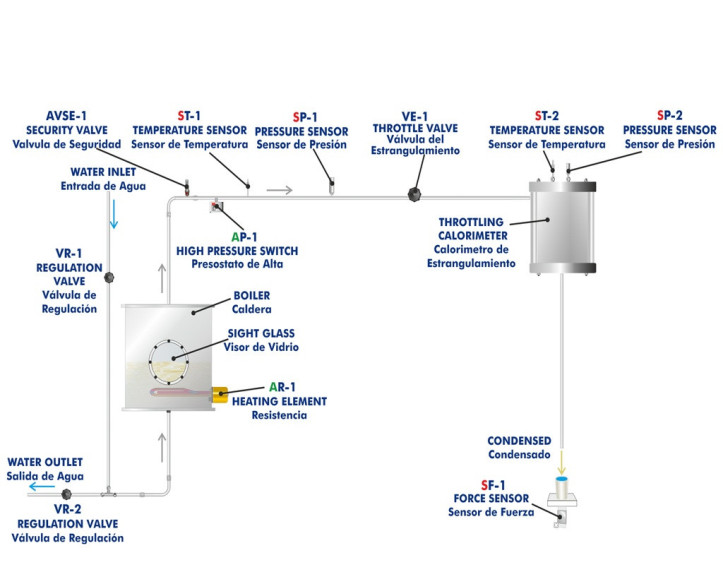

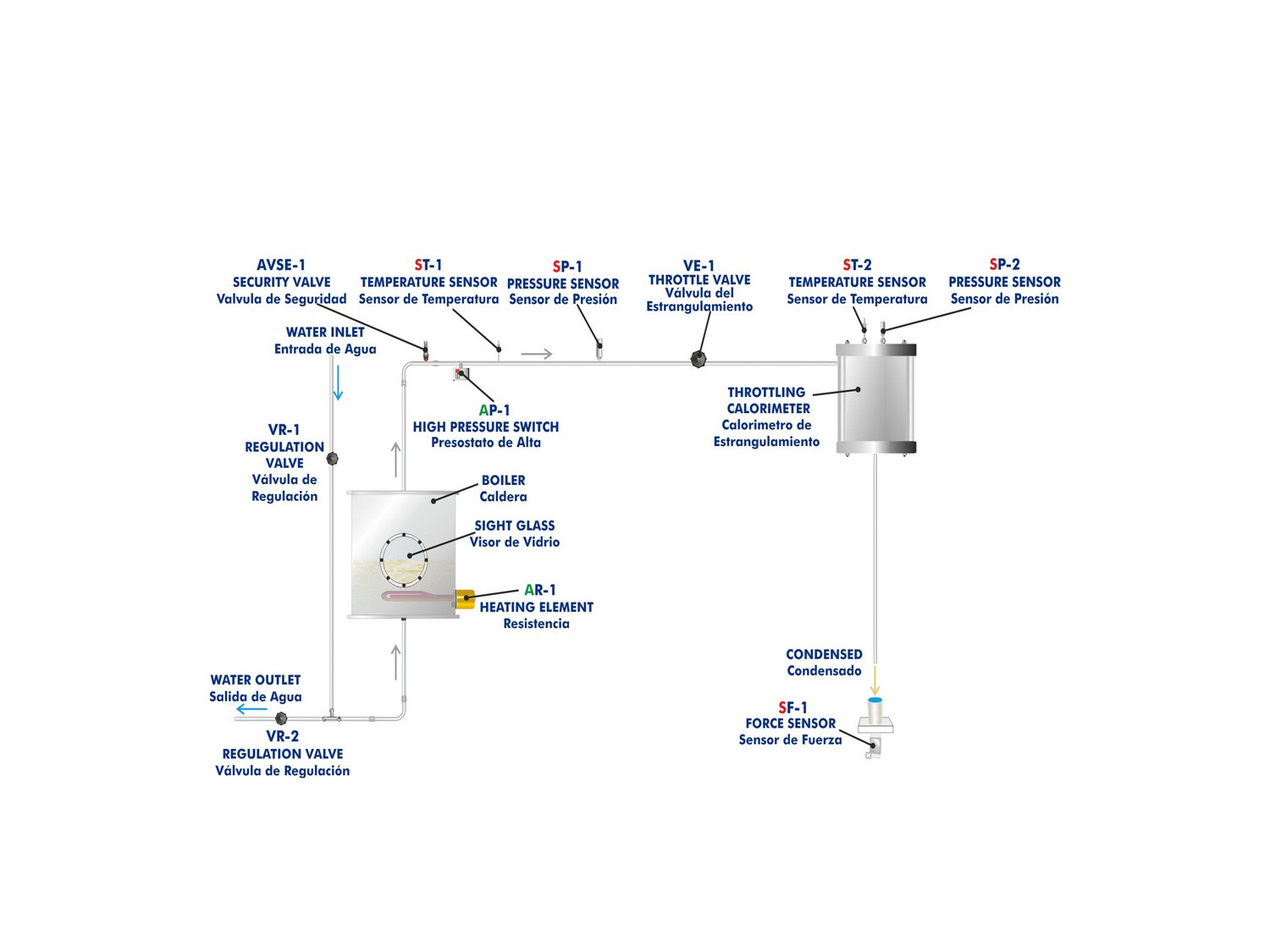

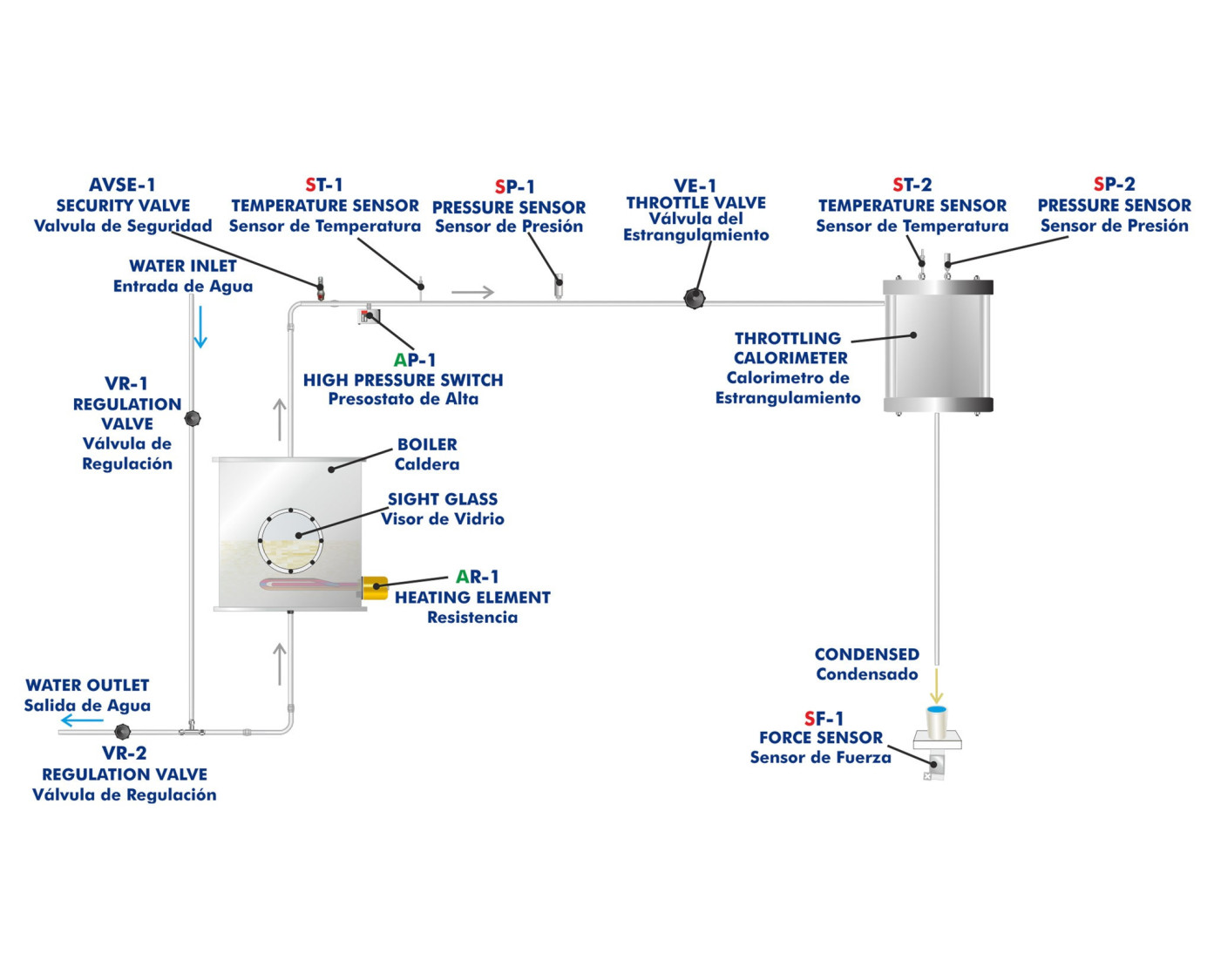

Process diagram and unit elements allocation

COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

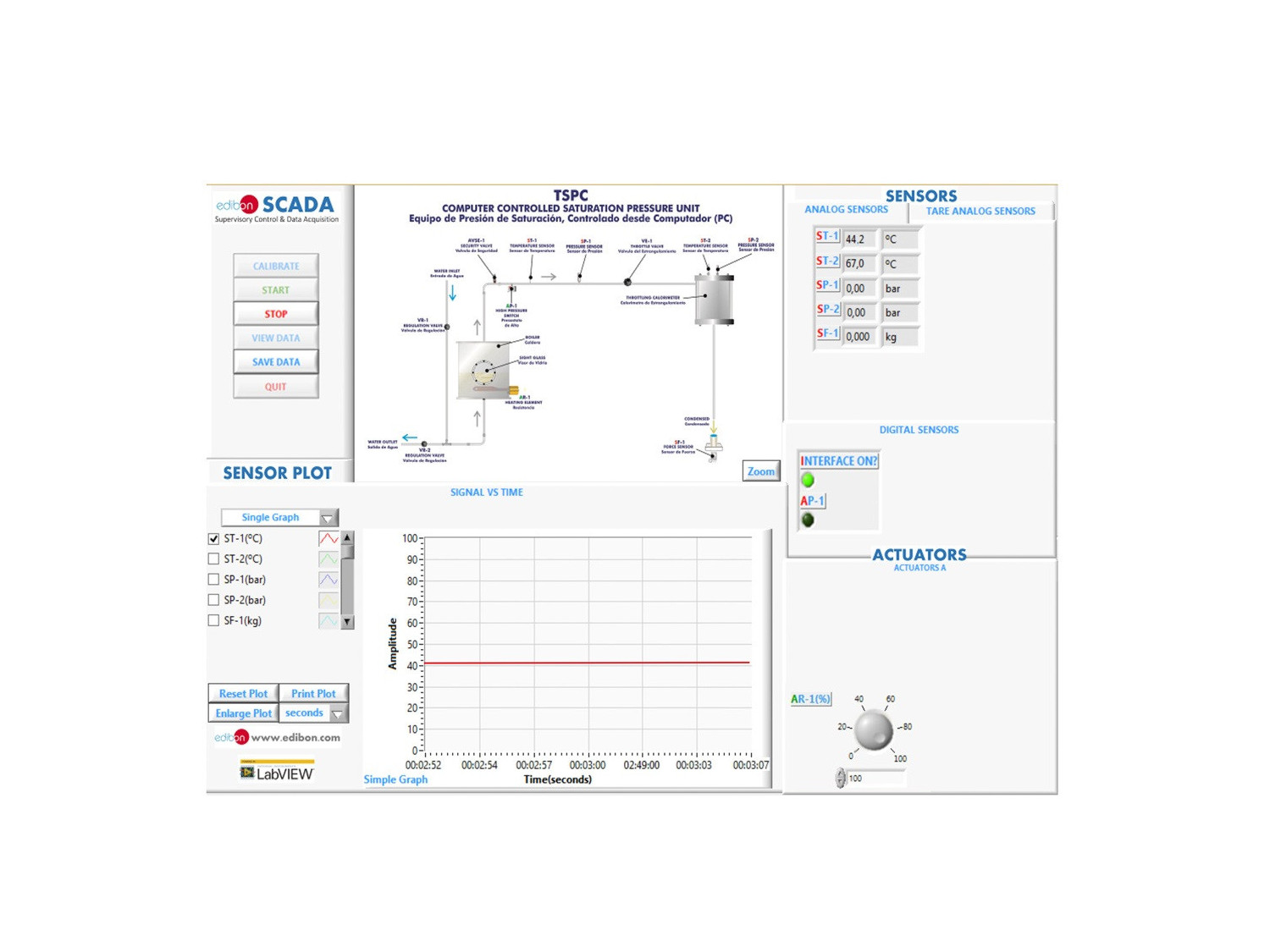

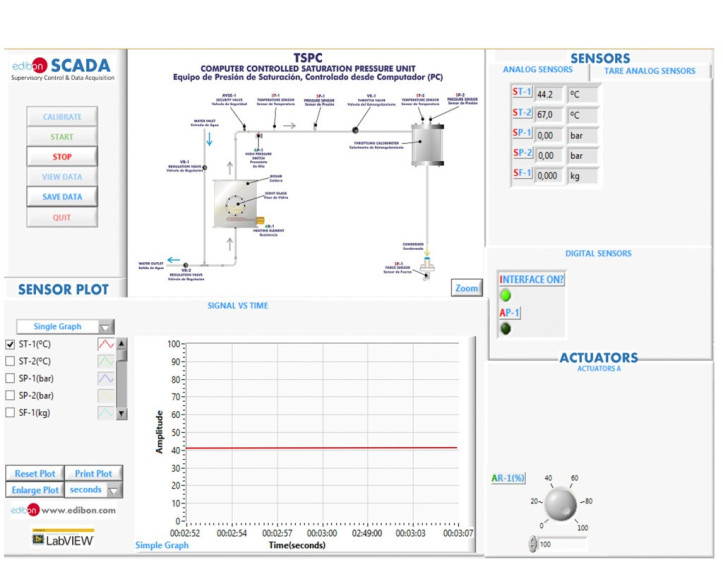

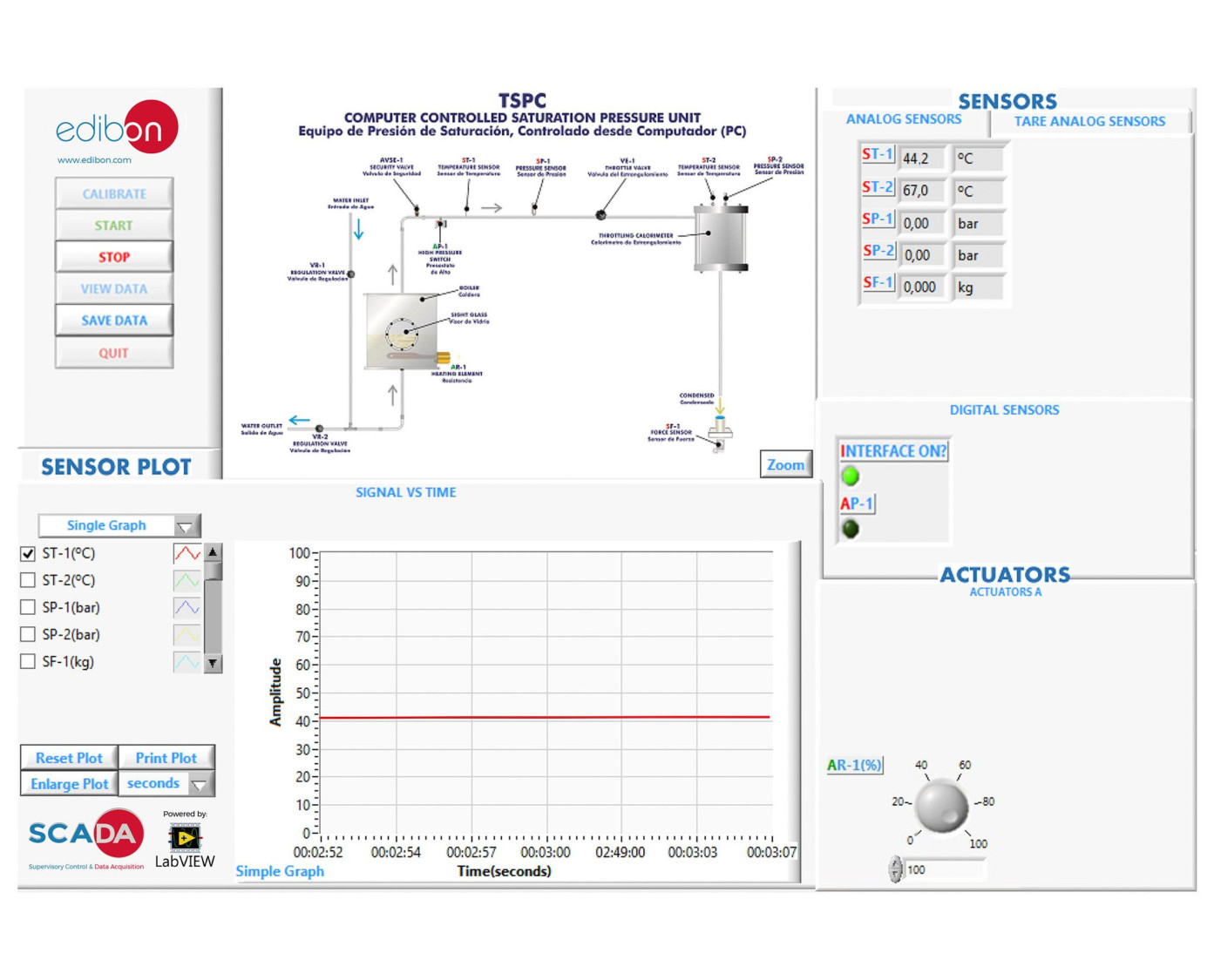

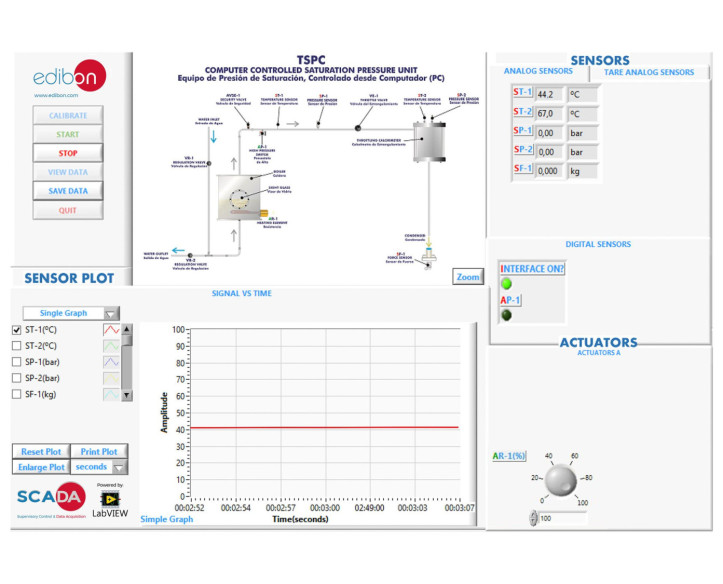

TSPC/SOF. TSPC Software. Main Screen

COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC
COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC
COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC
COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC
COMPUTER CONTROLLED SATURATION PRESSURE UNIT - TSPC

SYSTEMES INNOVANTS

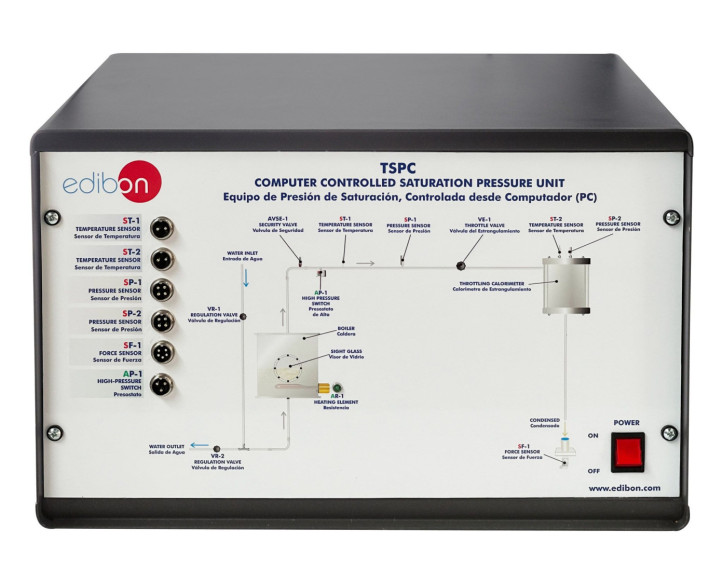

The Computer Controlled Saturation Pressure Unit, "TSPC", consists of a water boiler, including a computer controlled immersion heating element, and a sight glass to observe the boiling patterns in the water surface and control the water level in the boiler.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
PLCHMI

IIoT Contrôle et surveillance local / à distance avec IHM
ELK

Kit de Développement Logiciel EDIBON, Optimisé par NI LabVIEW™
ECR

Système Modulaire Industriel EDIBON avec NI CompactRIO
ESN

EDIBON Scada-Net
ECL

EDIBON Cloud Learning

Laboratories

9TV
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Technique et Professionnel
9HE
 Laboratoire de Thermodynamique et de Thermotechnique pour l'enseignement Supérieur

NOUVELLES LIÉES

La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique : Concepts clés et contribution d’EDIBON
La thermodynamique et la thermotechnique sont des domaines fondamentaux de l’ingénierie qui jouent un rôle crucial dans de nombreuses industries, de la production d’énergie à la climatisation. Comprendre leurs concepts de base est non seulement essentiel pour les ingénieurs, mais fournit...
Lire plus
EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable
Nous sommes ravis de célébrer la publication de l'article du Prof. Dr. Nina Penkova intitulé 'Performance des réfrigérateurs à absorption par diffusion avec une puissance d'entrée variable'. L'étude explore comment les réfrigérateurs à absorption, qui utilisent l'énergie résiduelle ou solaire...
Lire plus

Description Générale

The Computer Controlled Saturation Pressure Unit, "TSPC", consists of a water boiler, including a computer controlled immersion heating element, and a sight glass to observe the boiling patterns in the water surface and control the water level in the boiler.

The saturated steam formed in the boiler passes through a throttle valve and is expanded to atmospheric pressure in a throttling calorimeter with the purpose of determining the dryness fraction of the saturated steam.

The temperature and pressure are measured after the boiler to determine the properties of the saturated steam, and after the expansion in the throttling calorimeter. In addition, a force sensor measures the weight of the condensed water.

The unit includes all the safety measures required for a safe operation, such as relief valve and pressure switch to limit the working pressure, and transparent protection panels.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Measurement of the relationship between temperature and pressure of the saturated vapour in the outlet of the boiler.
  2. Understanding the origin and use of steam tables.
  3. Understanding saturation curves.
  4. To study the characteristics of a two phase fluid.
  5. Using a throttling calorimeter to determine the quality of wet steam.

Saturation Loop:

  1. Observation of the patterns of boiling at the surface of the water.
  2. Measurement of the temperature of saturated steam over the range of pressures 0 to 8 bar gauge.
  3. Comparison of the saturation curves obtained with those published in steam tables.
  4. Determination of the describing equation and linearisation.
  5. Study the concept of the saturation line.
  6. Determination of the percentage of error between experimental and theoretical data.
  7. Effect of the rate of response on the accuracy of the measurement.
  8. To study the characteristic behavior of a two phase fluid.
  9. Gauge and absolute pressures.
  10. Temperature scales.

Throttling Calorimeter:

  1. Determination of the dryness fraction (quality of the steam) produced by the saturation pressure unit at different operating pressure.
  2. Use of steam tables.
  3. Use of the steady flow energy equation.
  4. Study the difference in enthalpy between phases - enthalpy of vaporization.

Other practical possibilities:

  1. Sensors calibration.

PLUS D'EXERCICES PRATIQUES À EFFECTUER AVEC CETTE ÉQUIPEMENT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TSPC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TSPC unit process.
  9. Several other exercises can be done and designed by the user.
