WHEEL AND AXLE UNIT - MRYE1

SYSTEMES INNOVANTS

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

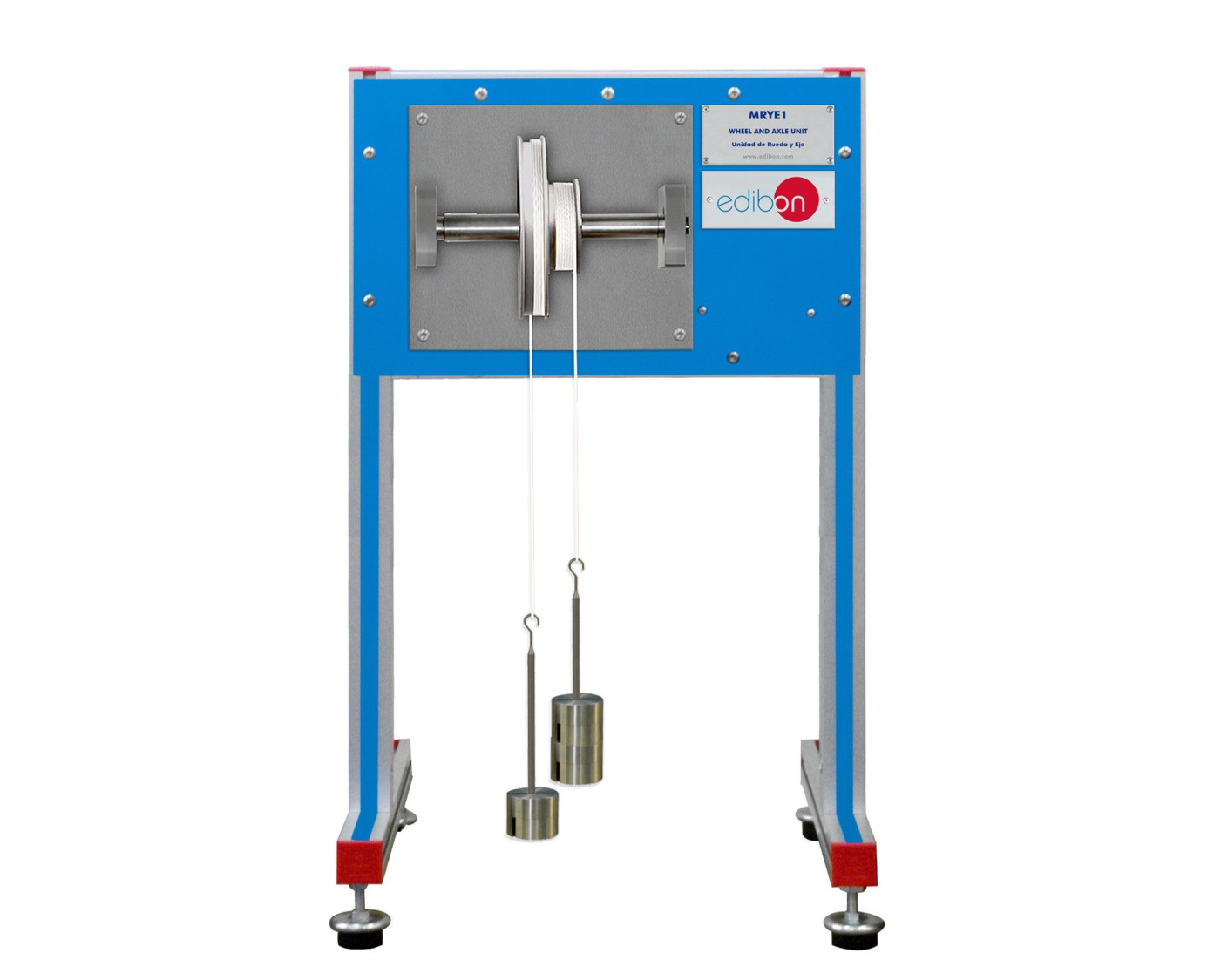

The Wheel and Axle Unit, "MRYE1", is a unit which allows to investigate the mechanics of a simple wheel and axle machine and to demonstrate the laws of the formation of equilibrium of moments in static systems.

Two pulleys with different diameter have an axle supported on pivots with ball bearings in a base plate. Each pulley (wheel) has a cord wrapped around its periphery. The cords can be wrapped in either direction around each pulley.

A weights holder is added to each cord, allowing the loading of the pulleys using the set of weights provided. These weights can be easily changed, thus allowing to quickly vary the peripheral force on the pulleys.

Using the holders and weights the velocity ratio can be experimentally determined and compared with the calculated values. Students can also determine the variation of effort with load and the variation of efficiency with load.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of equilibrium of moments.
  2. Determination of velocity ratio and comparison with calculated value.
  3. Determination of variation of effort with load.
  4. Determination of variation of efficiency with load.

UNITÉS SIMILAIRES DISPONIBLES

WHEEL AND DIFFERENTIAL AXLE UNIT - MRYE2
  • MRYE2
Available
7.1.3.- STATIQUE ET DYNAMIQUE
MRYE2
Unité de Roue et Axe Différentiel

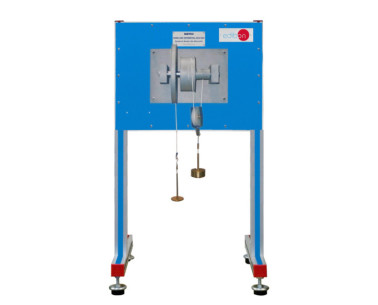

The Wheel and Differential Axle Unit, "MRYE2", is a unit that allows for investigating the mechanics of a wheel and differential axle mechanism and demonstrating the force reduction on a differential pulley block.A wheel, consisting of a pulley...
