TORSION UNIT - MTB

SYSTEMES INNOVANTS

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate: circular rods elastic torsion equation and the rigidity modulus of different materials.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Lire plus
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Lire plus

Description Générale

The Torsion Unit, "MTB", allows to verify the basis of torsion and to perform practical exercises to demonstrate:

  • Circular rods elastic torsion equation.
  • The rigidity modulus of different materials.

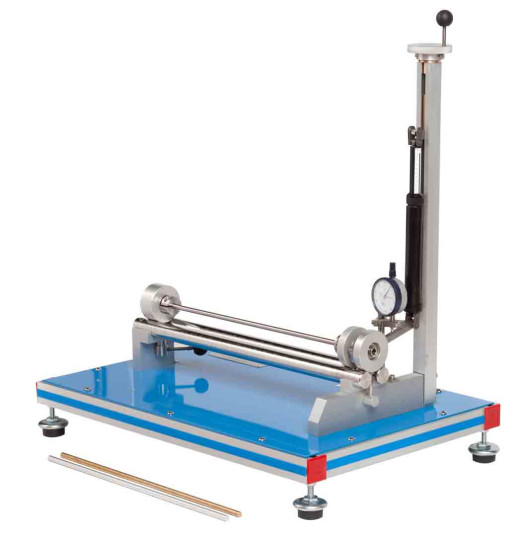

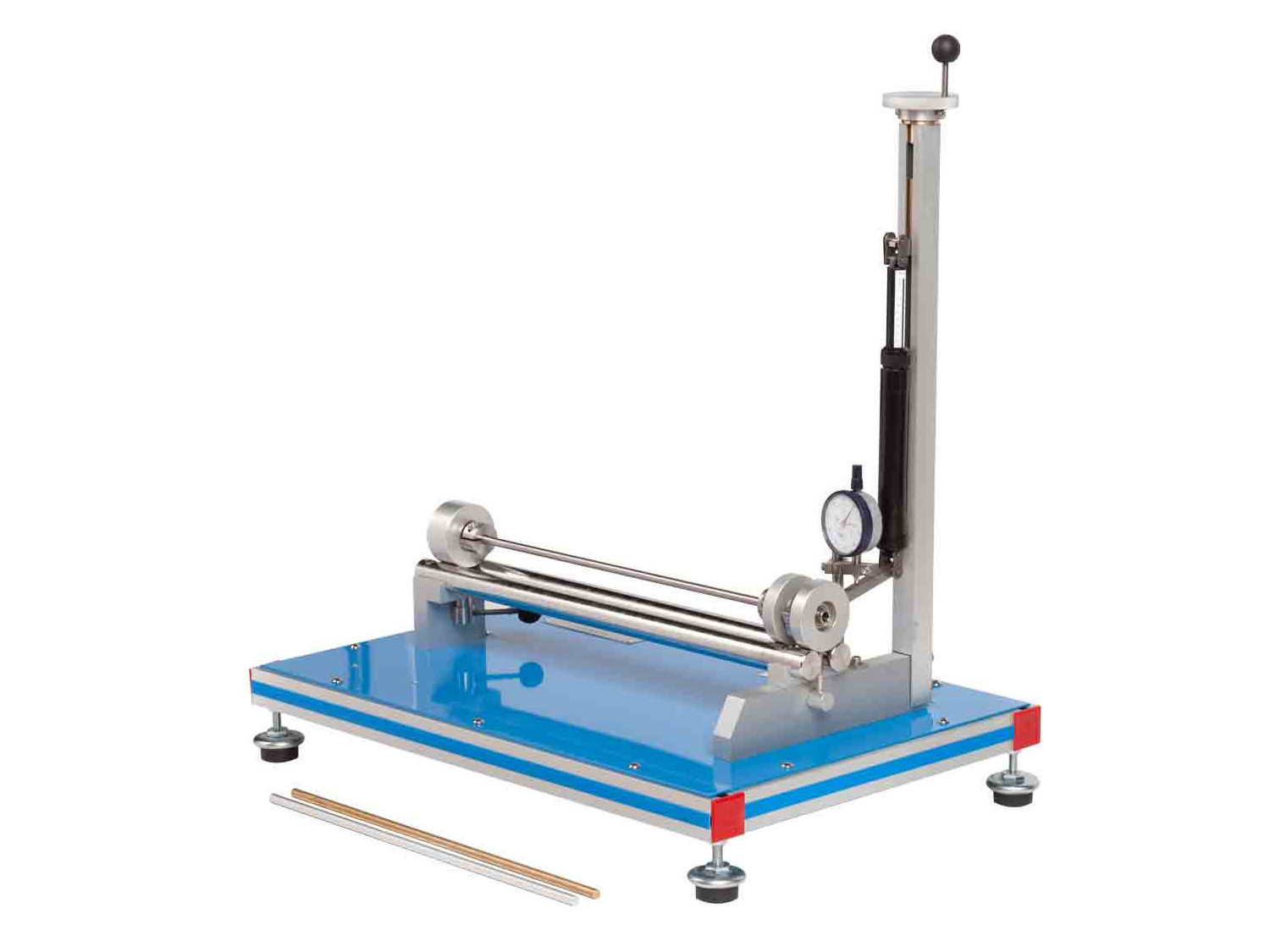

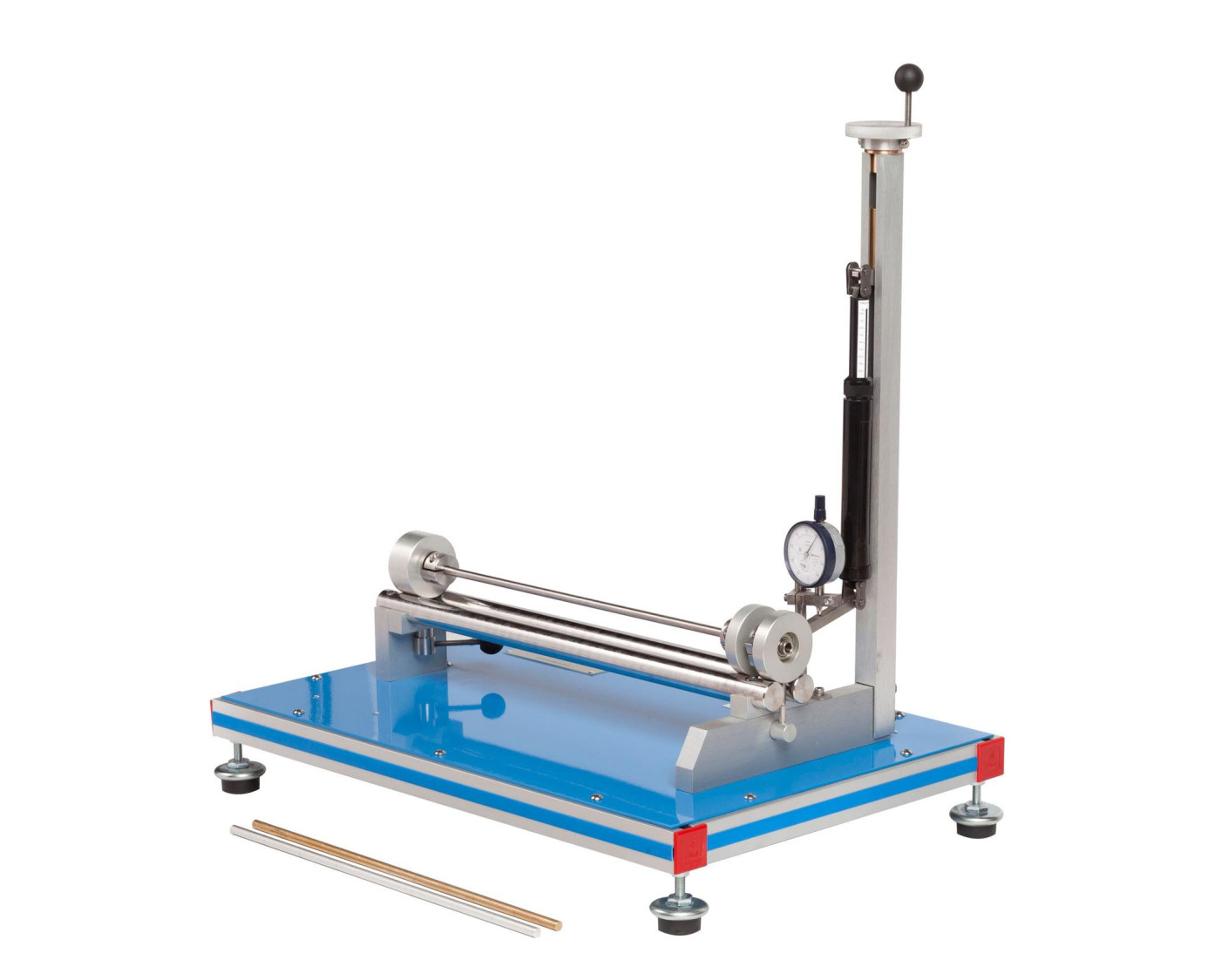

To perform the tests a metallic rod is fastened by clamps and subjected to the testing force. Force is gradually applied on the rod to observe the elastic tension generated. The force moment or torque is applied by a dynamometer with a lever. Deformation generated by the torsional stress is obtained by reading a dial gauge in contact with the arm. The torsional deformation angle is obtained by a simple trigonometric identity, providing the unit with important didactic characteristics.

Steel, brass and aluminum rods are supplied to perform the practical exercises. Additionally, rods made of other materials can be employed.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Verification of the elastic torsion equation of circular rods.
  2. Experimental determination of the relationship between the torsion moment and the shaft angular determination.
  3. Experimental determination of the relationship between the test rod length and the shaft turn angle for a same torsional force.
  4. Experimental determination of the calue of the Modulus of Rigidity for steel, brass and aliminum.

UNITÉS SIMILAIRES DISPONIBLES

TORSION AND BEND UNIT - MTP
  • MTP
Available
7.3.2.1.- TEST MÉCANIQUE
MTP
Unité de Torsion et de Flexion
L'Unité de Torsion et de Flexion, "MTP", conçue par EDIBON, est un unité combiné pour la démonstration de la torsion et de la courbure à utiliser en laboratoire ou en complément de l'étude théorique sur la torsion et la courbure. Sa taille et son...
Voir l'Unité
TORSION TEST UNIT (30NM) - MTT
  • MTT
Available
7.3.2.1.- TEST MÉCANIQUE
MTT
Unité d'Essai de Torsion (30Nm)

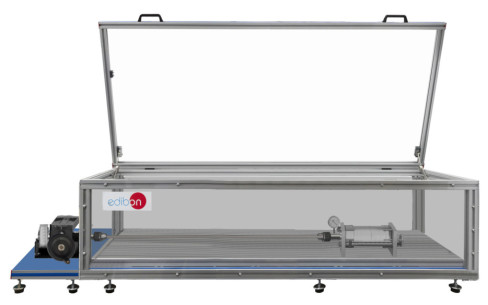

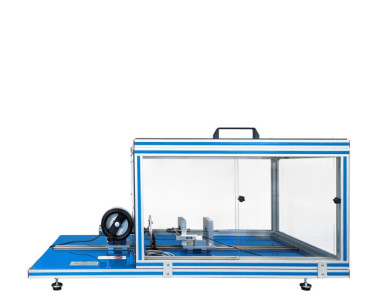

To perform the tests, the test specimen is clamped and twisted by means of a flywheel and a worm gear until it breaks. The force is gradually applied to the specimen to observe the elastic strain produced. The specimen will deform and manifest...
Voir l'Unité
