SIMPLE HYDRAULIC UNIT - MSH

SYSTEMES INNOVANTS

The Simple Hydraulic Unit, "MSH", has been designed to demonstrate how a fluid can be used to transmit a force and to study the relationships between the force on the pistons, the cross-sectional area of the pistons and the fluid pressure in the unit.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

Laboratories

7TV
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Technique et Professionnel
7HE
 Laboratoire de Mécanique, d'automobile et de Matériaux pour l'enseignement Supérieur

NOUVELLES LIÉES

Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
Setting up with the Ministry of Education, Culture and Sports of Castilla La Mancha (Spain)
We have supplied some of our units to the IES Pedro Mercedes (Cuenca), IES Aguas Vivas (Guadalajara) and IES Juanelo Turriano (Toledo).
Lire plus

Description Générale

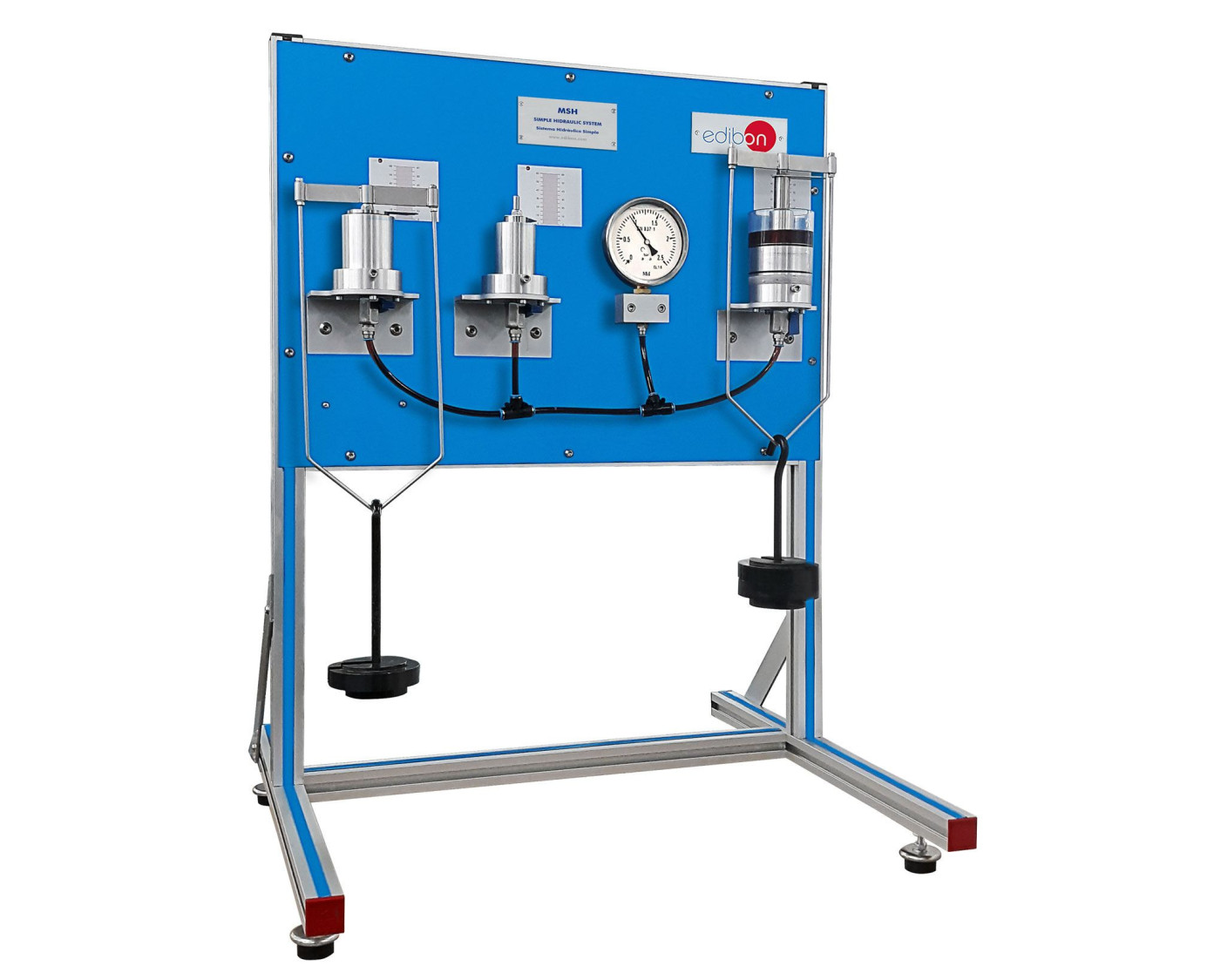

The Simple Hydraulic Unit, "MSH", has been designed for studies related to mechanical engineering and motor vehicles. It is used to demonstrate how a liquid can be used to transmit a force.

The unit can also be used to conduct experiments to study the relationships between the force on the pistons, the cross-sectional area of the pistons and the fluid pressure in the unit.

The unit consists of three cylinders and pistons whose cross sections are in the ratio 1, 2 and 6. These three cylinders and the pressure gauge are connected in parallel. With the ON/OFF keys included in the circuit, any of the cylinder units can be isolated from the unit.

Load hangers are supplied.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Study of a hydraulic unit.
  2. Analysis of the force transmitted by a hydraulic unit.
  3. Study of the operation of a hydraulic piston.
  4. Use of a fluid to transmit a force.
  5. Study of the relations between:
  • The force on the pistons.
  • The transversal area of the pistons.
  • The pressure of the fluid in the unit.
