SSM Unité pour l'Étude de Tenions dans une Membrane

7.1.6.- MÉCANIQUE DES STRUCTURES 14.1.6.- MÉCANIQUE DES STRUCTURES
UNIT TO STUDY STRESS ON A MEMBRANE - SSM

SYSTEMES INNOVANTS

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

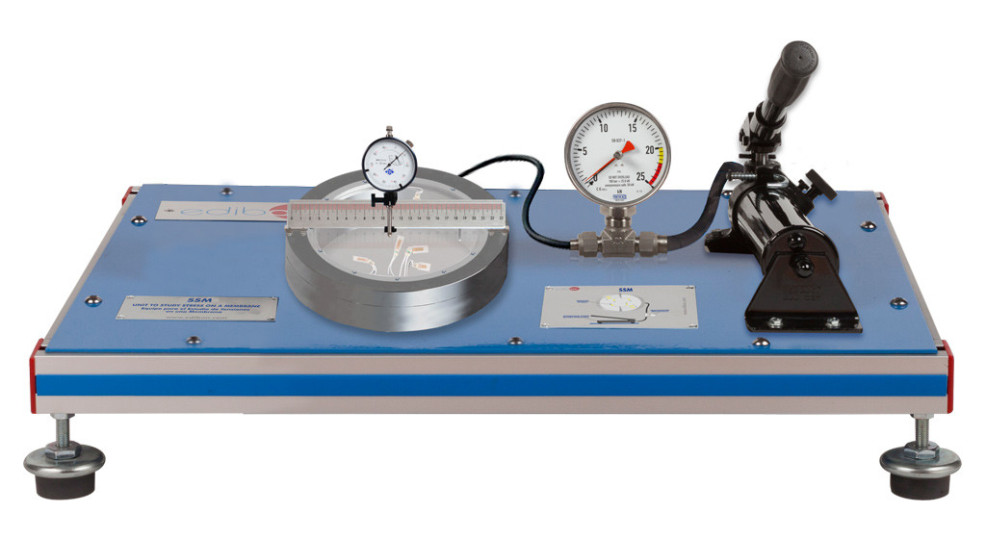

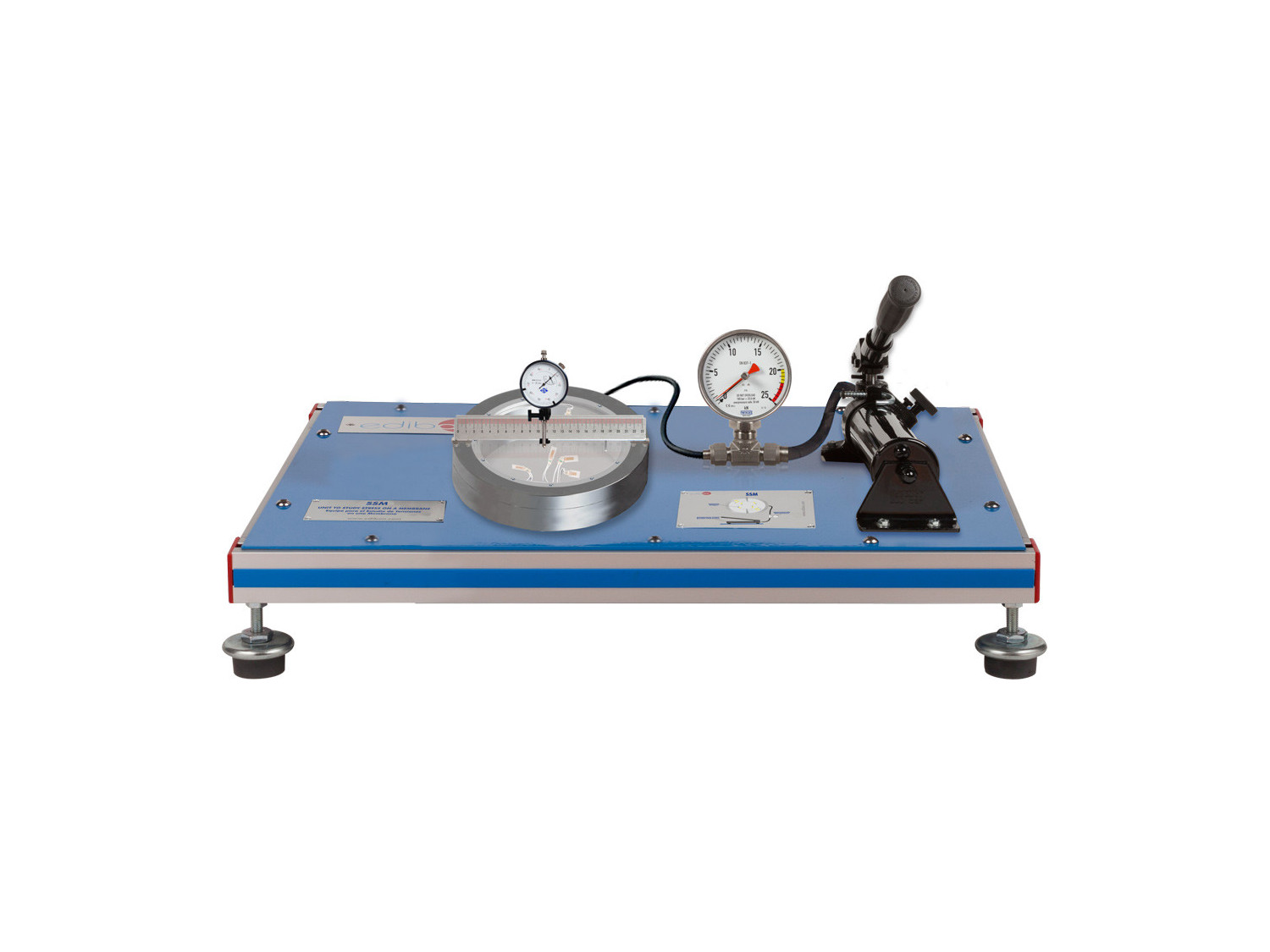

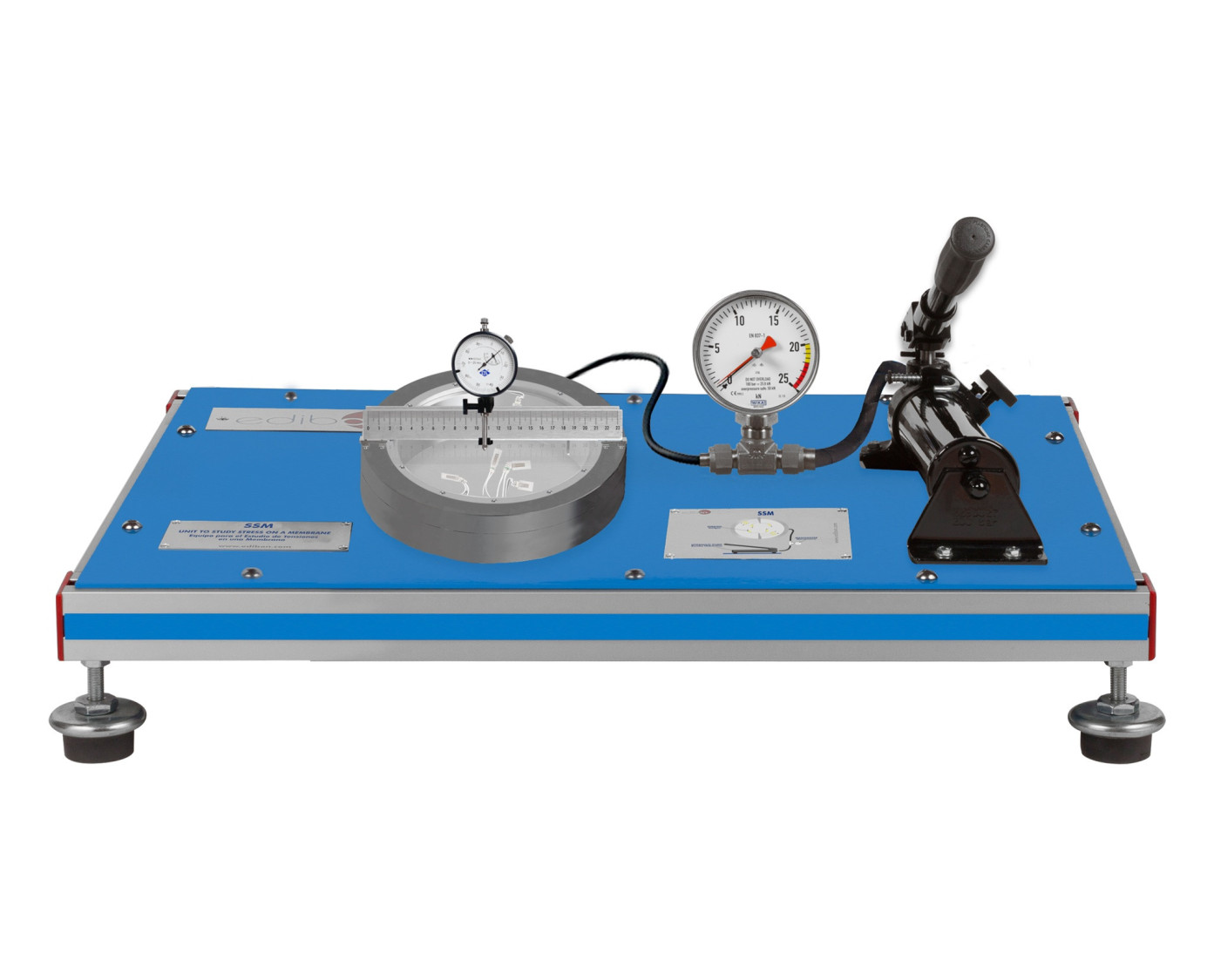

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.

The main element of the equipment is a thin disc or membrane that is subjected to pressure and has eight strain gauges attached to its surface that allow the recording of the deformations produced.

A hydraulic system generates the pressure by means of a cylinder and a piston, which is measured by means of a manometer.

In addition, it is also possible to measure the deflection produced in the disc or membrane by means of a dial gauge which can be moved along the entire length of the thin disc. Curvature can be measured at any radius.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Measurement of radial and shear stresses with strain gauges.
  2. Measurement of deflections with dial gauges.
  3. Calculation of radial and shear stresses from the measured deflections.
  4. Study of the direction of principal stress.
  5. Study of deformation

Qualité

Service après vente

Demander des informations
