SRI Unité pour l'étude du Moment d'inertie en Rotation

7.1.3.- STATIQUE ET DYNAMIQUE 14.1.3.- STATIQUE ET DYNAMIQUE
UNIT TO STUDY ROTATIONAL INERTIA - SRI

SYSTEMES INNOVANTS

The Unit to Study Rotational Inertia, "SRI", has been designed to perform tests for the analysis of the moments of inertia of rotating bodies.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur
MSAC

Système Modulaire d'Acquisition et de Contrôle

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Lire plus

Description Générale

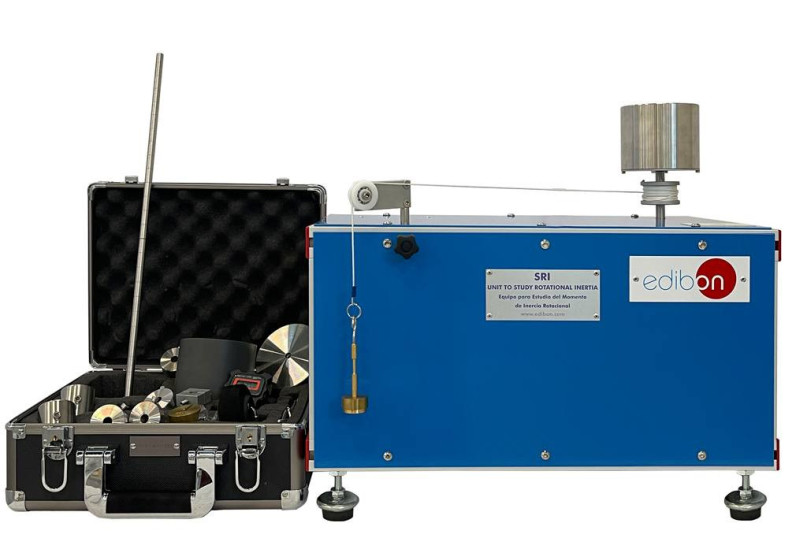

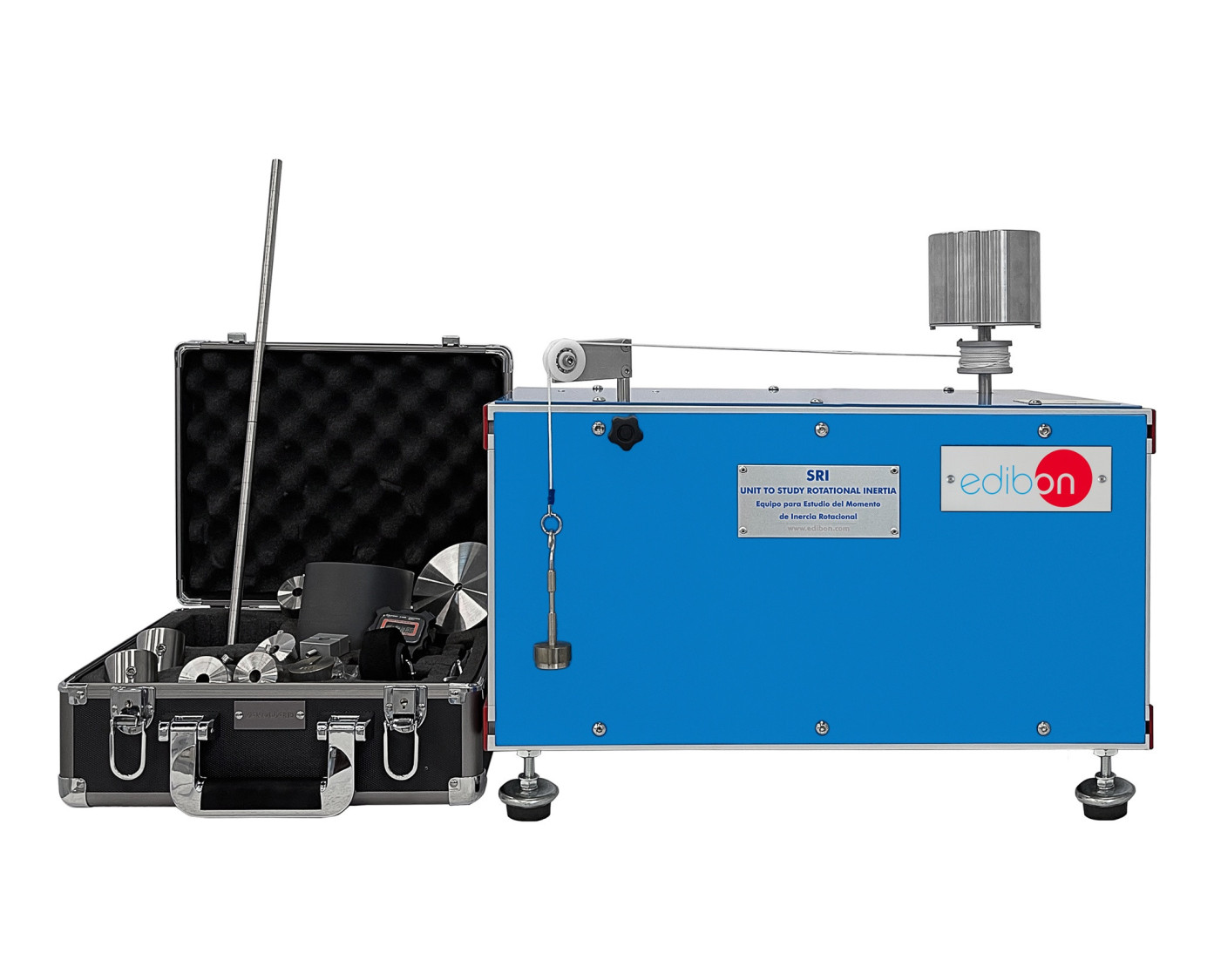

The Unit to Study Rotational Inertia, "SRI", has been designed to carry out tests to analyze the moments of inertia of a solid and a hollow cylinder, both with same mass and diameter. The moment of inertia of another hollow cylinder with different mass but same diameter can also be compared.

Besides, systems with different weight and distribution of weights can be studied with a rotating rod to which different weights can be attached in various positions (at different distances from the center).

The unit consists of two support rods. One rod is the rotation axis with the body under study and from the other rod a uniformly accelerated rotational motion in the rotation axis is generated. The rotation axis is accelerated by a fixed pulley and a cable wound on it, where a weight is hung.

The moment of inertia is determined with the measurements of the time (with a chronometer), the mass under study and the acceleration distance.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Generation of a uniform acceleration rotation movement.
  2. Study and analysis of the moment of inertia of bodies in rotation movement.
  3. Comparison of the moment of inertia of a hollow cylinder and a solid cylinder in rotation.
  4. Comparison of the moment of inertia of two hollow cylinders of same shape but different mass in rotation.
  5. Study of the influence of the rotating mass in the moment of inertia.
  6. Study and analysis of the moment of inertia as a function of the radius.
  7. Comparison of experimental results and theoretical values.
