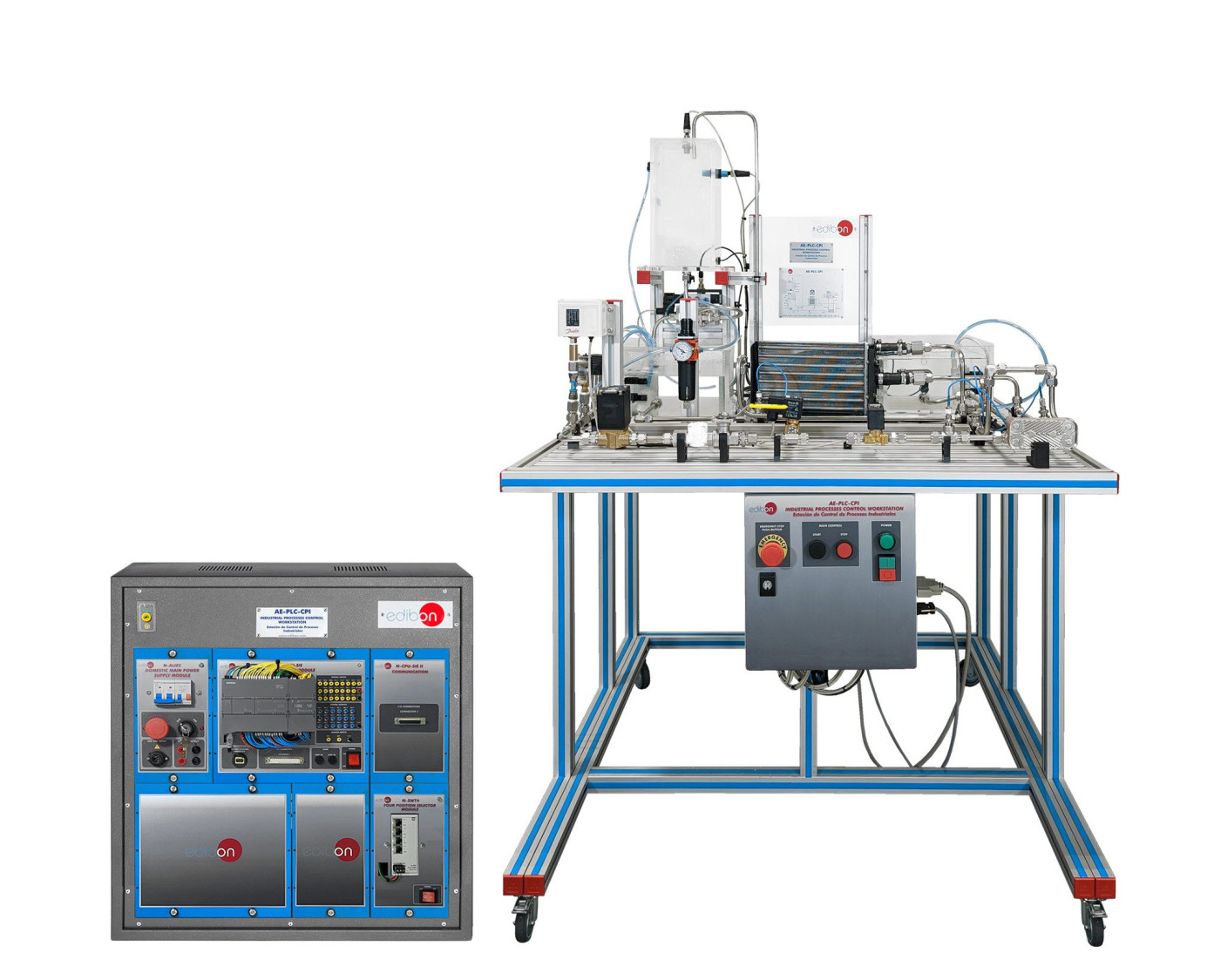

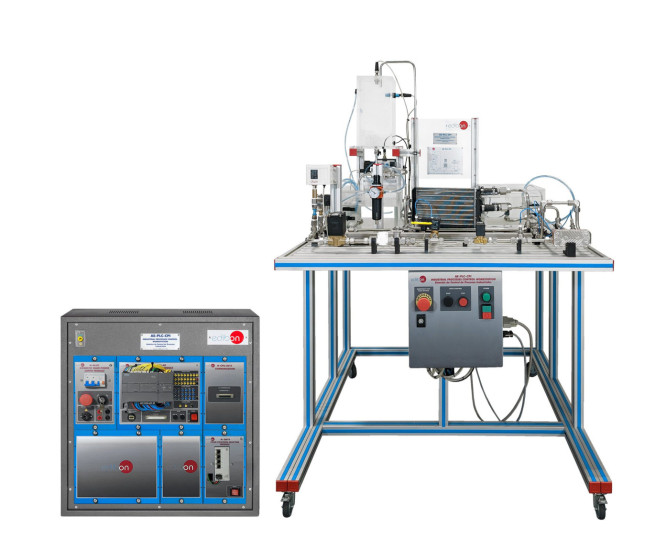

INDUSTRIAL PROCESSES CONTROL WORKSTATION - AE-PLC-CPI

SYSTEMES INNOVANTS

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level,temperature and pressure.

Voir description générale

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

EDIBON et son engagement envers les compétences européennes
EDIBON et son engagement envers les compétences européennes
Chez EDIBON, nous sommes engagés à renforcer les compétences comme pilier stratégique pour la compétitivité et le bien-être social de l'Union européenne. Une formation adéquate renforce non seulement l'économie, mais permet également aux individus de participer pleinement à la société et à la...
Lire plus

Description Générale

The "AE-PLC-CPI" application is a unit that includes different technologies to carry out four control loops in closed loop: flow, level, temperature and pressure. A flexible system of ball valves and pipe connections makes the configuration of the control loops be quick and easy. The sensors and actuators included in the application allow for the implementation of different types of regulators (P, I, PI, PID) through a controller. In addition, there are elements that generate disturbances in the system so that the response of the control loop is observed.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

  1. Implementation of a complex process control system.
  2. Sensor operation principle: inductive, capacitive, ultrasoundand infrared sensors.
  3. Actuator operation principle: pump and proportionaldirectional control valve.

With PLC Programmable Controller (Base Unit):

  1. Structure of a PLC program.
  2. Programming and use of digital and analog signals.
  3. Programming of different operating modes.
  4. Programming of alternative branches (Grafcet).
  5. Communication with extended I/O remote module.
  6. Time and response optimization. Programming a PID levelcontroller via PLC.
  7. Time and response optimization. Programming a PID flowcontroller via PLC.
  8. Time and response optimization. Programming a PIDtemperature controller via PLC.
  9. Time and response optimization. Programming a PID pressurecontroller via PLC.
