AE-PLC-MPS Usine-école de Manipulation des Pièces

6.2.5.4.- STATIONS DE TRAVAIL DE MANIPULATIONS DE PIECES

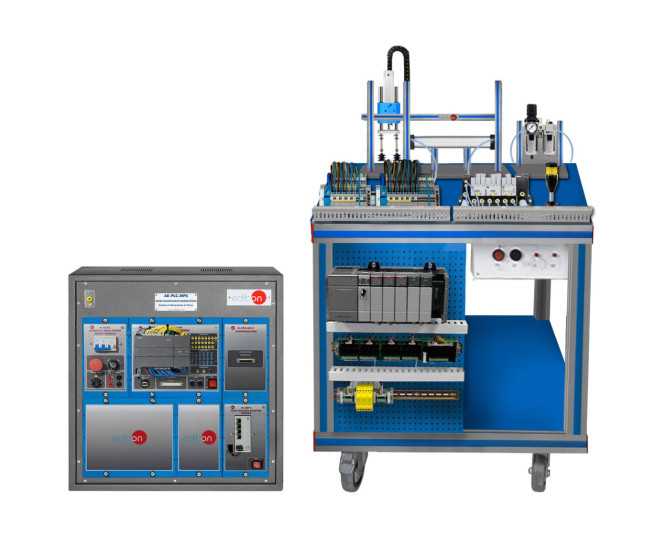

PIECES MANIPULATOR WORKSTATION - AE-PLC-MPS

SYSTEMES INNOVANTS

The "AE-PLC-MPS", Pieces Manipulator Workstation, is a unit that works with pneumatics, electro-pneumatics and vacuum technologies.

Voir description générale

Catalogue

Spécifications du Concours

Expansions

ICAI

Logiciel Interactif pour l'Enseignement assisté par Ordinateur

NOUVELLES LIÉES

Description Générale

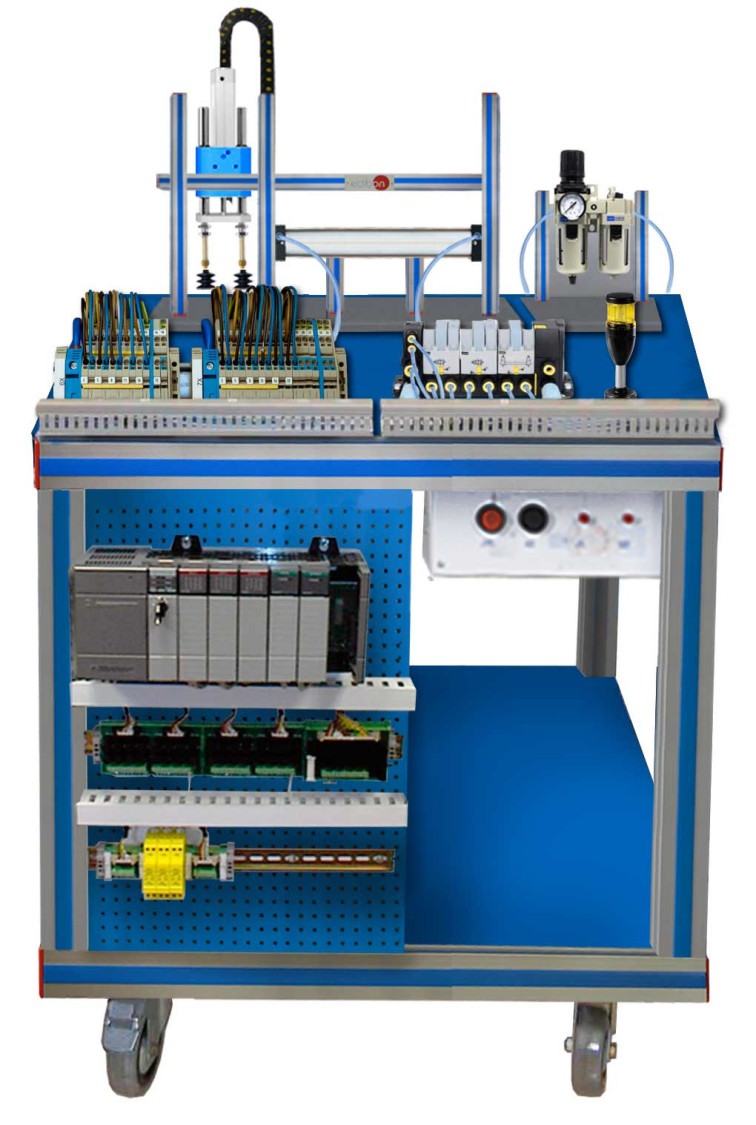

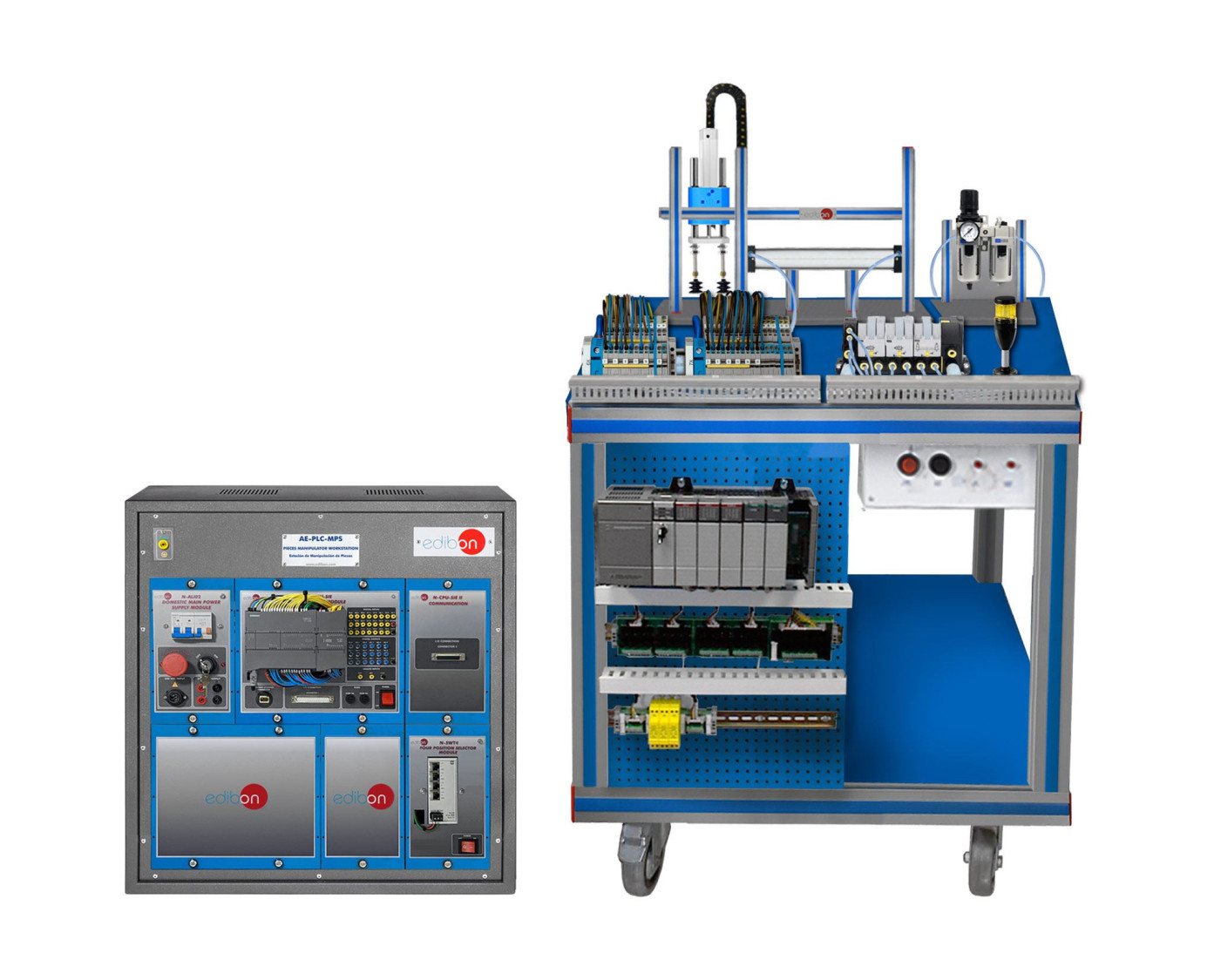

The "AE-PLC-MPS", Pieces Manipulator Workstation, is a unit that works with pneumatics, electro-pneumatics and vacuum technologies.

The "AE-PLC-MPS" performs the following operation: moving a piece from one position to another by using suction pads and vacuum technology.

The "AE-PLC-MPS", designed by EDIBON, allows the user to learn about the basic concepts of pneumatics, electro-pneumatics and vacuum (operation, elements of each circuit, etc.) without any previous knowledge or experience.

Des exercices et pratiques guidées

EXERCICES GUIDÉS INCLUS DANS LE MANUEL

Introduction to computer-integrated manufacturing (CIM).
Introduction to pneumatic and electro-pneumatic technology.
Configuration of a pneumatic application.
Introduction to vacuum technology.
Configuration of a vacuum application.
Provision of pieces to an automated system.
