AE-PLC-MR2 Usine-école de Table Rotative : Alimentation, Contrôle de Qualité et Assemblage (étude de matériau et de couleur)

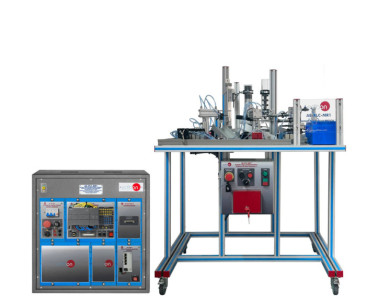

The "AE-PLC-MR2" an automatic rotary table with a feeder, quality control and mounting system integrated in it. The "AE-PLC-MR2" has a vertical storage, the system provide pieces one by one to the rotary table, then, a quality control system check the material and the color of the piece. Finally, if the piece has the desired color and material, is mounted inside of another piece. If the piece has not the desired color or material is discarded by the rotary table.

The "AE-PLC-MR2" workstation is designed as a modular system to facilitate the understanding of the unit. The main components are:

• The PLC: is composed by an AE-PLCB (with HMI devices, analog and digital input/output, etc.) unit and all the extra modules needed to perform a correct working of the workstation.
• The control panel: with start/stop button, emergency pushbutton, reset button, light indicators to show current state of the process, etc.
• The pneumatic circuit: contains the required solenoid valves, the pressure components, the filters and regulators to assure the appropriate working of the unit.
• The workstation: is composed by real industrial components used by the rotary table systems such as reed sensors, presence sensors, DC motor, inductive sensors, rotary table with 8 positions, etc.

The "AE-PLC-MR2" is an independent workstation that can work alone and/or in conjunction with other workstation to make up a complete Flexible Manufacturing system*.

*The Flexible manufacturing systems product list is available at "Flexible Manufacturing Systems (FMS)" area of the general catalogue.
