AEL-TI-01 Aplikasi Analisis Jalur Daya Tiga Fasa

5.1.3.2.- KEKUATAN TRANSMISI
ANALYSIS OF THREE-PHASE POWER LINES APPLICATION - AEL-TI-01

SISTEM INOVATIF

The Analysis of Three-phase Power Lines Application, "AEL-TI-01", includes a series of modules which allow the study of the most important characteristics of aerial lines.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up in Papua New Guinea
Setting up in Papua New Guinea
We have traveled to Oceania to make an installation in Papua New Guinea. There we have installed our Analysis of Three-phase Power Lines Application, (AEL-TI-01), our Distribution Transfomer with Motor Regulation Application (AEL-TI-02), Arc Suppression Coil Application (AEL-TI- 03), Underground...
Baca lebih lanjut
Setting up at Béjaia University
Setting up at Béjaia University
We have traveled to the Béjaia University to install several of our equipment in the areas of Electrical Engineering and Heat Transfer.
Baca lebih lanjut
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Baca lebih lanjut
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Baca lebih lanjut

GAMBARAN UMUM

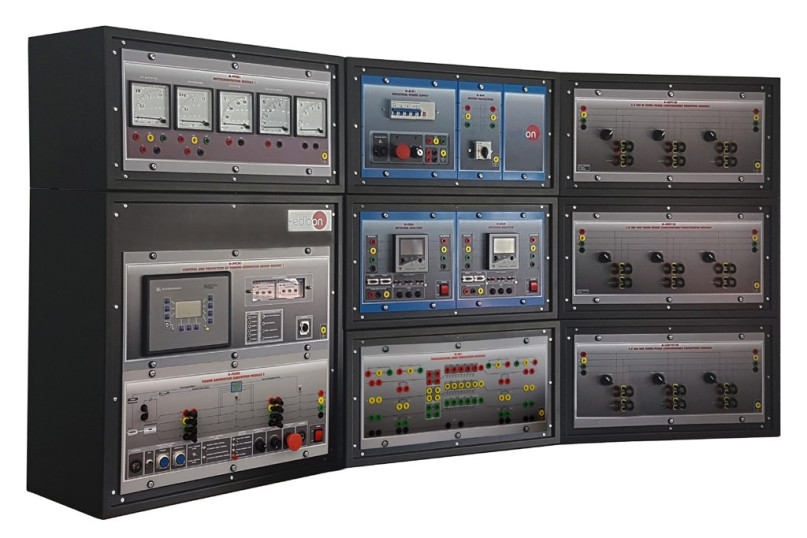

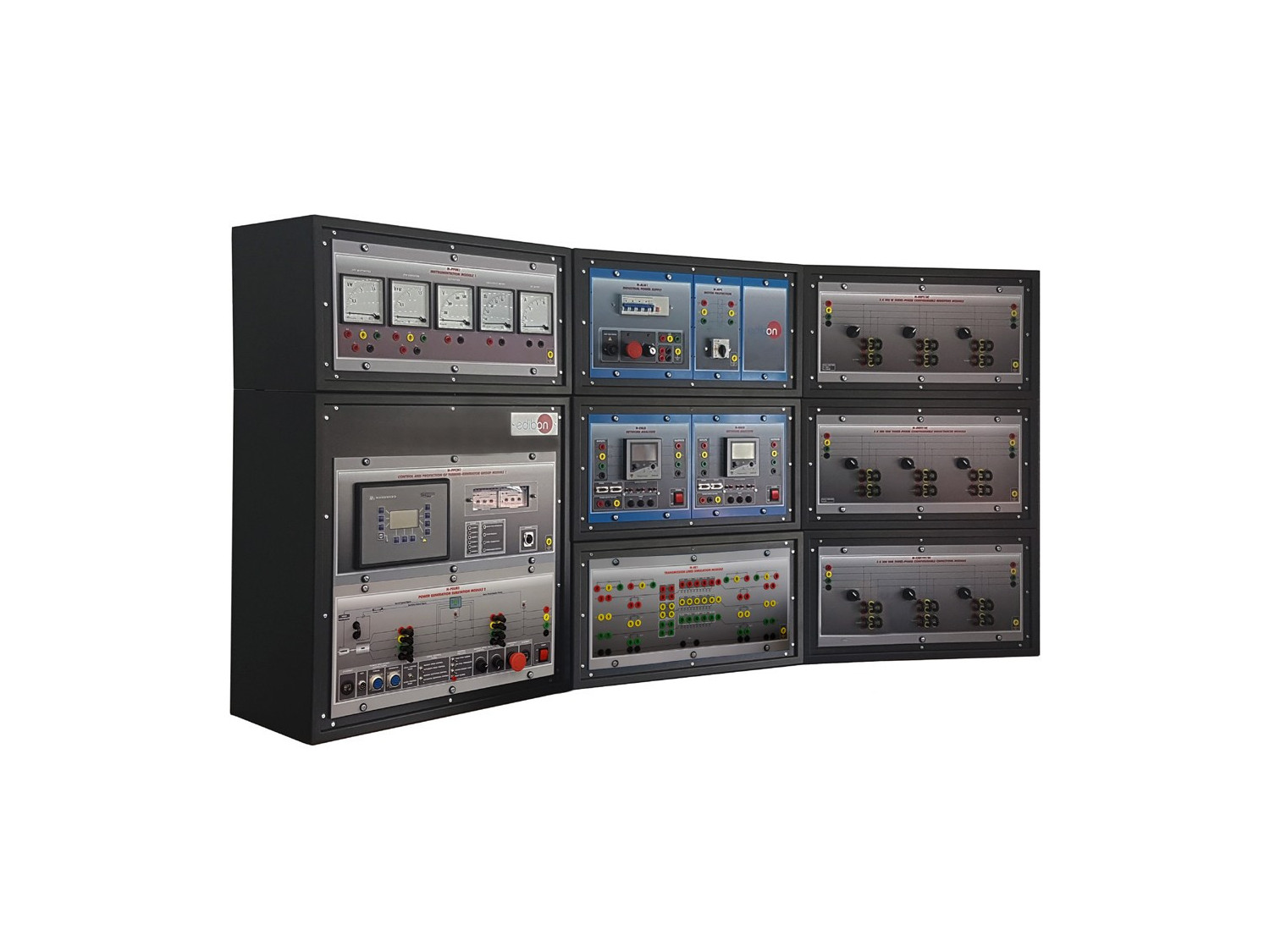

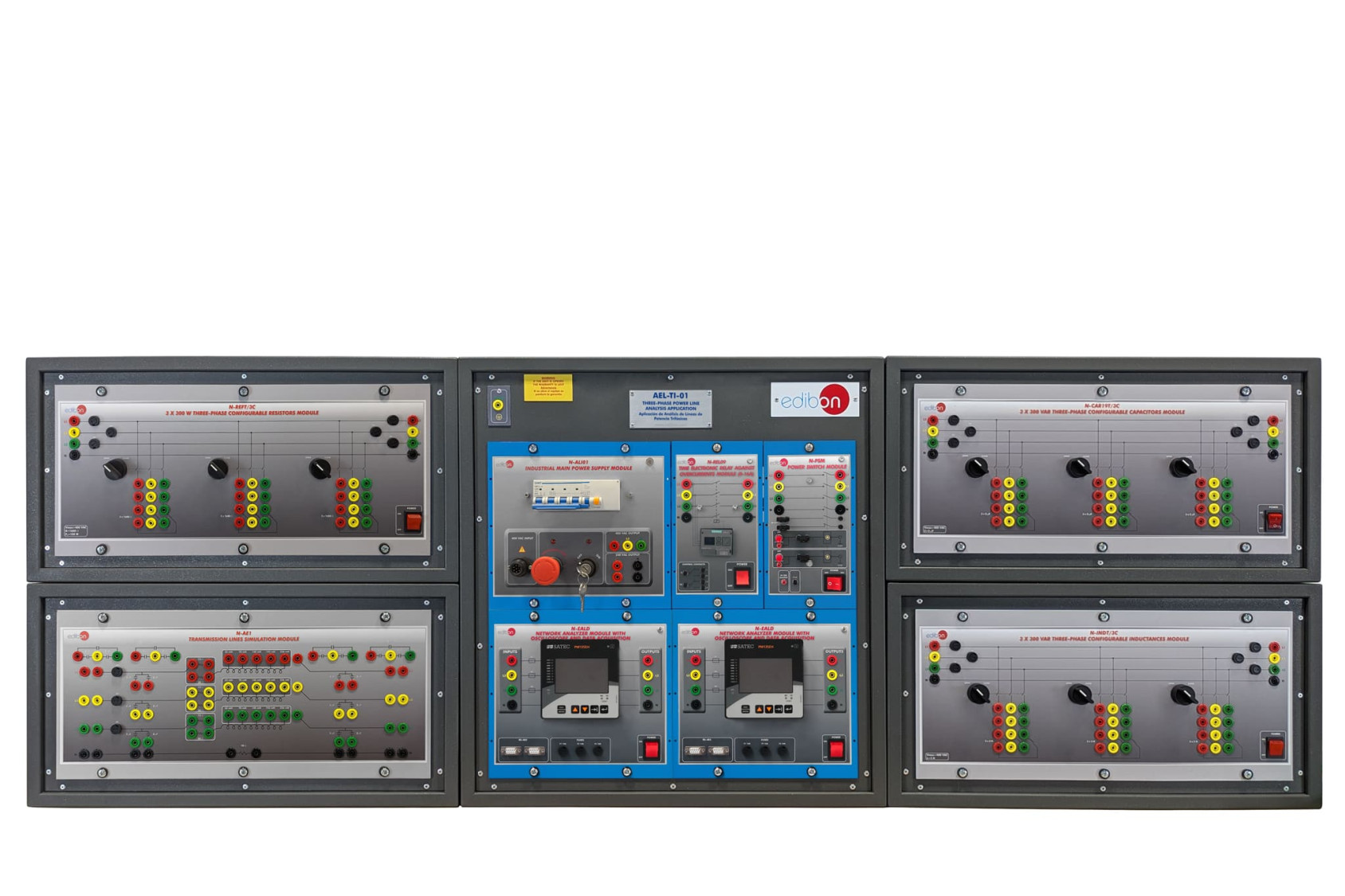

The Analysis of Three-phase Power Lines Application, "AEL-TI-01", includes a series of modules which allow the study of the most important characteristics of aerial lines.

Among them we can find: the aerial line module, which is configurable with different values of resistors, inductances and capacitances, the resistive, inductive and capacity loads modules to analyze the voltage drop of the lines in function of the power factor of the load, network analyzer module to measure in real time values of voltage, current, power flows, power factor, etc. A three pole power switch and an overcurrent protection relay.

This application allows the students carry out important investigations about power transmission and distribution lines: capacitive effects between the lines and the ground, energy losses depending on the load, power factor compensation and electrical values comparison, phase shifts in a line, etc.

In addition, this application has been designed to be combined with the rest of AEL-TI- and AEL-SST- applications in order to form a system in which the user can study concepts about generation, transmission, distribution and power consumption.

This application can work remotely through SCADA software AEL-TI-07/CCSOF included in the application of Transmission Application with Synchronous Generator, "AEL-TI-07".

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of line overvoltages in transmission lines.
  2. Study of drop voltages in transmission lines with different lengths and loads.
  3. Study of drop voltage in transmission lines with different power factors.
  4. Energy losses in transmission lines in function of U and I.
  5. Study of phase lost in transmission lines.
  6. Power factor compensation in transmission lines.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom it can be used a projector or an electronic whiteboard.
  2. This application is totally safe as uses mechanical, electric and electronic, and software safety devices.
  3. This application can be used for doing applied research.
  4. This application can be used for giving learning courses to industries even to other Technical Education Institutions.
  5. Several other exercises can be done and designed by the user.

PERALATAN SIMILAR TERSEDIA

AERIAL LINE MODEL APPLICATION - AEL-AE1A
  • AEL-AE1A
Available
5.1.3.2.- KEKUATAN TRANSMISI
AEL-AE1A
Aplikasi Model Garis Udara
The Aerial Line Model Application, "AEL-AE1A", has been designed by EDIBON to study the basics concept of power systems in the field of the power generation, transmission, distribution and load consumption.The "AEL-AE1A" consists of a series of...
