AEL-CTFP Aplikasi Dasar Transformator Arus untuk Perangkat Perlindungan

5.6.2.- SISTEM PERLINDUNGAN
CURRENT TRANSFORMER FUNDAMENTS APPLICATION FOR PROTECTIONS DEVICES - AEL-CTFP

SISTEM INOVATIF

The Current Transformer Fundaments Application for Protections Devices, "AEL-CTFP", has been designed by Edibon to demonstrate the students which the main functions of current transformers are and which the parameters that must be considered in order to choose the adequate current transformer are.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

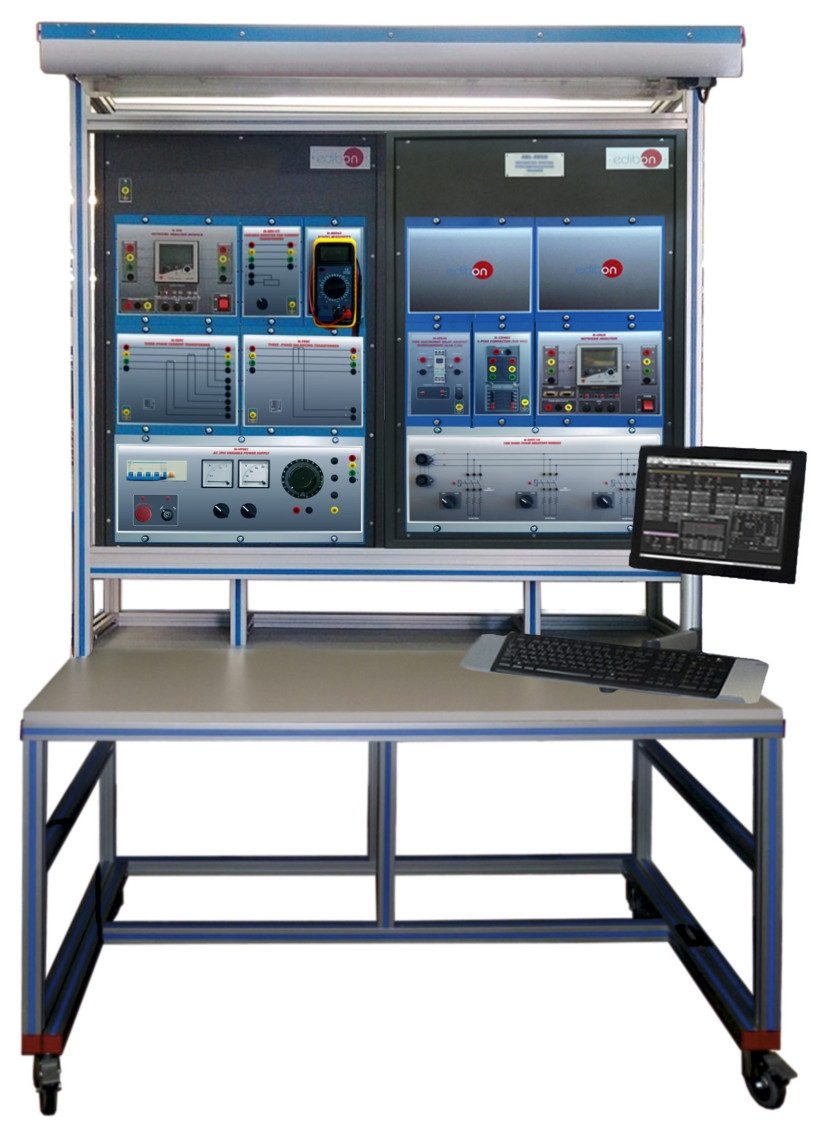

The Current Transformer Fundaments Application for Protections Devices, "AEL-CTFP", has been designed by Edibon to demonstrate the students which the main functions of current transformers are and which the parameters that must be considered in order to choose the adequate current transformer are.

This trainer allows the students to check the transformation ratio and how it changes if the load variates. With this trainer, the student will study the zero residual current, the rated overcurrent factor, how change the current ratio error in function of the load and how work the current transformers.

The AEL-CTFP consists of a series of modules in order to carry out all exercises and practical possibilities related to current instrument transformers. These modules are, for instance, the three-phase AC variable power supply, the network analyzer, the digital multimeter, the overcurrent time electronic relay, the variable resistor and the three-phase current transformer modules.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Analyzing the secondary current transformer as a function of the primary current.
  2. Checking the effect of the load on current ratio error.
  3. Checking rated overcurrent factor.
  4. Analyzing the transformer circuit in three-wire system.
  5. Analyzing the transformer in four-wire system.
  6. Determination of zero residual current.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several other exercises can be done and designed by the user.
