GAMBARAN UMUM

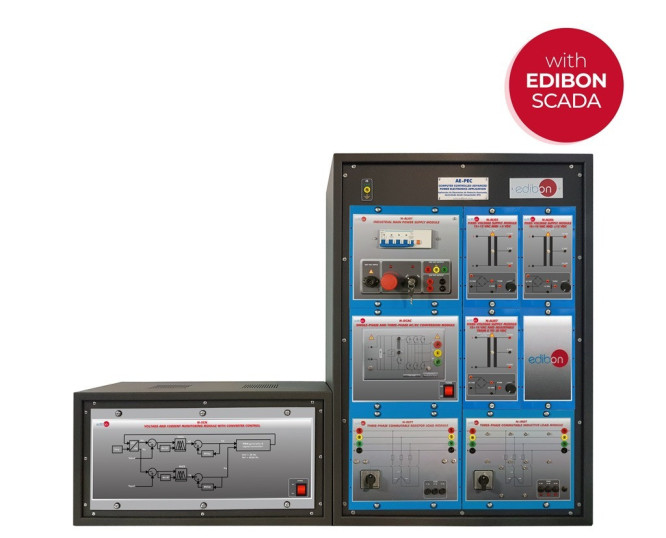

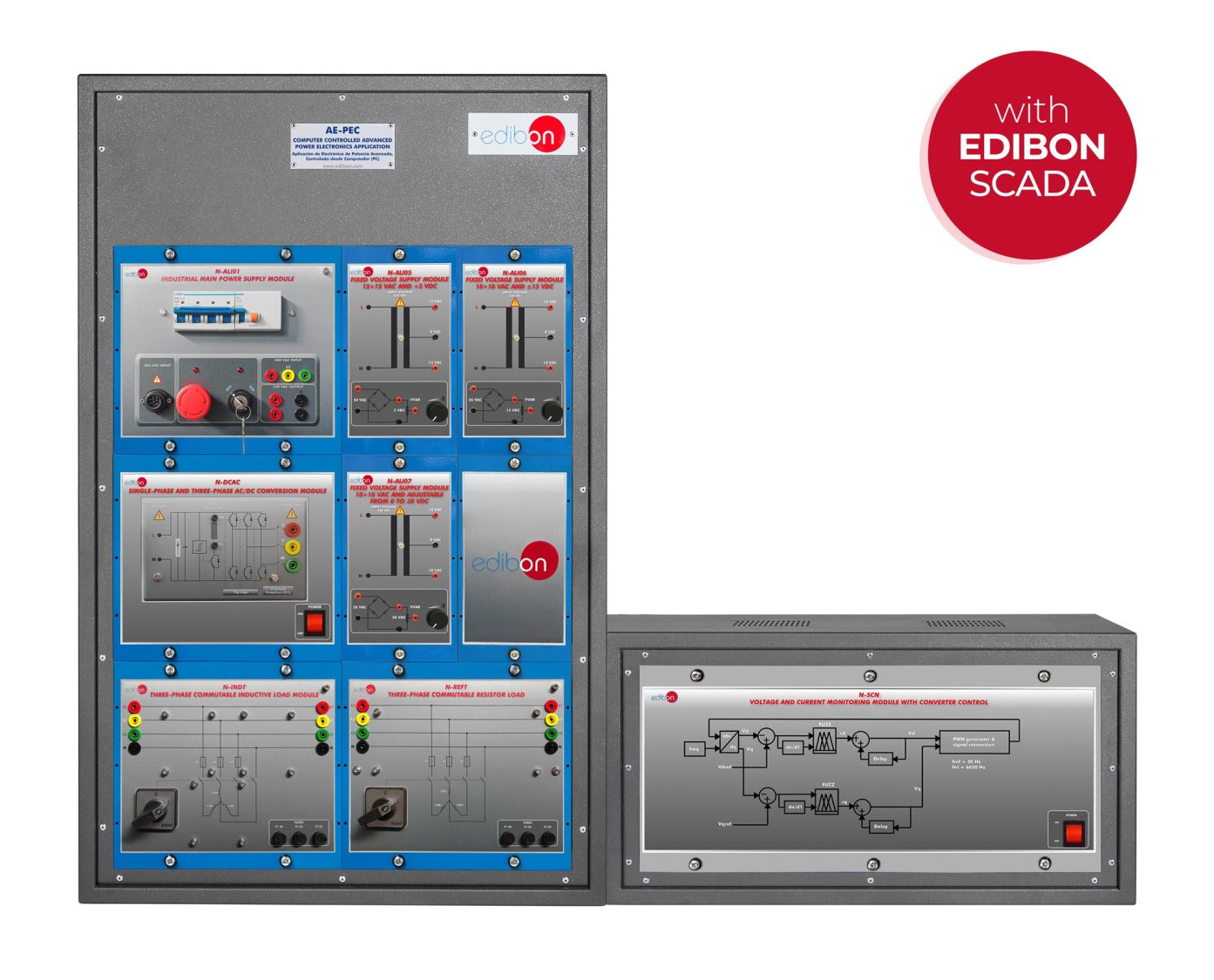

The Computer Controlled Advanced Power Electronics Application, "AE-PEC", includes various modules that allow exploration of different aspects of power electronics. The modular design of this application ensures flexibility and adaptability to various educational and research needs. Each module is equipped with the necessary components and detailed manuals to facilitate effective learning and the development of research projects.

The application is built with an intuitive interface that allows for easy integration and interaction between the different modules. Each module can be independently controlled and monitored, providing a dynamic environment for experimenting with power electronics circuits and concepts, as well as for advanced research in this field.

The educational and research objectives of each kit are described below:

  • DCDC-KIT. DC/DC Conversion Kit. Allows the study of both isolated and non-isolated DC/DC conversion in direct current systems.
  • ACDC/U-KIT. AC/DC Conversion Kit with Uncontrolled Rectification. Designed to analyze uncontrolled rectification in three-phase and single-phase systems, covering both half-wave and full-wave rectification, including capacitor-based filtering.
  • ACDC/C-KIT. Conversion Kit with Controlled Rectification. Facilitates the analysis of controlled rectification in three-phase and single-phase systems, including both half-wave and full-wave configurations.
  • N-DCAC. Single-phase and Three-phase AC/DC Conversion Module. Offers the ability to study various DC/AC conversion methods, such as phase shifting, square waves, and PWM, in both single-phase and three-phase configurations.
  • ACAC-KIT. AC/AC Conversion Kit. Focuses on studying AC/AC conversion using a triac. It includes both basic applications of the triac and its implementation in a control circuit with dual time constants, allowing for adjustment of firing delay (angle) to control load power.
  • ACDCAC-KIT. AC/DC/AC Conversion Kit (Frequency or Cycle Converter). This kit explores how to transform one AC voltage into another with a different frequency and amplitude by passing through an intermediate DC stage.
  • CCR-DCM-KIT. AC/DC Conversion Kit with Controlled Rectification and DC/DC: DC Motor Control. Designed to study controlled AC/DC rectification and DC/DC conversion, applied to speed control of DC motors with voltages of 12V and 200V.
  • C-ACM-KIT. AC/DC/AC Conversion Kit: Three-Phase AC Motor Control. Enables the analysis of AC/DC/AC conversion, focusing on speed control of three-phase AC motors with a voltage of 220V.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Measurement of AC and DC voltages and currents: using digital voltmeters and ammeters to measure different voltage and current ranges.
  2. Characterization of power devices: Hands-on experiments with SCRs, MOSFETs, IGBTs, DIACs, TRIACs, UJTs, power transistors, and power diodes.
  3. Load testing: analysis of system behavior with different loads, including lamps, AC and DC motors.
  4. Firing control circuits: experiments with line synchronization, PWM control, and TRIAC firing control circuits.
  5. Power supply analysis: study of fixed AC and DC power supplies and their behavior under different load conditions.
  6. Implementation and testing of PWM firing control circuits with frequency adjustment.
  7. Measuring and calculating the efficiency of various power electronics components and circuits.
  8. Identifying and analyzing common faults in power electronics systems and learning troubleshooting techniques.
  9. Testing individual components like capacitors, inductors, and resistors mounted on the panels.
  10. Practical exercises in regulating voltage and current using different power electronics components.
  11. Studying the impact of temperature on the performance of power devices.
  12. Exploring the behavior of components in series and parallel configurations.
  13. Analyzing the dynamic response of power electronics systems to changes in load.
  14. Measuring and analyzing the harmonics in power electronics circuits.
  15. Observing and analyzing transient phenomena in power electronics circuits.
  16. Integrating and testing energy storage solutions like capacitors and batteries.
  17. Controlling the speed and direction of a DC motor using power electronics circuits.
  18. Simulation and modeling: using simulation tools to model and analyze power electronics circuits.
  19. Power factor correction: implementing and testing power factor correction techniques.
  20. Renewable energy integration: exploring the integration of renewable energy sources with power electronics systems.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the AE-PEC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the AE-PEC unit process.
  9. Several other exercises can be done and designed by the user.
