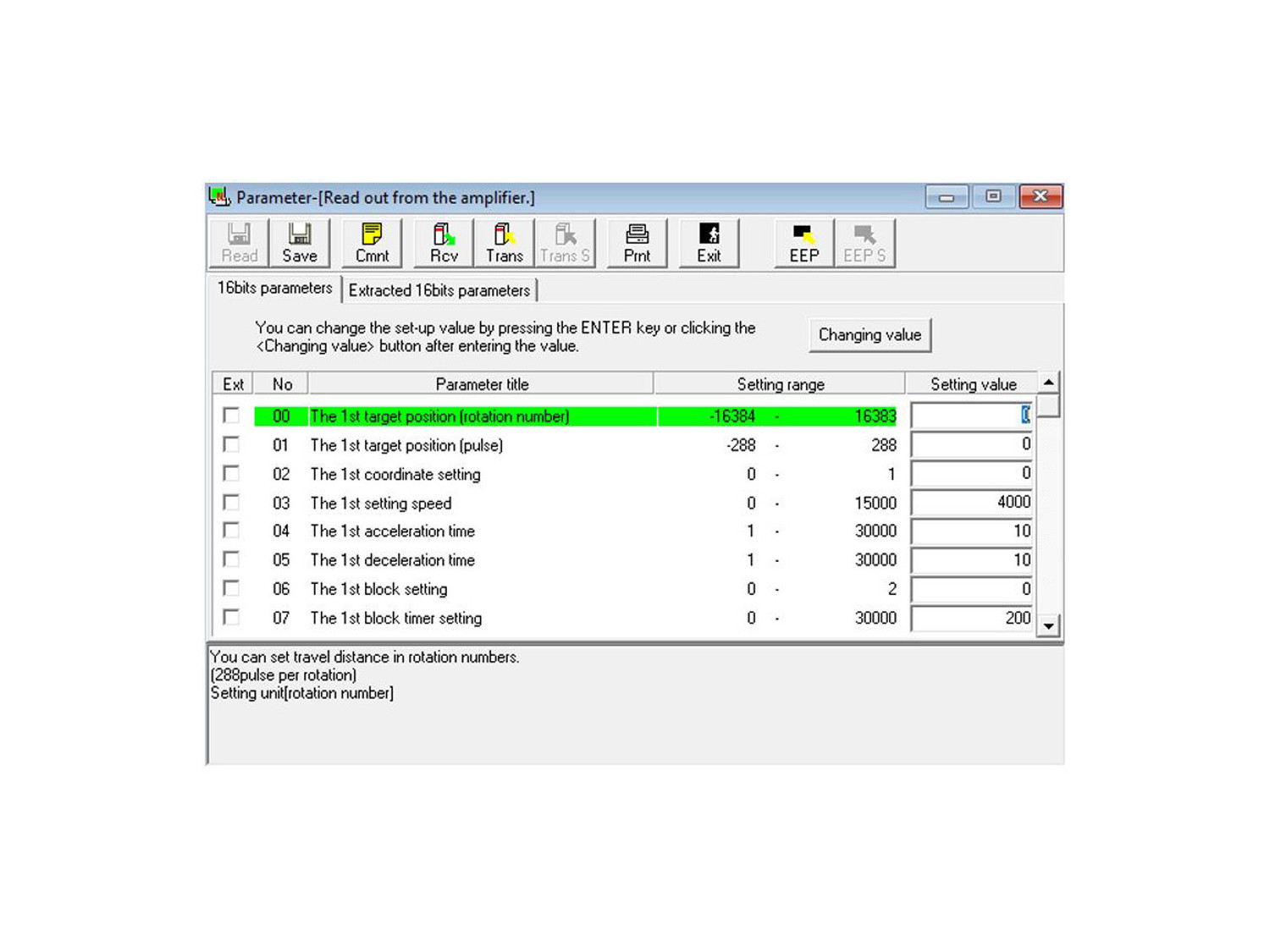

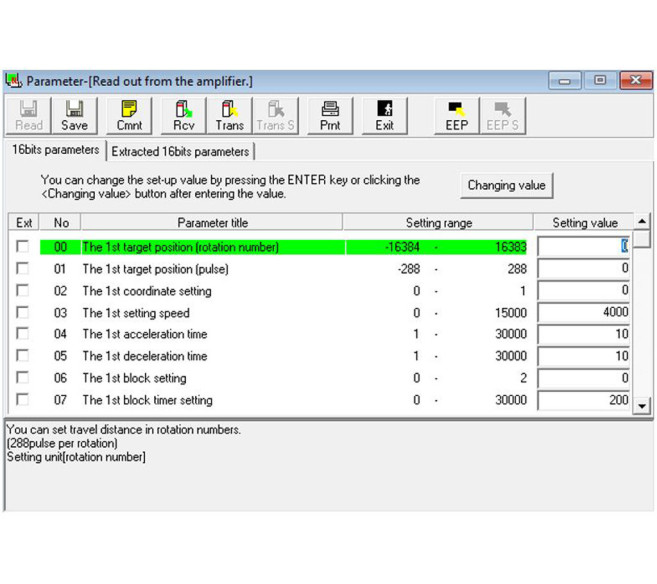

BMI-UB/CCSOF. Computer Control+Data Acquisition+Data Management Software Menu

BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI

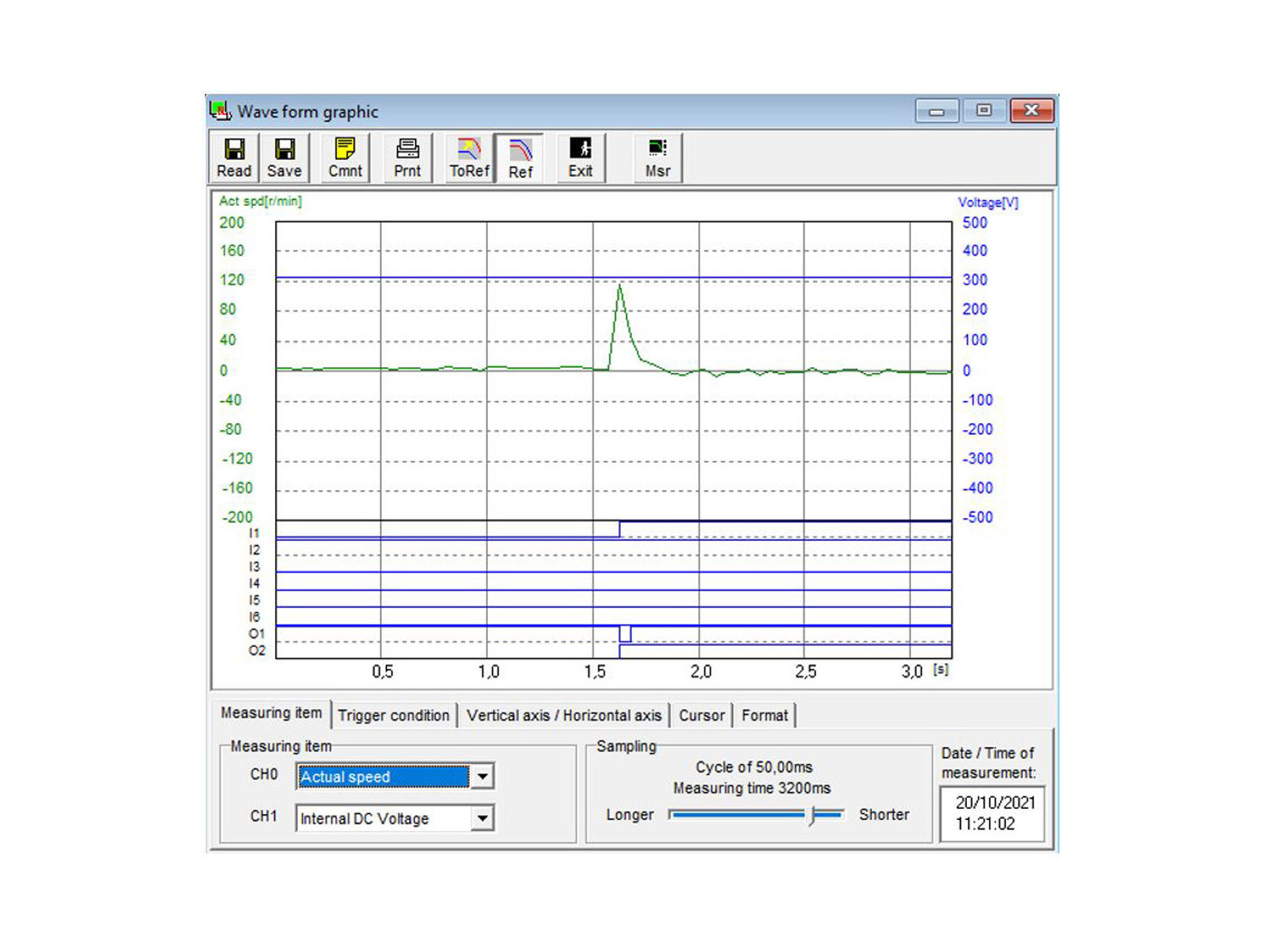

BMI-UB/CCSOF. Computer Control+Data Acquisition+Data Management Software. Example waveforms

BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI

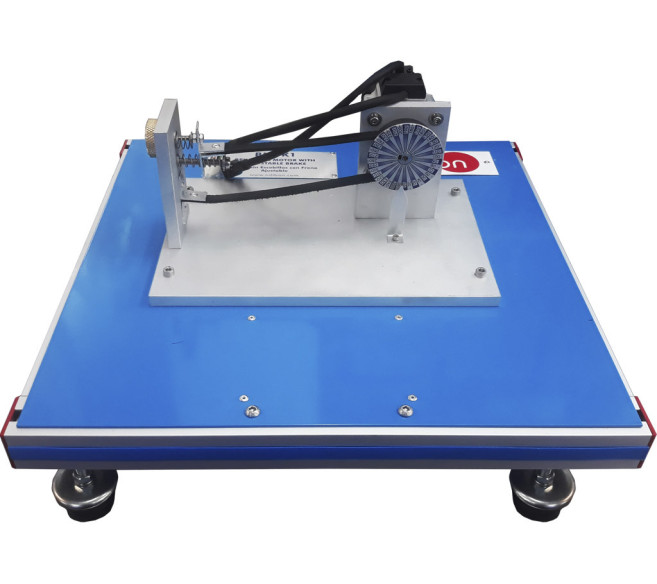

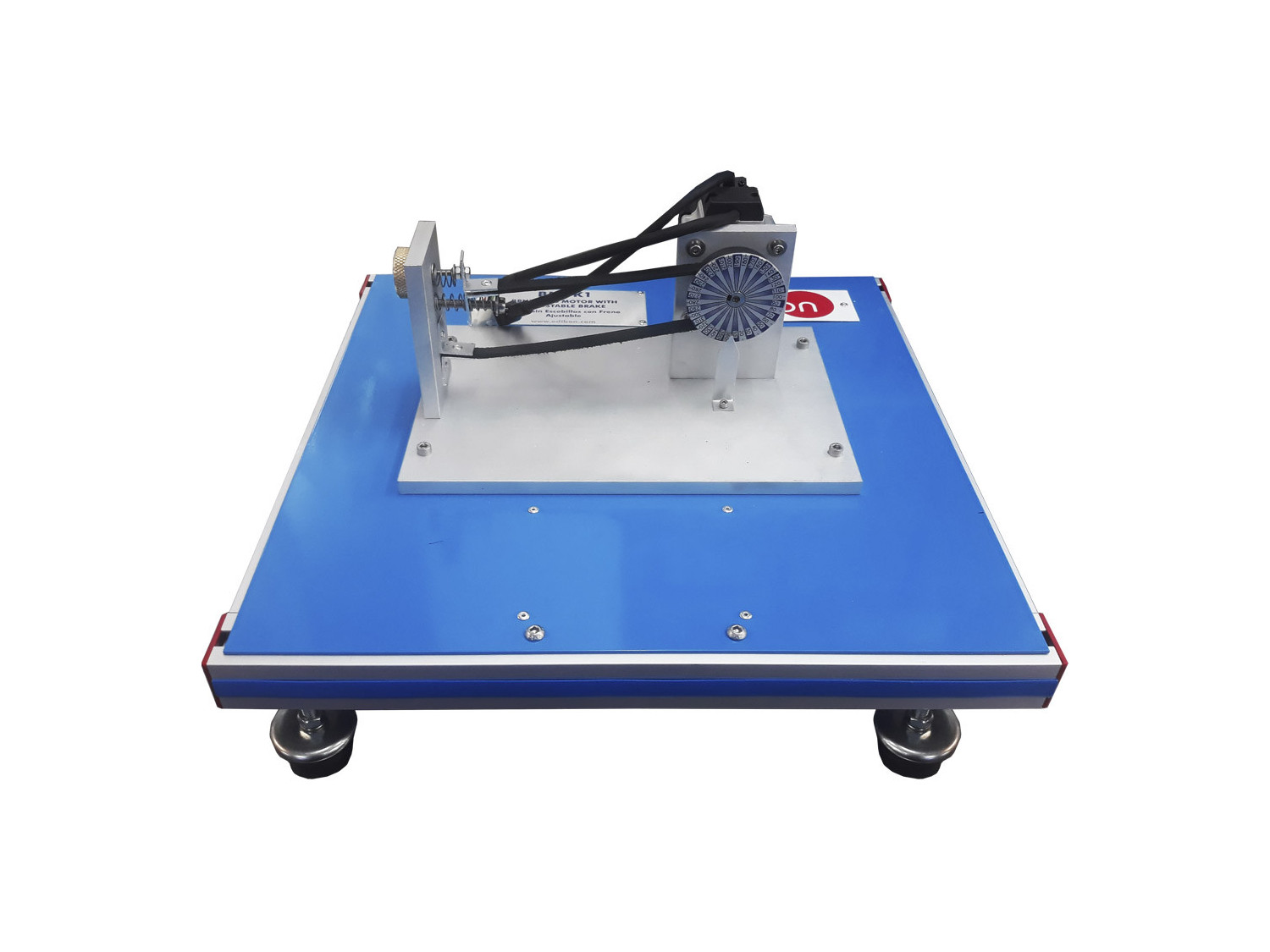

BMI-K1. Brushless Motor with Adjustable Brake

BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI

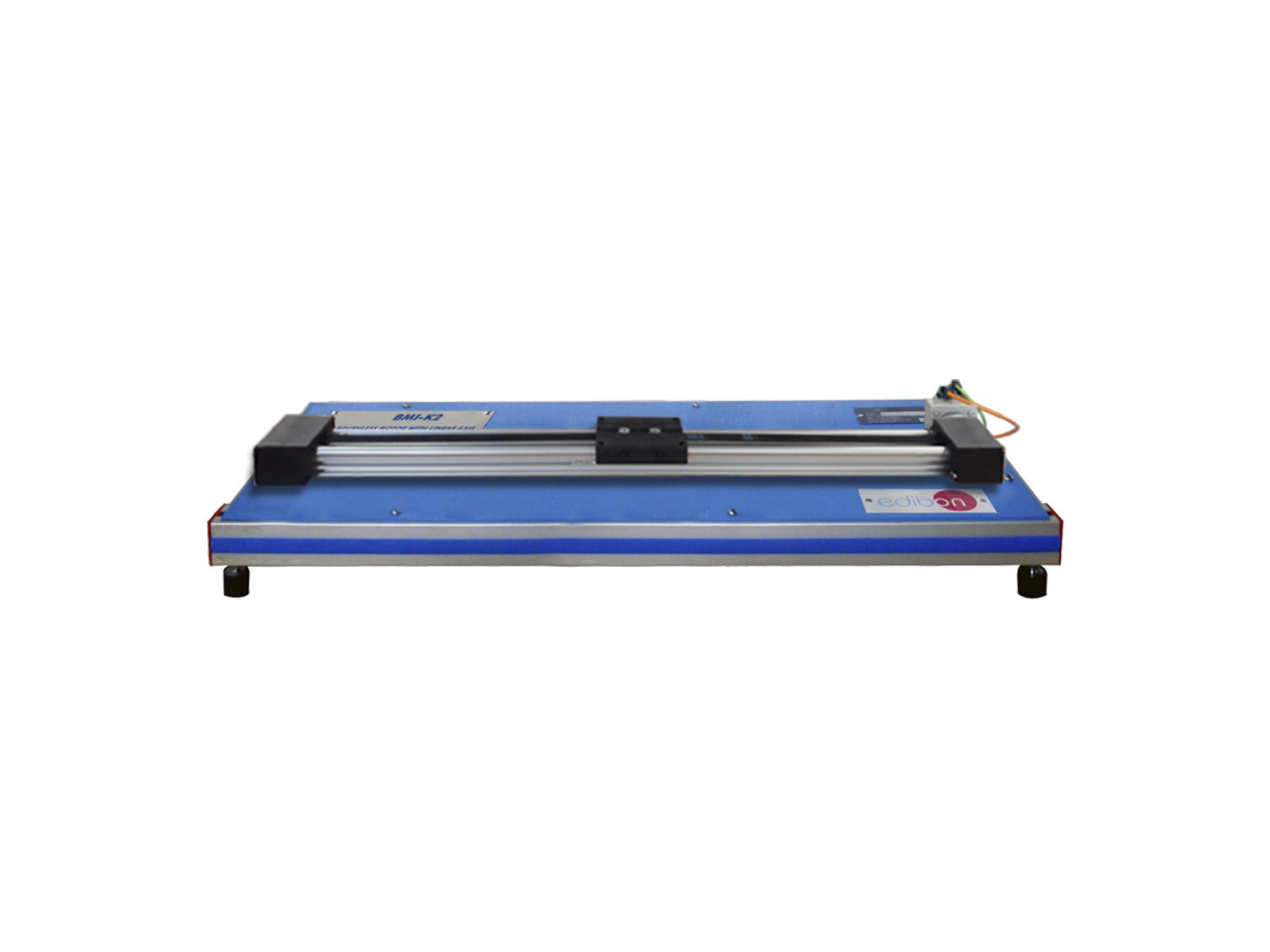

BMI-K2. Brushless Motor with Linear Axis

BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI
BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI
BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI
BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI
BRUSHLESS MOTOR INDUSTRIAL APPLICATION - AE-BMI

SISTEM INOVATIF

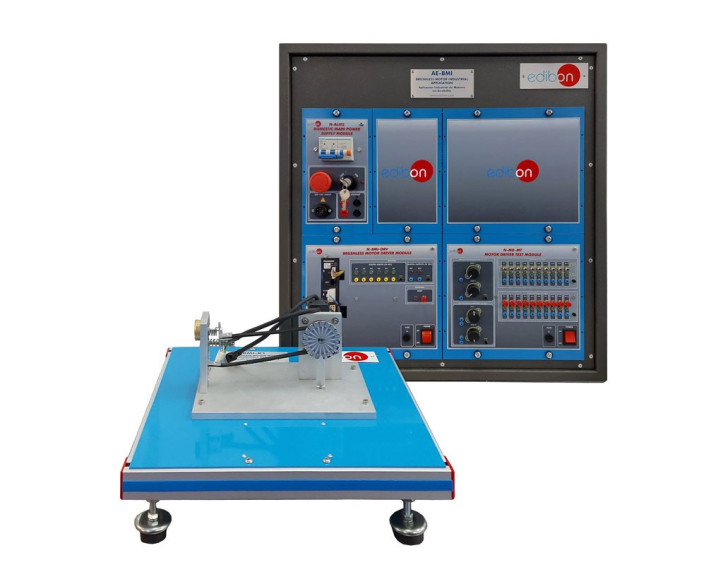

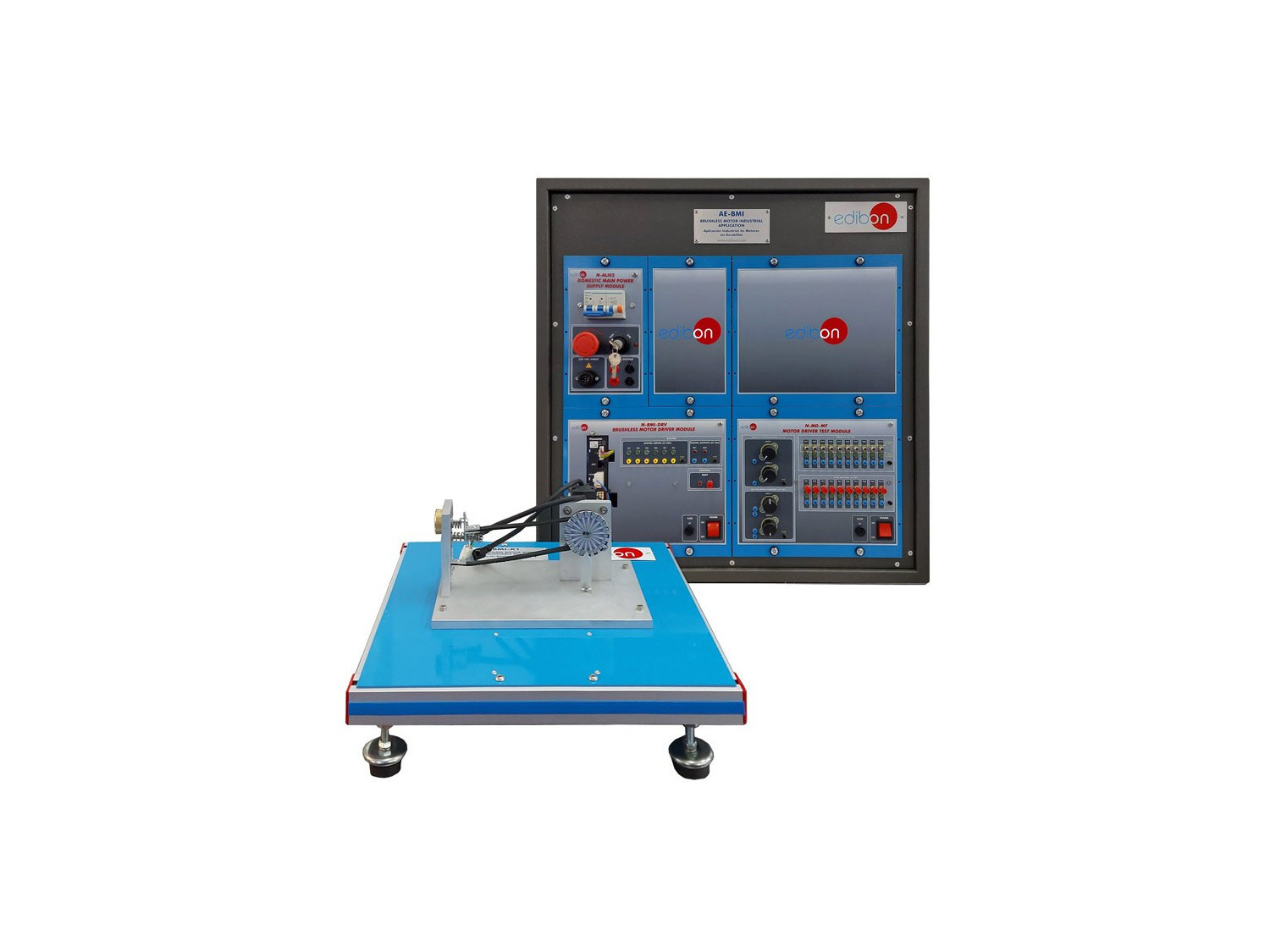

The Brushless Motor Industrial Application, "AE-BMI", has been designed by EDIBON to study the brushless motor control system with a real application. The "AE-BMI" application has available applications that contain real industrial systems, such as a linear axis system or a motor with a braking system.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Brushless Motor Industrial Application
Brushless Motor Industrial Application
The Industrial Application of Brushless Motors (AE-BMI), has been designed by EDIBON to study the control system of a brushless DC motor with a real application. It contains available applications containing industrial systems as a linear axis system or a DC motor with a braking system. All this...
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

The Brushless Motor Industrial Application, "AE-BMI", is designed to perform the most common control used in the industry: the position control. The "AE-BMI" application allows the student to configure up to four positions with all the parameters involved when the system has to reach each of these positions: relative or absolute positioning, speed value, acceleration and deceleration of the system when it approaches the desired position, digital input signal to activate every position, setting the home position, etc.

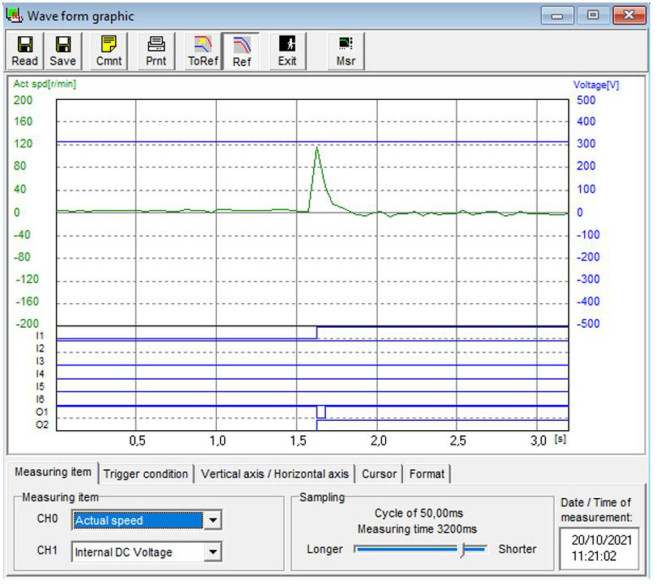

The configuration is done through the software of the driver which controls the motor. Since "AE-BMI" is a computerized system, appart from using the computer to configure the movement parameters, it allows to visualize the state of the digital input and output signals, the speed response of the motor, the alarms state, the torque value, etc.

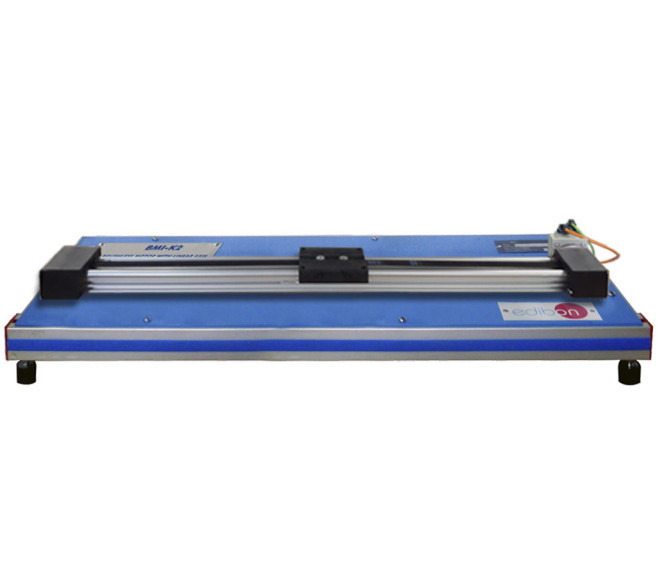

The "BMI-UB" is the base unit of the "AE-BMI". To work with the "BMI-UB" other required elements are necessary. The required elements available are real examples of motion control systems: a servomotor with adjustable brake and a servomotor with linear axis system. The base unit includes the driver, control system, to control the motor included in the additional application.

The "AE-BMI" also allows the student to work with a programmable logic controller, PLC. The PLC receives the signals of the different sensors installed in each additional application and controls the brushless motor system through digital and pulsed signals, allowing the addition of a PLC control to a brushless motor system.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Exercises and practical possibilities to be done with the Brushless Motor with Adjustable Brake, "BMI-K1":

  1. Angular position control.
  2. Configuration of reference position (homing).
  3. Configuration of a position and activation through a digital input.
  4. Configuration of four positions and activation through digital inputs.
  5. Movement of the shaft associated to absolute positions.
  6. Movement of the shaft associated to relative positions.
  7. Configuration of movement sequences using different configurations modes.
  8. Graphs analysis of torque, position and velocity of the motor.
  9. Analysis of the torque limit.

Exercises and practical possibilities to be done with the Brushless Motor with Linear Axis, "BMI-K2":

  1. Angular position control of a linear axis system.
  2. Configuration of reference position (homing).
  3. Configure of a position and activate through a digital input.
  4. Configuration the acceleration and deceleration when the conveyor plate is close to the configured position.
  5. Configuration of the four positions and activate them through the digital inputs.
  6. Movement of a conveyor plate associated to absolute positions.
  7. Movement of a conveyor plate associated to relative positions.
  8. Configuration of movement sequences using different configuration modes.
  9. Graphs analysis of torque, position and velocity of the motor.
  10. Analysis of the torque limit.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several other exercises can be done and designed by the user.
