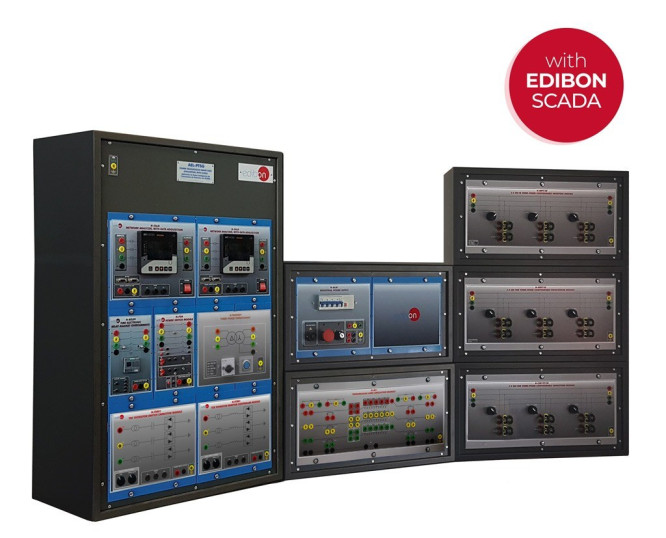

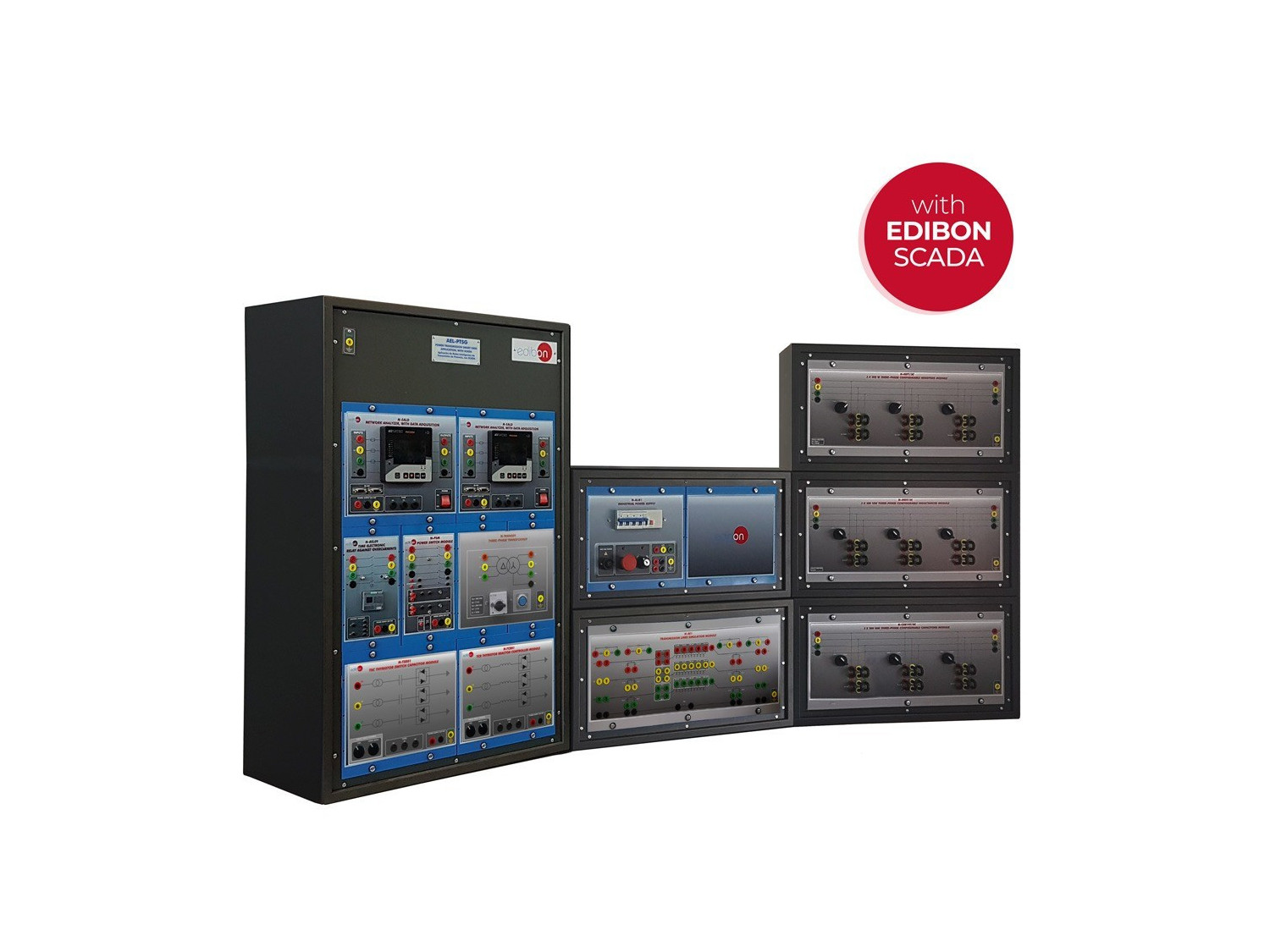

COMPUTER CONTROLLED POWER TRANSMISSION SMART GRID APPLICATION, WITH SCADA - AEL-PTSG

SISTEM INOVATIF

The Power Transmission Smart Grid Application, with SCADA, "AEL-PTSG", has been designed to study the most important applications based on thyristor controlled reactor (TCR), thyristor switched capacitor (TSC), STATCOMs and High Voltage DC Transmision Systems.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
ESN

Sistem EDIBON Scada-Net

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Baca lebih lanjut
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Baca lebih lanjut

GAMBARAN UMUM

La Aplicación de Redes Inteligentes de Transmisión de Potencia con SCADA, "AEL-PTSG", ha sido diseñada para estudiar las aplicaciones más importantes basadas en reactancias controladas por tiristores (TCR), condensadores controlados por tiristores (TSC), STATCOM y sistemas de transmisión de CC de alta tensión. El objetivo de esta aplicación es demostrar los principios básicos de los SVCs, STATCOMs y HVDC integrados en las redes inteligentes, siendo impensable una red real sin SVCs para controlar los flujos de potencia reactiva y los niveles de voltaje en los sistemas de transmisión.

La aplicación "AEL-PTSG" proporciona diferentes módulos para que los estudiantes y profesores configuren su propio sistema de transmisión de CA flexible. Esta aplicación permite varios niveles de capacitación y estudio para investigadores principiantes y avanzados que deseen empezar desde cero o mejorar sus conocimientos en este campo.

Además, se recomiendan una serie de módulos para comprender mejor la importancia de los sistemas de transmisión de CA flexibles (FACT). La aplicación "AEL-PTSG" ofrece la posibilidad de integrar un generador síncrono real para estudiar la influencia de los cambios repentinos en la energía reactiva (caída de voltaje) y cómo los SVCs y STATCOMs resuelven este problema compensando el factor de potencia y evitando caídas de voltaje significativas en la máquina síncrona.

Por otro lado, se incluye el Software del Sistema de Adquisición de Datos y Control para realizar pruebas avanzadas en los FACTS. Este software avanzado permite monitorizar las formas de onda de corrientes y voltajes para estudiar en profundidad estas señales.

El "PTSG-UB" es la unidad base de la aplicación "AEL-PTSG".

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Basic Operation of HVDC Transmission Systems.
  2. DC Current Regulation and Power Flow Control in HVDC Transmission Systems.
  3. Main Components of a Static Var Compensator (SVC).
  4. Dynamic Power Factor Correction Using a STATCOM.
  5. Dynamic Power Factor Correction Using an SVC.
  6. Voltage compensation of AC transmission lines using a STATCOM.
  7. Voltage Compensation of AC Transmission Lines using an SVC.
  8. Voltage Regulation Characteristics.
  9. Voltage Compensation.
  10. Voltage Compensation in AC Transmission Lines.
  11. Voltage Regulation and Displacement Power Factor (DPF) in Thyristor Three-Phase Bridges.
  12. Control of Active and Reactive Power Flow.
  13. Power Transmission Capacity.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. The Computer Control System with SCADA allows a real industrial simulation.
  3. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  4. This unit can be used for doing applied research.
  5. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  6. Several other exercises can be done and designed by the user.
