AEL-AD33 Aplikasi Kekurangan dalam Instalasi Fase Tunggal

4.1.2.2.- RISIKO DAN PERLINDUNGAN LISTRIK
SINGLE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33

SISTEM INOVATIF

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

4TV

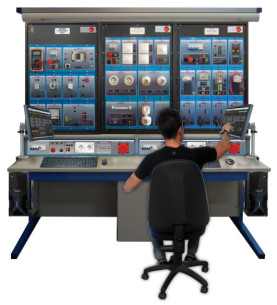

 Laboratorium Ketenagalistrikan untuk Pendidikan Teknik dan Vokasi
4HE
 Laboratorium Ketenagalistrikan untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Baca lebih lanjut
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

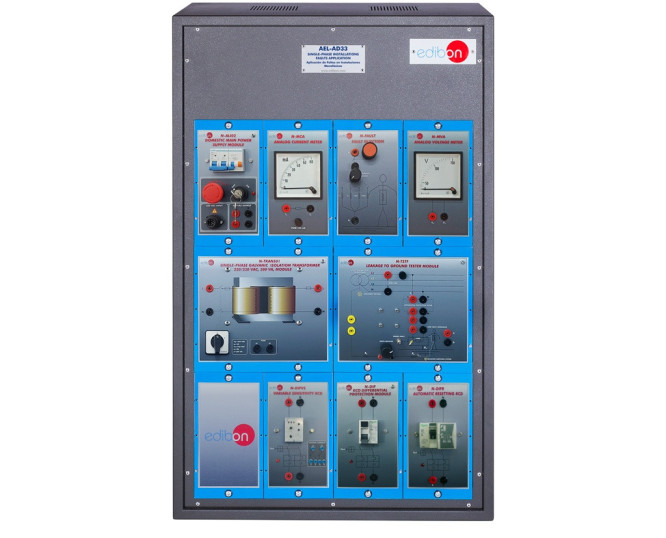

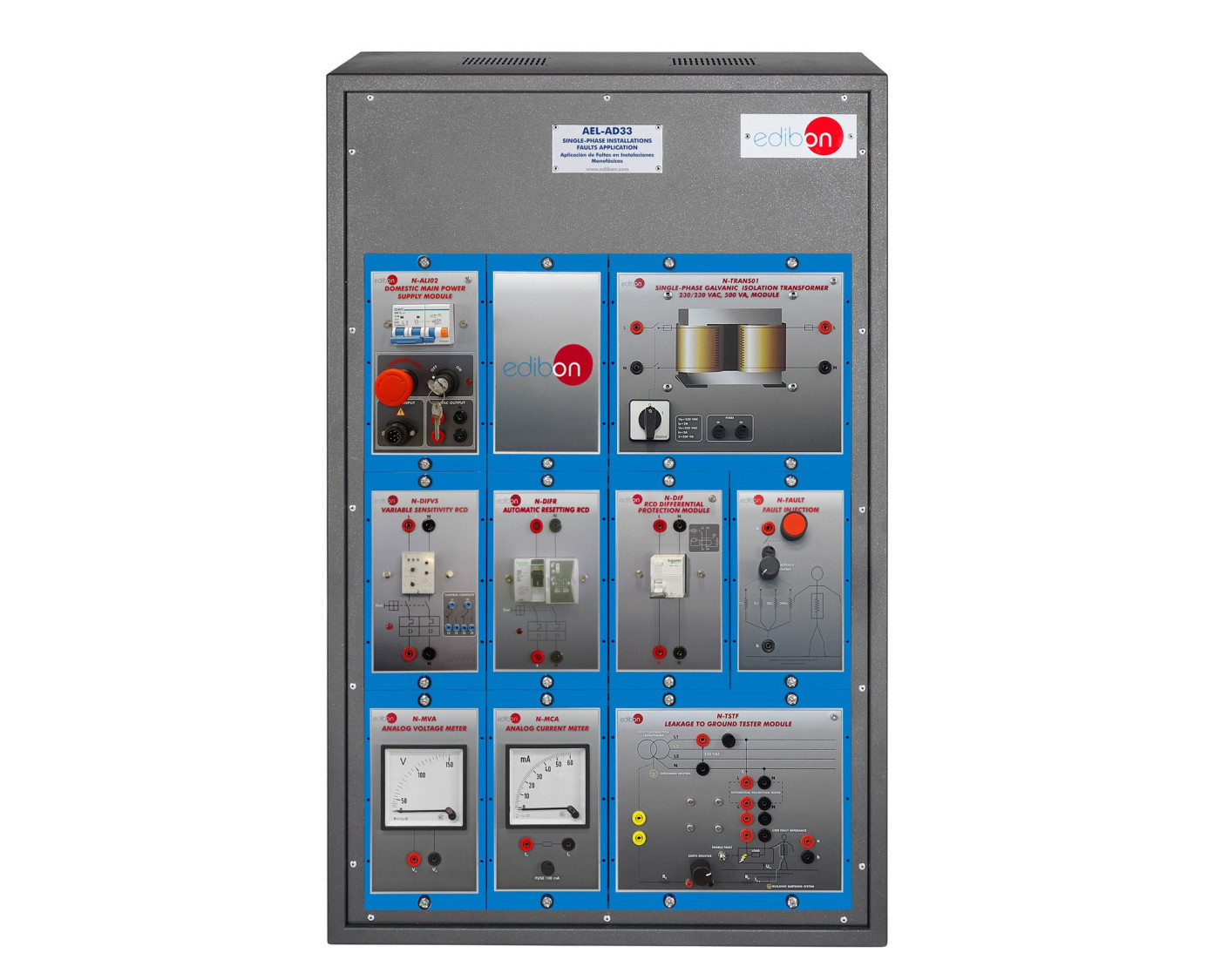

The Single-Phase Installations Faults Application, "AEL-AD33", has been designed to study several protections belonging to home installations. Through the safety elements, the student can simulate different faults and verify the reasons why each type of protection acts. It includes some innovative electric devices for the protection of people and installations against the effects of electric current, which ensure the continuity of power availability, as well as people safety. It includes a single-phase transformer to simulate earth derivations under safety conditions. It includes protections for: differential protection with automatic reset and differential protection with variable sensivity.

To check all protections, a variable resistor is included to control current derivations. It also has meters to know the amount of derivation current and verify the protection´s sensitivity.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study the basic concepts of differential protection.
  2. Study of differential protection with variable sensitivity.
  3. Study of differential protection with automatic restore.
  4. Adjustment of the protection sensibility of the differential protection.
  5. Study of Single-phase ground short-circuit with basic differential protection.
  6. Study of Single-phase ground short-circuit with short-circuit impedance and basic differential protection.
  7. Study of Single-phase ground short-circuit with differential protection with variable sensitivity.
  8. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with variable sensitivity.
  9. Study of Single-phase ground short-circuit with differential protection with automatic restore.
  10. Study of Single-phase ground short-circuit with short-circuit impedance and differential protection with automatic restore.
  11. Study of isolation coordination.

PERALATAN SIMILAR TERSEDIA

THREE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33T
  • AEL-AD33T
Available
4.1.2.2.- RISIKO DAN PERLINDUNGAN LISTRIK
AEL-AD33T
Aplikasi Kekurangan dalam Instalasi Fase Tiga

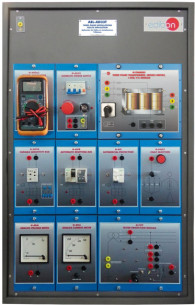

The Three-phase Installations Faults Application, "AEL-AD33T", has been designed to study several protections belonging to industrial installations. Through safety elements, the students can simulate different faults and verify the reasons why...
