AEL-APFC Aplikasi Kontrol Otomatis Faktor Daya pada Sirkuit Satu Fasa

5.1.3.3.- DISTRIBUSI DAYA DAN BEBAN
SINGLE-PHASE AUTOMATIC POWER FACTOR COMPENSATION APPLICATION - AEL-APFC

SISTEM INOVATIF

The Single-phase Automatic Power Factor Compensation Application, "AEL-APFC", has been designed by EDIBON is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Baca lebih lanjut
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Baca lebih lanjut

GAMBARAN UMUM

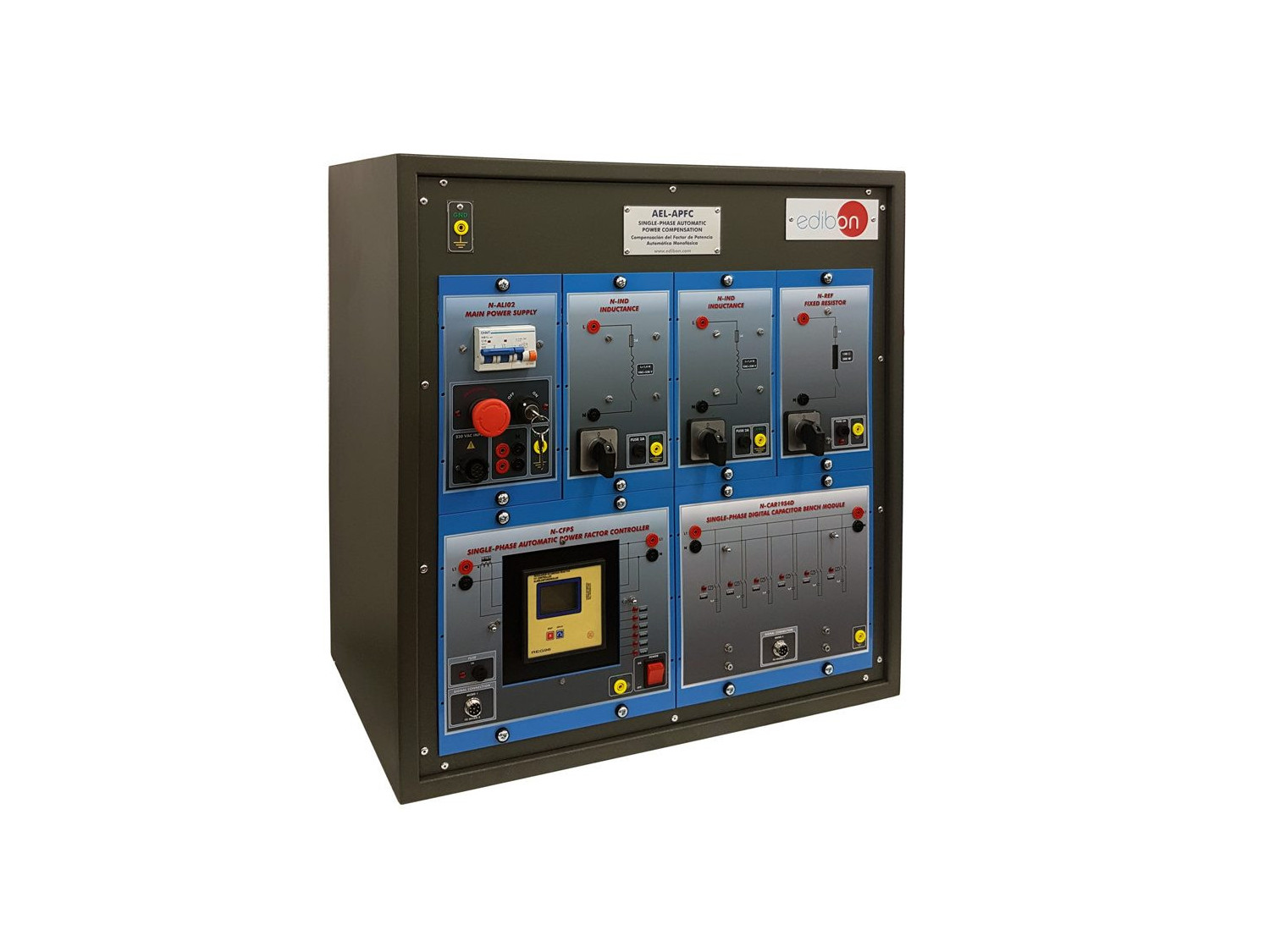

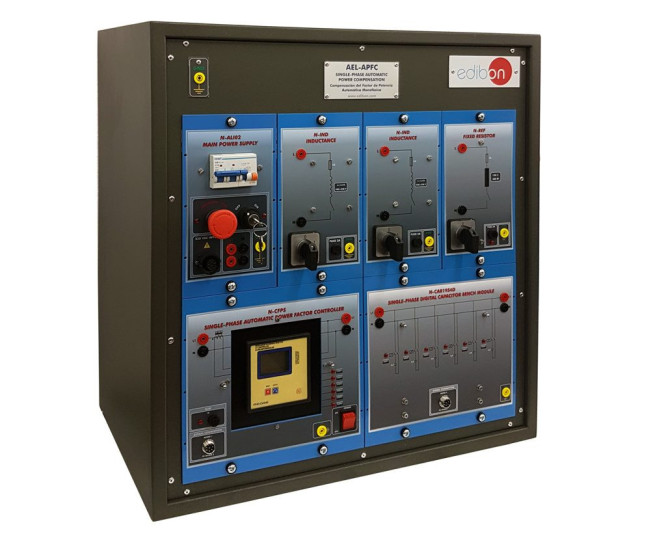

The Single-phase Automatic Power Factor Compensation Application, "AEL-APFC", has been designed by EDIBON is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points. In some places where the reactive energy consumption is high, distribution lines may be overload and it is necessary to install power factor compensators.

The "AEL-APFC" consists of a single phase automatic power factor controller of six compensation steps that work together resistor and inductor loads.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Studying the reactive power compensation for static loads.
  2. Comparison of the reactive energy before and after of power factor compensation.
  3. Optimum configuration of the reactive power controller.
  4. Checking the compensation control unit applying different reactive power levels.
  5. Practical case in which the user carries out manually the reactive energy compensation.
