AEL-AI12 Aplikasi Motor Arus Bolak-balik
SISTEM INOVATIF

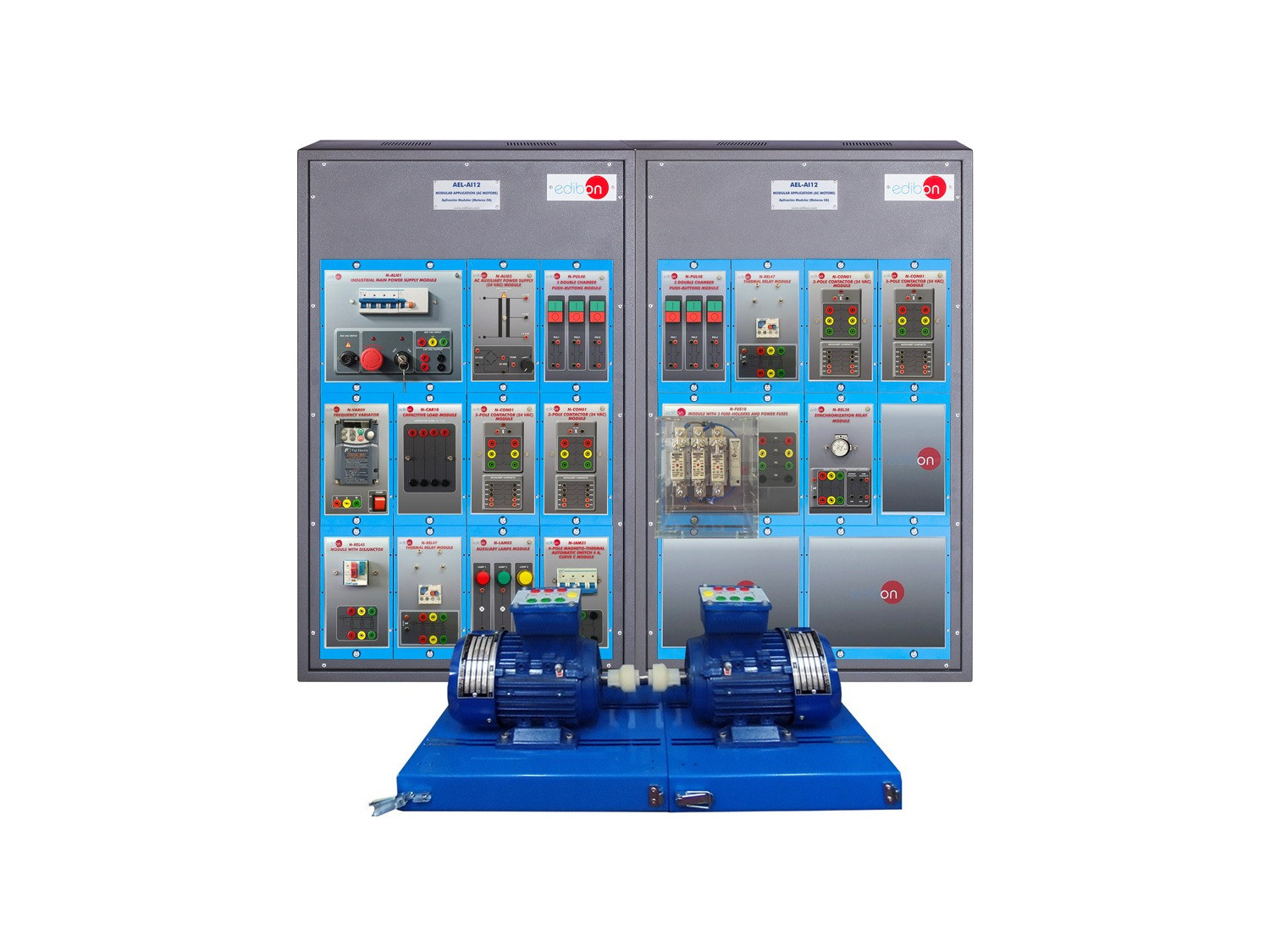

The Modular Application (AC Motors), "AEL-AI12", has been designed by EDIBON in order to instruct the students about the most important operations of alternating current motors.
BERITA TERKAIT
GAMBARAN UMUM

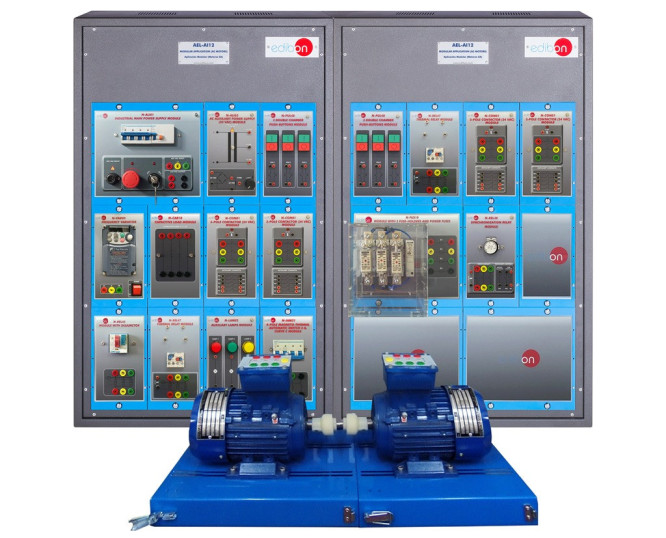

The Modular Application (AC Motors), "AEL-AI12", has been designed by EDIBON in order to instruct the students about the most important operations of alternating current motors.

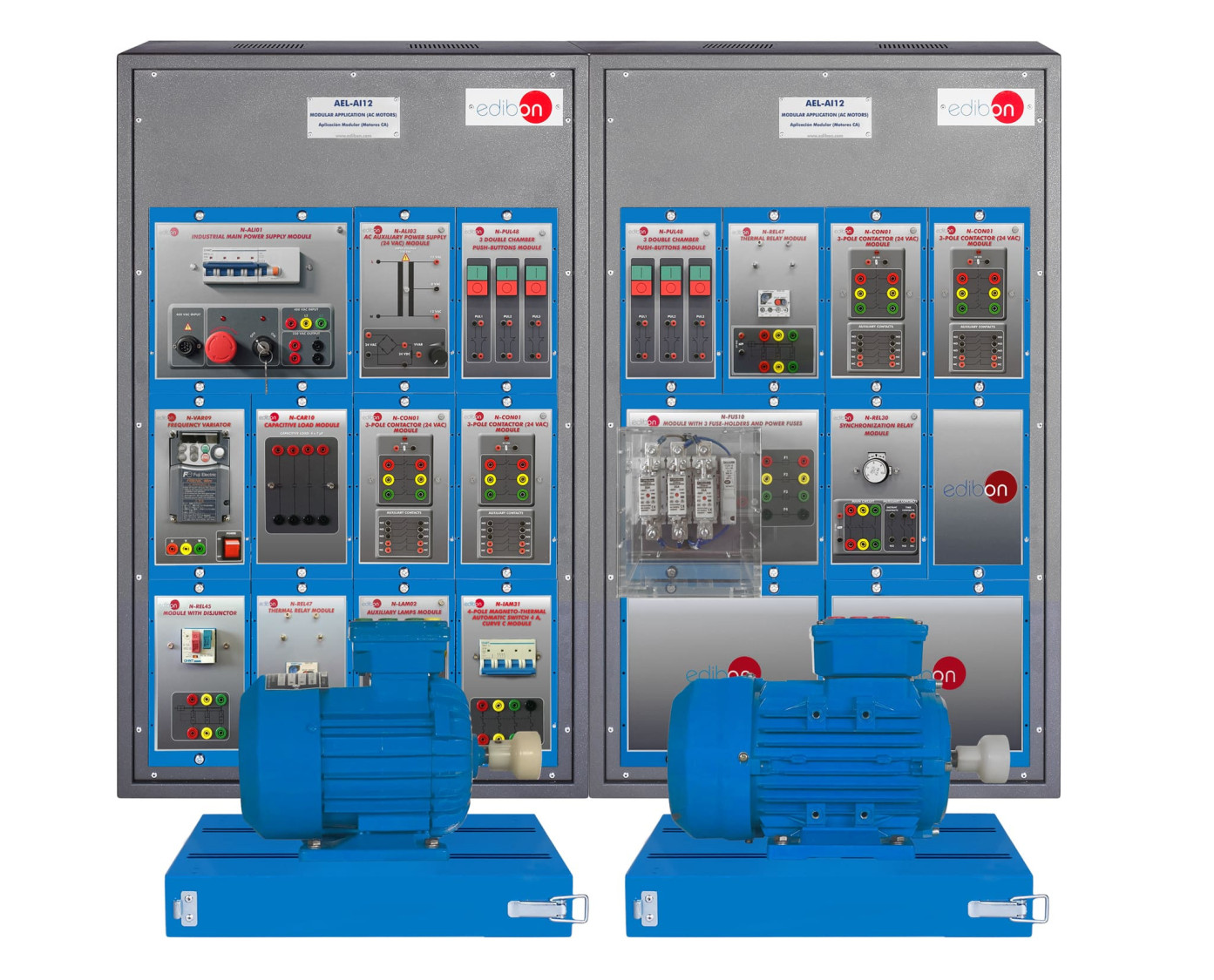

This application consists of several elements which allows the user realize logic control circuits in order to manage the motors included in this unit: three-phase induction motor of squirrel cage, single-phase induction motor with starting and running capacitor and Dahlander motor.
At first, the student gets theory knowledge about how the motors described before work. After that, the student will be ready to wire logic control circuits to start the motors by different ways, working in forward and reverse speed of the machine, breaking the motors and study several protections.
Optionally several AC electrical machines are offered in this application such as three-phase induction motor with wound rotor, three-phase induction motor of squirrel cage with two speeds, single-phase induction motor with starting capacitor, single-phase motor with split shift, three-phase reluctance motor and single-phase shaded pole motor.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Identification of the element of the Main Power Supply.
- Study of the elements in the control of AC motors.
- Study of the protection elements for AC motors.
- Direct starting of a three-phase motor through contactor, with some stop and start push-buttons.
- Configuration of a magnetic protection system, with stop mush room button.
- Direct starting of a three-phase motor with thermal relay with control coil.
- Direct starting of a three-phase motor through impulses contactor.
- Direct starting of a three-phase motor with thermal relay and with push-buttons and signalling.
- Turning inverted starter of a three-phase motor stopping before turning in the opposite direction.
- Turning inverted starter of a three-phase motor without stopping before turning in the opposite direction.
- Turning inverted starter of a three-phase motor with microswitch and push-buttons box.
- Star/delta starting with a turn inverter of a three-phase motor.
- Automatic star-delta starting of a three phase motor.
- Turning inverted starter of a three-phase motor with micro switch, with start pushbuttons, stop and function cycle. (Direct).
- Manual star-delta starting of a three-phase motor.
- Control of a single phase motor direct and, with time -delay connection and disconnection.
- Starting of a three-phase motor with single phase voltage.
- Motor speed control with a frequency variator.
- Parameters of the motor.
- Starting and control of a two-speed Dahlander motor.
- Measurement with digital measurement system of the voltage, current, power factor and active power parameters of electric motors and transformers.
- Study of control systems with pushbuttons, lamps Signaling, relays, timers and contactors.
Some practical possibilities with optional electric machines:
- Direct start of the asynchronous three-phase motor with rotor Coiled.
- Star/Delta starting of the asynchronous three-phase motor with wound rotor with pushers and contactors.
- Start and reverse rotation of the asynchronous three-phase motor with wound rotor with pushers and contactors.
- Direct start-up of the asynchronous three-phase motor with two independent speeds.
- Direct start and motor speed switching of three-phase asynchronous with two independent speeds with push buttons and contactors.
- Start and reverse rotation of the asynchronous three-phase motor with two independent speeds with pushers and contactors.
- Direct starting of the asynchronous single-phase motor with capacitor.
- Direct starting of the asynchronous single-divided phase.
- Direct start of three-phase reluctance motor.
- Star/delta starting of three-phase reluctance motor with pushers and contactors.
- Direct starting with reluctance motor reversal three-phase with pushers and contactors.
- Direct starting of single-phase motor with short-circuited winding auxiliary.
PERALATAN SIMILAR TERSEDIA
4.3.2.1.- MOTOR LISTRIK AC DAN GENERATOR
AEL-ACINA
The Application of AC Three-Phase Induction Motor of Squirrel Cage, "AEL-ACINA", is designed for the study of the main operations performed in the industrial field with three-phase squirrel cage induction motors. The student will learn the most...
4.3.2.1.- MOTOR LISTRIK AC DAN GENERATOR
AEL-ACEMT
Aplikasi Lanjutan Motor Listrik AC
The Advanced AC Electrical Motors Application, "AEL-ACEMT", has been designed by Edibon to carry out electrical/mechanical test for a great variety of AC motors. Such tests allow obtaining the most significant electrical and mechanical...
PERALATAN KOMPLEMENTER
4.3.2.1.- MOTOR LISTRIK AC DAN GENERATOR
AEL-EEEM
Aplikasi Efisiensi Energi pada Motor Listrik
The Energy Efficiency in Electrical Motors Application, "AEL-EEEM" has been designed by EDIBON to allow the students to understand how cutting-edge devices used in high performance systems to control electrical motors work : frequency controllers...
2.5.- ELEKTRONIK OTOMOTIF
AEL-EHVC
Aplikasi Kendaraan Hibrida dan Listrik, Dikendalikan dari Komputer (PC)

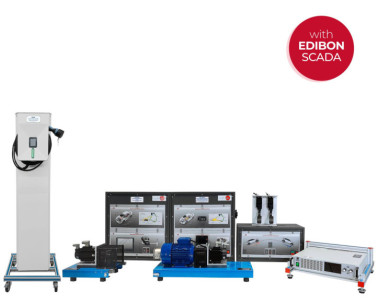

The Computer Controlled Hybrid and Electric Vehicles Application, "AEL-EHVC", is an application designed by EDIBON for the theoretical and practical training of the different topologies of electric/hybrid vehicles most used today.Given the...
