AEL-DCEMT Aplikasi Motor Listrik DC (jamak)

4.3.2.2.- MOTOR LISTRIK DC DAN GENERATOR
DC ELECTRICAL MOTORS APPLICATIONS - AEL-DCEMT

SISTEM INOVATIF

The DC Electrical Motors Applications, "AEL-DCEMT", has been designed by EDIBON to carry out electrical/mechanical tests for a great variety of DC motors.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Baca lebih lanjut
Installation at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering
Installation at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering
We are very pleased that we have recently completed the installation of two of our equipment, the AEL-ACEMT and the AEL-DCEMT at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering. With this equipment designed by EDIBON it will be easier for them to...
Baca lebih lanjut
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

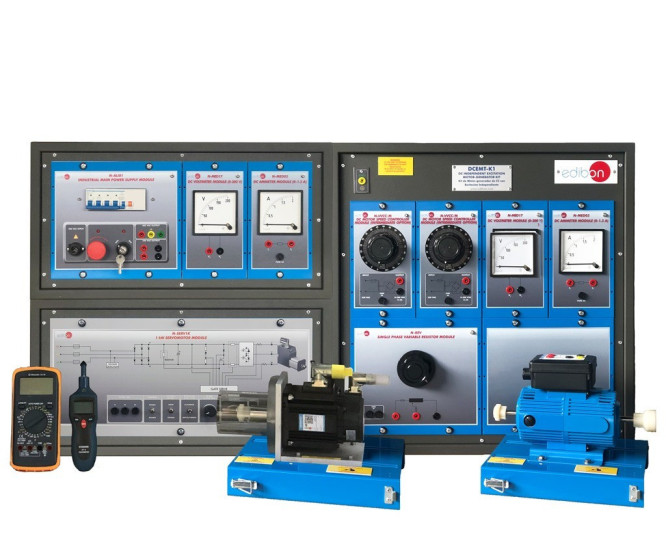

The DC Electrical Motors Applications, "AEL-DCEMT", has been designed by EDIBON to carry out electrical/mechanical tests for a great variety of DC motors. Such tests allow obtaining the most significant electrical and mechanical characteristics of these motors .In addition, it is advisable to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA", with which the user will be able to obtain the characteristic curves for the tested electric motors and fulfill reports and comparisons of the obtained curves for each electric motor to study its advantages and application fields.

The "AEL-DCEMT" application allows the user to study in depth the behavior of a wide range of DC motors, such as DC Independent Excitation Motor, DC Series Excitation Motor, DC Shunt Excitation Motor-Generator, DC Compound Excitation Motor-Generator, etc.

For this purpose, the application includes a servomotor, an electronic overcurrent time relay and a series of measurement devices, such as an analog ammeter , an analog voltmeter, a multimeter and an optical speed meter. All these included elements are essential to study the AC motors characteristics. Dynamic braking tests can be carried out through the servomotor while parameters such as speed, electrical current, the voltage, the power factor or the active and reactive powers are measured.

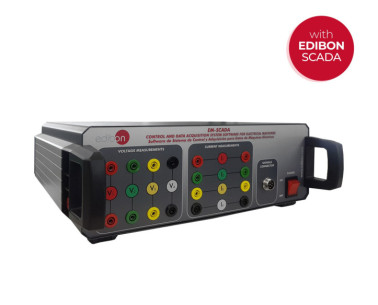

For the fulfillment of electric motors advanced tests, it is advisable to acquire the Control and Data Acquisition System Software for Electrical Machines, "EM-SCADA". This advanced software allows monitoring the waveforms for current, voltage, torque and speed to study in depth the electric machines.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

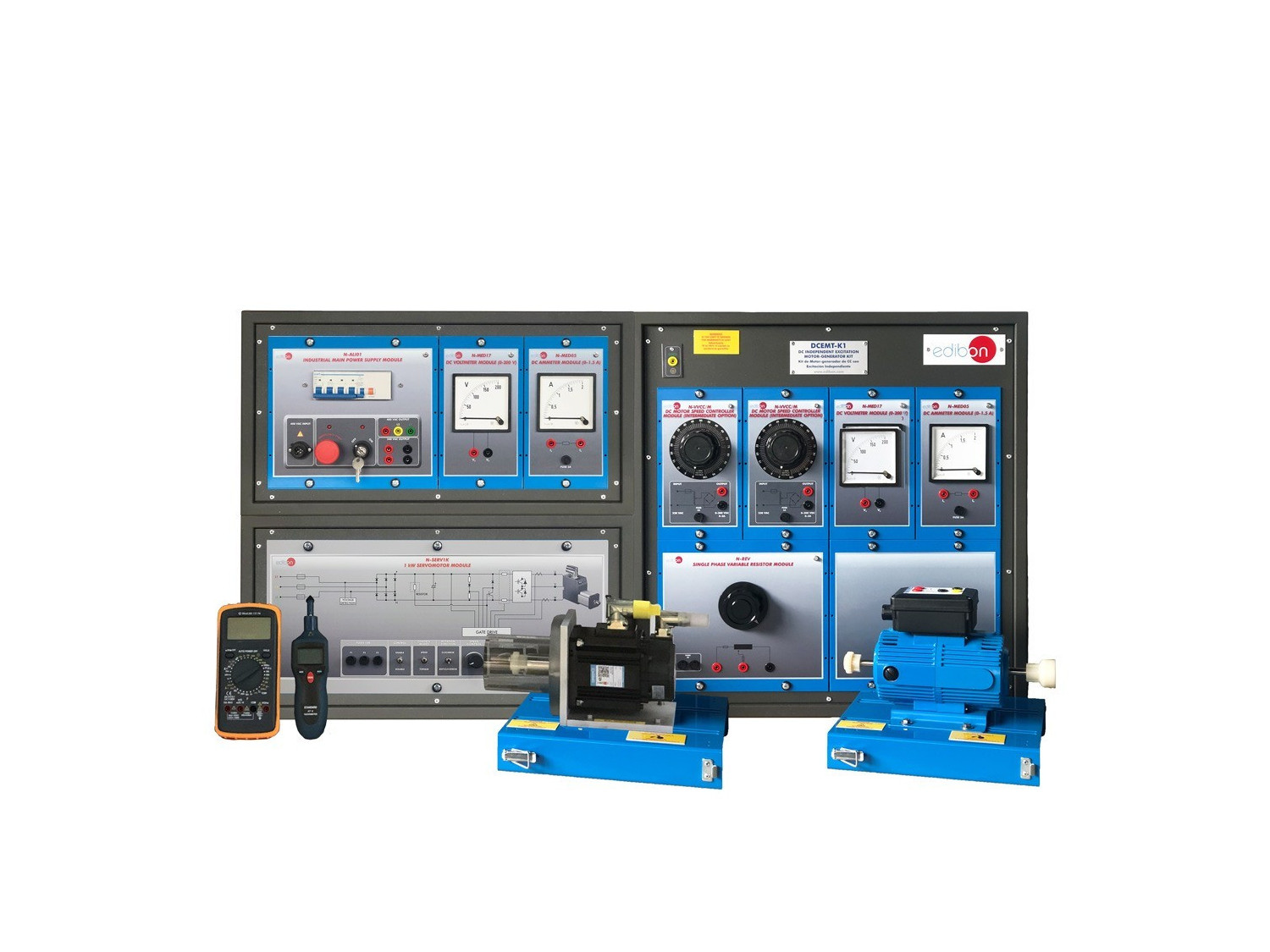

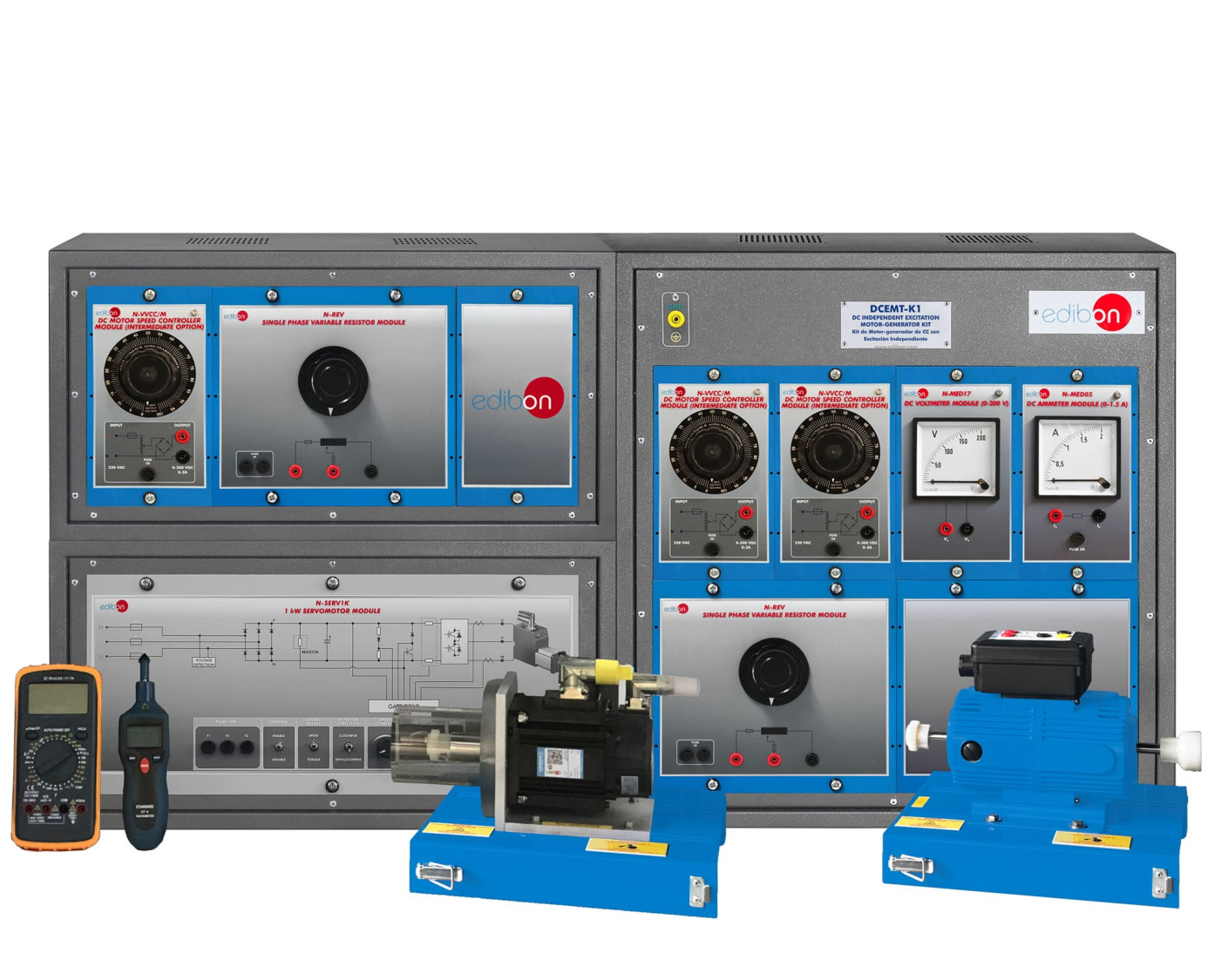

Some practical possibilities with D.C. Independent Excitation Motor-Generator Kit (DCEMT-K1):

  1. Wiring of the DC independent excitation motor.
  2. Starting and speed and torque control with the speed controller.
  3. Braking test with the servomotor.
  4. Measurement of the armature current and resistance.
  5. Computation of the counter-electromotive force (CEMF).
  6. Computation of the electromagnetic power and losses of the DC independent excitation motor.
  7. Obtaining of Torque vs. Speed curve for the DC independent excitation motor.

Some practical possibilities with DC series excitation motorg-generator Kit (DCEMT-K2):

  1. Wiring of the DC series excitation motor.
  2. Starting and speed and torque control with the speed controller.
  3. Braking test with the servomotor.
  4. Measurement of the armature current and resistance.
  5. Computation of the counter-electromotive force (CEMF).
  6. Computation of the electromagnetic power and losses of the DC series excitation motor.
  7. Obtaining of Torque vs. Speed curve for the DC series excitation motor.

Some practical possibilities with DC shunt excitation motorgenerator Kit (DCEMT-K3):

  1. Wiring of the DC shunt excitation motor.
  2. Starting and speed and torque control with the speed controller.
  3. Braking test with the servomotor.
  4. Measurement of the armature current and resistance.
  5. Computation of the counter-electromotive force (CEMF).
  6. Computation of the electromagnetic power and losses DC shunt excitation motor.
  7. Obtaining of Torque vs. Speed curve for the DC shunt excitation motor.

Some practical possibilities with DC compound excitation motor-generator Kit (DCEMT-K4):

  1. Wiring of the DC compound excitation motor.
  2. Starting and speed and torque control with the speed controller.
  3. Braking test with the servomotor.
  4. Measurement of the armature current and resistance.
  5. Computation of the counter-electromotive force (CEMF).
  6. Computation of the electromagnetic power and losses of the DC compound excitation motor.
  7. Obtaining of Torque vs. Speed curve for the DC compound excitation motor.

Some practical possibilities with DC shunt/series/compound excitation motor-generator Kit (DCEMT-K5):

  1. Desired wiring of the DC motor excitation, independent, series, shunt or compound.
  2. Starting and speed and torque control with the speed controller.
  3. Braking test with the servomotor.
  4. Use of the motor as a generator.
  5. Measurement of the armature current and resistance.
  6. Computation of the electromotive force (EMF).
  7. Computation of the electromagnetic power and losses of the DC generator.
  8. Obtaining of Torque vs. Speed curve for the DC generator.

Practical exercises with the recommended Control and Data Acquisition System Software for Electrical Machines, with SCADA, "EM-SCADA":

  1. Real time torque measurement.
  2. Real time speed measurement.
  3. Real time current and voltage RMS values.
  4. Real time current and voltage wave forms measurement.
  5. Electrodynamical study of the motor.
  6. Obtaining characteristic curves (torque-speed curve, torquecurrent curve etc).
  7. Obtaining the saved results.
  8. Manual and automatic braking test and real time monitoring of the results.
