AEL-AD15A Aplikasi Pengendalian Posisi Lanjutan

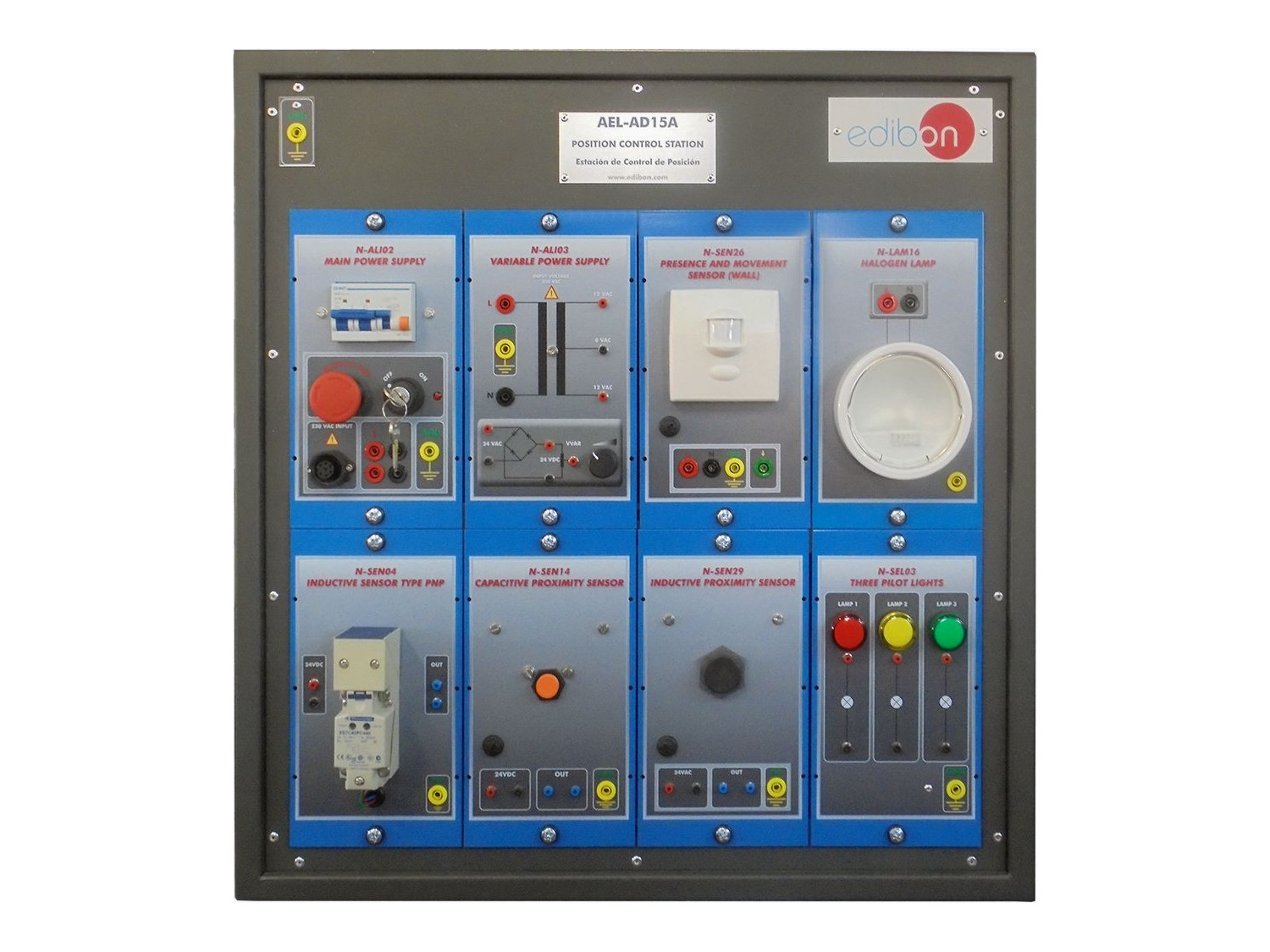

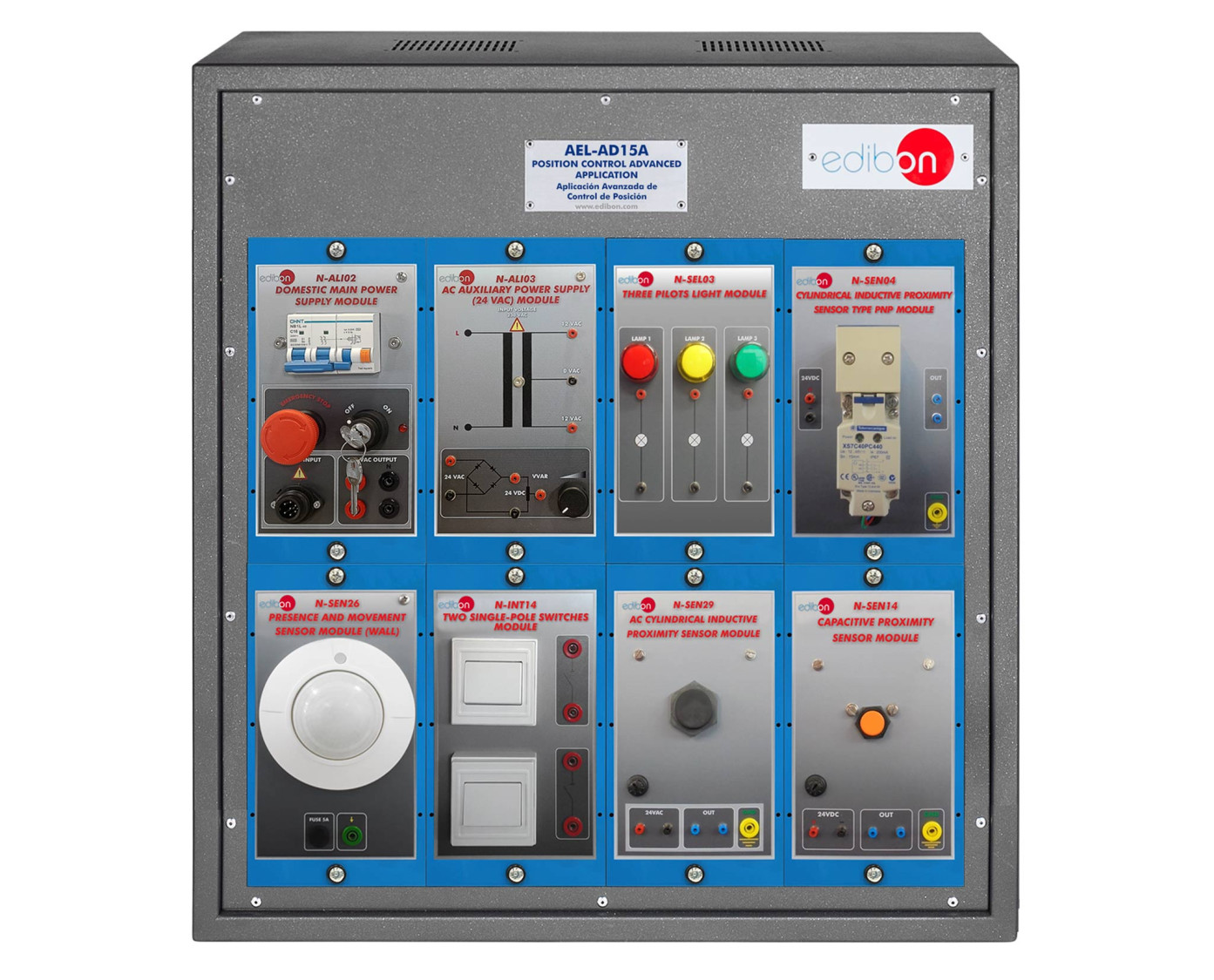

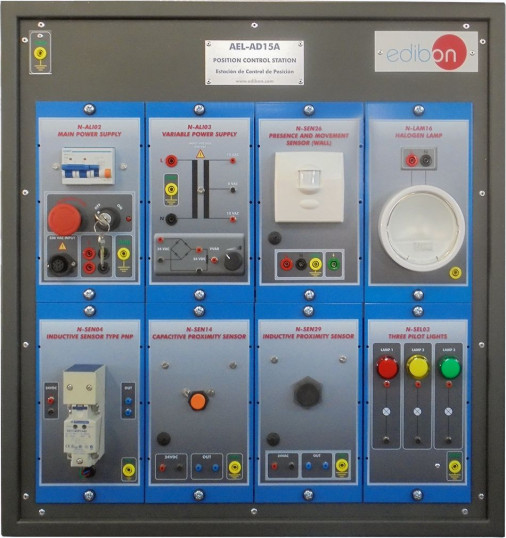

The Position Control Advanced Application, "AEL-AD15A", has been designed by EDIBON to study different types of position sensors and their possible applications.

For that purpose, this application includes the following sensors:

• A PNP type inductive sensor which works with DC and detects metals in a specific distance range
• A capacity proximity sensor to detect both metals and no metals.
• A inductive sensor which works with AC and detects any metal.
• A presence and movement sensor to detect moving objects. This last type is the most used in automatic lighting, alarms, etc.

To check the operation of these sensors, three pilot lights and one halogen lamp are included. All these sensors can be used in several industrial processes, such as water level detection in a tank, or home automation, such as automatic lighting. With this application, the student will acquire some practical ideas about the operation of these devices.
