AEL-ESAM Aplikasi Simulasi Kerusakan pada Motor Listrik

4.3.2.1.- MOTOR LISTRIK AC DAN GENERATOR
FAULTS SIMULATION APPLICATION IN ELECTRICAL MOTORS - AEL-ESAM

SISTEM INOVATIF

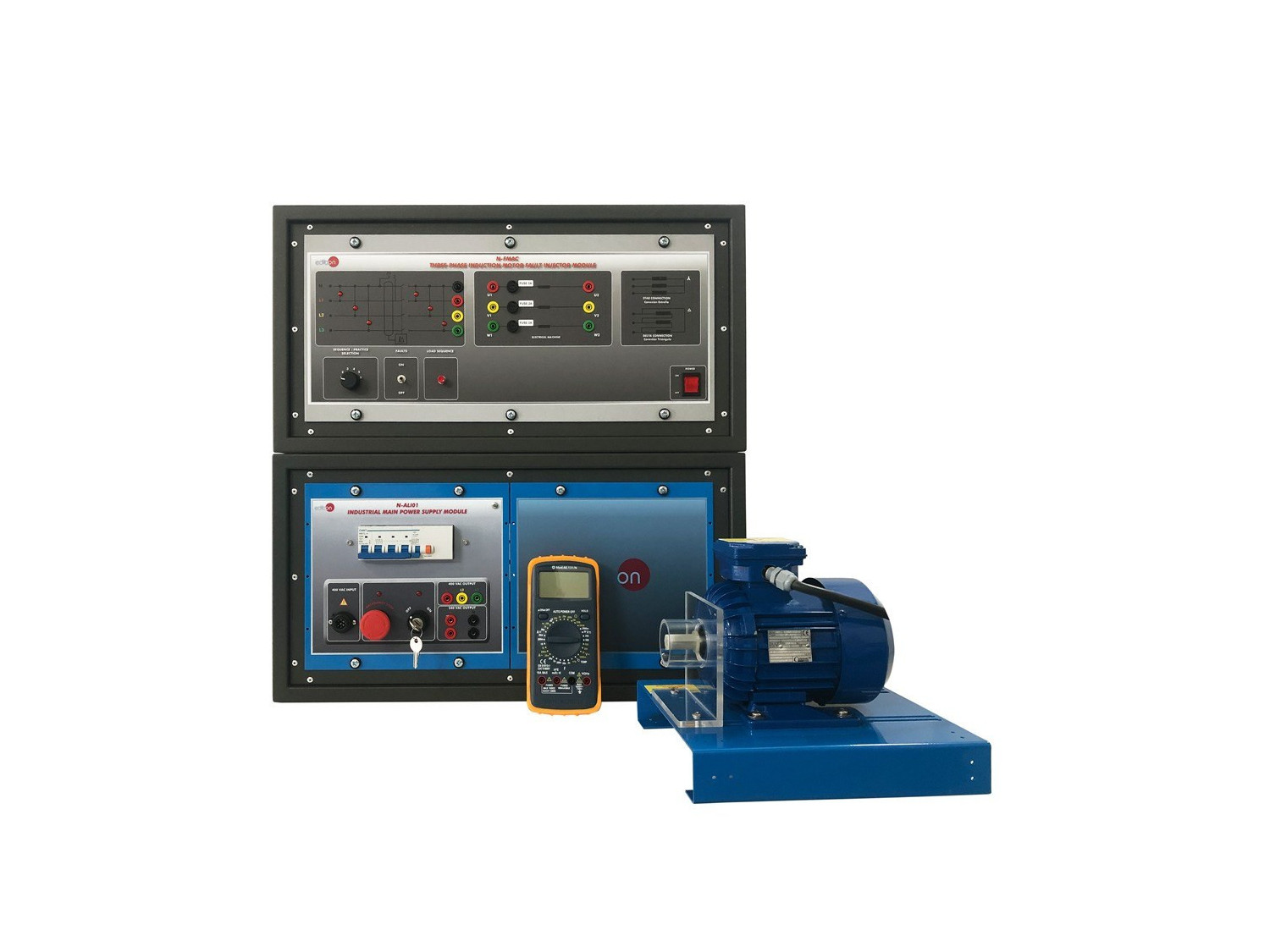

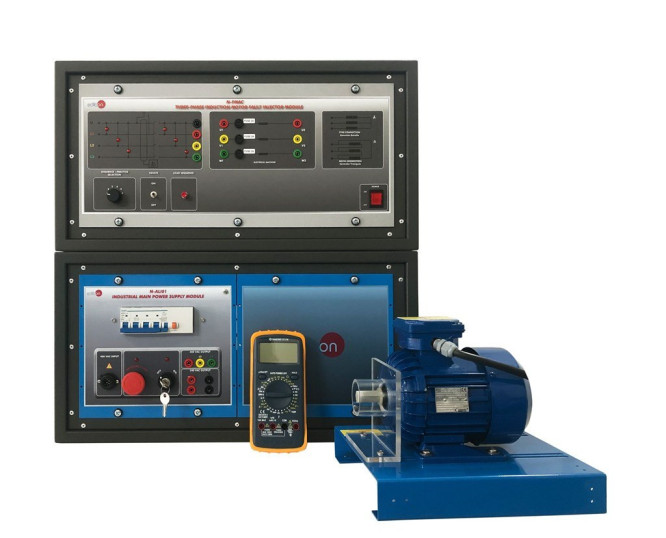

The Faults Simulation Application in Electrical Motors, "AEL-ESAM", has been designed by EDIBON to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Baca lebih lanjut
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

The Faults Simulation Application in Electrical Motors, "AEL-ESAM", has been designed by EDIBON to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.

This application allows simulating different breakdowns that can usually take place in electric motors, such as: Phase loss detection, power supply loss detection, short-circuited turn-coil detection, open coil detection, short-circuit between different phase coils detection and ground derivation detection.

All this simulations are carried out by the "AEL-ESAM" application, which has a circuit control that realizes the failures randomly.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Detection of fault on a phase.
  2. Detection of fault on the supply voltage.
  3. Phase lost detection.
  4. Coils with turns in short circuit.
  5. Measurement the resistance of the windings.
  6. Detection of open-ended coil.
  7. Detection of short circuit in coils from different phase.
  8. Measurement the resistance between coils from different phases.
  9. Detection of ground fault.
  10. Measurement of the insulation resistance between the winding and the motor case.
  11. Motor in star connection.
  12. Motor in delta connection.
