BHI Banco Hidrostatik dan Sifat-sifat Fluida

8.3.- HIDROSTATIK
HYDROSTATICS BENCH & FLUID PROPERTIES - BHI

Unit: BHI. Hydrostatics Bench & Fluid Properties

SISTEM INOVATIF

The Hydrostatics Bench and Fluid Properties, "BHI", allows for study of the main properties and the behavior of such liquids under hydrostatic conditions, with the aid of some accessories to make the different experiments.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

11PTC
 Laboratorium Pusat Pelatihan Perminyakan
8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up at ISEC Lisboa
Setting up at ISEC Lisboa
We are sharing with you a new installation that we have carried out at ISEC Lisboa - Instituto Superior de Educação e Ciências. Together with the Engineering & Aeronautics department, our team has installed several units, including: the Computer Controlled Two-Shaft Gas Turbine/Jet Engine;...
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

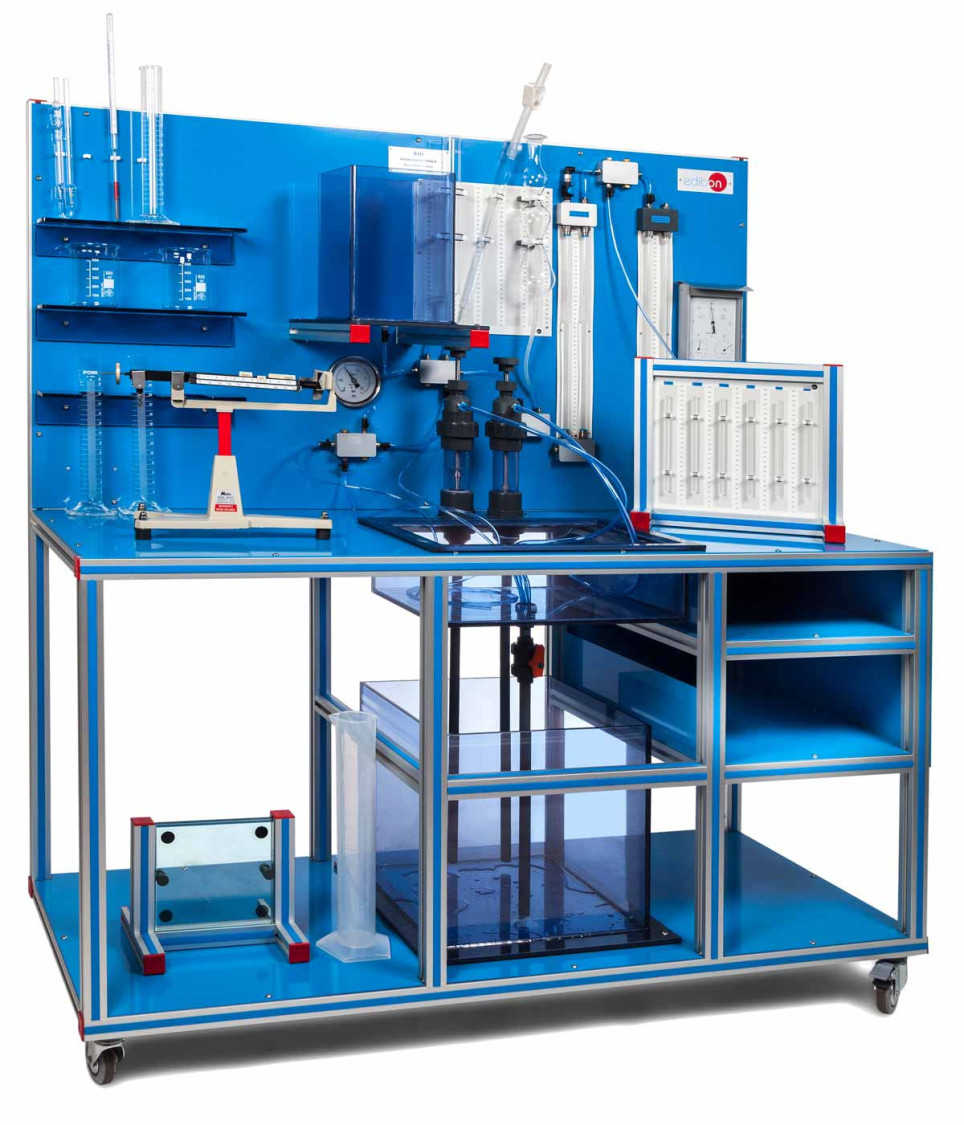

The Hydrostatics Bench and Fluid Properties, "BHI", is a compact, mobile and independent unit.

There is a water storage tank, to work in a closed system, at the bottom of the bench. The water is distributed by hand pumps from this tank to two upper tanks, which are connected to different accessories and measuring elements for its study. All excess water is returned to the storage tank through a drain.

With these connections and the elements included, the Hydrostatics Bench and Fluid Properties, "BHI", designed by EDIBON, allows the performance of experiments related to some areas of hydrostatics, such as the measurement of pressure on the ground, the study of the capillary effect, buoyancy studies, surface tension measurement, metacentric height determination, measurement of hydrostatic pressure, etc.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Density and specific gravity measurements.
  2. Viscosity measurement.
  3. Capillarity effect observation.
  4. Capillarity raising measurement.
  5. Free surface of a static liquid.
  6. Effect of a liquid on a free surface.
  7. Measurement of liquid levels.
  8. Pressure center in a smooth surface.
  9. Center of pressures for partial immersion.
  10. Center of pressures for total immersion.
  11. Calibration of a Bourdon manometer.
  12. Hysteresis curve determination.
  13. Use of a water manometer.
  14. Use of an air manometer.
  15. Use of a U-shaped manometer for determining the differential pressure.
  16. Arquimedes’ Principle.
  17. Determination of the metacentric height.
  18. Study of stability of a floating body. Angular displacements.
  19. Study of stability of a floating body. Different positions of the center of gravity.
  20. Operation and comparison of results obtained with different measuring instruments.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Table of the atmospheric pressure in function of the height.
  2. Use instructions of the scale of Archimedes.
