TBMC75 Bangku Uji Motor 75 kW, Dikendalikan dari Komputer (PC)

7.2.3.- MESIN 9.9.- MESIN PEMBAKARAN INTERNAL
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

Unit: TBMC75. Computer Controlled Test Bench for Four-Cylinders Engines, 75 Kw

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

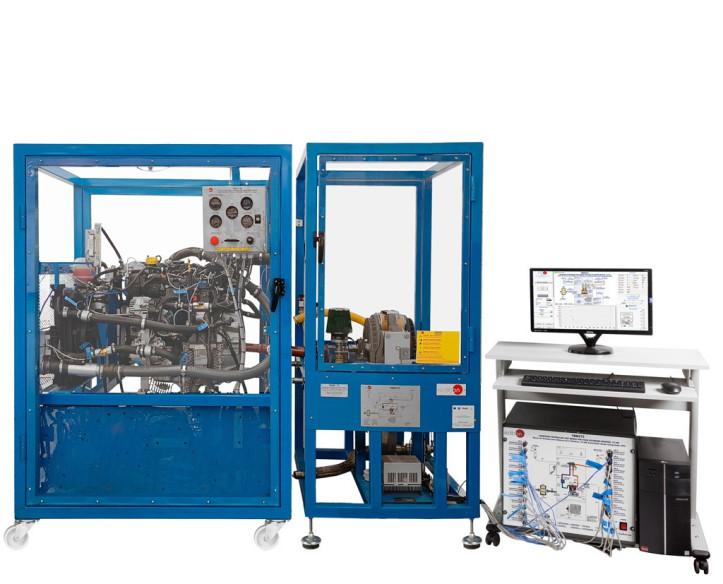

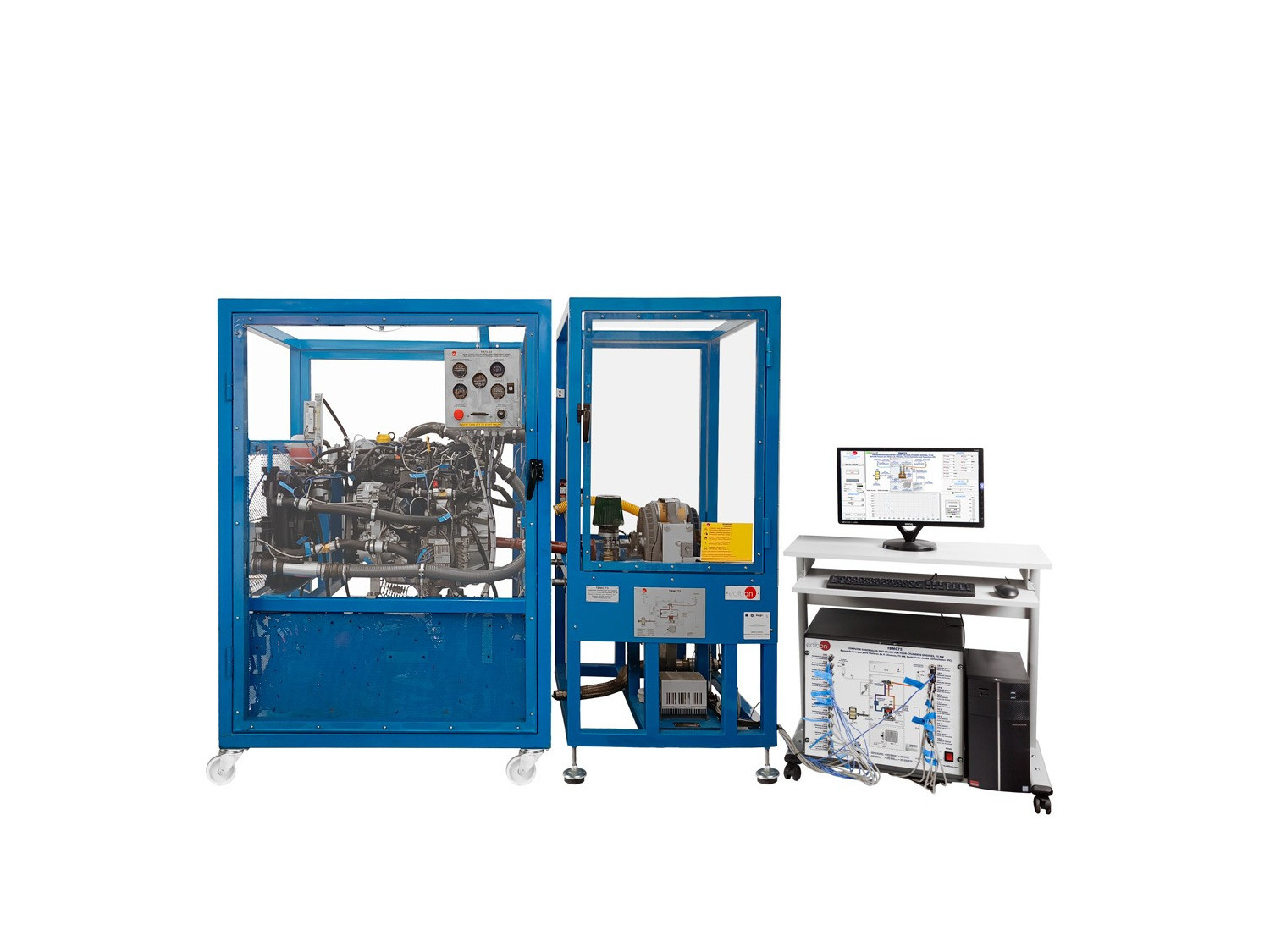

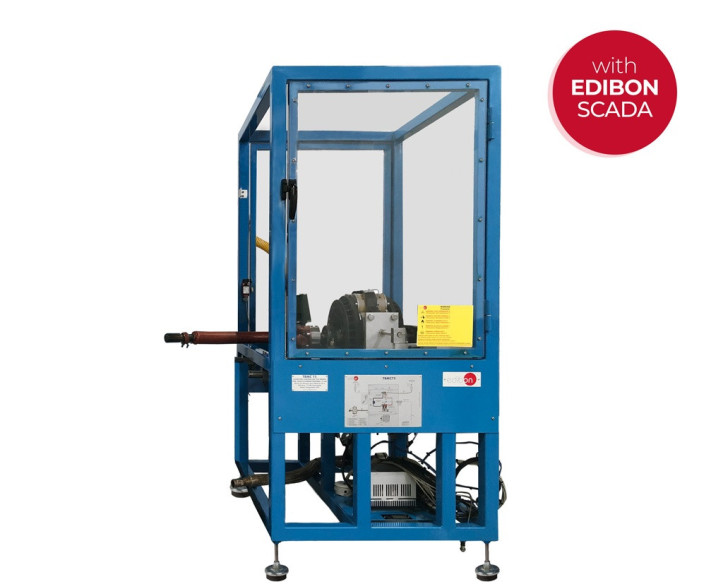

Complete TBMC75 unit

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

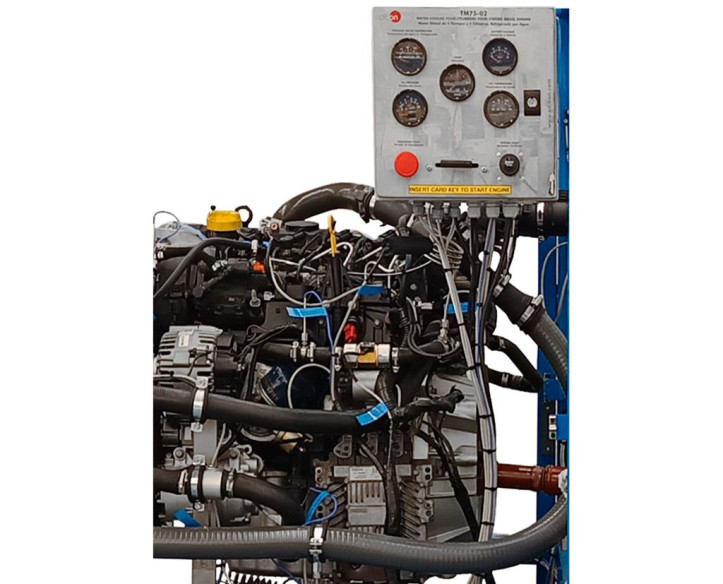

Unit details

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

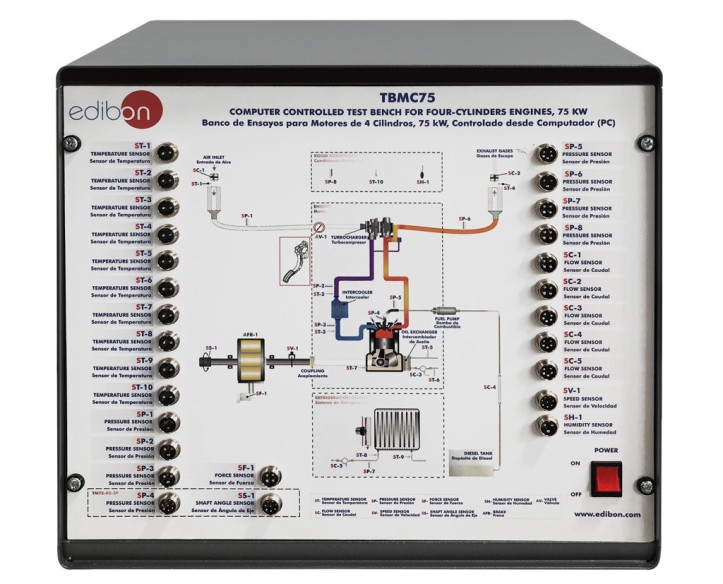

TBMC75/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

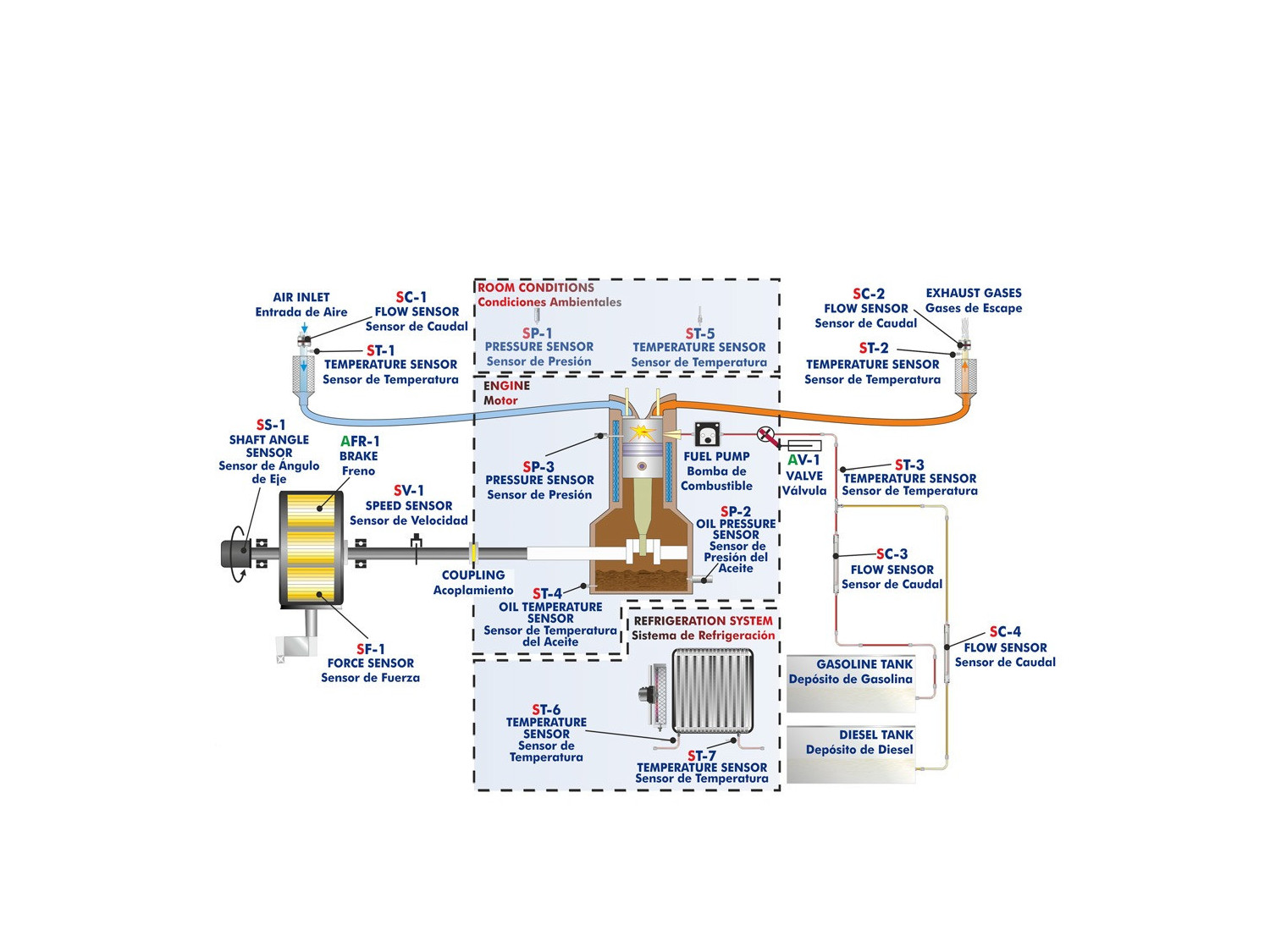

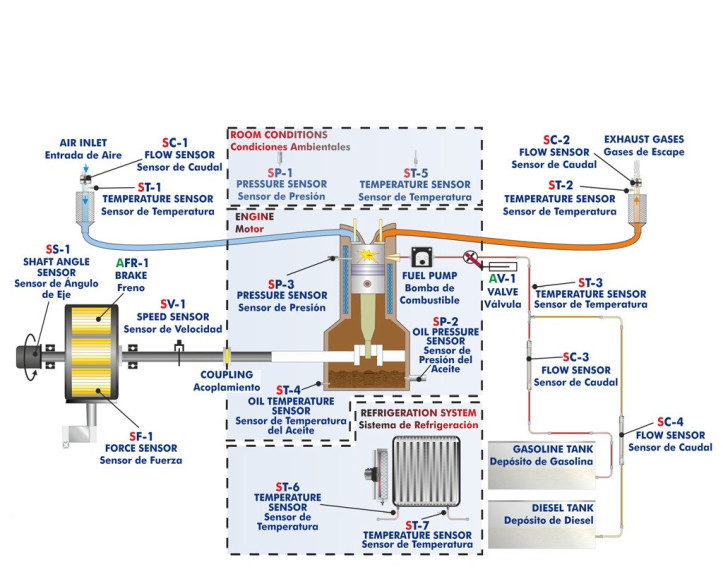

Process diagram and unit elements allocation

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

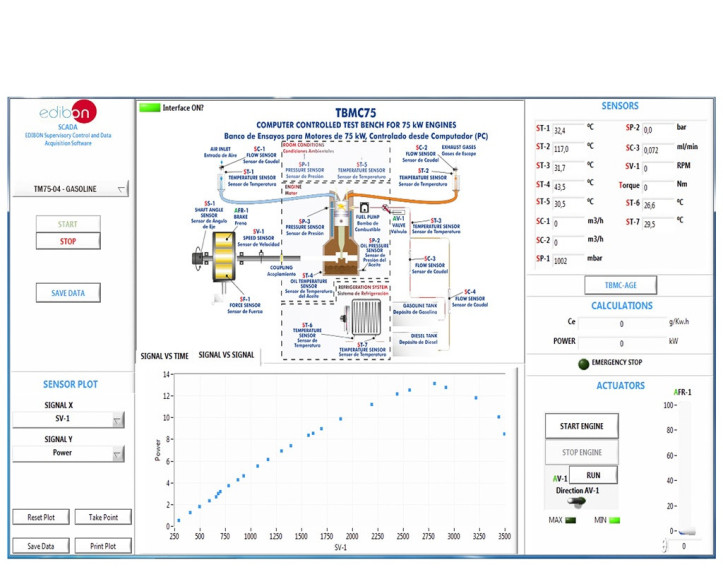

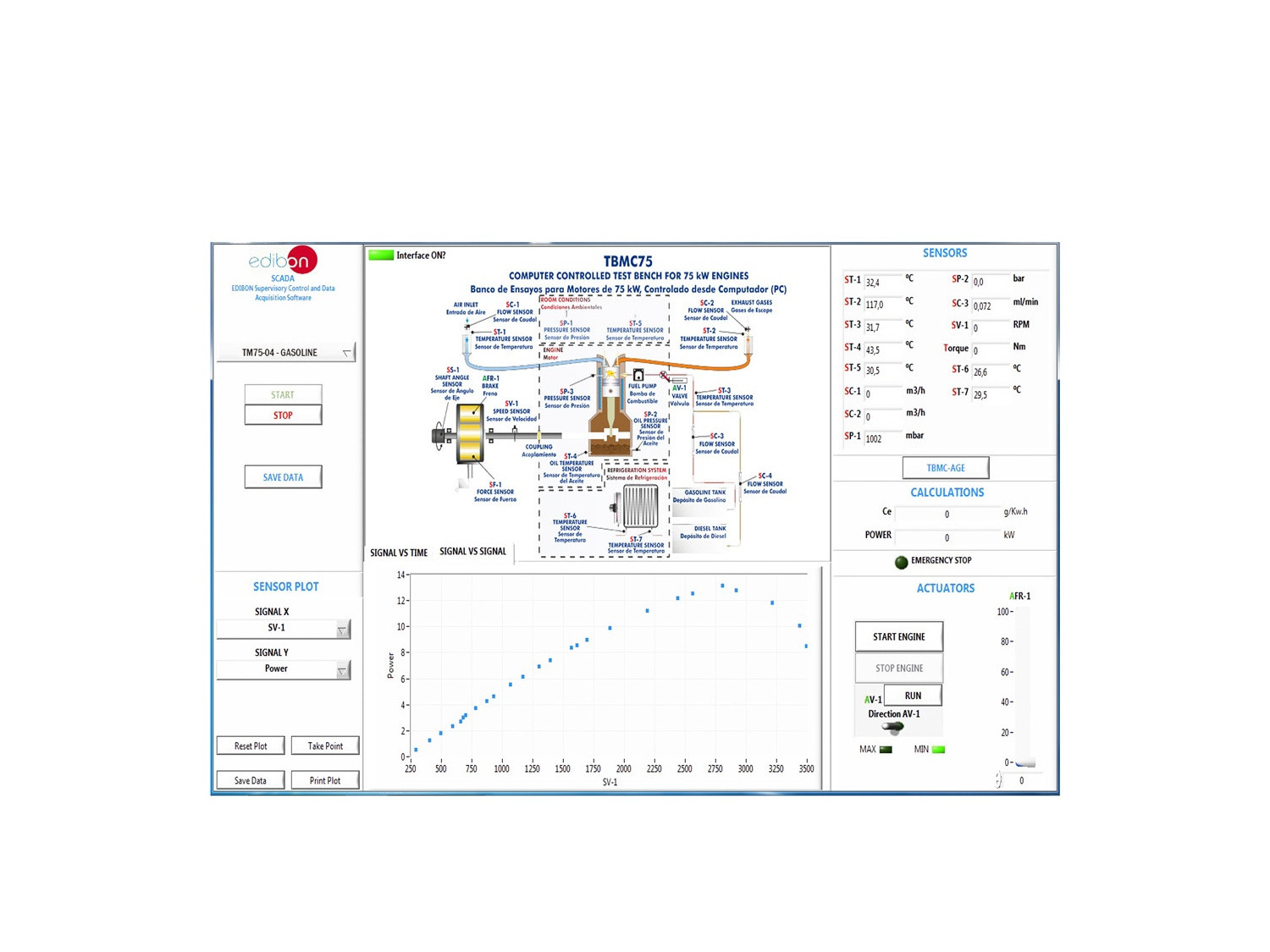

TBMC75/SOF. TBMC75 Software. Main Screen

COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75
COMPUTER CONTROLLED TEST BENCH FOR FOUR-CYLINDERS ENGINES, 75 KW - TBMC75

SISTEM INOVATIF

The Computer Controlled Test Bench for Four Cylinders Engines, 75 kW, "TBMC75", designed by EDIBON, is a teaching unit to test internal combustion engines of up to 75 kW.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

9TV
 Laboratorium Termodinamika dan Termoteknik untuk Pendidikan Teknik dan Kejuruan
9HE
 Laboratorium Termodinamika dan Termoteknik untuk Pendidikan Tinggi

BERITA TERKAIT

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Baca lebih lanjut
Installation at UPV/EHU - San Sebastian
Installation at UPV/EHU - San Sebastian
The EDIBON team has carried out a new installation, this time in our country, at the International UPV/EHU. Now, students and professors of the university have the possibility to continue their studies with the Computer Controlled Continuous Distillation, UDCC, the Computer Controlled Test Bench...
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Test Bench for Four Cylinders Engines, 75 kW, "TBMC75", designed by EDIBON, is a teaching unit to test internal combustion engines of up to 75 kW.

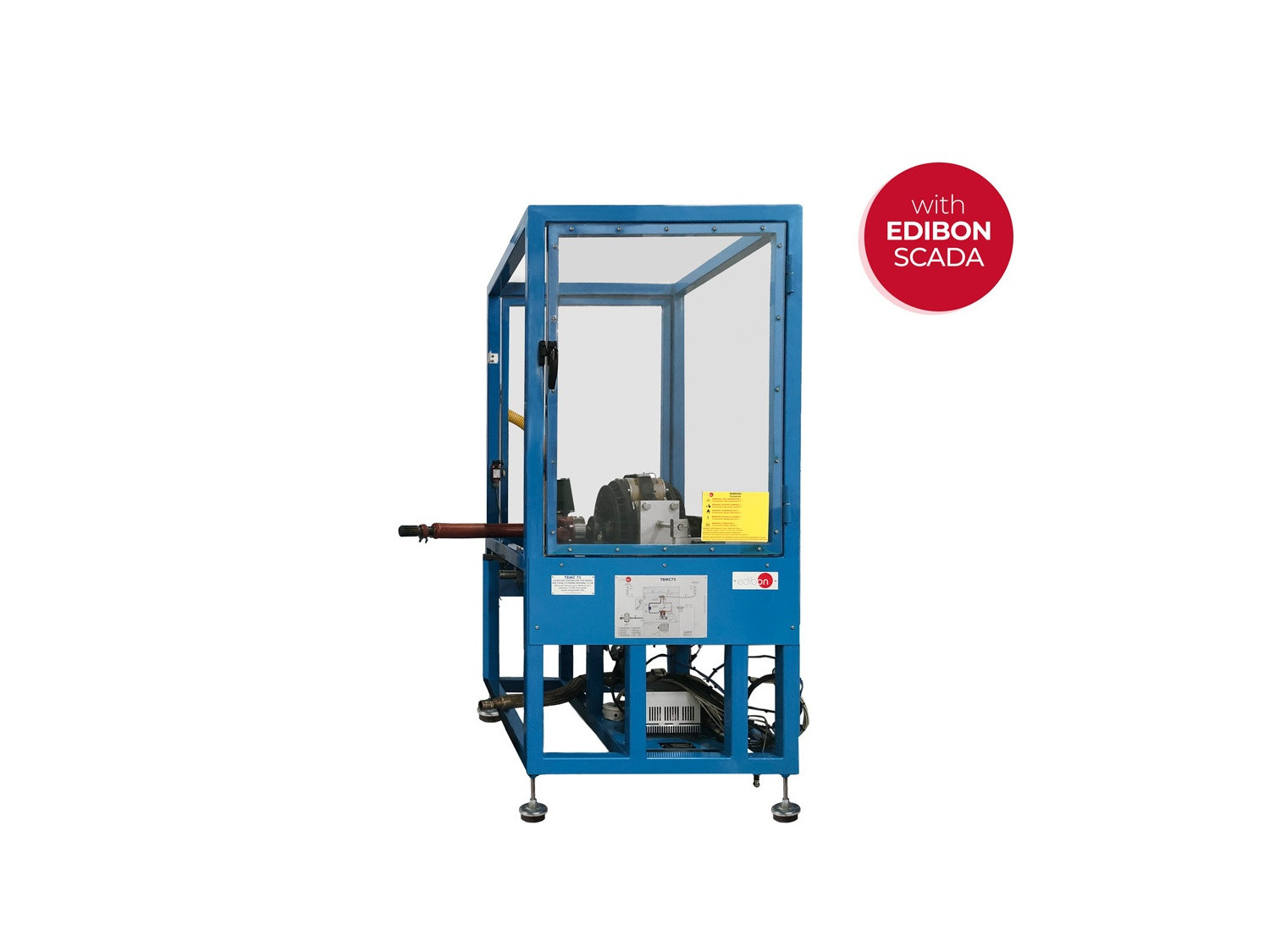

The element of the unit that offers load torque is an eddy current electromagnetic brake. It is supplied by a variator that allows to control the supply voltage and to vary its torque characteristics. The brake is jointly coupled to the shaft of the combustion engine by a double Cardan joint that transfers torque and power.

The unit also includes:

  • Instrumentation: there are several sensors that provide us measurements of the variables under study.
  • Start system: the engine includes its own electric starter motor that facilitates its operation.
  • Fuel supply system: it carries the required fuel to the internal combustion engine.
  • Cooling system: it carries out the cooling required for the correct operation of the engine. A forced water current removes the heat generated in the engine and transfers it to the atmosphere with a radiator.
  • Air intake system: it allows the intake of fresh air in the engine. It contains the oxygen required to generate the combustion.
  • System to remove the exhaust gases: it removes from the engine the substances generated during the combustion and reduces the noise inherent to the gases flow.

The engine test bench "TBMC75" allows to study combustion engines, obtaining their characteristic curves by setting the accelerator of the engine to a specific position and varying the braking torque. Thus, different points of the torque or power versus velocity characteristic curve are obtained. Such curve will be at full load if the accelerator is at its maximum position.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Determination of the characteristic curves of an internal combustion engine at different speed regimes:
  • Torque.
  • Power.
  • Specific consumption of fuel.
  1. Determination of the efficiency, fuel specific consumption and air-fuel ratio of an internal combustion engine.
  2. Determination of the volumetric efficiency and the average effective pressure of an internal combustion engine.
  3. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

Additional practical possibilities:

  1. Familiarization with four strokes petrol and diesel engines.
  2. Comparison of the characteristics of diesel oil and petrol engines.
  3. Study of cooling in alternative internal combustion engines.
  4. Pressure measurement in the combustion chamber of an engine (it requires the accessory TM75-01SP or TM75-02SP).
  5. Graphical representation of the combustion chamber pressure versus time and versus the position of the crankshaft (it requires the accessory TM75-01SP or TM75-02SP).
  6. Familiarization with the concept of supercharging for engines supercharged by a set of turbo and intercooler (it requires the TM75-02).
  7. Analysis of an internal combustion engine exhaust gases (it requires the TBMC-AGE accessory). Recommended for petrol engines.
  8. Calculation of the heat contained in the exhaust gases of an internal combustion engine (it requires the TBMC-CG).
  9. Study of the ignition of a petrol combustion engine (it requires the additional recommended element STRO).

Other possibilities to be done with this Unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the TBMC75 unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the TBMC75 unit process.
  9. Several other exercises can be done and designed by the user.
