PBEC Bangku Uji Pompa Gigi, Dikendalikan dari Komputer (PC)

8.7.1.- POMPA
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

Unit: PBEC. Computer Controlled Gear Pump Bench

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

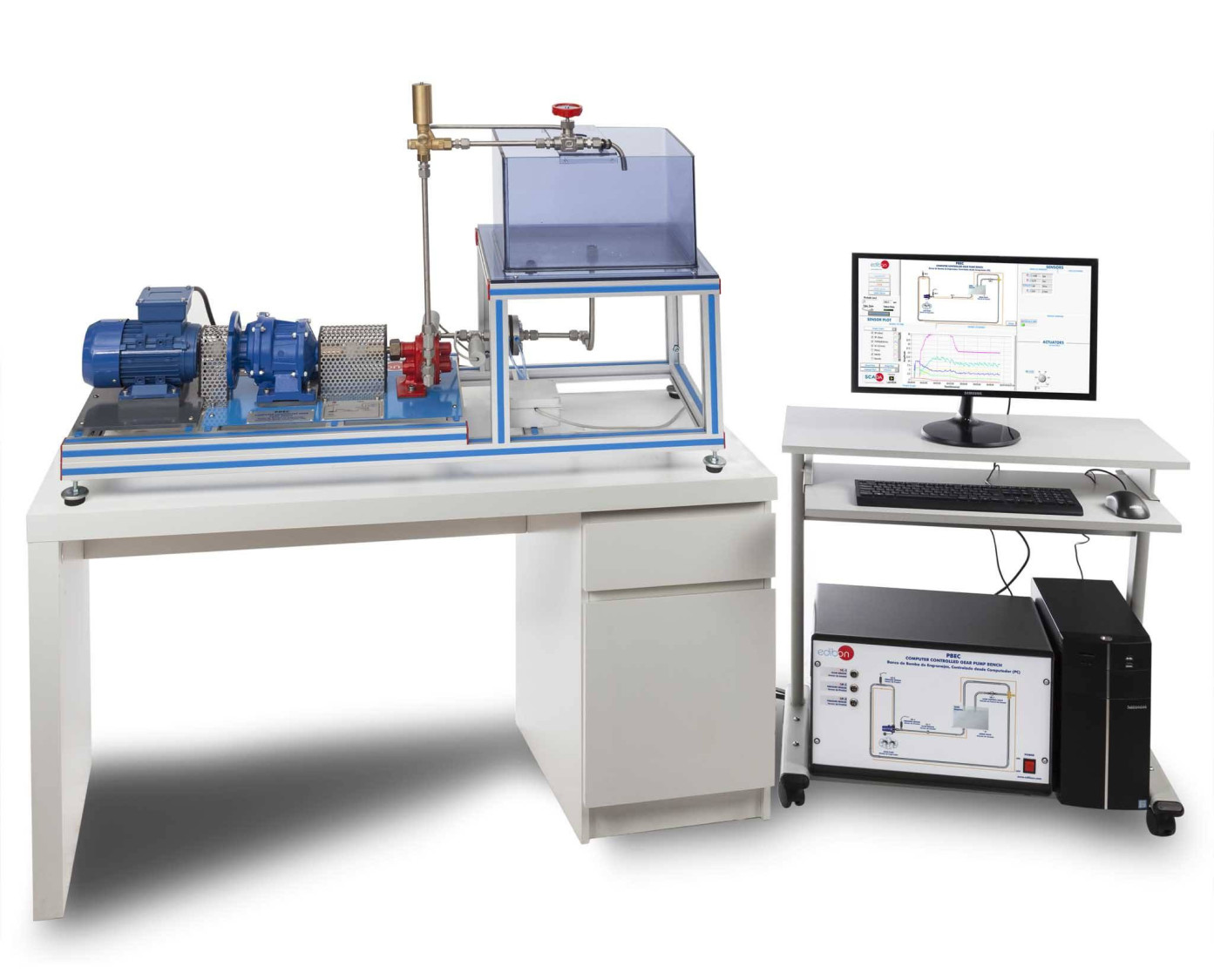

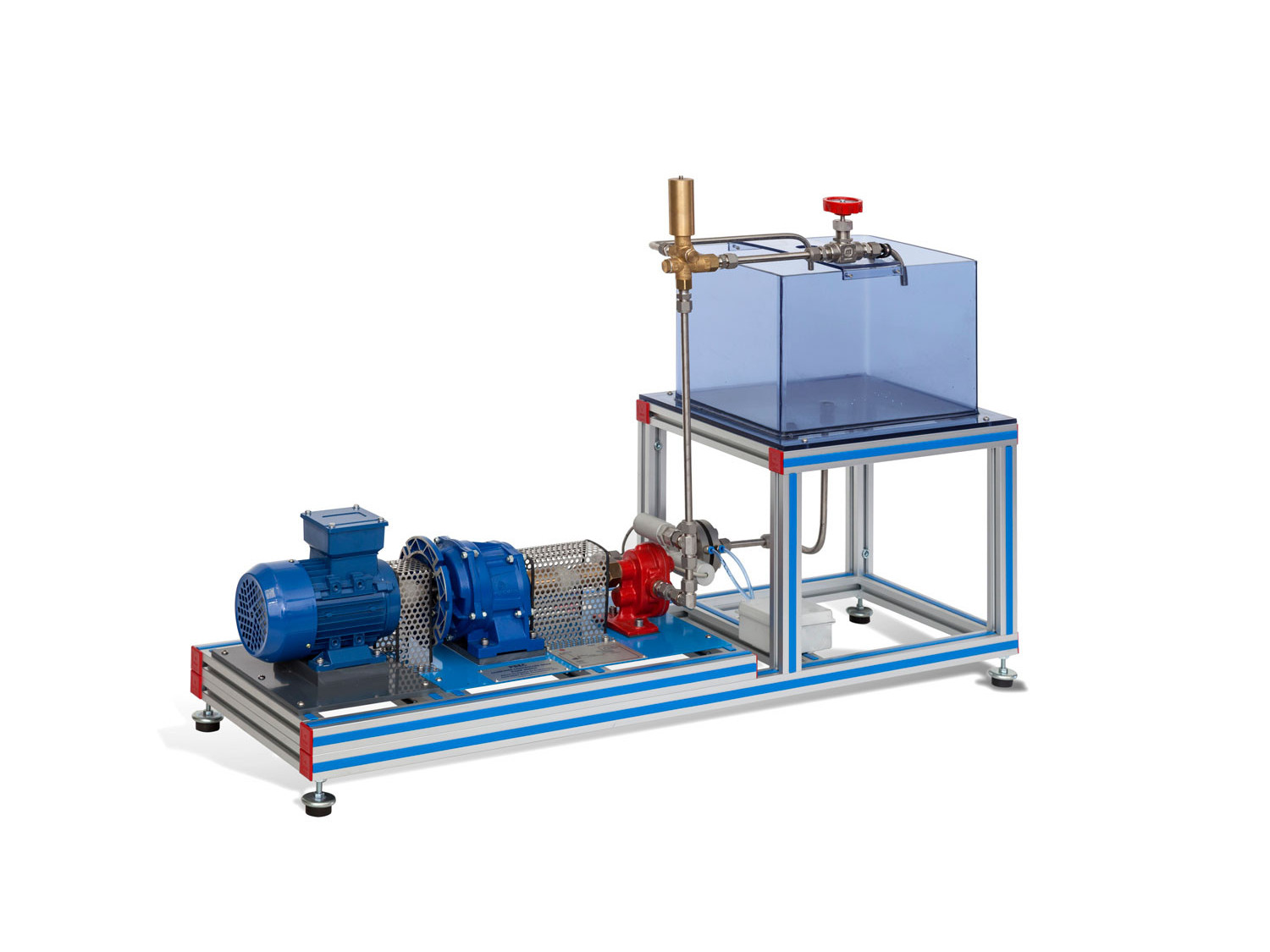

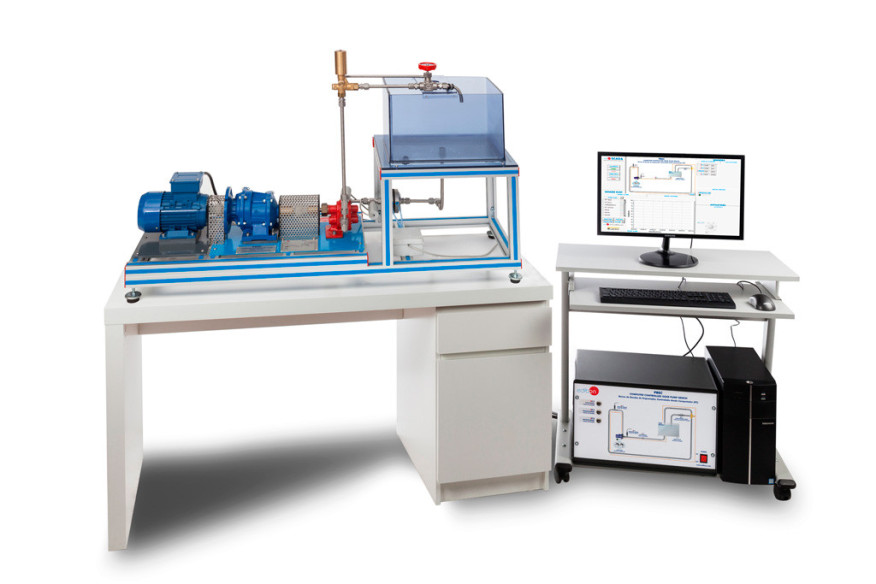

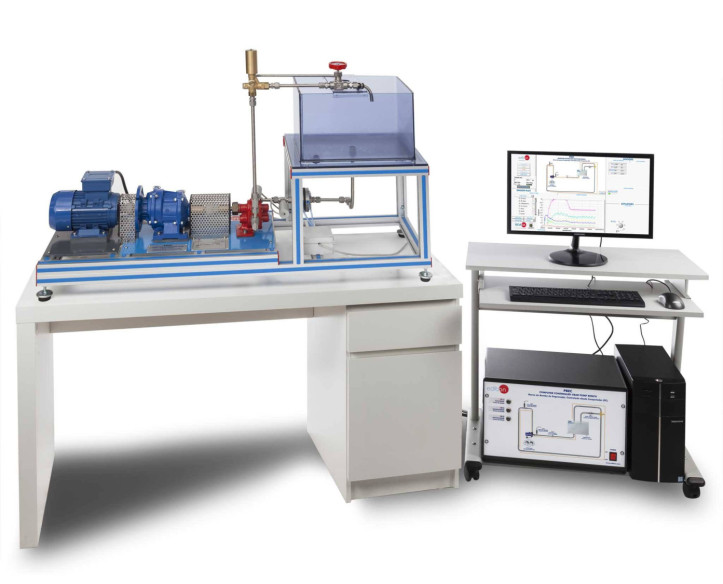

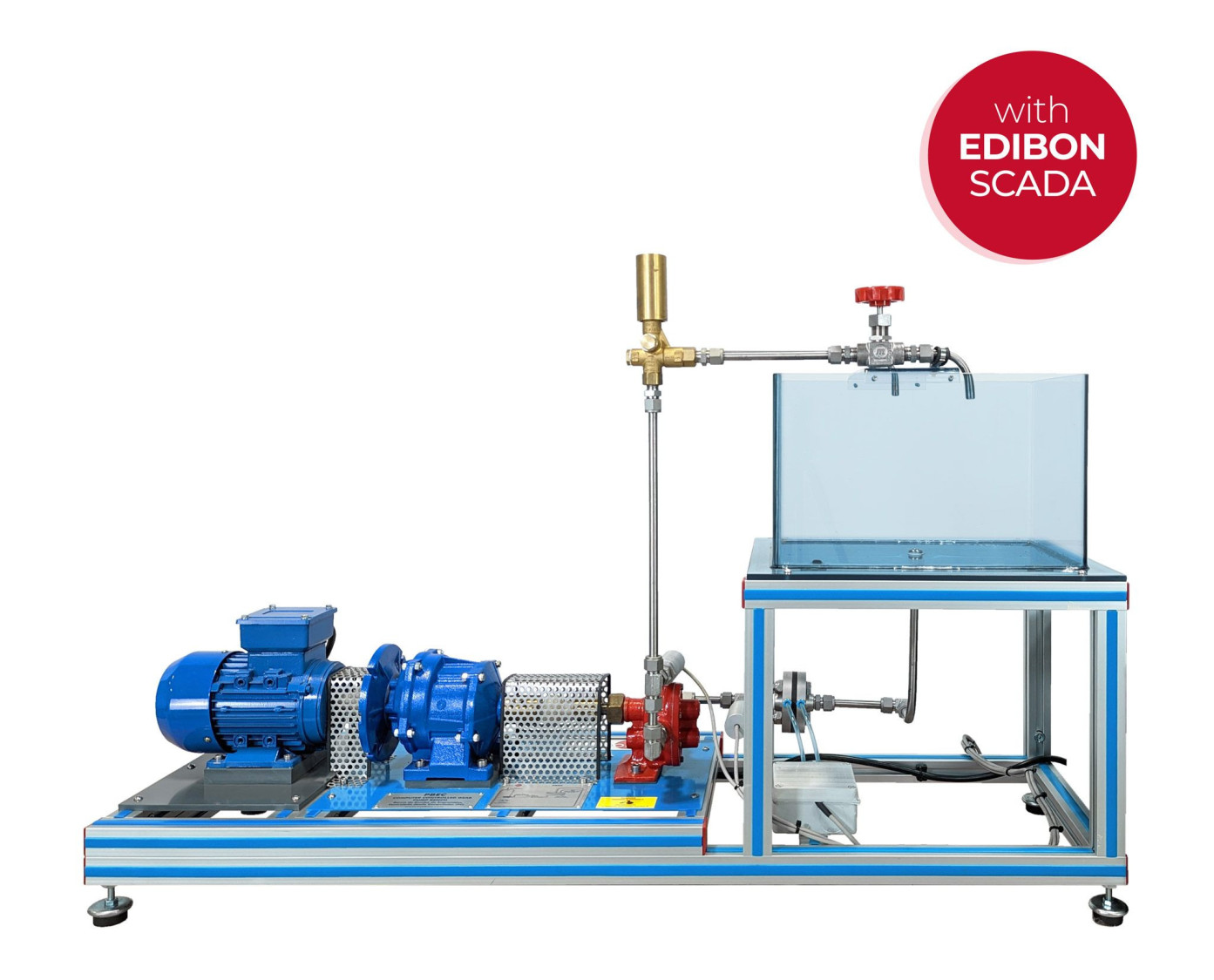

Complete PBEC unit

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

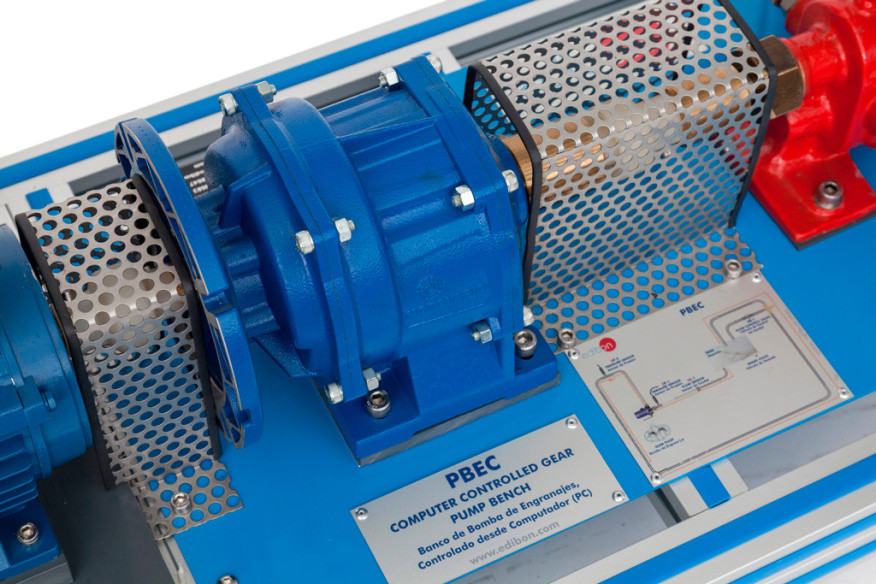

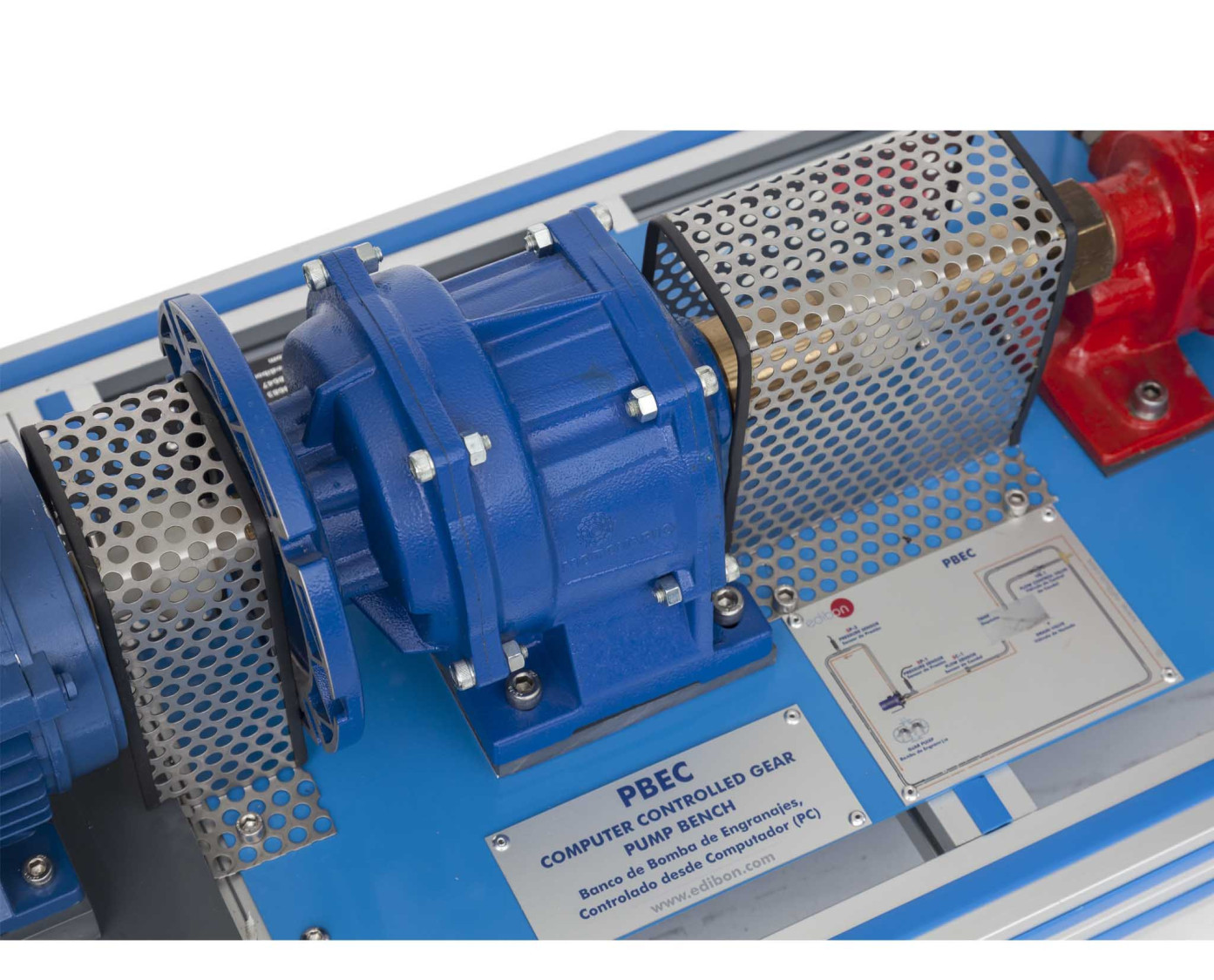

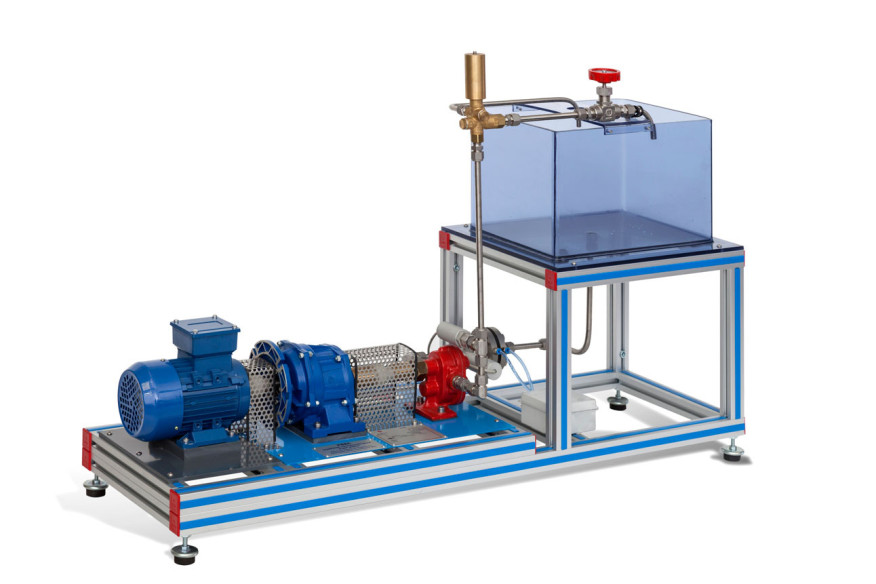

Unit details

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

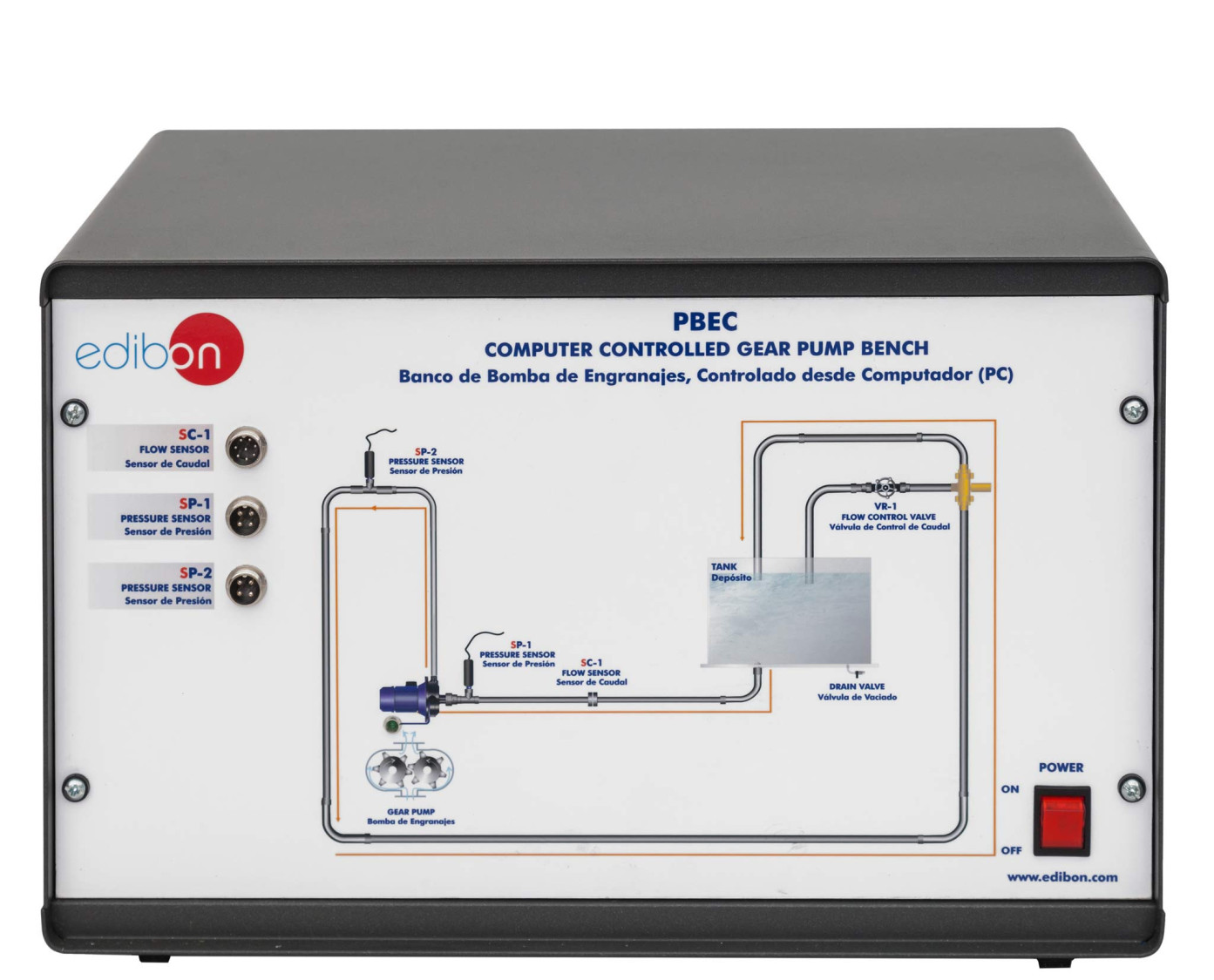

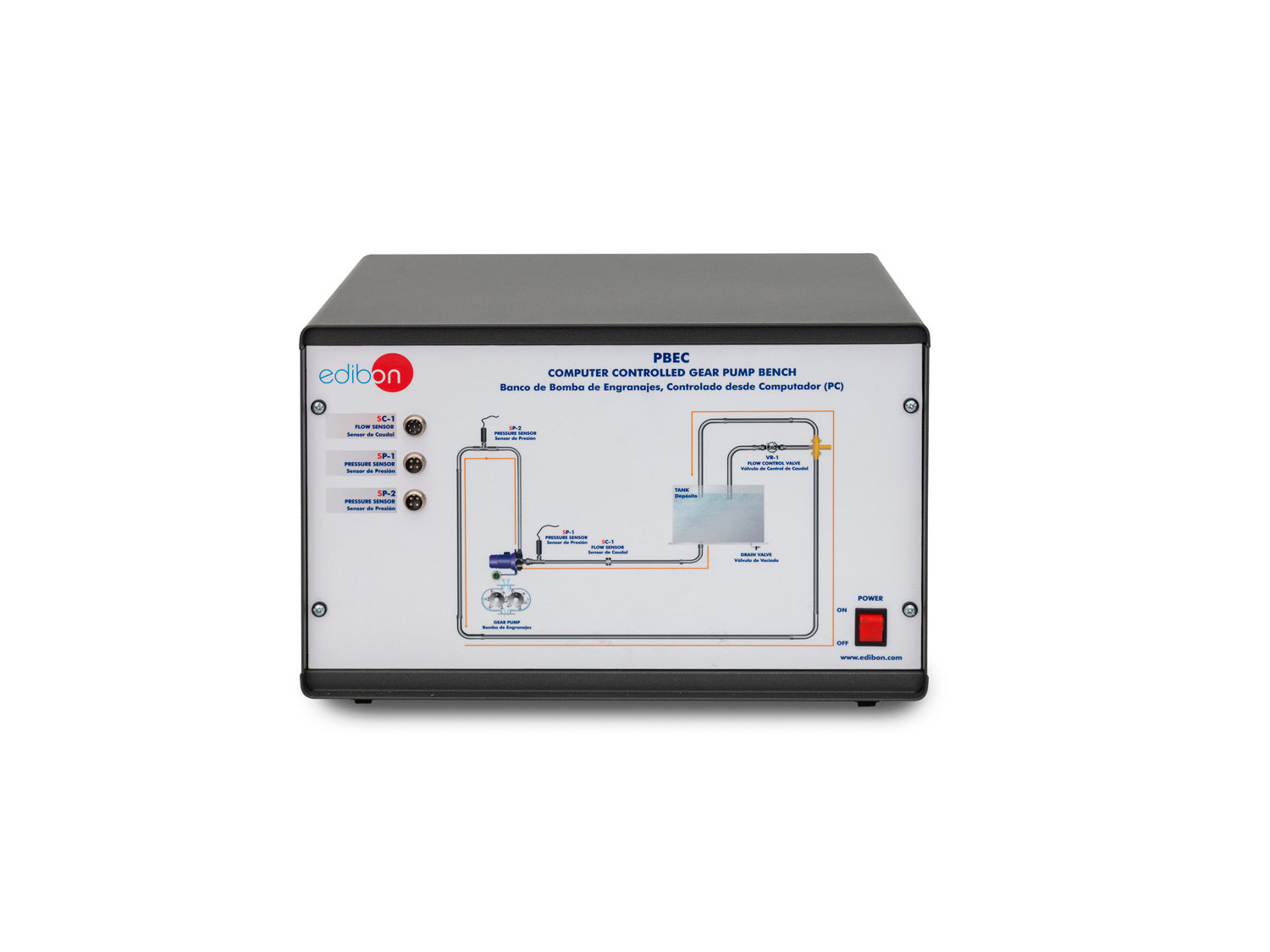

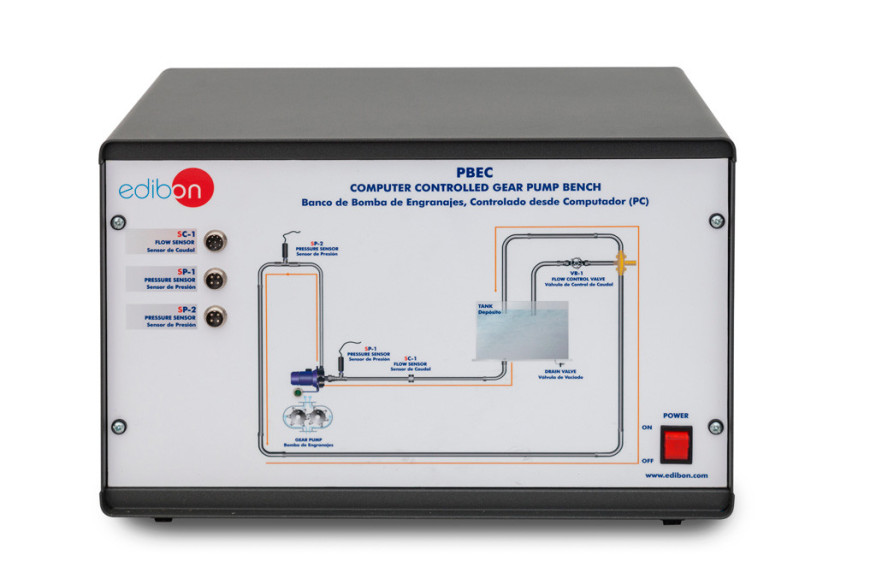

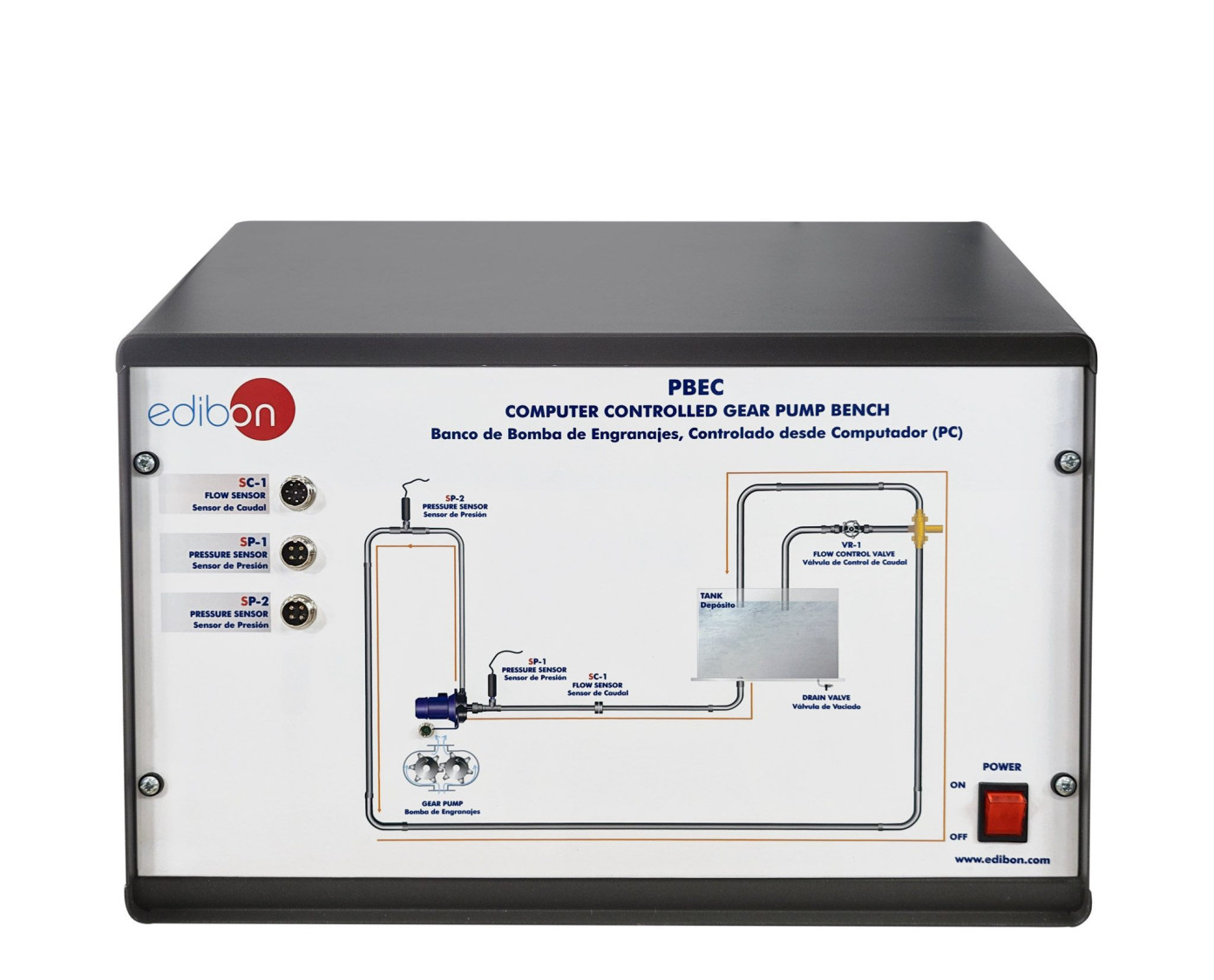

PBEC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

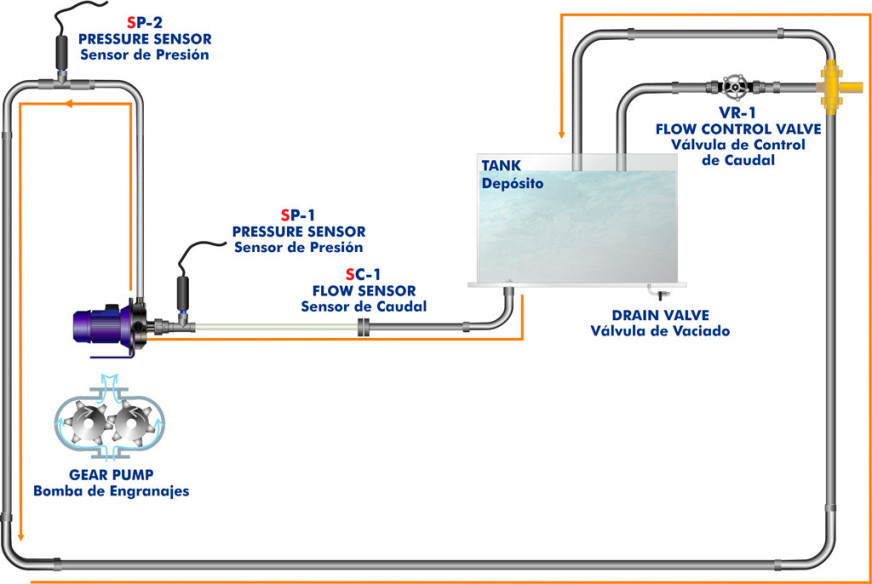

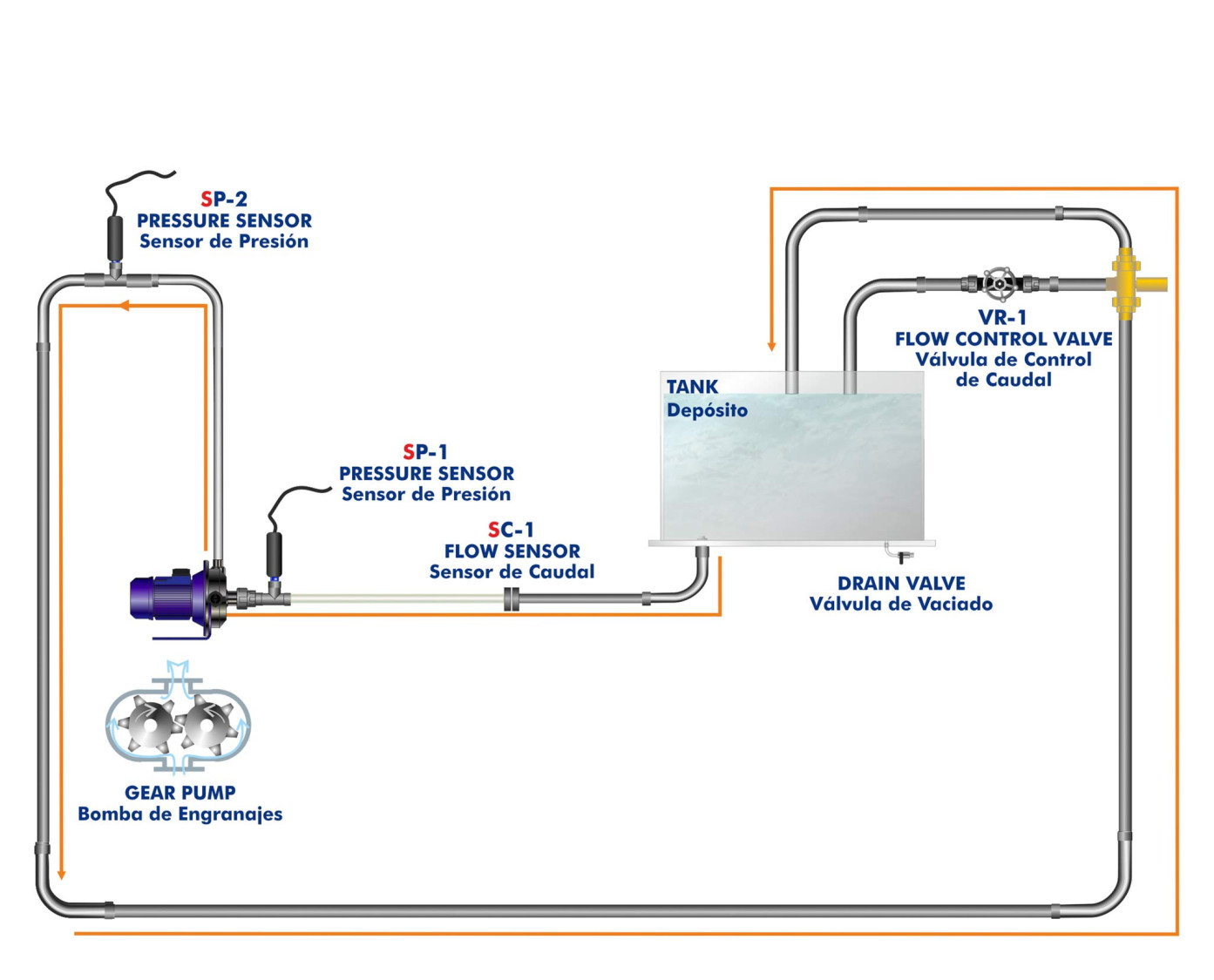

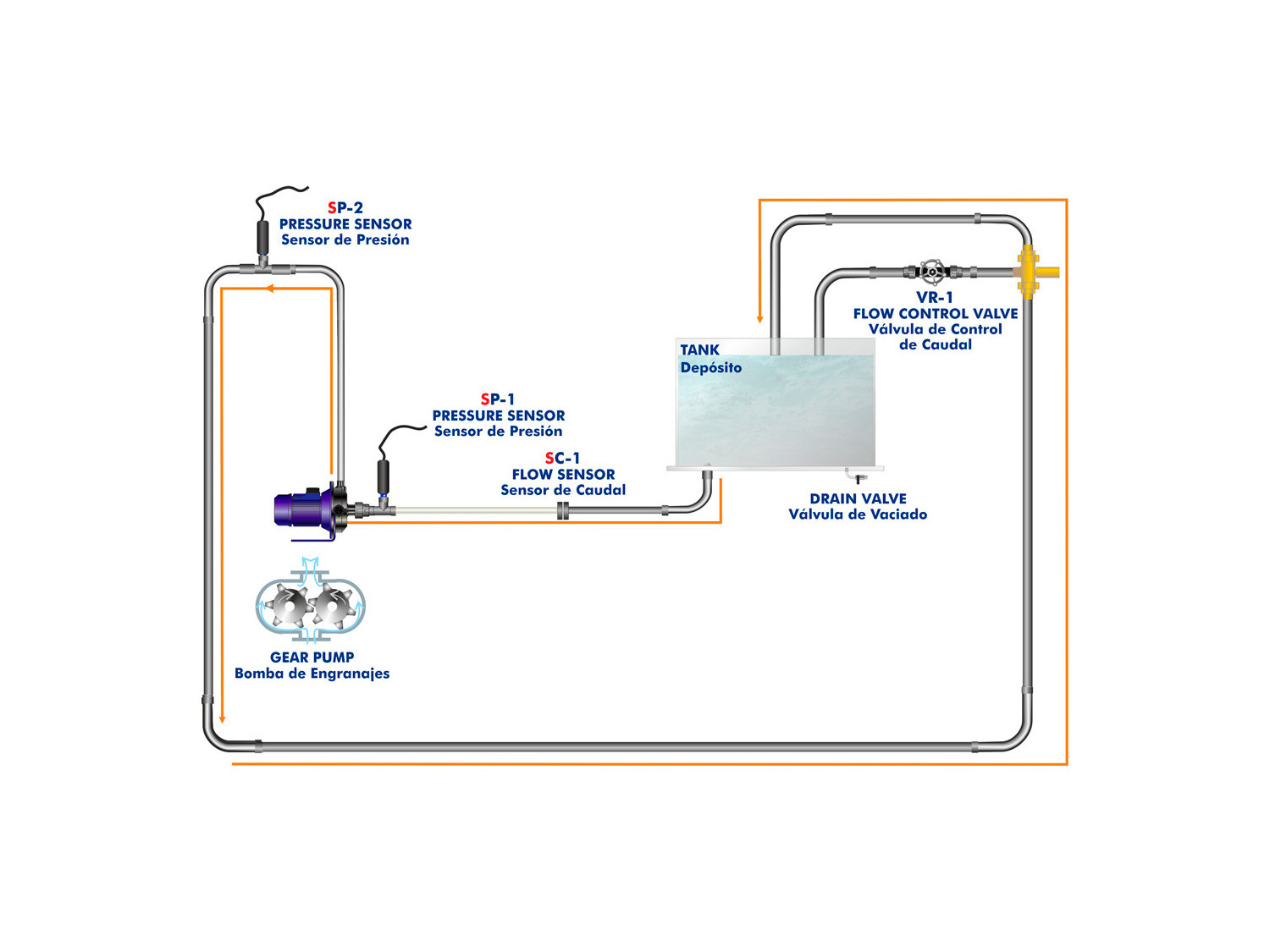

Process diagram and unit elements allocation

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

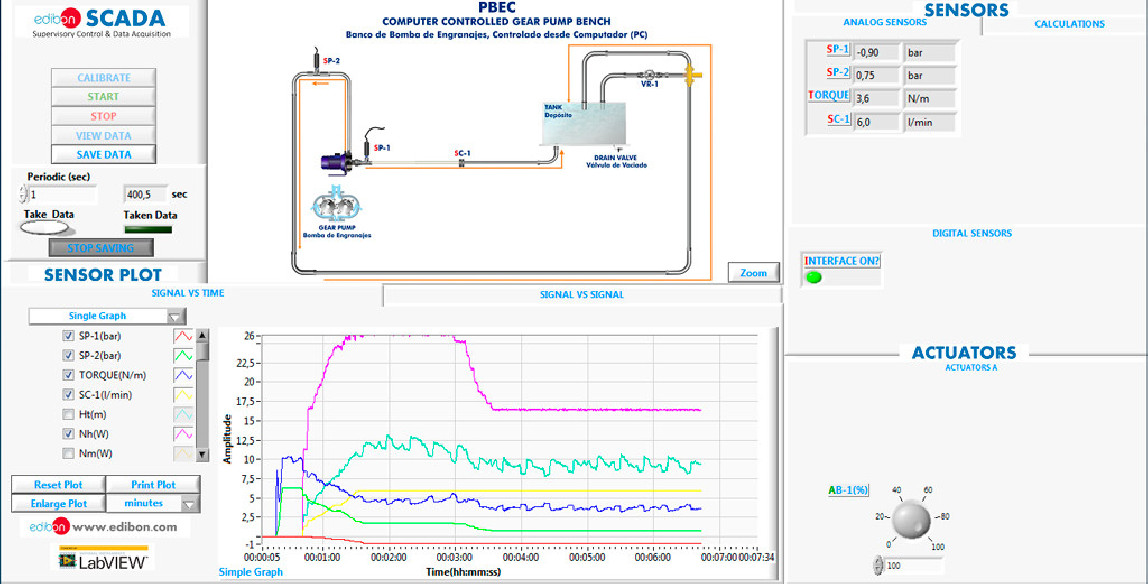

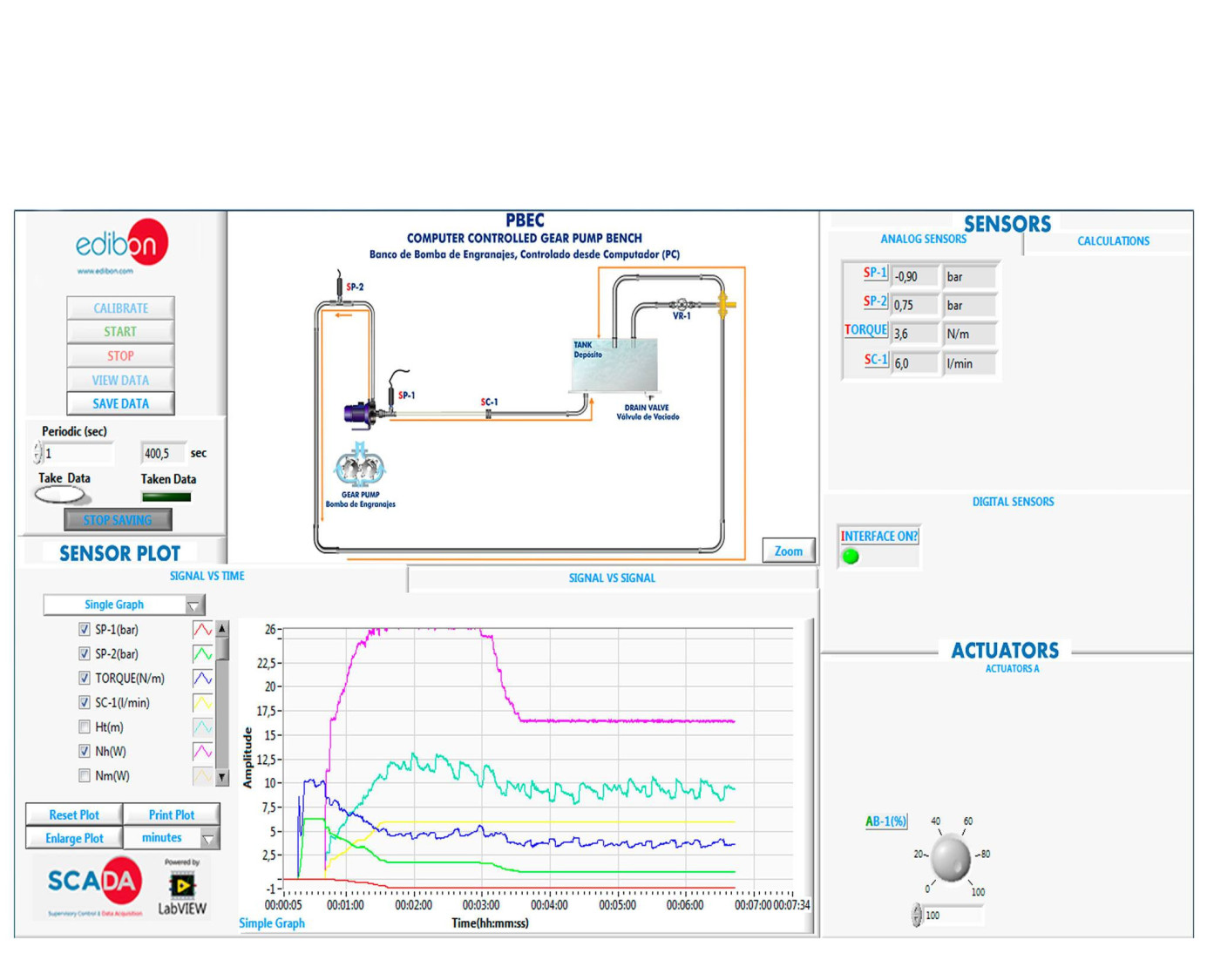

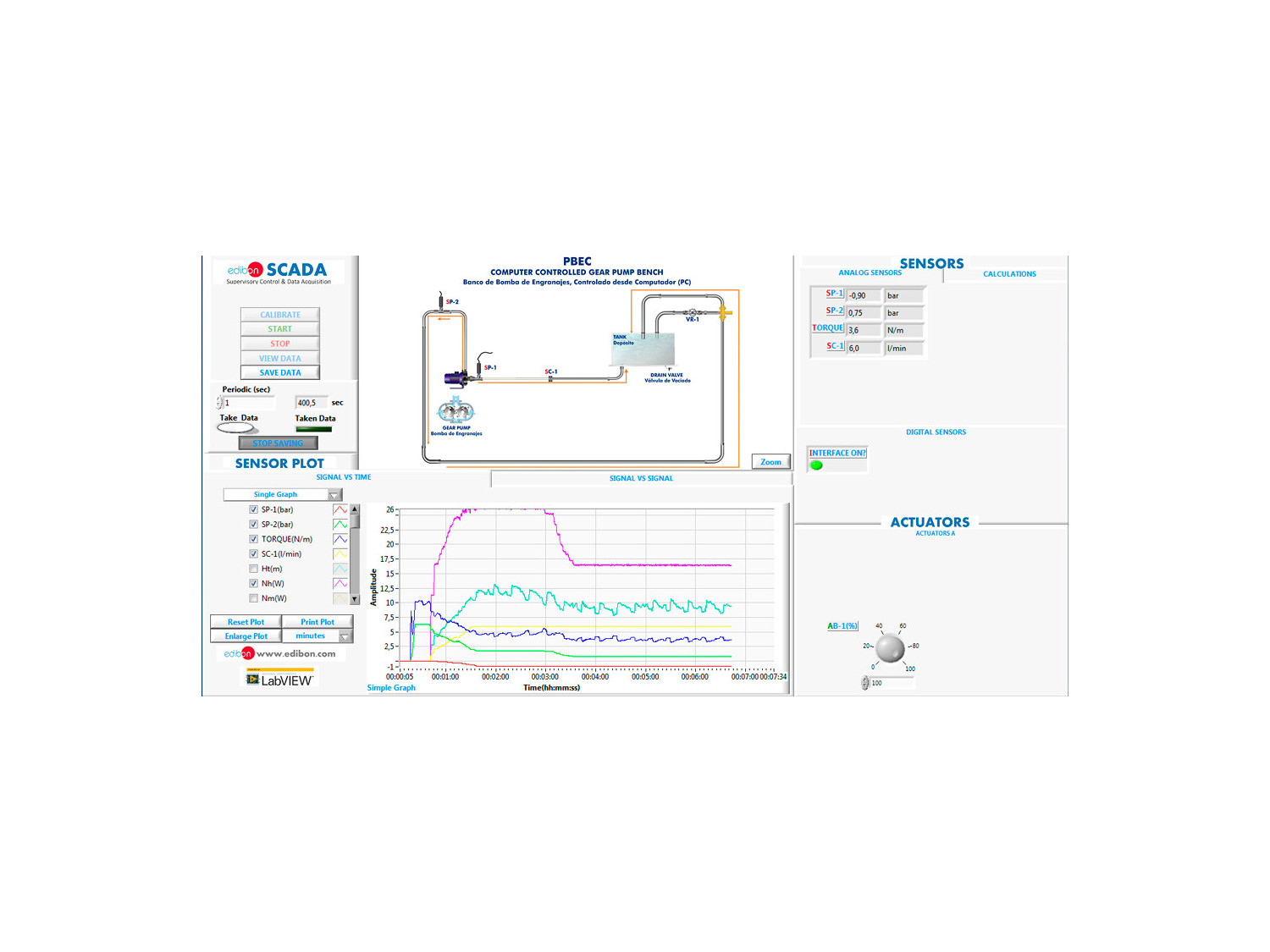

PBEC/SOF. PBEC Software. Main Screen

COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC
COMPUTER CONTROLLED GEAR PUMP BENCH - PBEC

SISTEM INOVATIF

The Computer Controlled Gear Pump Bench, "PBEC", has been designed to obtain the most important characteristics curves and parameters of a gear pump bench.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

11PTC
 Laboratorium Pusat Pelatihan Perminyakan
8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

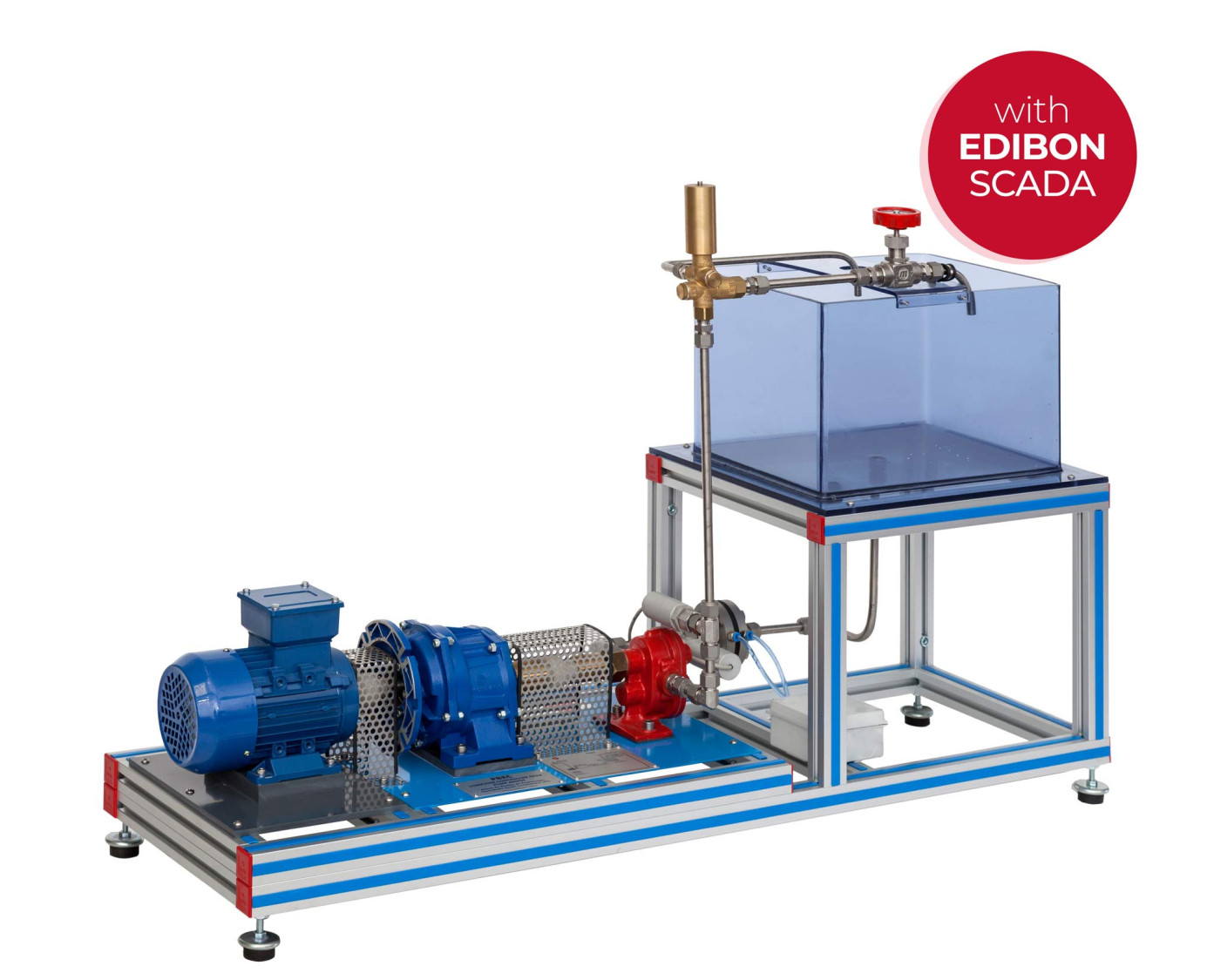

The Computer Controlled Gear Pump Bench, "PBEC", is a bench-top unit consists of a gear pump computer controlled, a feed water tank, circulation pipes, regulation valves, as well as the enough control elements for the pump experiments: two pressure sensors and a flow sensor.

A frequency inverter for the pump, computer controlled, provides the possibility of regulation and measuring the pump motor speed, as well as the measurement of the torque transferred.

The pump is installed in a system of pipes. As the circuit is closed, it prevents a continuous waste of water when working with it.

The Computer Controlled Gear Pump Bench, "PBEC", has instrumentation and sensors to allow the measurement, from the computer, of the most typical parameters of the gear pump:

  • Admission and discharge pressure.
  • Torque.
  • Motor speed.
  • Total flow driven.

The software allows to calculate, with the measurement of the parameters:

  • Height of the pump.
  • Hydraulic and mechanic power.
  • Volumetric efficiency.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Demonstration of a gear pump in operation.
  2. Obtaining of curves H(Q), N(Q), Efficiency (Q) of the gear pump.
  3. Simultaneous representation of H(Q), N(Q) and Efficiency (Q).
  4. Adimensional study of magnitudes H*, N* and Q*.
  5. Determination of the curve H vs Q at different r.p.m.
  6. Determination of the mechanical power vs flow at different r.p.m.
  7. Determination of the efficiency curve vs the flow at different r.p.m.
  8. Determination of the map of a gear pump.
  9. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PBEC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PBEC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
