FLOW METER DEMONSTRATION - FME18

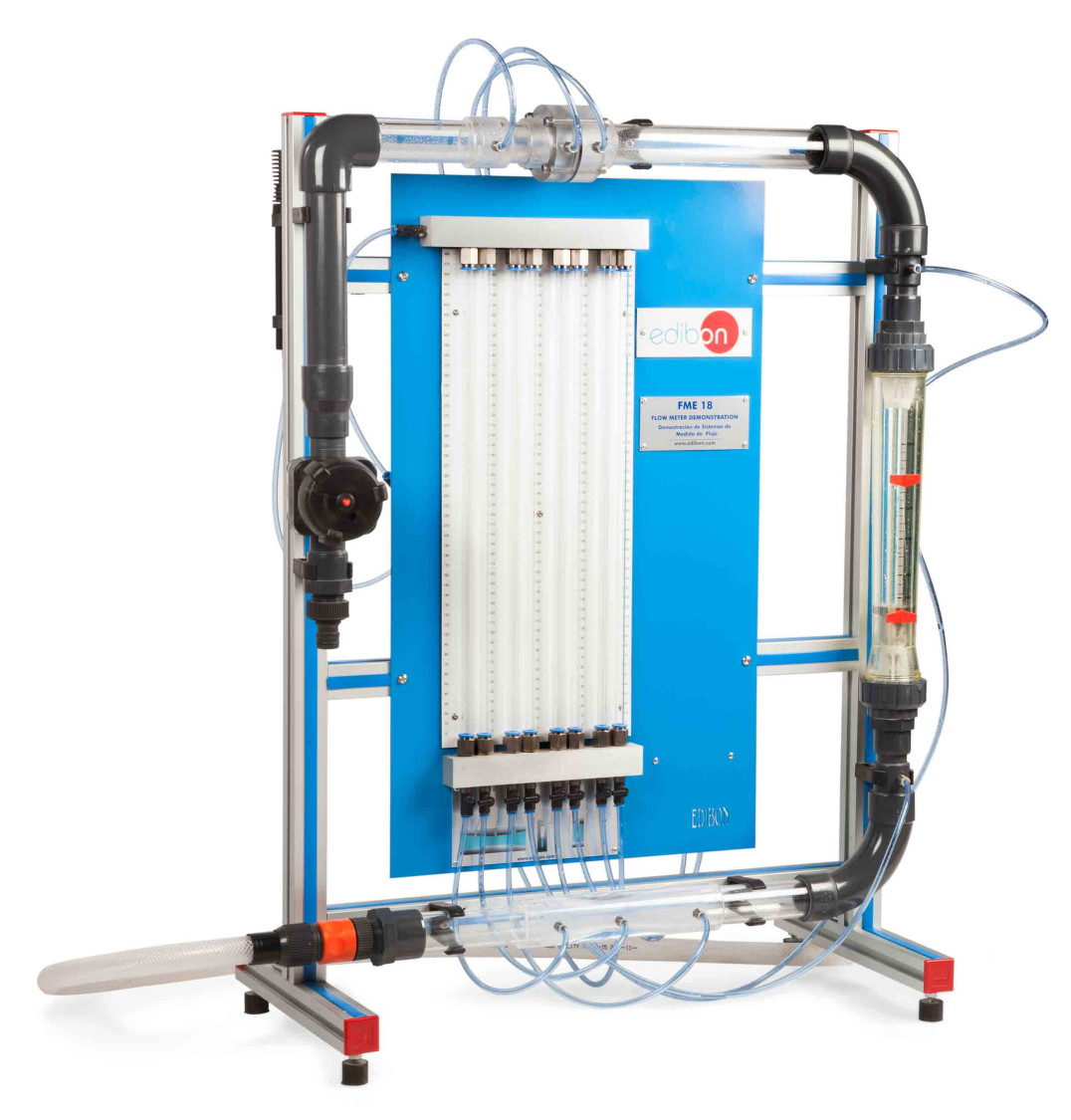

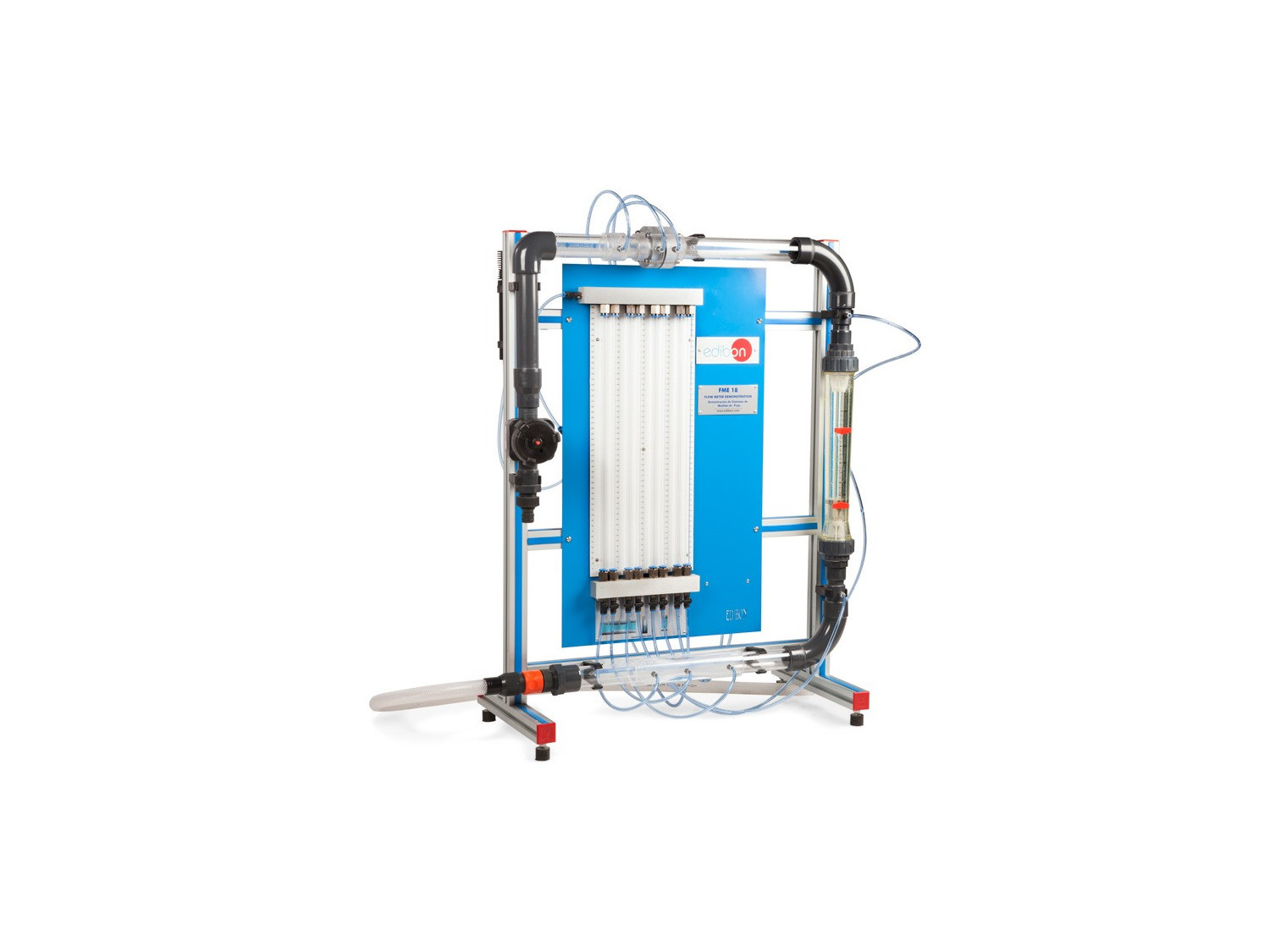

Complete FME18 Unit

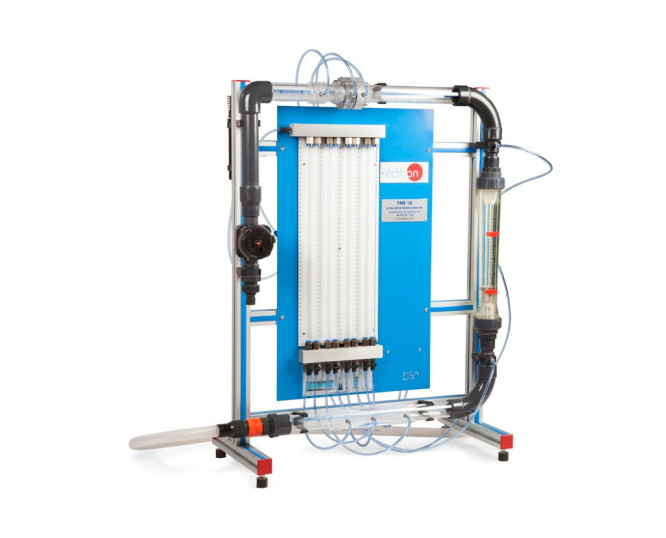

FLOW METER DEMONSTRATION - FME18

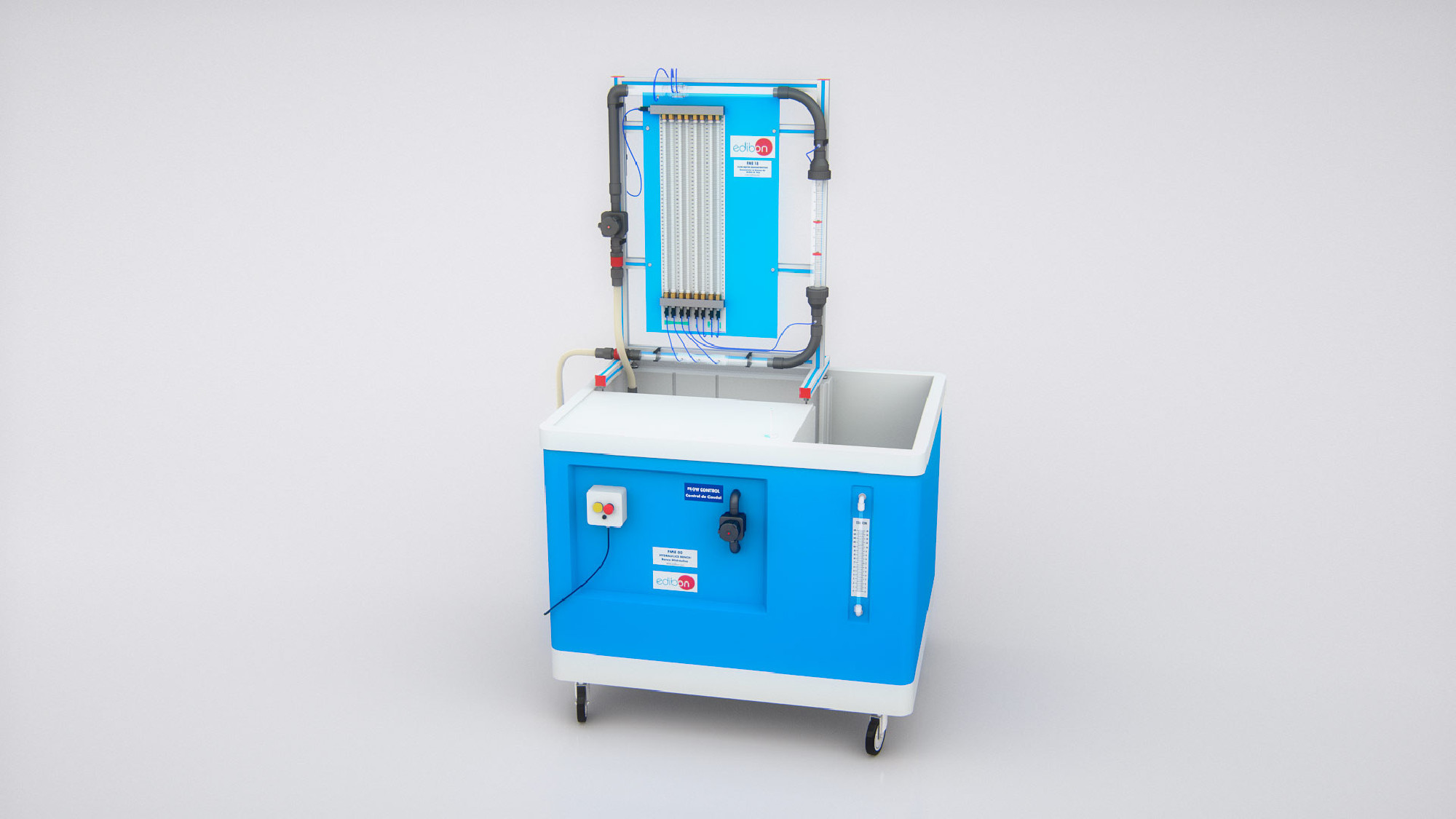

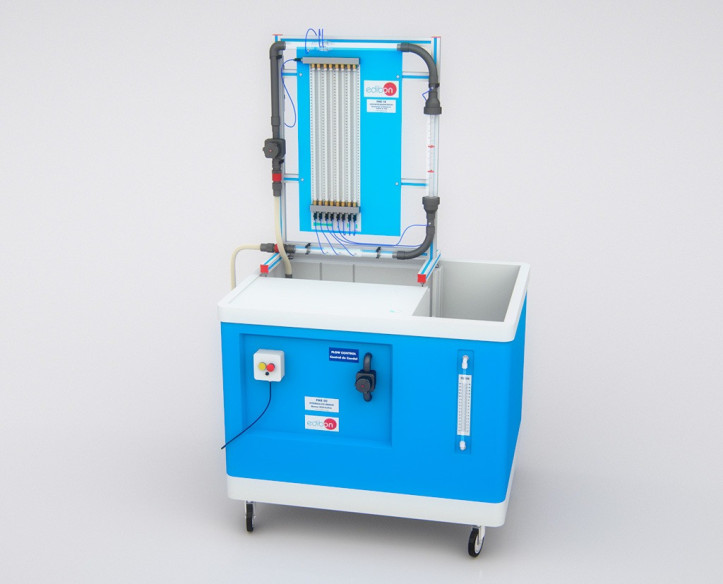

FME18 Unit with service unit FME00

FLOW METER DEMONSTRATION - FME18
FLOW METER DEMONSTRATION - FME18

SISTEM INOVATIF

The Flow Meter Demonstration, "FME18", designed by EDIBON, allows through 3 different flow measurement accessories: Venturi tube, orifice plate and a variable area meter installed in series in the unit, the study to find the flow rate of the fluid flowing through each one of them comparing them directly.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
Setting up at Faculté des Sciences at the Université d’Etat d’Haiti
We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

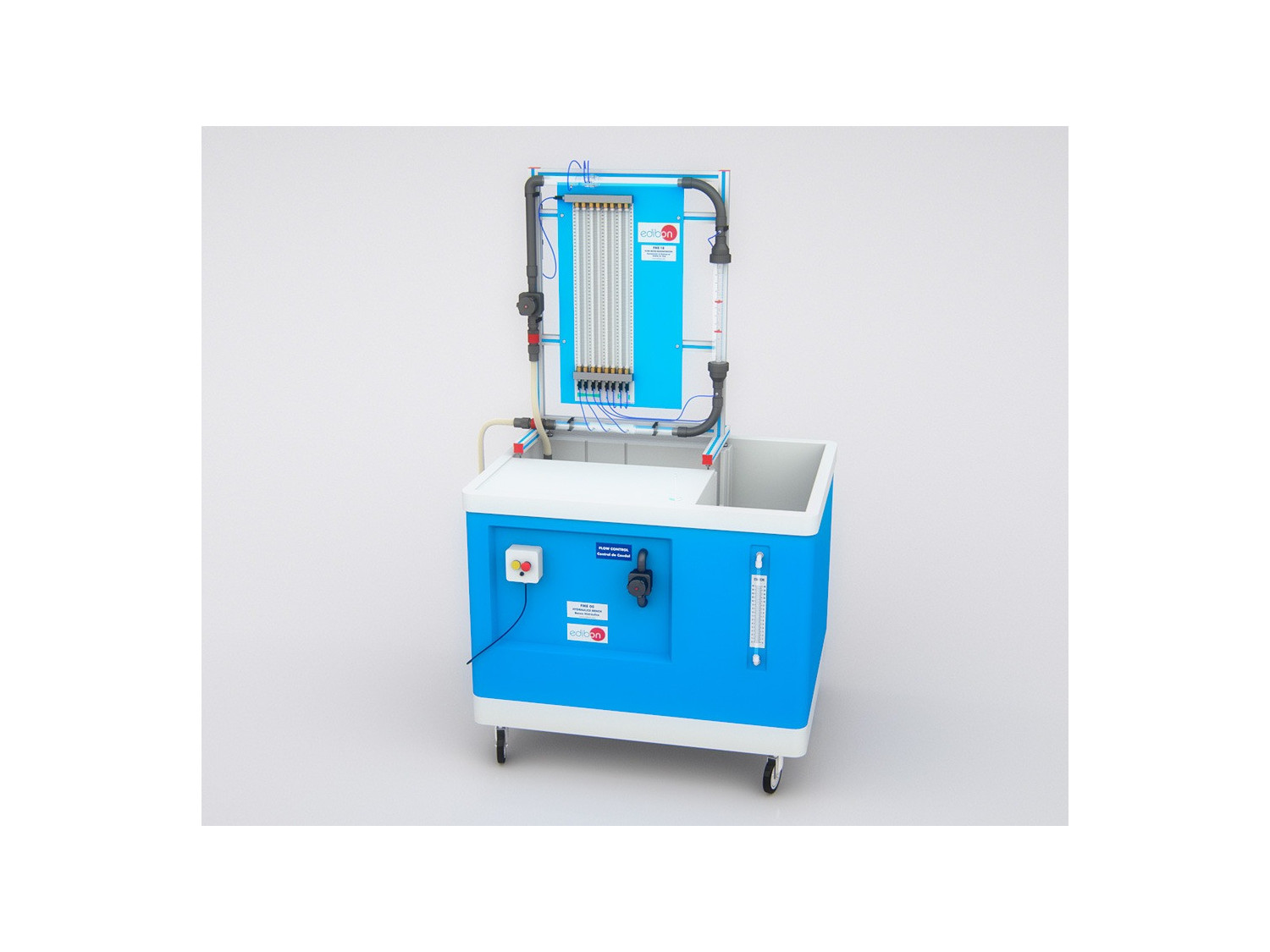

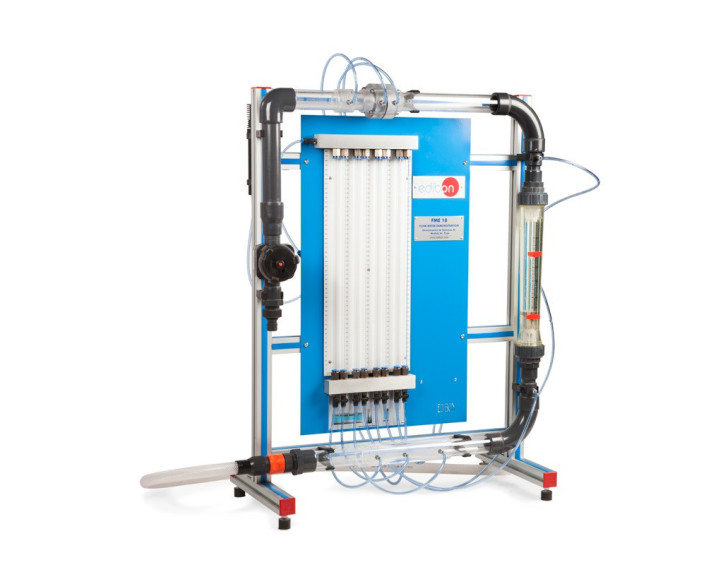

The Flow Meter Demonstration, "FME18", designed by EDIBON, allows through 3 different flow measurement accessories: Venturi tube, orifice plate and a variable area meter installed in series in the unit, the study to find the flow rate of the fluid flowing through each one of them comparing them directly.

Several pressure taps are connected to a panel of eight tubes.

The flow control valve allows the variation of the flow rate through the circuit, and its adjustment, along with the bench control valve, allows for varying the system static pressure.

The pressure taps of the circuit are connected to an eight-bank manometer, which incorporates an air inlet valve at the top manifold which facilitates the connection to the hand pump.

This enables to adjust the levels in the manometer bank to a convenient level to suit the system static pressure.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Filling of the manometric tubes.
  2. Determination of the error in flow measurements using the Venturi.
  3. Determination of the Cd factor in the Venturi.
  4. Determination of the strangulation in the Venturi.
  5. Determination of the error in flow measurements using the orifice plate.
  6. Determination of the Cd factor in the orifice plate.
  7. Determination of the effective area in an orifice plate.
  8. Comparison of the energy loss in the three different elements.
  9. Comparison among the Venturi, the orifice plate and the flowmeter.
