FME31 Demonstrasi Horisontal Osborne Reynolds

8.1.5.- VISUALISASI ALIRAN
HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

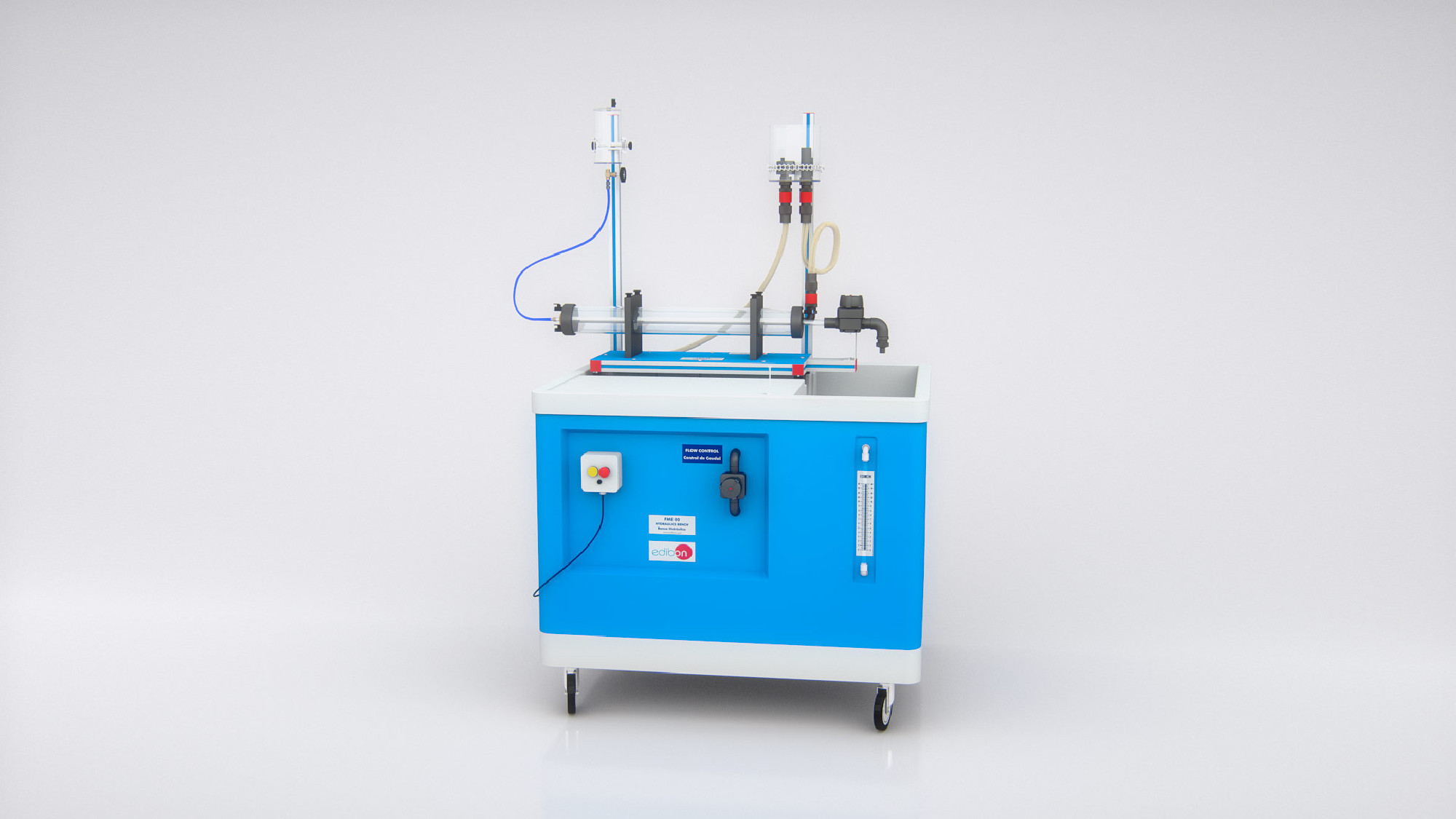

Complete FME31 Unit

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

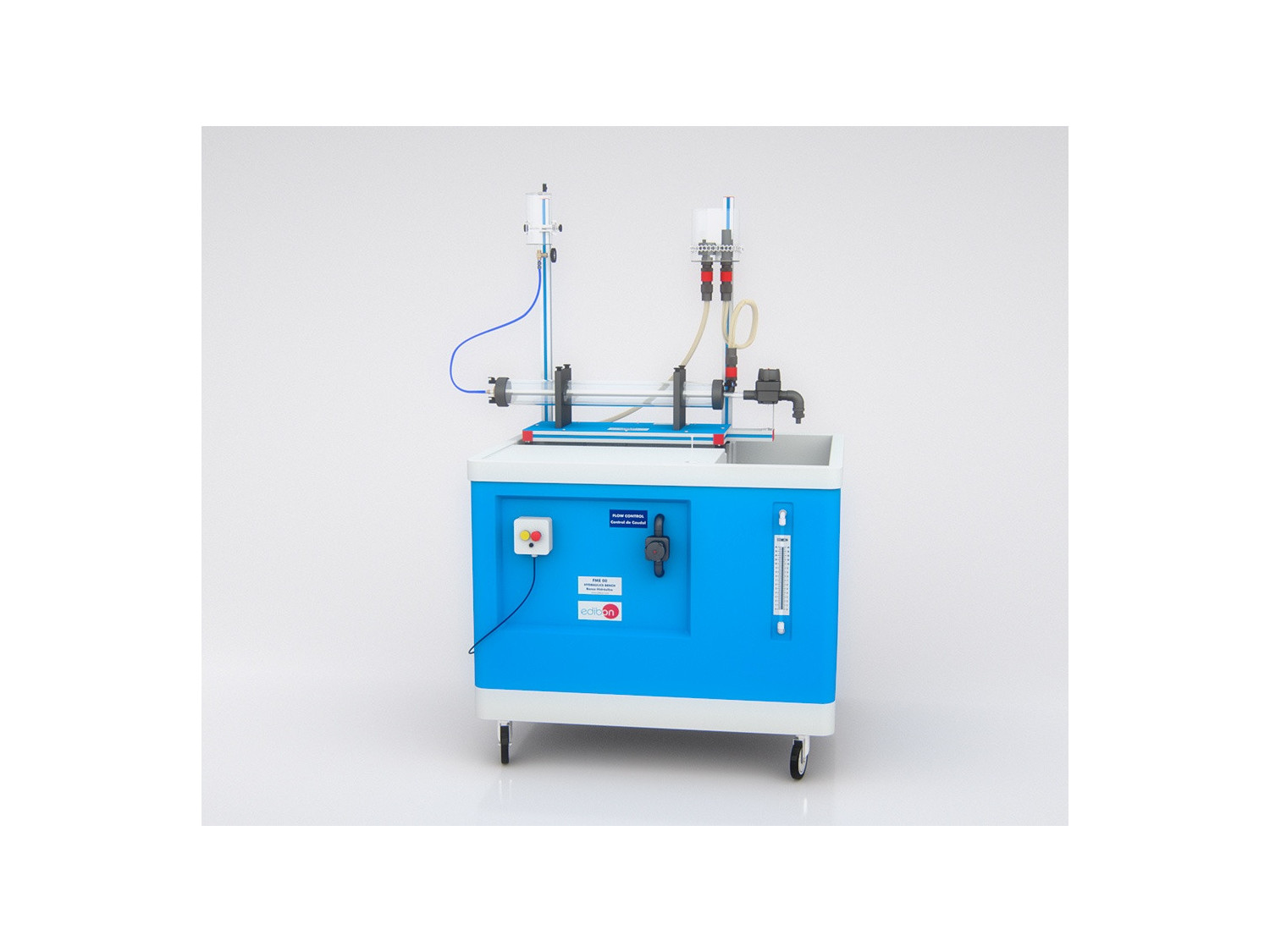

FME31 Unit with service unit FME00

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31
HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

SISTEM INOVATIF

The Osborne Reynolds Horizontal Demonstration Unit, "FME31", designed by EDIBON, allows to study the characteristics of a liquid flowing through a pipe and the Reynolds number in each of the liquid states.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
MSAC

Sistem Pencacahan dan Pengendalian Modular

Laboratorium

8TV
 Laboratorium Mekanika Fluida untuk Pendidikan Teknik dan Kejuruan
8HE
 Laboratorium Mekanika Fluida untuk Perguruan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Setting up at the National University of Technology - NUTECH (Pakistan)
Setting up at the National University of Technology - NUTECH (Pakistan)
The National University of Technology - Pakistan (NUTECH), specifically the Mechanical Engineering Technology Department, installed some of our units so that their students can receive a quality practical education. Specifically, they have acquired our COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 300...
Baca lebih lanjut
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

The Osborne Reynolds Horizontal Demonstration Unit, "FME31", designed by EDIBON, allows to study the characteristics of a liquid flowing through a pipe and the Reynolds number in each of the liquid states.

The FME31 unit makes it possible to study the characteristics of the flow of a liquid inside a pipe and the behaviour of such flow. Besides, it is possible to determine the range of the laminar and turbulent flows using the Reynolds number. Thus, difference between laminar, turbulent and transition flows can be demonstrated and the Reynolds number can be calculated for each regime.

This unit consists on a transparent and horizontal pipe section, which makes it possible to visualize the fluid, a water supply tank, which guarantees the flow homogeneity, and a needle connected to a tank through a hose, from where the dye is supplied. Water flow in the test section can be regulated by means of a valve.

Water can be supplied either using the Hydraulics Bench (FME00) or from the Basic Hydraulic Feed System (FME00/B).

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Observation of laminar, transition and turbulent flows.
  2. Association of laminar, transition and turbulent flows with their corresponding Reynolds number.
  3. Observation of the parabolic velocity profile.

BARANG YANG DIBUTUHKAN

BARANG TAMBAHAN YANG DISARANKAN

KUALITAS

LAYANAN PURNA JUAL

Meminta informasi
