FME06 Demonstrasi Osborne Reynolds
SISTEM INOVATIF

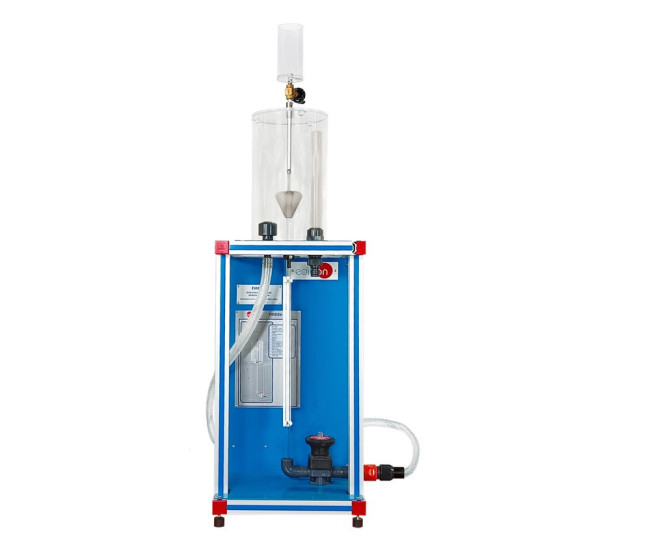

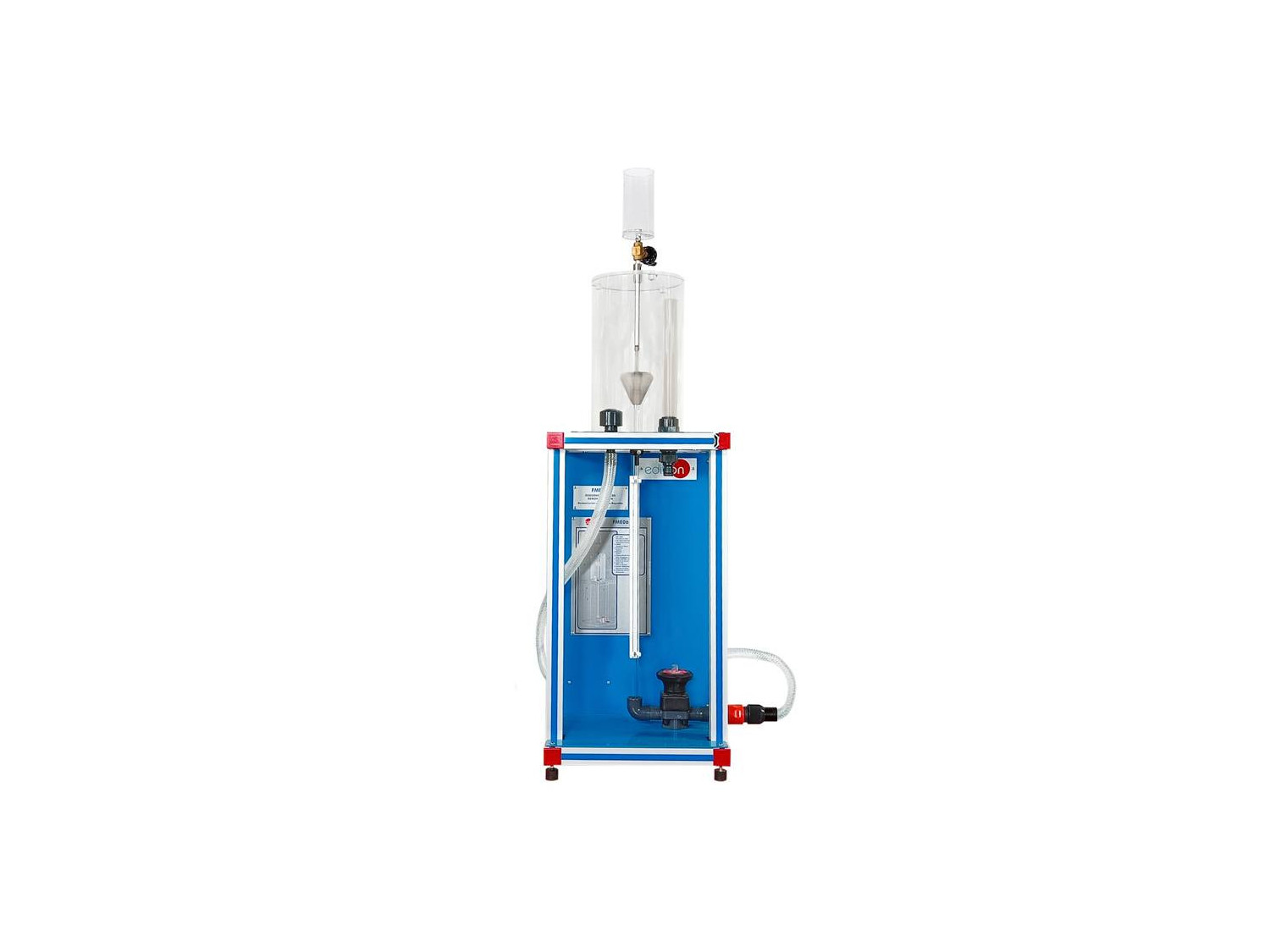

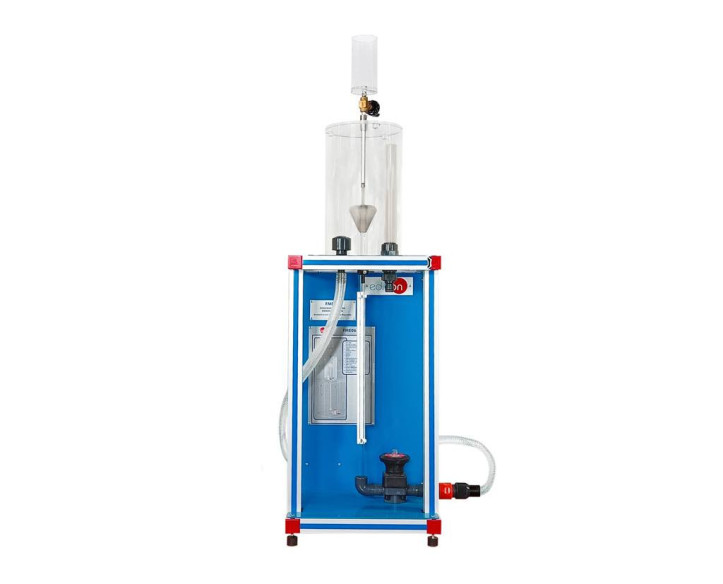

The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.
Ekspansi
Laboratorium
BERITA TERKAIT
GAMBARAN UMUM
The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.

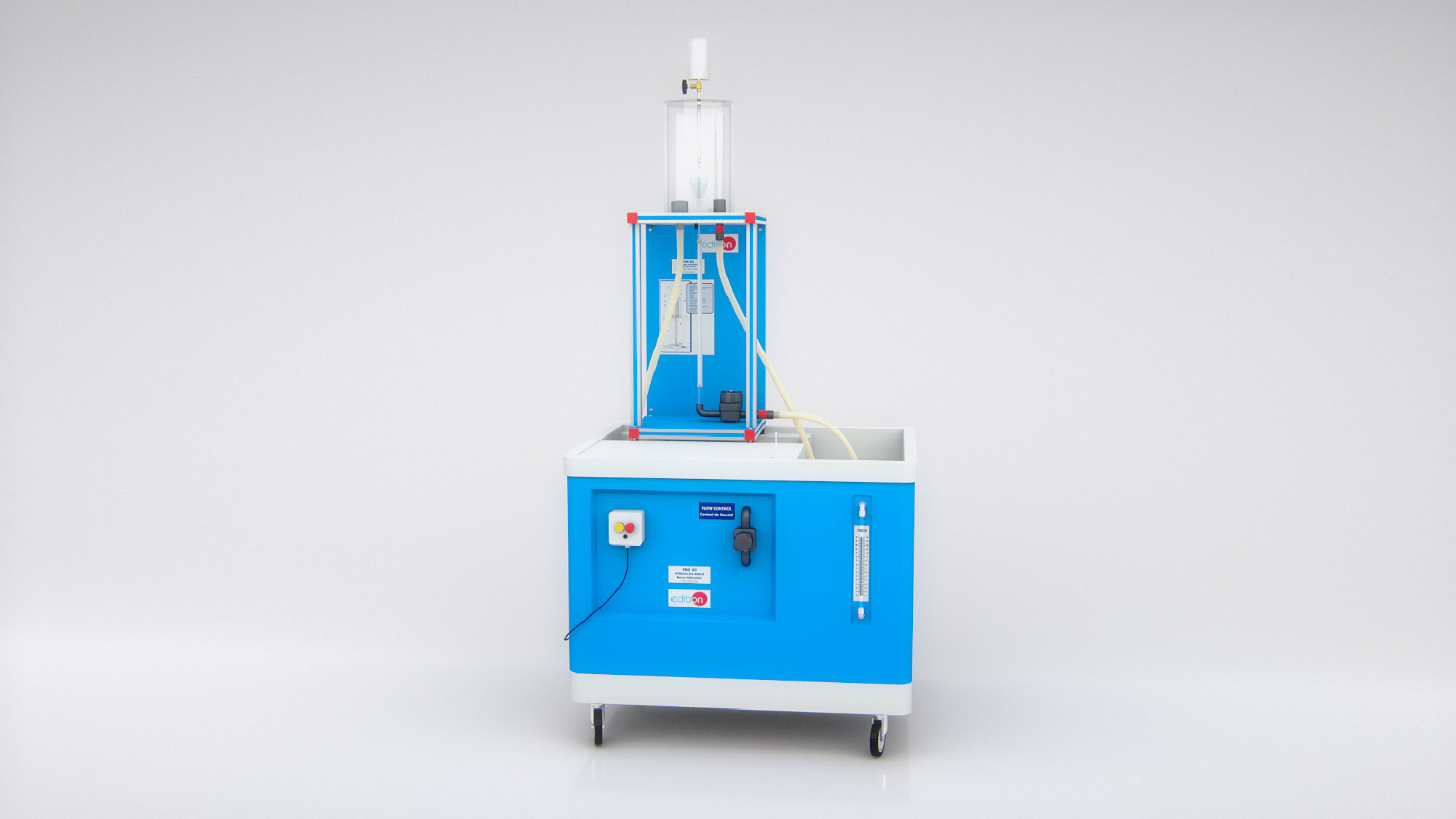

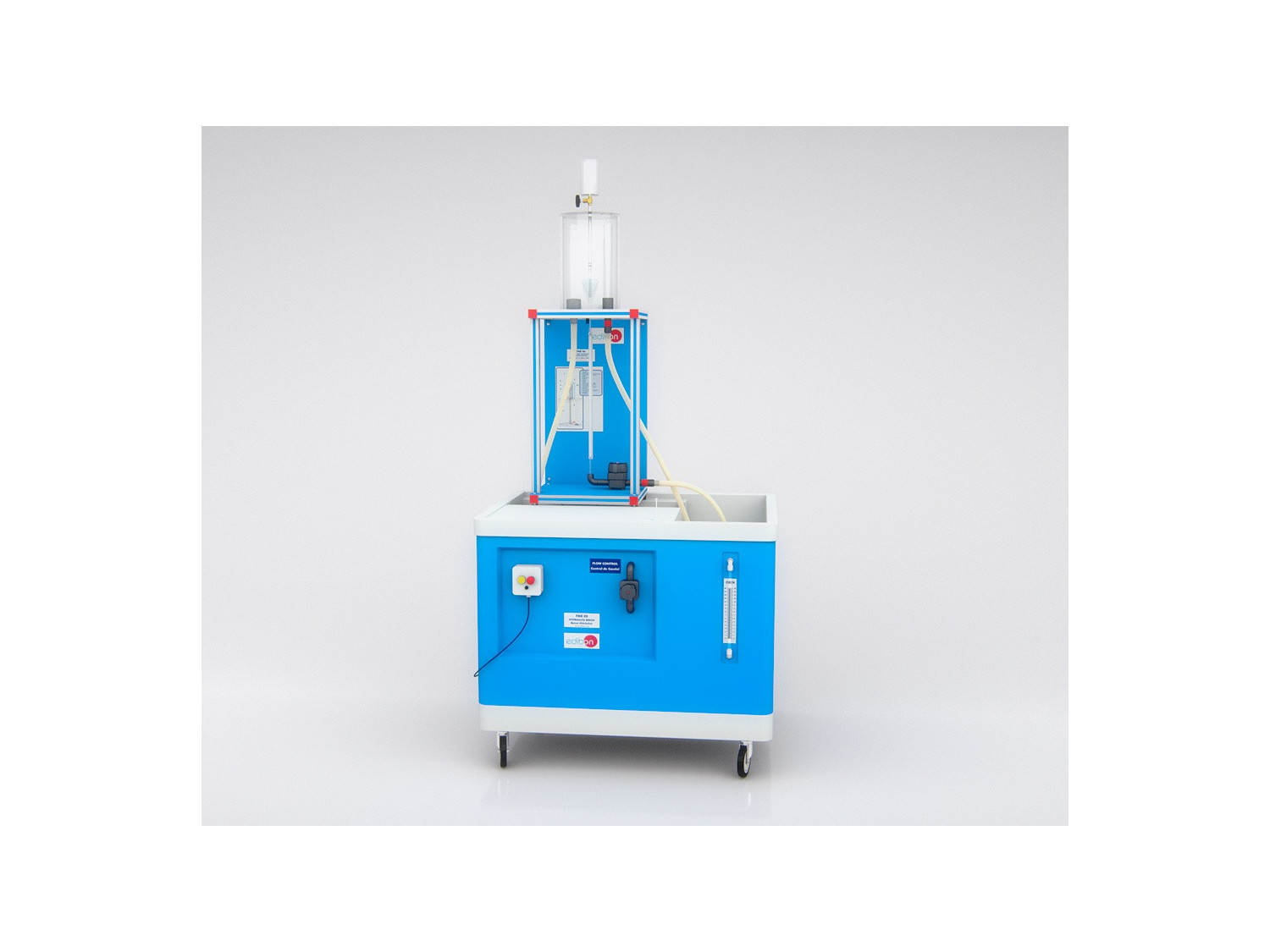

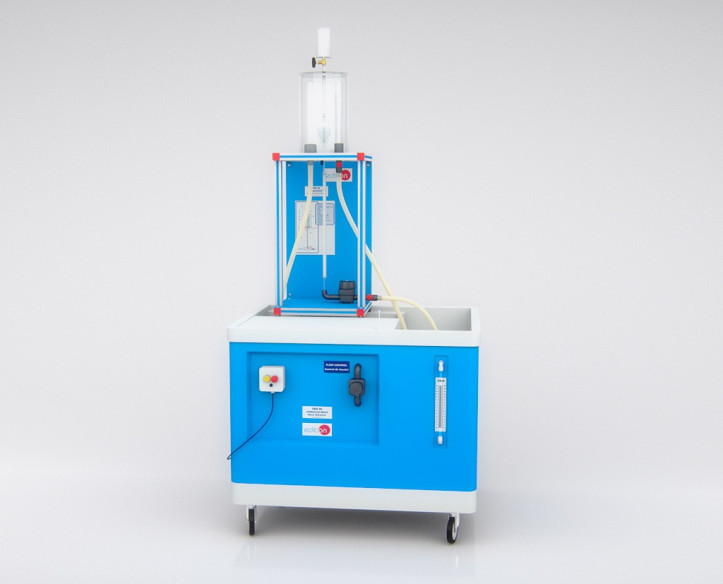

A spillway guarantees the homogeneity of the flow and a needle fitted to the deposit provides the dye. Water is supplied by the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
The visualization of the laminar or turbulent regime can be carried out through the flow control valve.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Observation of the laminar, transition and turbulent regime.
- Study of the velocity profile, reproducing the Osborne Reynolds’s experiment.
- Reynold’s number calculation.
