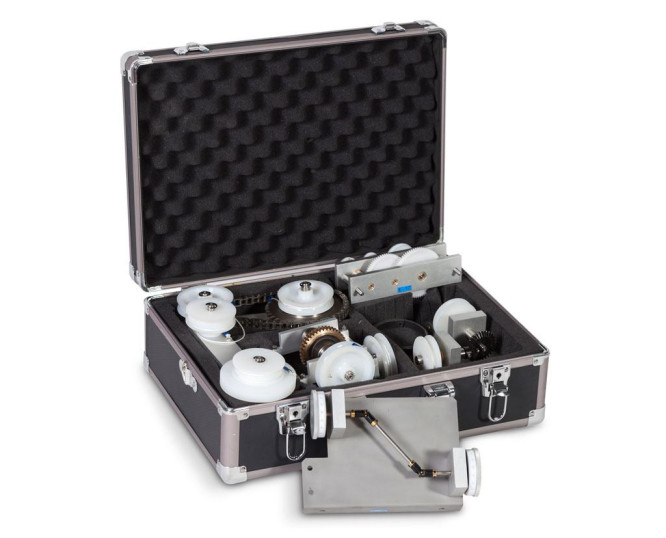

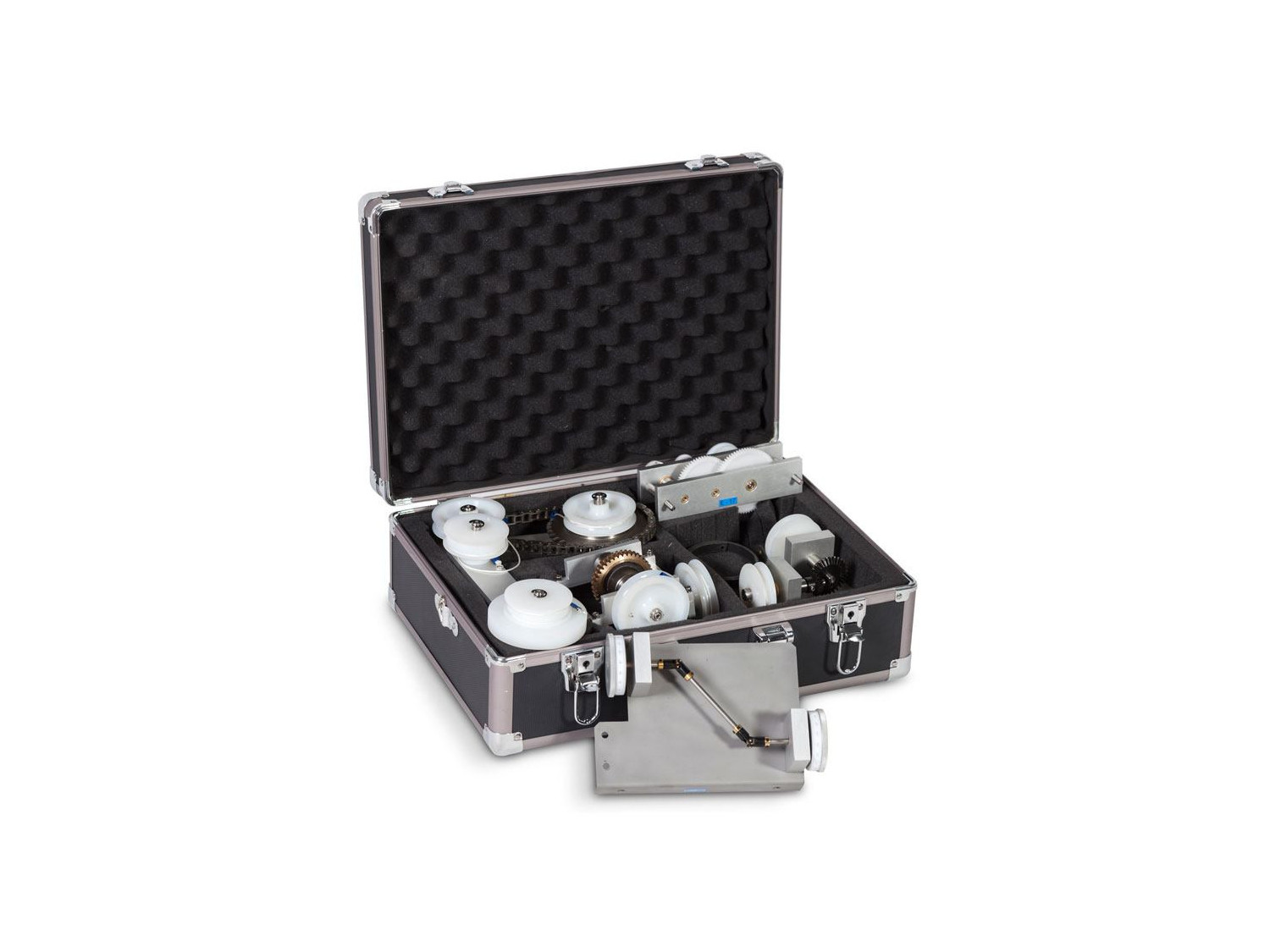

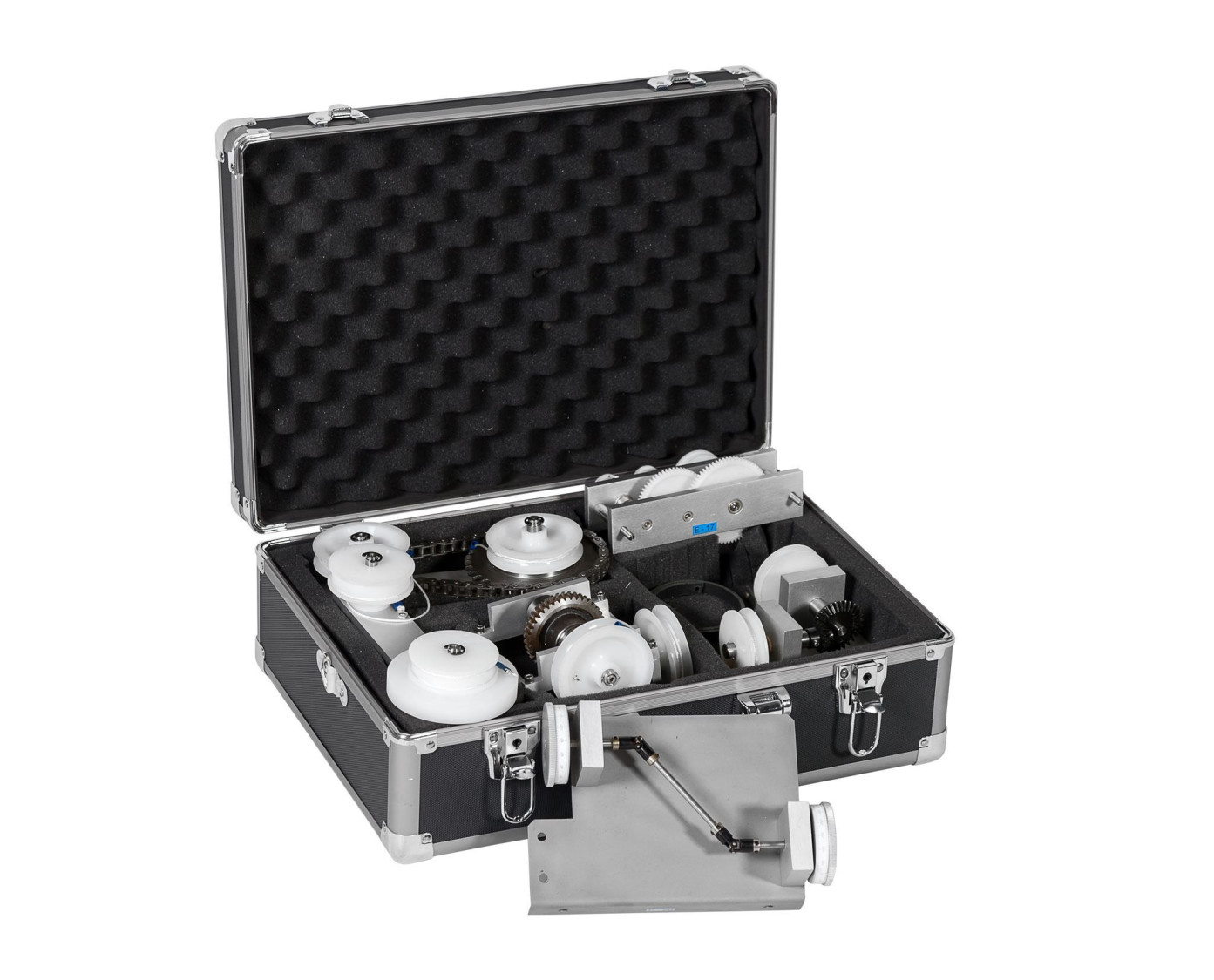

MECA3 Eksperimen Transmisi

7.1.1.- MECHANICS FUNDAMENTALS KITS 14.1.1.- MECHANICS FUNDAMENTALS KITS
TRANSMISSIONS EXPERIMENTS - MECA3

SISTEM INOVATIF

Most recent machines require the transmission of motion between elements to obtain the desired mechanical result.

Lihat uraian umum
Katalog Katalog
Spesifikasi Kontes
Meminta informasi

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

7TV
 Laboratorium Mekanika, Otomotif dan Material untuk Pendidikan Teknik dan Vokasi
7HE
 Laboratorium Mekanika, Otomotif dan Material Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Baca lebih lanjut

GAMBARAN UMUM

Most recent machines require the transmission of motion between elements to obtain the desired mechanical result. The mechanisms studied in this module are those that transmit motion between two axles.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Belt drive (Belt drive (I) and Belt drive (II)): Verification of the direction of rotation of open and crossed belt drives. Verification of the speed of rotation of the two pulleys is inversely proportional to their diameters. To measure the difference in tension between the two sides of a belt drive and to determine the efficiency of drive transmission.
  2. Chain drive. Verification of the speed ratio of a chain drive. Measurement of the efficiency of drive transmission.
  3. The Geared winch (two parallel axles). Comparison of the velocity ratios of a system of single-stage and double stage geared winch. Specification of their corresponding mechanical advantages and efficiencies under varying loads.
  4. Bevel gears (two intersecting axles). Verification of the efficiency velocity-ratio and mechanical advantages of the Bevel gear unit under different loads.
  5. Worm gear (two crossed axles). Verification of the speed ratio of a worm and specification of the transmission efficiency under different loads.
  6. Universal coupling. To investigate the effect of introducing universal coupling to a simple drive shaft.
