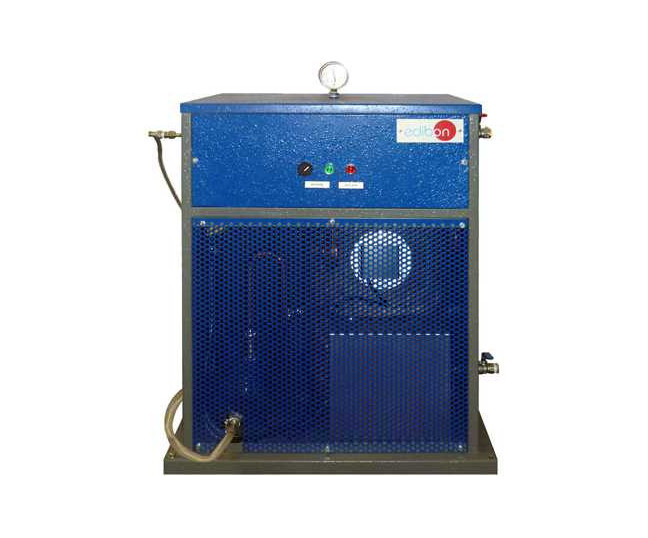

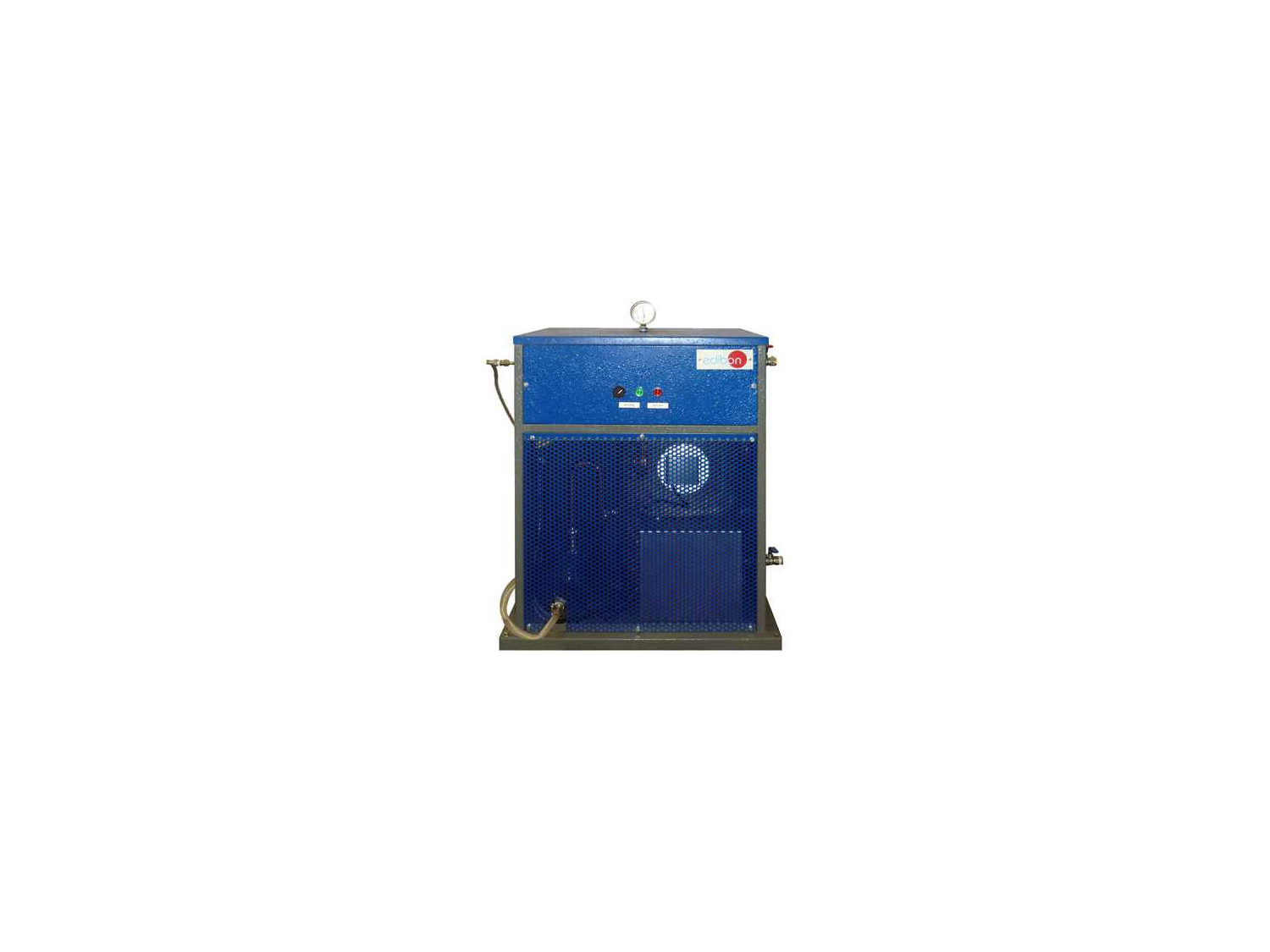

TGV-18KWA Generator Uap (18 kW) (untuk tekanan dan suhu tinggi)

It is an electrical heating horizontal steam generator (with three heating elements of 6 kW each). It consists of a horizontal cylindrical body with torispherical ends joined by arc welding.

This type of generator produces 36 Kg.v.h of steam for a service pressure of 5 bar, being 6 Bar the maximum pressure.

The maximum service temperature is 165 ºC, corresponding to saturated steam to 6 Bar.

It has the accessories required for a safe operation, such as safety valve, level indicator, pressure switch, level safety, etc.

The reset of any safety device due to insufficient level or excess pressure will be manual.
