COMPUTER CONTROLLED HYDROCYCLONE - PHCC

SISTEM INOVATIF

The Computer Controlled Hydrocyclone, "PHCC", has been designed to study the removal of suspended solids from a liquid. The fluid flowing through the unit is a mixture of water and suspended solids. The mixture is prepared in an initial tank with the aid of a computer controlled stirrer.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLC

Pengendalian Proses Industri oleh PLC
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ECR

Sistem Industri Modular EDIBON dengan NI CompactRIO
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

Laboratorium

13TV
 Laboratorium Lingkungan untuk Pendidikan Teknik dan Kejuruan
13HE
 Laboratorium Lingkungan untuk Pendidikan Tinggi

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Baca lebih lanjut
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Penangkapan Udara Langsung: Teknologi Kunci dalam Perang Melawan Perubahan Iklim
Direct Air Capture (DAC) adalah teknologi inovatif yang menghilangkan CO₂ langsung dari udara menggunakan reaksi kimia dengan pelarut cair atau penyerap padat. Meskipun menghadapi tantangan seperti biaya tinggi dan konsumsi energi, DAC menawarkan solusi potensial untuk mengurangi konsentrasi CO₂...
Baca lebih lanjut
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Memahami dan Meningkatkan Sistem Pengolahan Air Minum
Instalasi Pengolahan Air Limbah Sementara pabrik pengolahan air minum berfokus pada penyediaan air minum yang aman, instalasi pengolahan air limbah menangani pengolahan air bekas sebelum dilepaskan kembali ke lingkungan. Instalasi ini memainkan peran penting dalam melindungi sumber daya air dan...
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Hydrocyclone, "PHCC", has been designed to study the removal of suspended solids from a liquid.

The fluid flowing through the unit is a mixture of water and suspended solids. The mixture is prepared in an initial tank with the aid of a computer controlled stirrer.

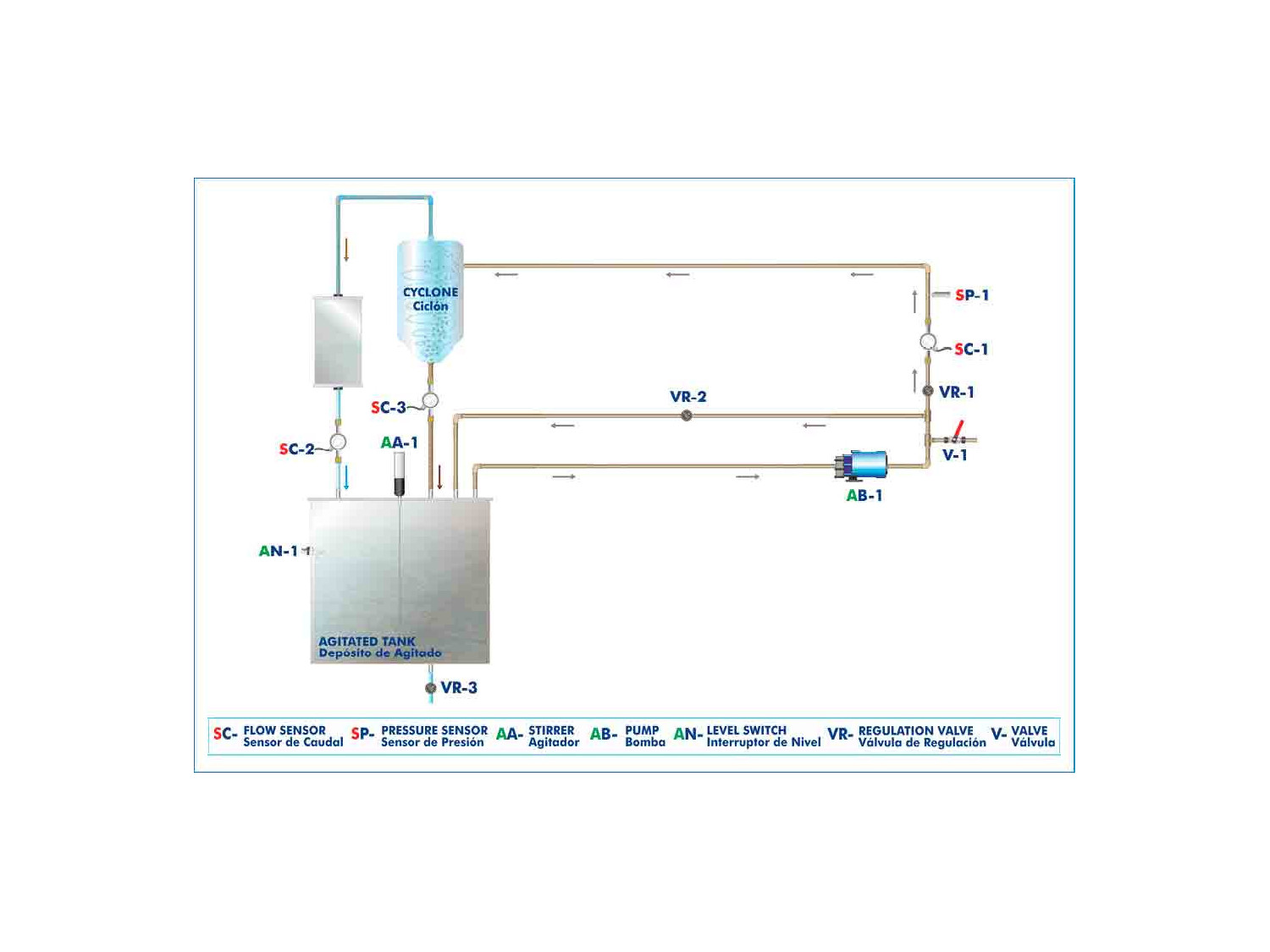

A computer controlled pump impels the liquid through the whole circuit till reaching the cyclone. The flow can be controlled through a valve and a bypass circuit. There is a flow sensor at the inlet of the hydrocyclone and a pressure sensor.

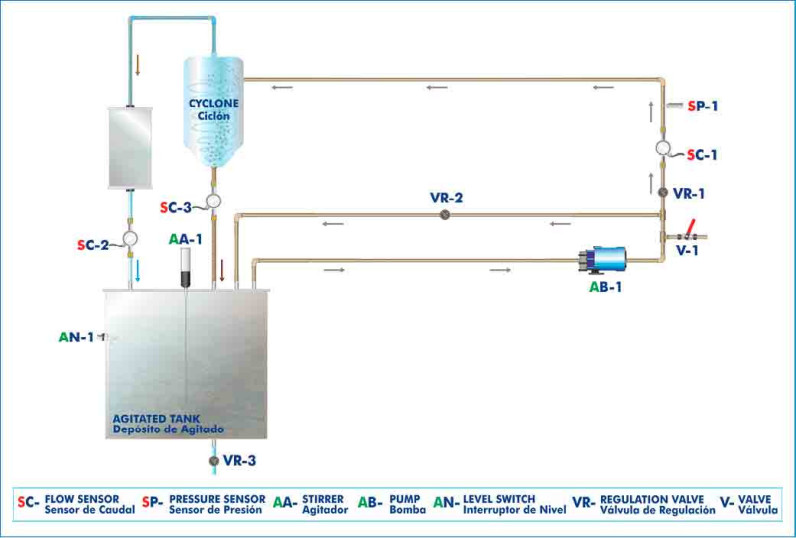

When the mixture enters the hydrocyclone, separation starts. The liquid, with the thinner particles, is discharged through the upper tube of the cyclone, while the coarser particles leave through the bottom. Both currents return to the suspension tank, where they are mixed with the stirrer to repeat the process. The tank has a level indicator. It has sampling points at the solids outlet and at the liquid outlet.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Study of the operation of a hydrocyclone.
  2. Measurement of the solids flow rate at key points.
  3. Measurement of the liquid flow rate at key points.
  4. Calculation of the hydrocyclone separation quality.
  5. Pressure drops depending on the initial flow rate.
  6. Relationship between the pressure drops at the key points and the density of the solid substance.
  7. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the PHCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the PHCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
