The Industrial Controllers Networking, "CRCI", unit is based on a modular design structure whose functionality is divided into different modules to allow the student a better understanding of the unit.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

6TV
 Laboratorium Mekatronika dan Otomasi untuk Pendidikan Teknik dan Vokasi
6HE
 Laboratorium Mekatronika dan Otomasi Pendidikan Tinggi
2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan
2HE
 Laboratorium Elektronika untuk Perguruan Tinggi
11PTC
 Laboratorium Pusat Pelatihan Perminyakan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
Completion of the Course of Instrumentation, Regulation and Control in Laboratories
On October 19th, the Course on Instrumentation, Regulation and Control in Laboratories, taught by our engineers in these facilities, using EDIBON units, was completed and aimed at learning the control of the conditions of a laboratory process. The attendants, (12 laboratory technicians and...
Baca lebih lanjut

GAMBARAN UMUM

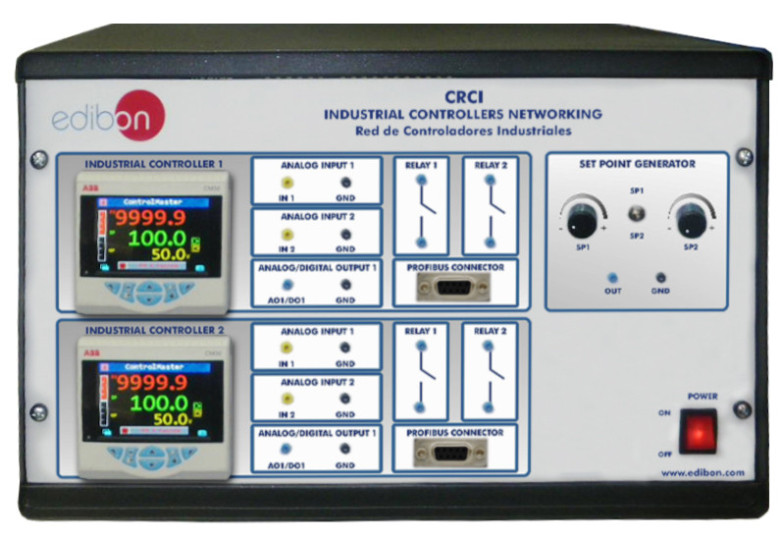

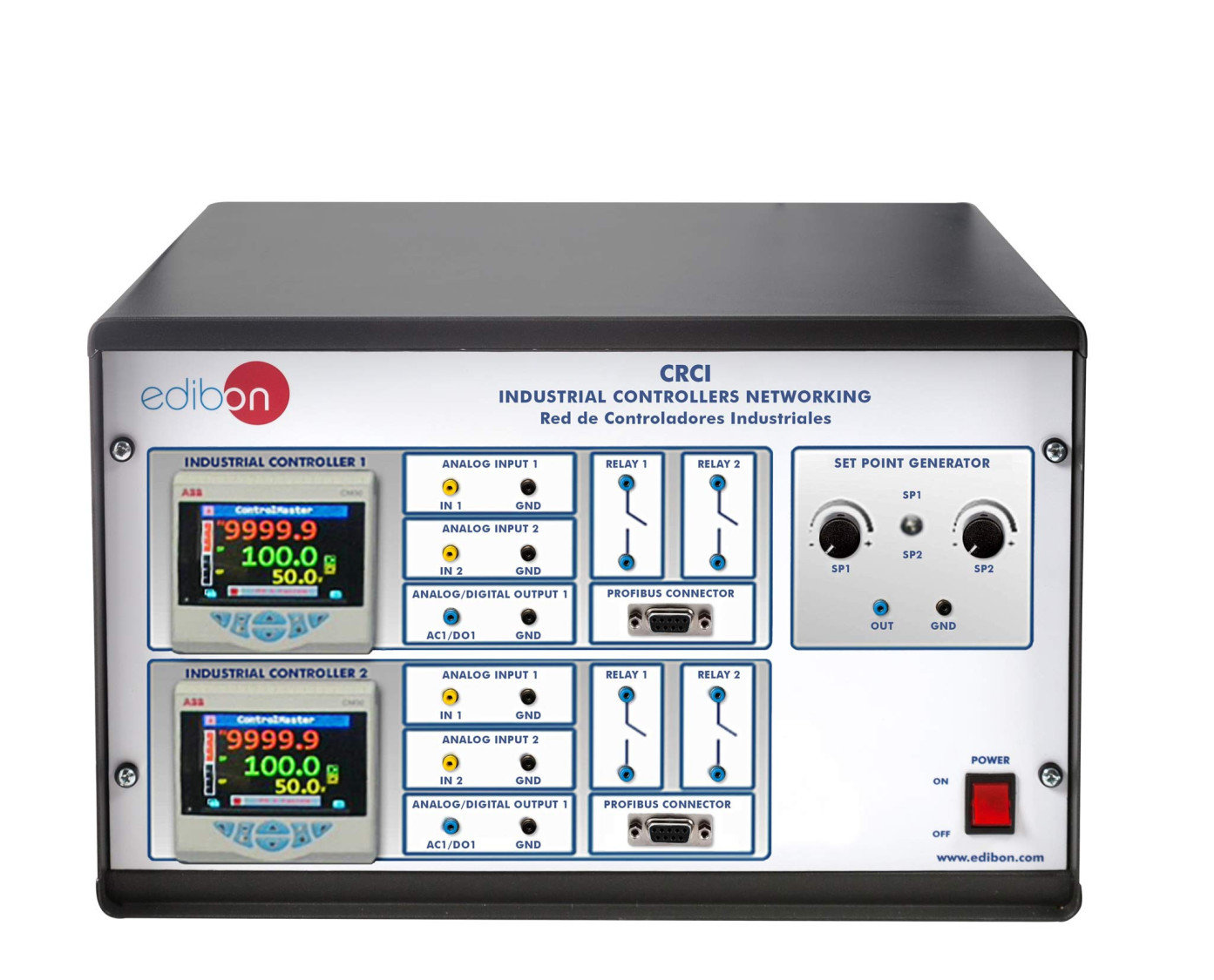

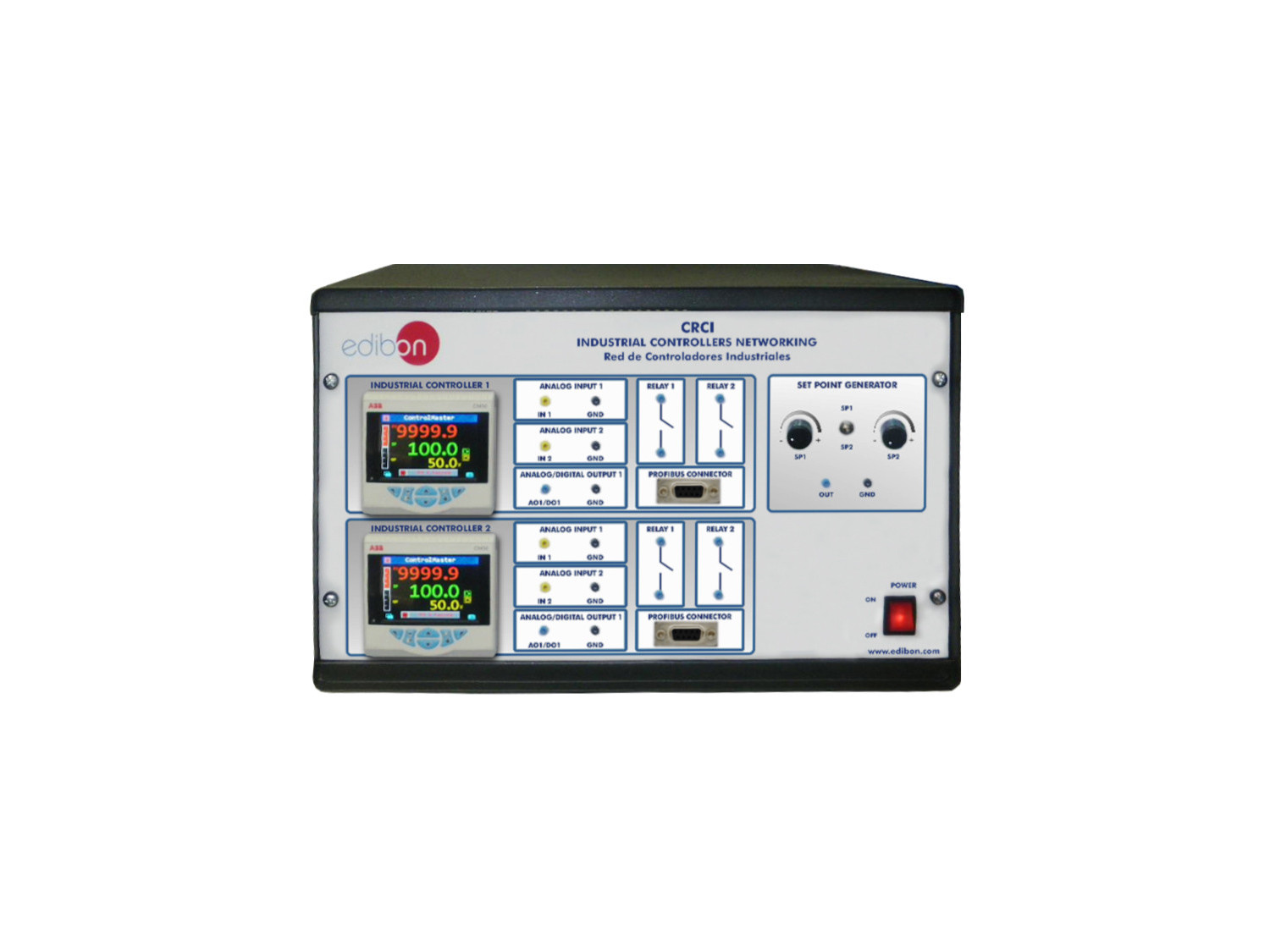

The Industrial Controllers Networking, "CRCI", unit is based on a modular design structure whose functionality is divided into different modules to allow the student a better understanding of the unit. The modules provided with the unit are: two Industrial Controllers, Set Point Generator, Interface Card (to be placed in a computer slot) and Control Configuration Software.

  • 2 Industrial Controllers modules, each one is composed of: an industrial controller with 2 analog inputs and an analog/digital output. The analog inputs are used to connect the process variable value (PV) and set point value (SP) signals respectively. The analog/digital output is used for delivering the output process value (OP). The controller also has two relays. The industrial controller is connected via field bus (Profibus DP) through an interface card with a computer (PC).
  • Set Point Generator module: it allows to generate a step signal by switching between two different selectable voltages. The voltage levels can be adjusted using two potentiometers.
  • Interface Card (to be placed in a computer slot): it allows the controllers signals to be available for a computer PC, for further processing.
  • Software, composed of:
  • The OPC server configuration drivers: allows the modules data to be available for others programs.
  • The Control Configuration Software: allows to set the industrial controllers parameters. Several functions such as recorders and alarm logs enable a simple control room function to be simulated.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Installation, connection and familiarization with the software.
  2. Familiarization with the navigation of an industrial controller (operator page screen, trend display screen, etc).
  3. Setting up an industrial controller to accommodate the analog inputs/outputs signals types and engineering and electrical units.
  4. Function of a digital industrial controller.
  5. Configuration of analog inputs/outputs signals of the industrial controller (electrical range, engineering units, fault detector, etc).
  6. Setting alarms and diagnostics generation.To learn and to familiarize with the operation and structure of a process control system under Profibus DP.
  7. Layout of a field bus system using the Profibus DP field bus.
  8. Study of OPC (OLE for Process Control) server function.
  9. Configuration of an industrial controllers networking through the software: Master and slave assignment.
  10. Reading control variables and PID parameters and displaying them on computer (PC) monitor.
  11. Scaling displays.
  12. Setting of an industrial controller using the front panel (configuration level, parameter level, operation control level, etc.).
  13. Remote setting of an industrial controller using the control configuration software (configuration level, parameter level, operation control level, etc.).

PERALATAN SIMILAR TERSEDIA

INDUSTRIAL CONTROLLERS UNIT - CECI
  • CECI
Available
6.1.1.2.- PENGONTROL INDUSTRI
CECI
Peralatan untuk Pengendali Industri
The Industrial Controllers Unit, "CECI", is based on a modular design structure whose functionality is divided into different modules toallow the student a better understanding of the unit. The modules included in the unit are: industrial...
