FME13 Karakteristik Pompa Sentrifugal
SISTEM INOVATIF

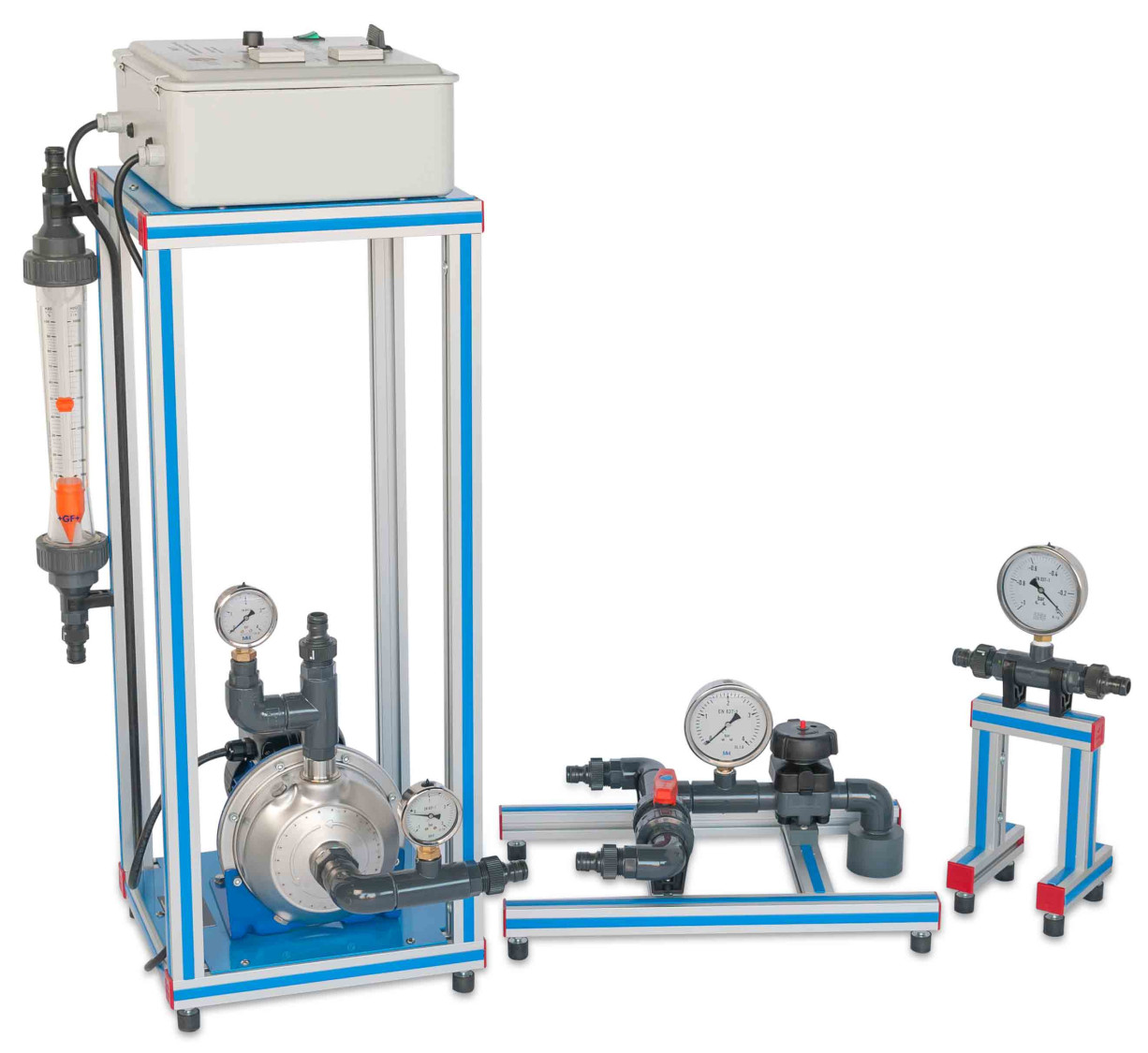

The Centrifugal Pump Characteristics, "FME13", designed by EDIBON, allows the study of several centrifugal pump characteristics such as efficiency, series/parallel couplings, etc.
Ekspansi
Laboratorium
BERITA TERKAIT
GAMBARAN UMUM
The Centrifugal Pump Characteristics, "FME13", designed by EDIBON, allows the study of several centrifugal pump characteristics such as efficiency, series/parallel couplings, etc.

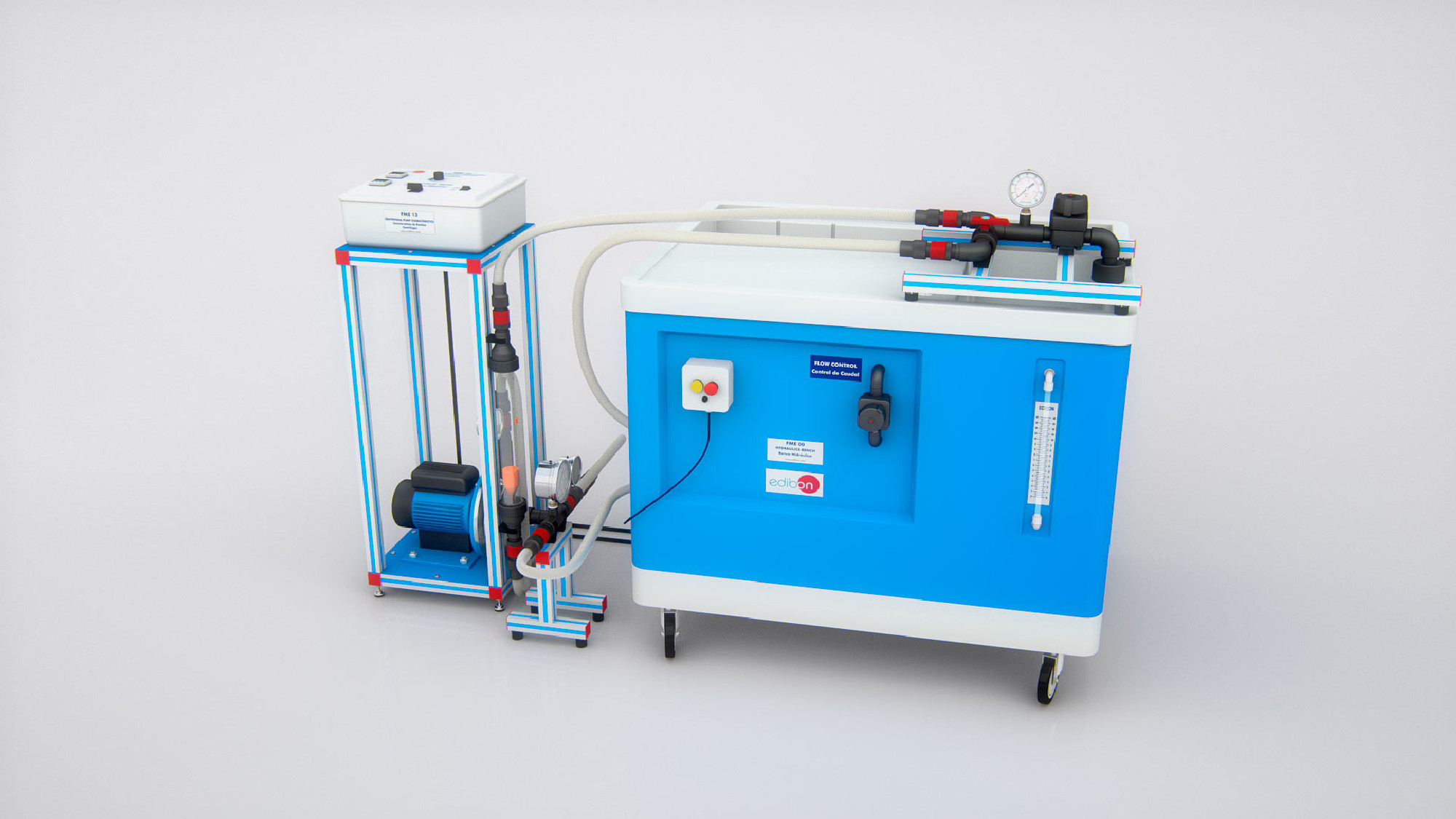

The unit has a centrifugal pump with similar characteristics to the one in the Hydraulics Bench (FME00) and the Basic Hydraulic Feed System (FME00/B). It is armed with two Bourdon-type pressure manometers placed at the pump’s inlet and outlet. There is another one in the discharge accessory supplied with the unit.
The pump is driven by a three-phase asynchronous motor whose speed can be varied by a speed variator.
The unit has visualization display that allows to know the rpm and the power consumed.
It is included a discharge accessory, with manometer, flow control valve and diffuser.
The variator’s control panel allows to vary the pump speed and the start.
LATIHAN DAN PRAKTEK PEDOMAN
LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN
- Obtaining of the curves H (Q), N (Q), Eff% (Q) of a centrifugal pump.
- Making of the map of a centrifugal pump.
- Representation of the adimensional curves H*, N* and rpm*.
- Series coupling of two pumps of similar characteristics.
- Series coupling of two pumps of different characteristics.
- Parallel coupling of two pumps of similar characteristics.
- Parallel coupling of two pumps of different characteristics.
