FILTERS KIT - M8/KIT

SISTEM INOVATIF

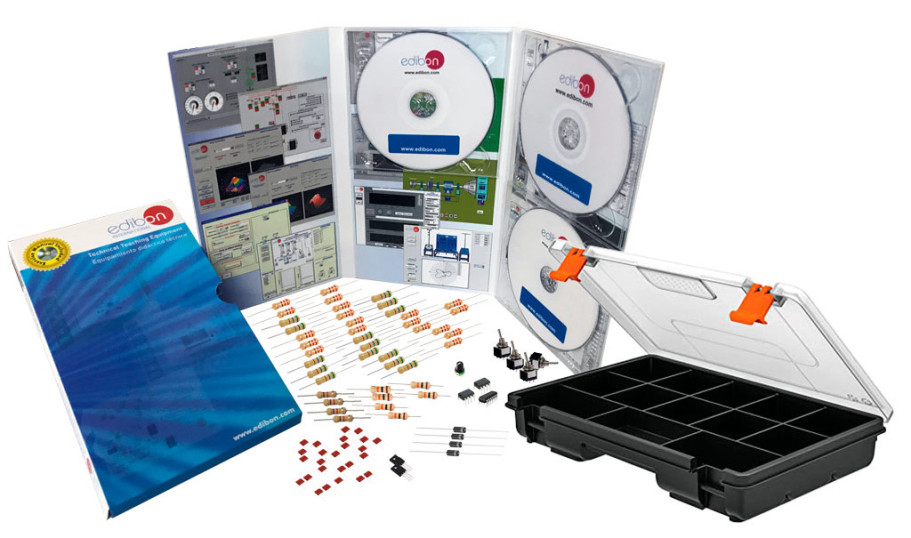

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).
