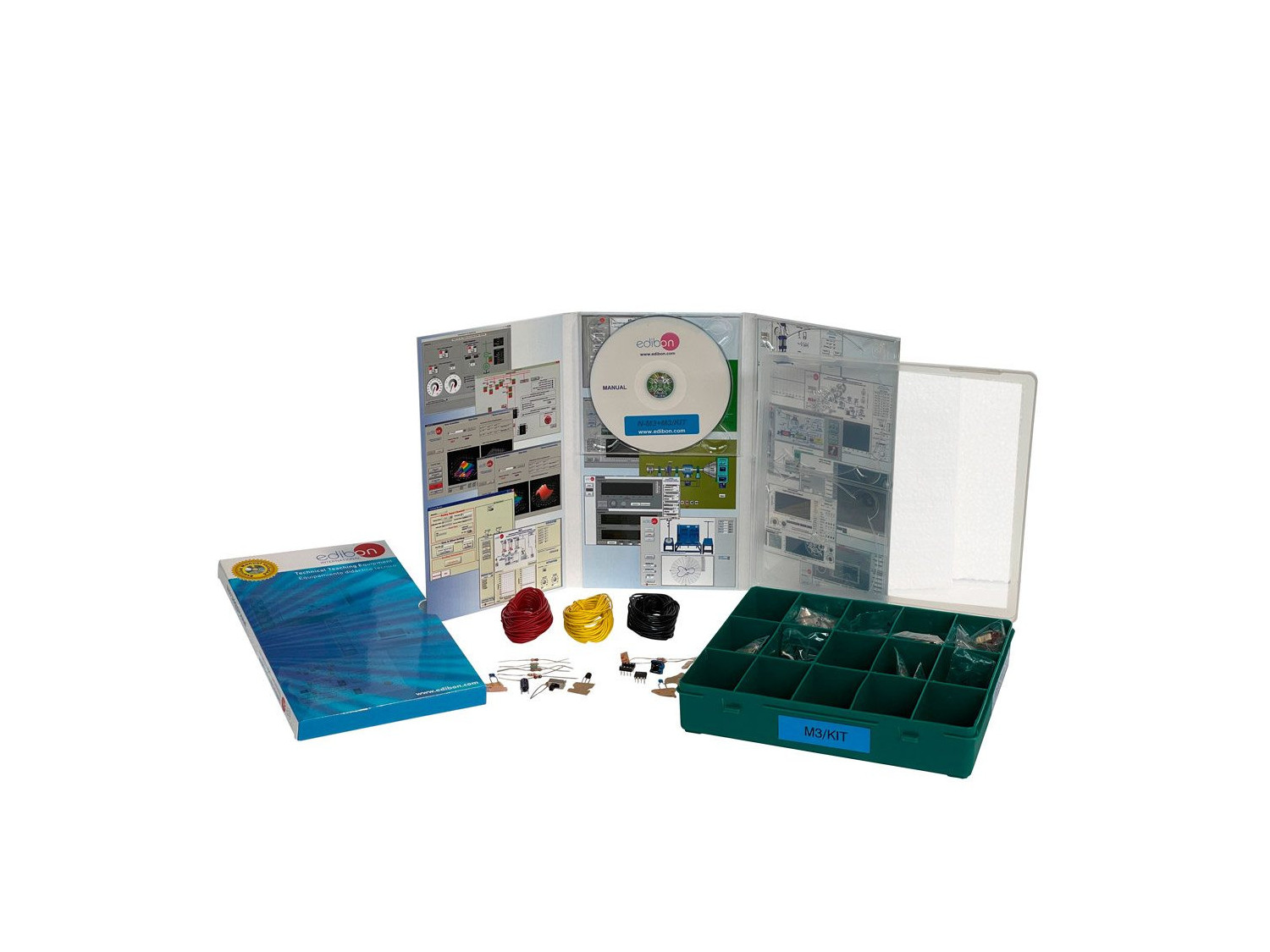

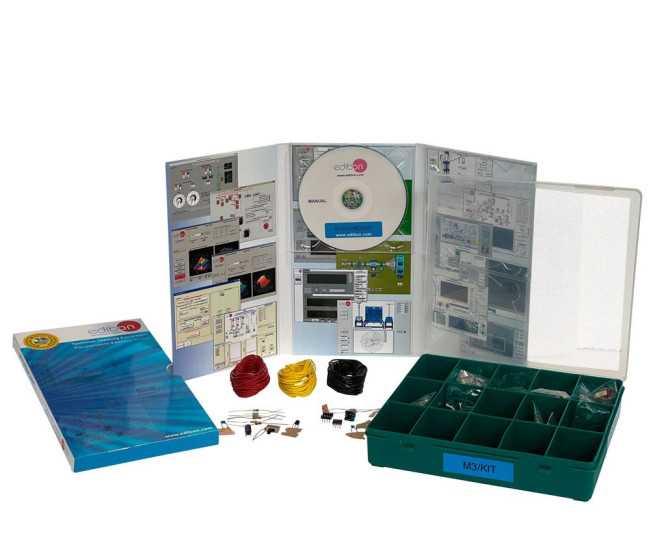

M3/KIT Kit Semikonduktor I

2.2.- KITS UNTUK SIRKUIT PERAKITAN
SEMICONDUCTORS I KIT - M3/KIT

SISTEM INOVATIF

With Semiconductors I Kit, "M3/KIT", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

Lihat uraian umum

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

With Semiconductors I Kit, "M3/KIT", designed by EDIBON, the basic concepts of diodes can be studied, at the same time as the student will be asked to carry out a series of assemblies on the practice board to consolidate his knowledge of PN-type junctions, uses of the diode as a rectifier, Zéner diodes, etc.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Characteristics of the PN junction:

  1. Study of the diode.
  2. Faults study in diodes.
  3. Theoretical/practical exercises.

The diode as a rectifier element:

  1. Half wave rectifier.
  2. Faults study in Rectifier circuit.
  3. Bridge rectifier.
  4. Faults study in bridge rectifier.
  5. Theoretical/practical exercises.

The Zener diode:

  1. Voltage regulator with a Zener diode.
  2. Faults study in Zener circuit.
  3. Theoretical/practical exercises.

Study and characteristics of the transistor:

  1. Study of the transistor.
  2. Faults study in the transistor.
  3. Theoretical/practical exercises.

Transistor characteristics operating as a switch:

  1. Study of the transistor as a switch.
  2. Theoretical/practical exercises.

Common emitter amplifier:

  1. Study of the common emitter NPN amplifier.
  2. Faults study in amplifier circuit.
  3. Study of the common emitter PNP amplifier.
  4. Theoretical/practical exercises.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Voltage doubler.
  2. Power supply filtering.
  3. Several other exercises can be done and designed by the user.

BARANG YANG DIBUTUHKAN

PERALATAN SIMILAR TERSEDIA

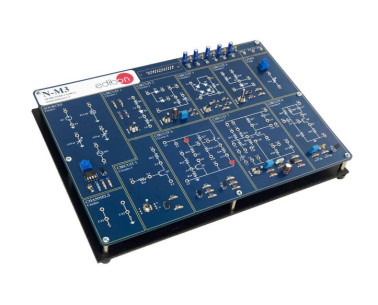

SEMICONDUCTORS I MODULE - N-M3
