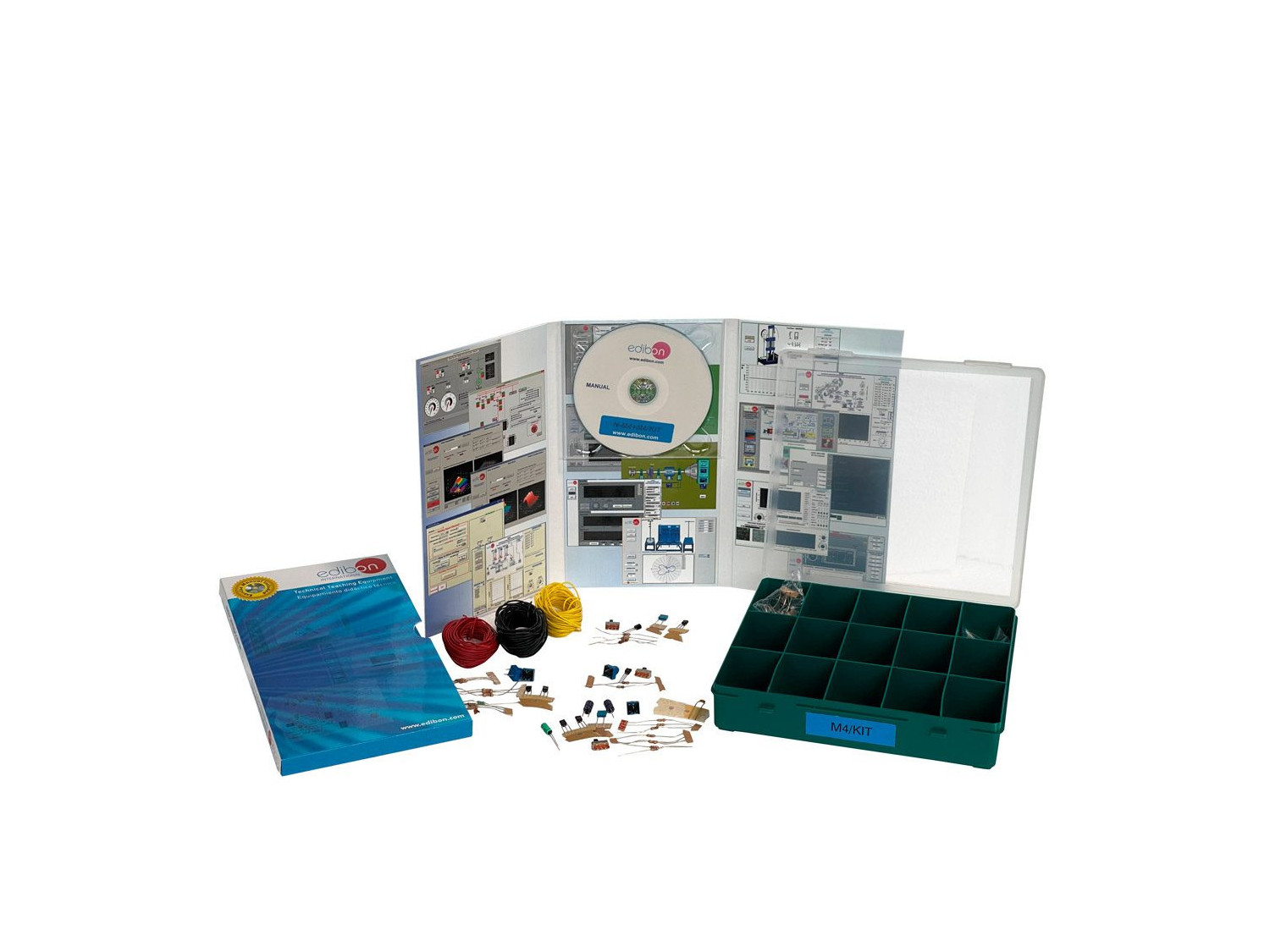

M4/KIT Kit Semikonduktor II

2.2.- KITS UNTUK SIRKUIT PERAKITAN
SEMICONDUCTORS II KIT - M4/KIT

SISTEM INOVATIF

With Semiconductors II Kit, "M4/KIT", designed by EDIBON, semiconductors can be studied by extending the knowledge acquired in the basic module "M3/KIT".

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif

Laboratorium

2TV
 Laboratorium Elektronika Pendidikan Teknik dan Kejuruan

BERITA TERKAIT

Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Baca lebih lanjut

GAMBARAN UMUM

With Semiconductors II Kit, "M4/KIT", designed by EDIBON, semiconductors can be studied by extending the knowledge acquired in the basic module "M3/KIT".

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

Complementary transistors pair:

  1. Complementary transistors pair.
  2. Transistors pair with alternating signal.
  3. Faults study of the complementary transistor pair.
  4. Theoretical/practical exercises.

Darlington configuration:

  1. Darlington configuration.
  2. Faults study of the Darlington configuration.
  3. Theoretical/practical exercises.

Differential amplifier:

  1. Differential amplifier.
  2. Faults study in the differential amplifier.
  3. Theoretical/practical exercises.

Study and characteristics of the JFET transistor:

  1. JFET characteristics.
  2. Faults study with the JFET transistor.
  3. Theoretical/practical exercises.

Analog switch:

  1. Analog switch.
  2. Theoretical/practical exercises.

Direct Coupled Amplifier:

  1. Direct coupled amplifier.
  2. Faults study in an amplifier coupled directly.
  3. Theoretical/practical exercises.
Lihat Lebih Banyak

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Several other exercises can be done and designed by the user.

BARANG YANG DIBUTUHKAN

PERALATAN SIMILAR TERSEDIA

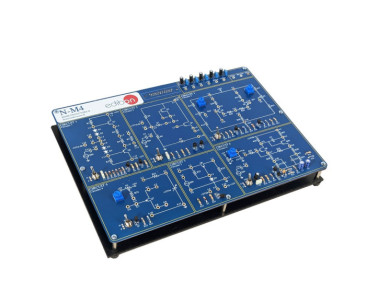

SEMICONDUCTORS II MODULE - N-M4
  • N-M4
Available
14.2.1.4.- SEMIKONDUKTOR
N-M4
Semiconductors II Module
To improve and extend the characteristics of the input signals, it is possible to use two or more transistors. Thus, you may want to build an amplifier in which you want to increase the input impedance without decreasing the gain. The solution to...
Lihat Unit
