ECESC Kolektor Energi Surya, Dikendalikan dari Komputer (PC)

5.3.2.- ENERGI TERMAL SURYA
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

Unit: ECESC. Computer Controlled Geothermal (low enthalpy) Energy Unit, with SCADA

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

Unit details

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

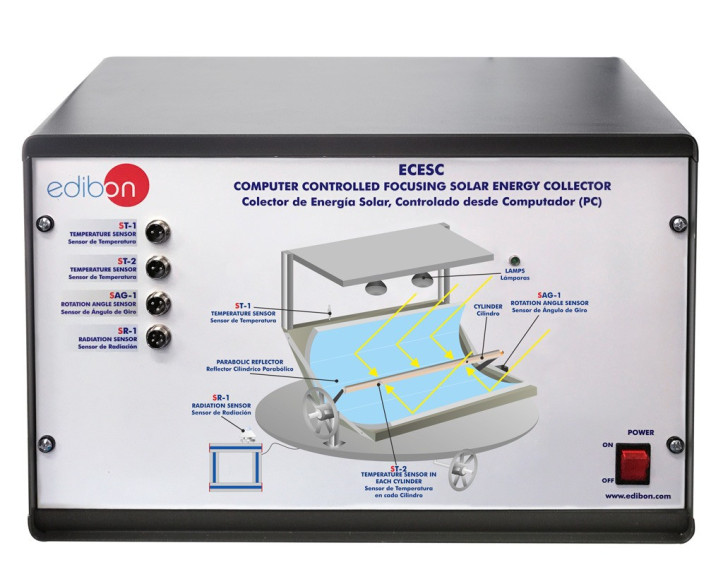

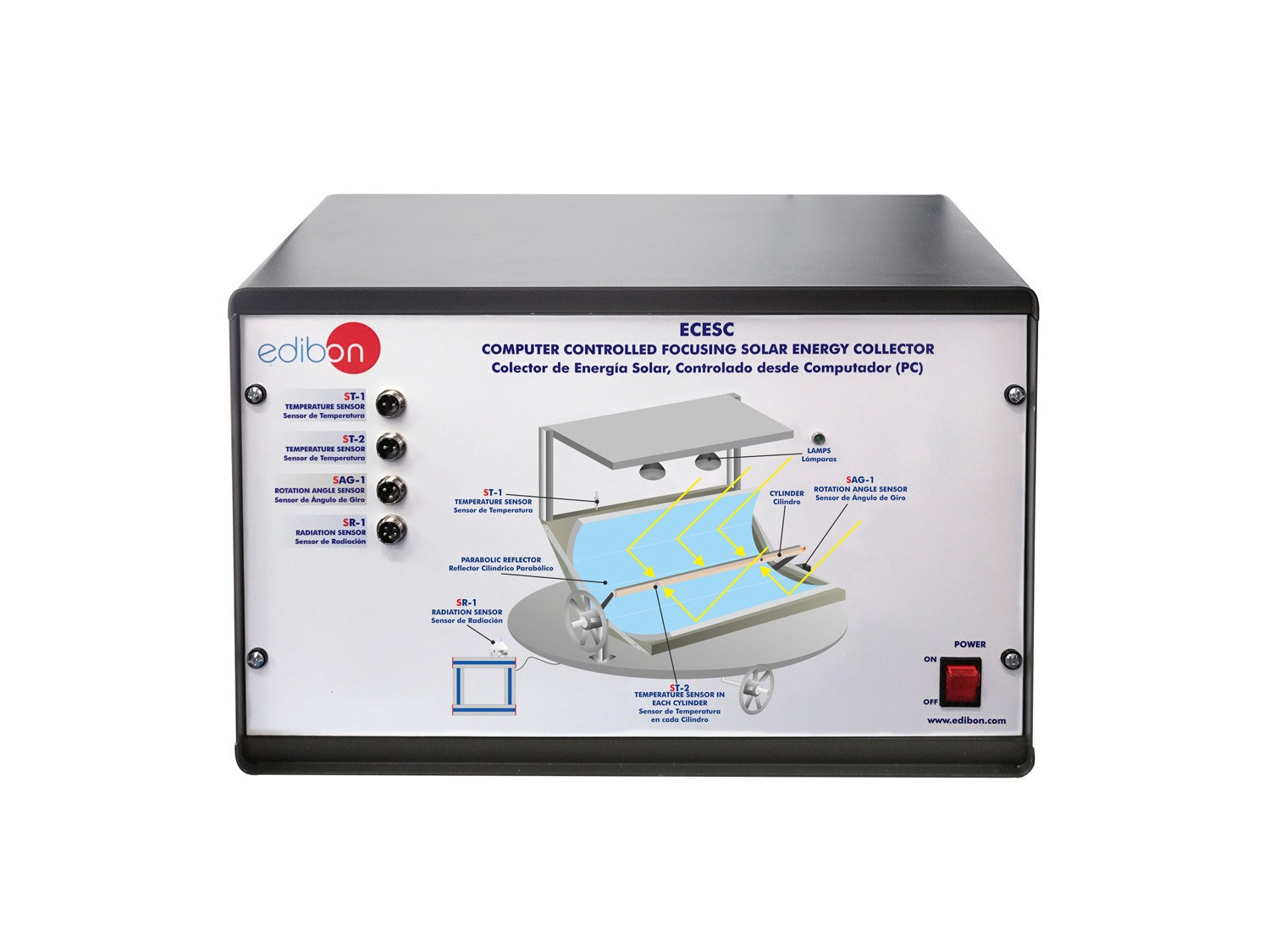

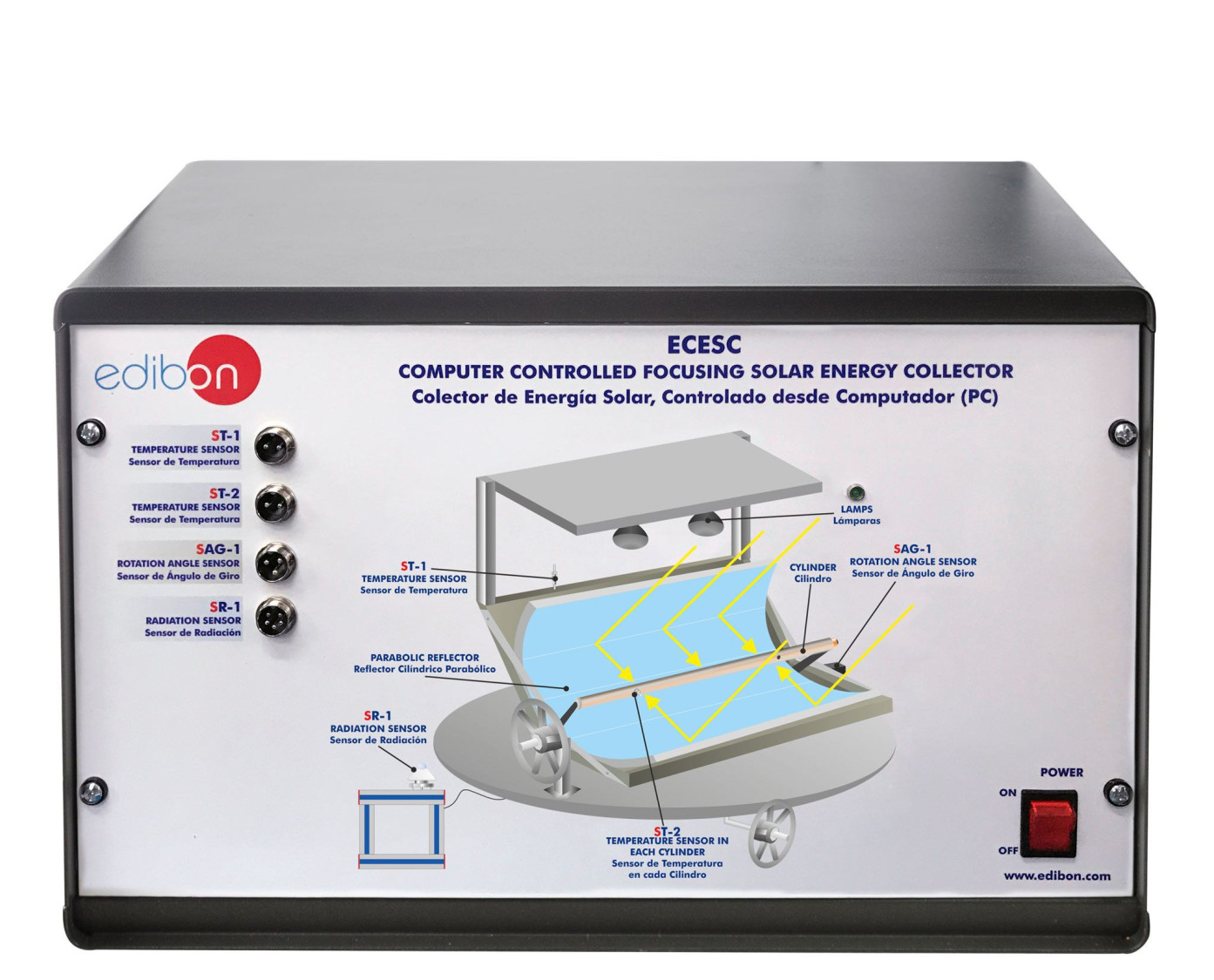

ECESC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

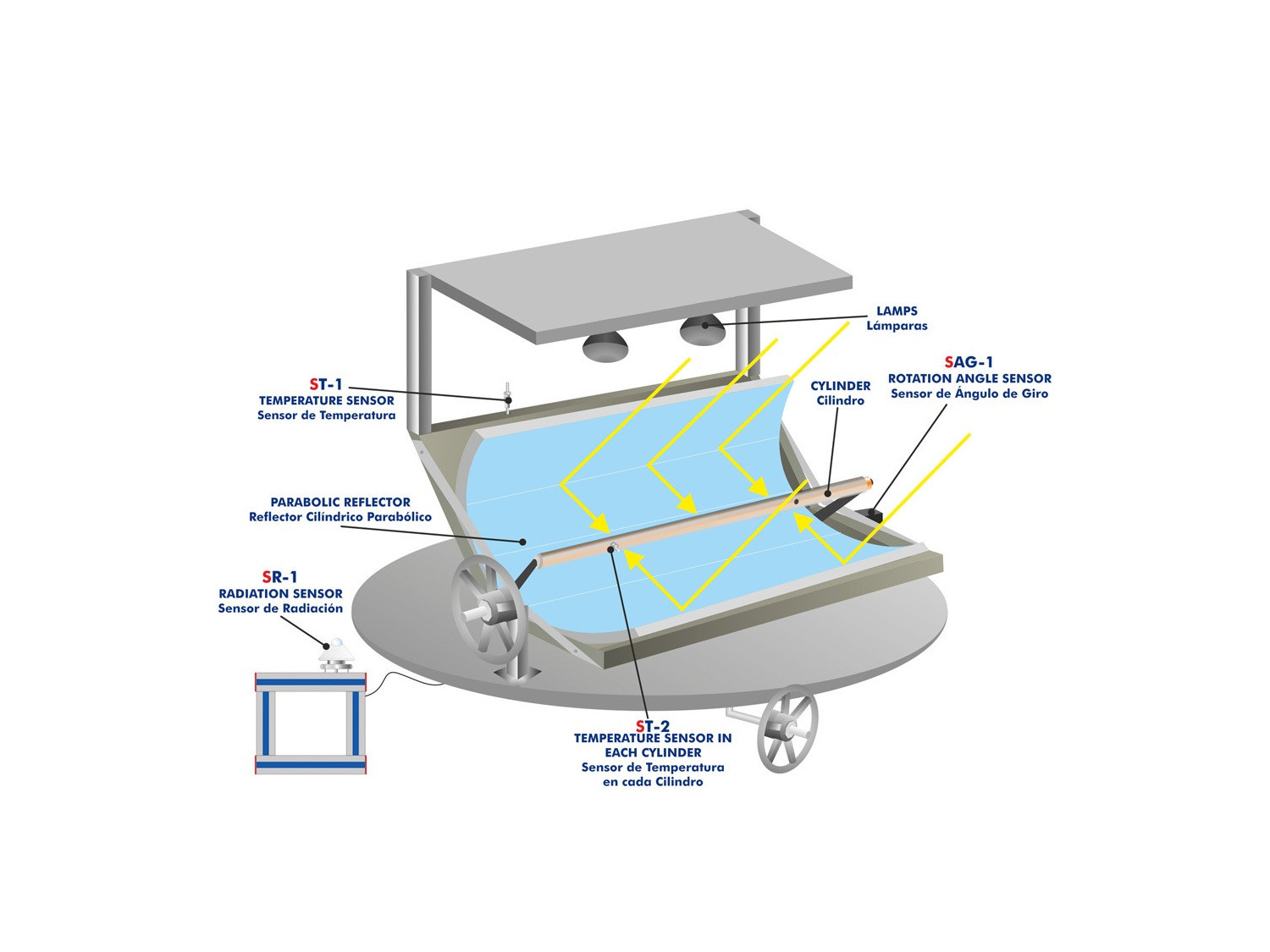

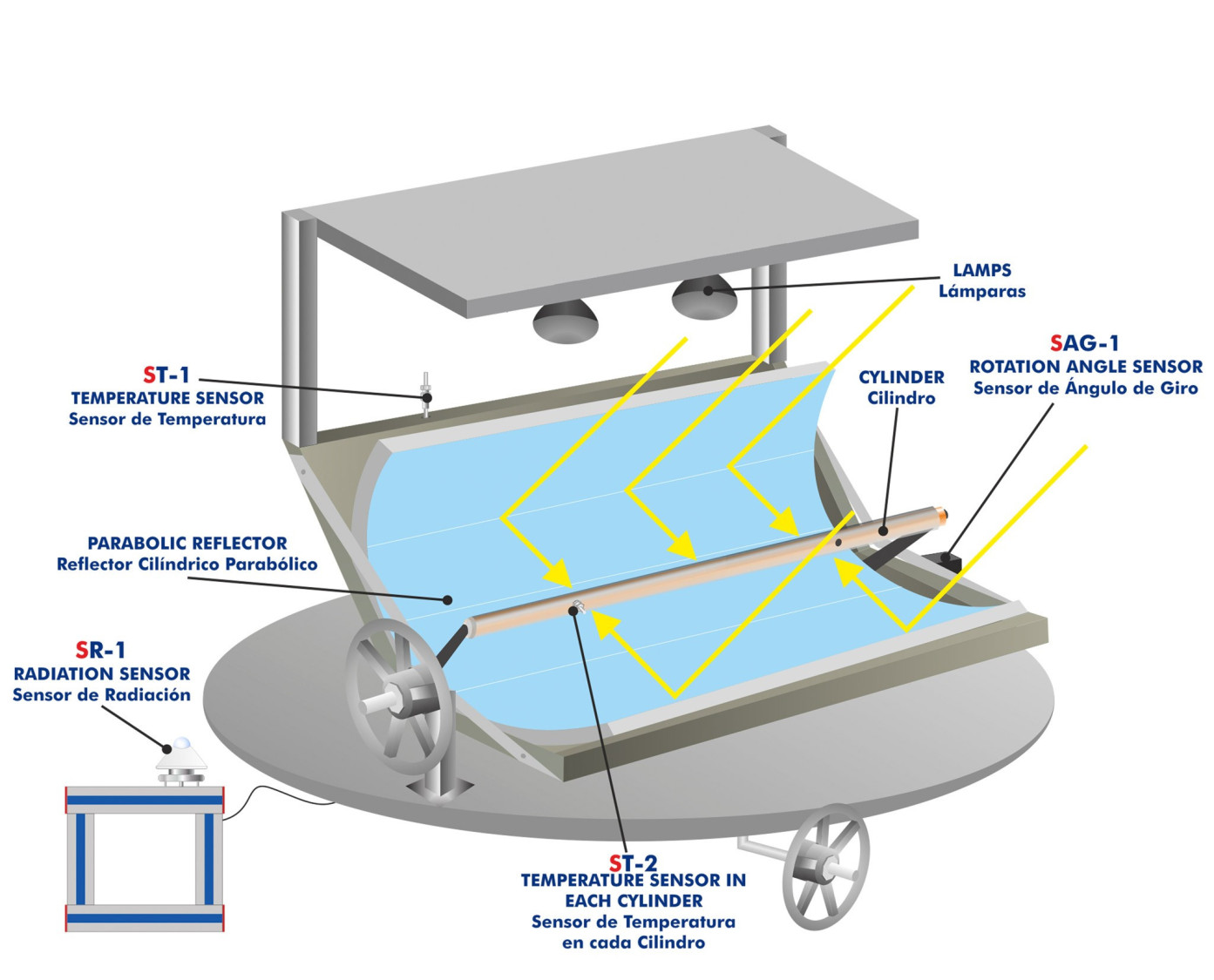

Process diagram and unit elements allocation

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

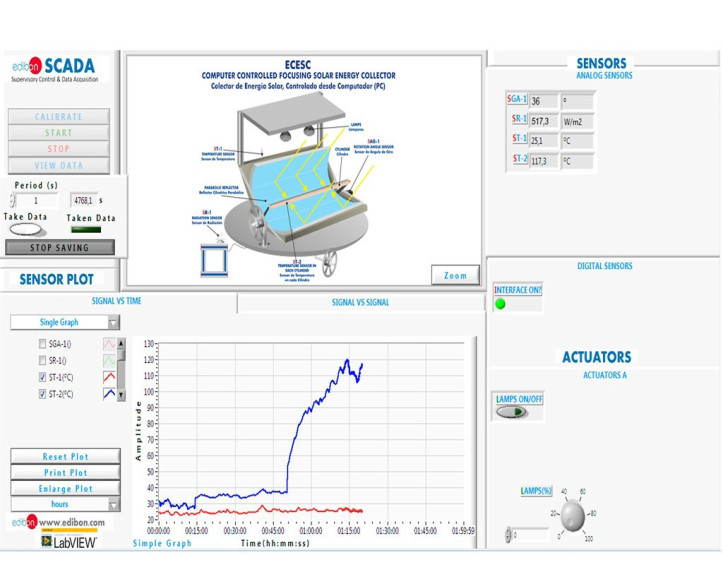

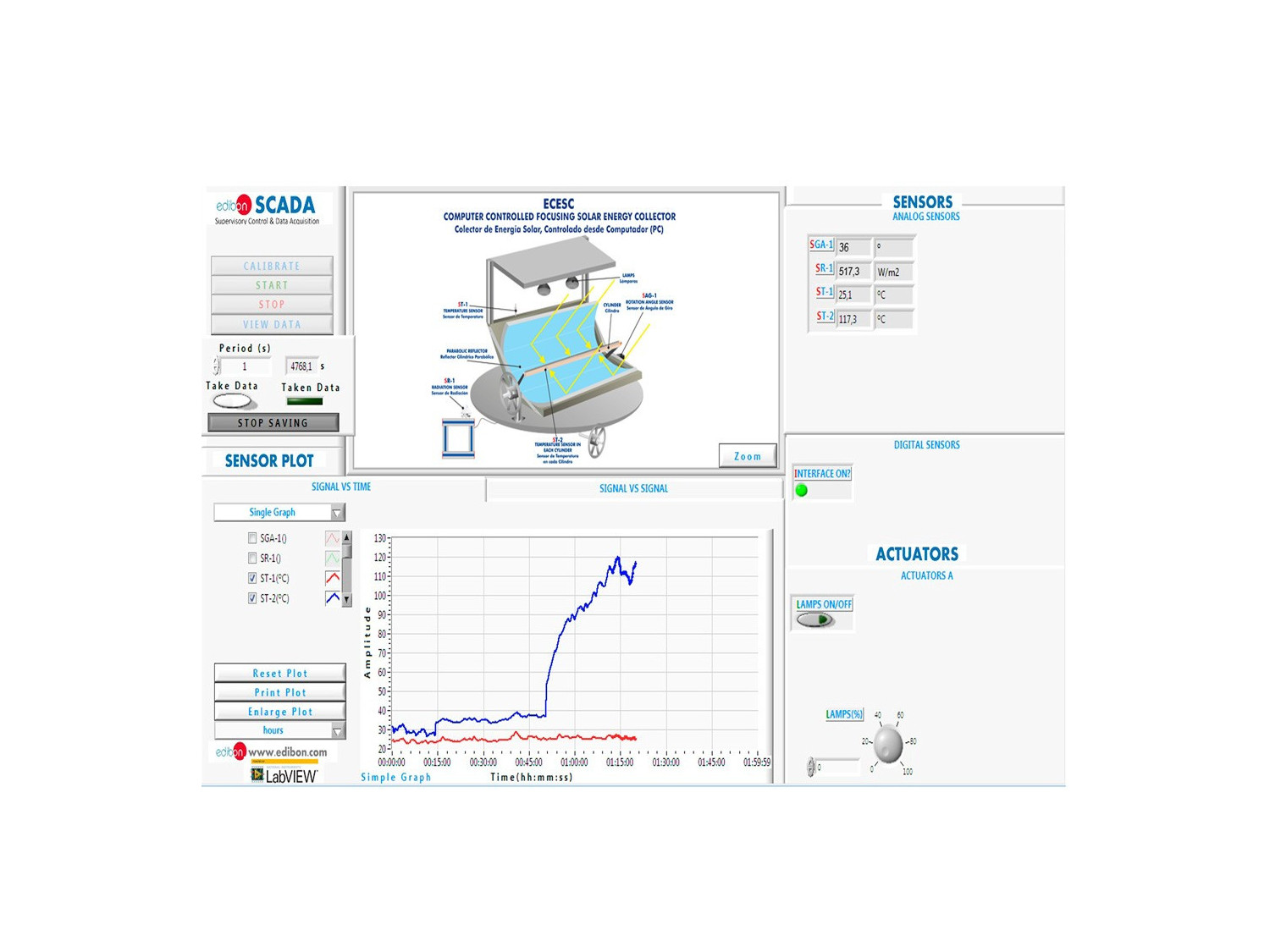

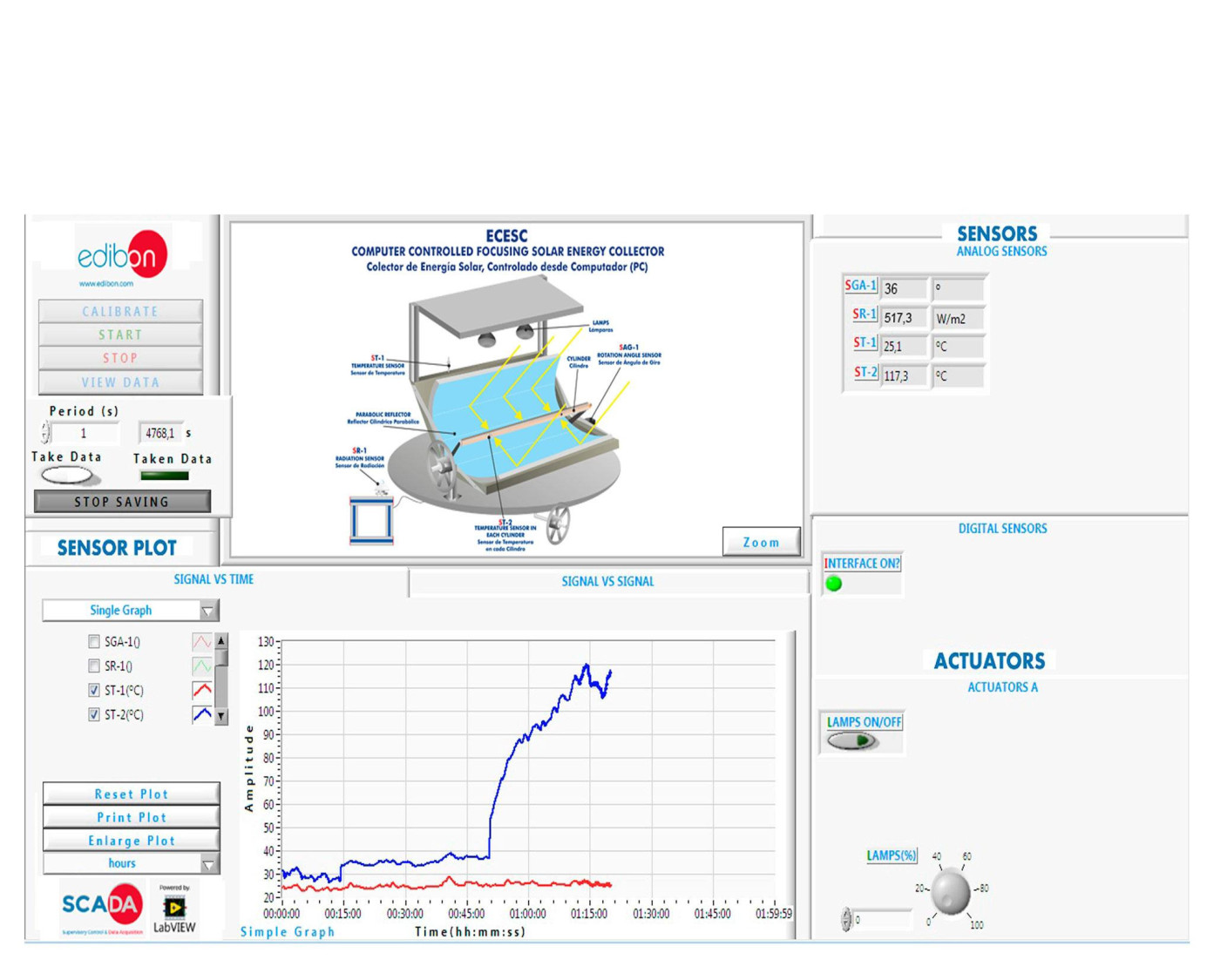

ECSC/SOF. EG5C Software. Main Screen

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

SISTEM INOVATIF

The Computer Controlled Focusing Solar Energy Collector, "ECESC", has been designed by EDIBON to study the conversion of solar energy into thermal energy using a parabolic trough.

Lihat uraian umum

Ekspansi

ICAI

Perangkat Lunak Pengajaran Berbantu Komputer Interaktif
FSS

Sistem Simulasi Kegagalan
PLCHMI

Kontrol dan Pemantauan IIoT Lokal/Jarak Jauh dengan HMI
ELK

Kit Pengembangan Perangkat Lunak EDIBON, Didukung oleh NI LabVIEW™
ESN

Sistem EDIBON Scada-Net
ECL

Pendidikan Jarak Jauh EDIBON

BERITA TERKAIT

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Baca lebih lanjut
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Baca lebih lanjut
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut

GAMBARAN UMUM

The Computer Controlled Focusing Solar Energy Collector, "ECESC", shows the principles of a parabolic trough to collect solar energy.

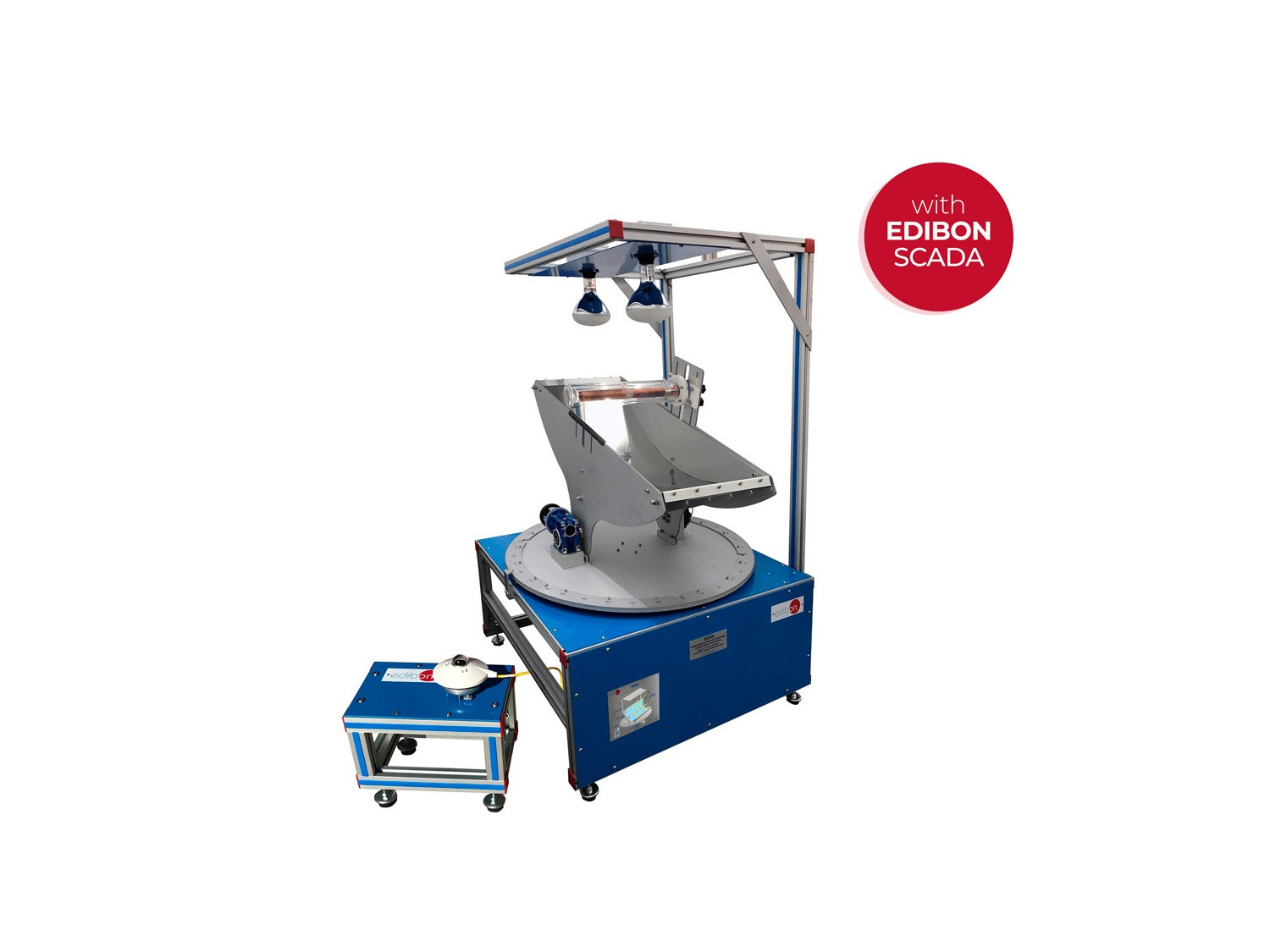

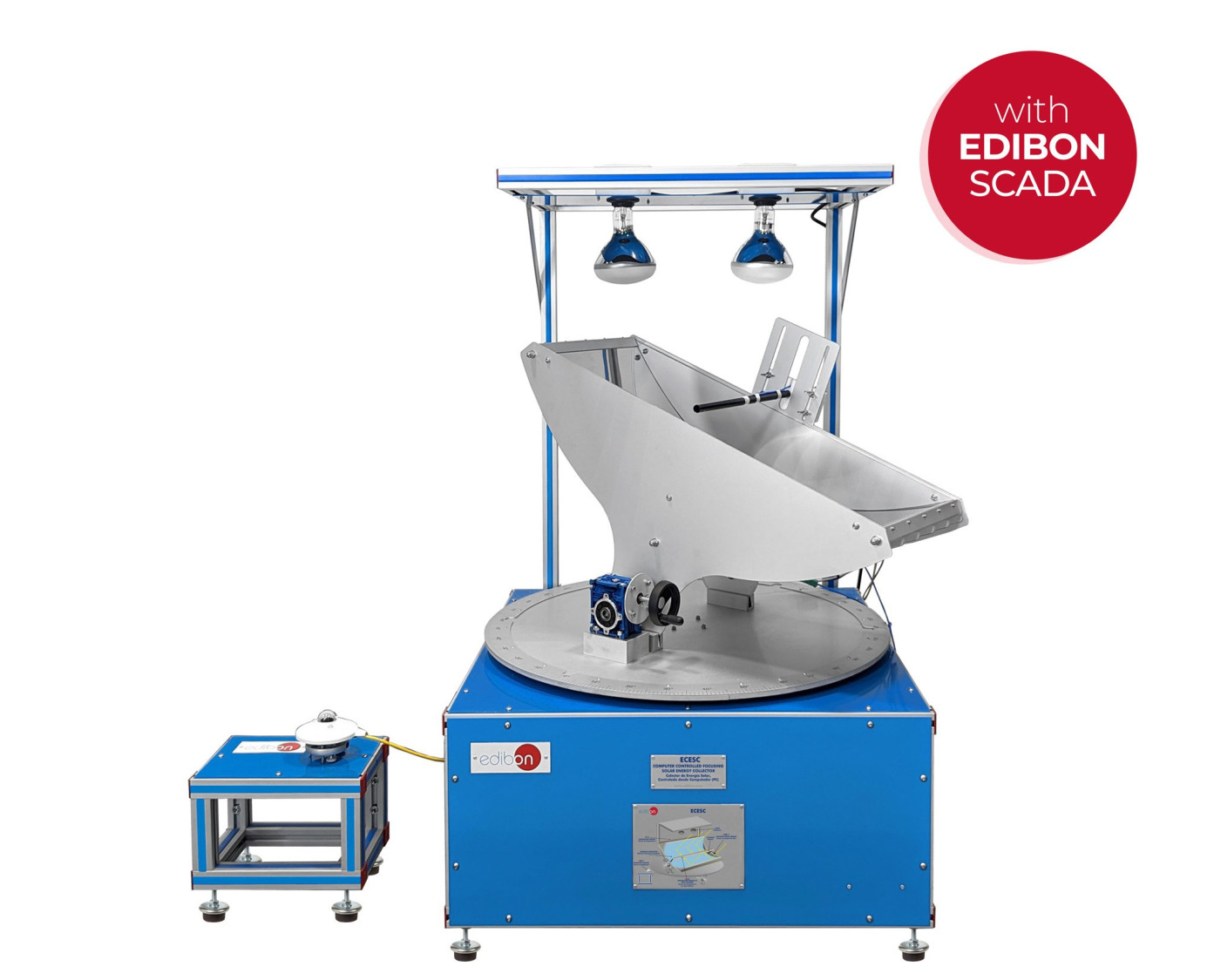

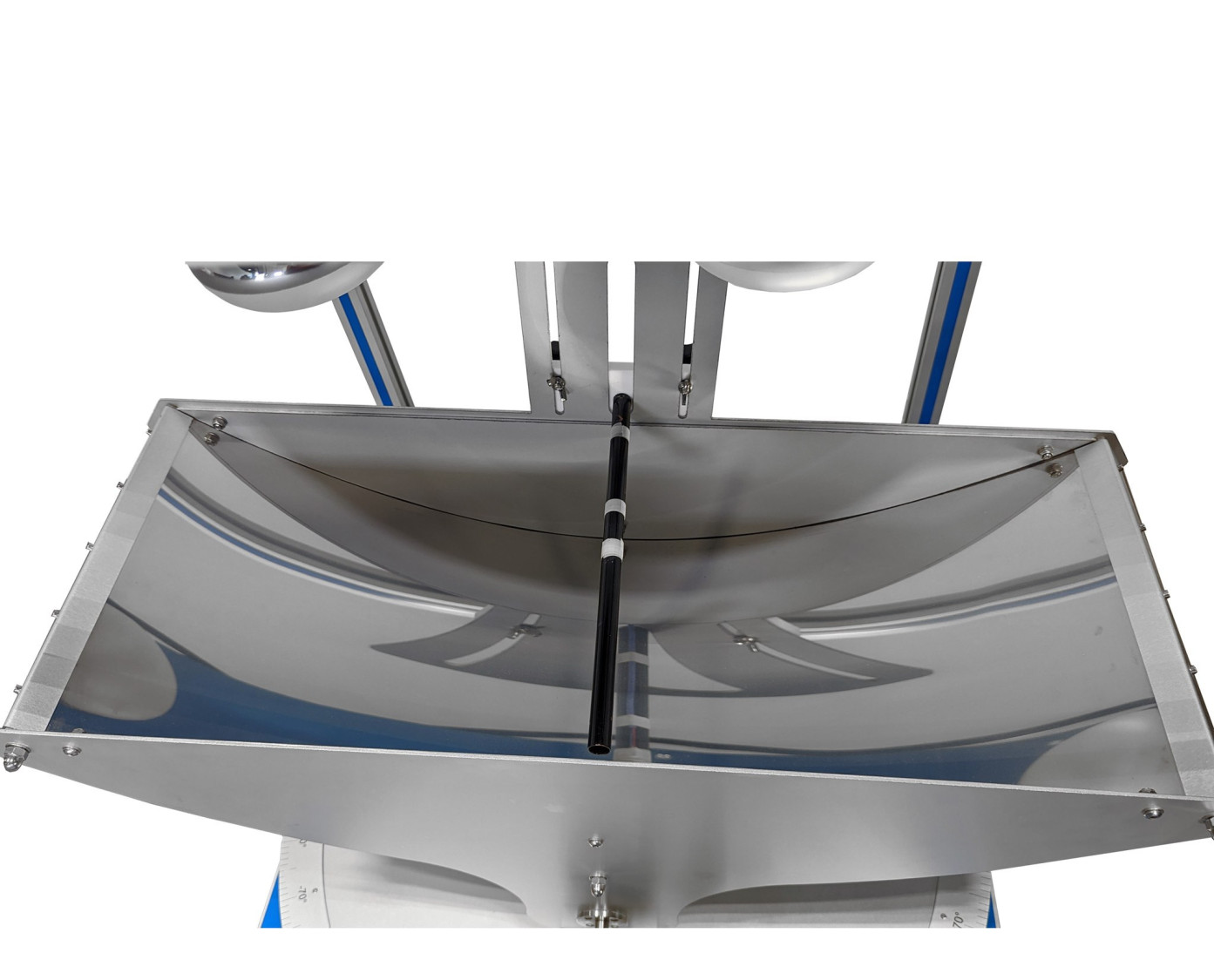

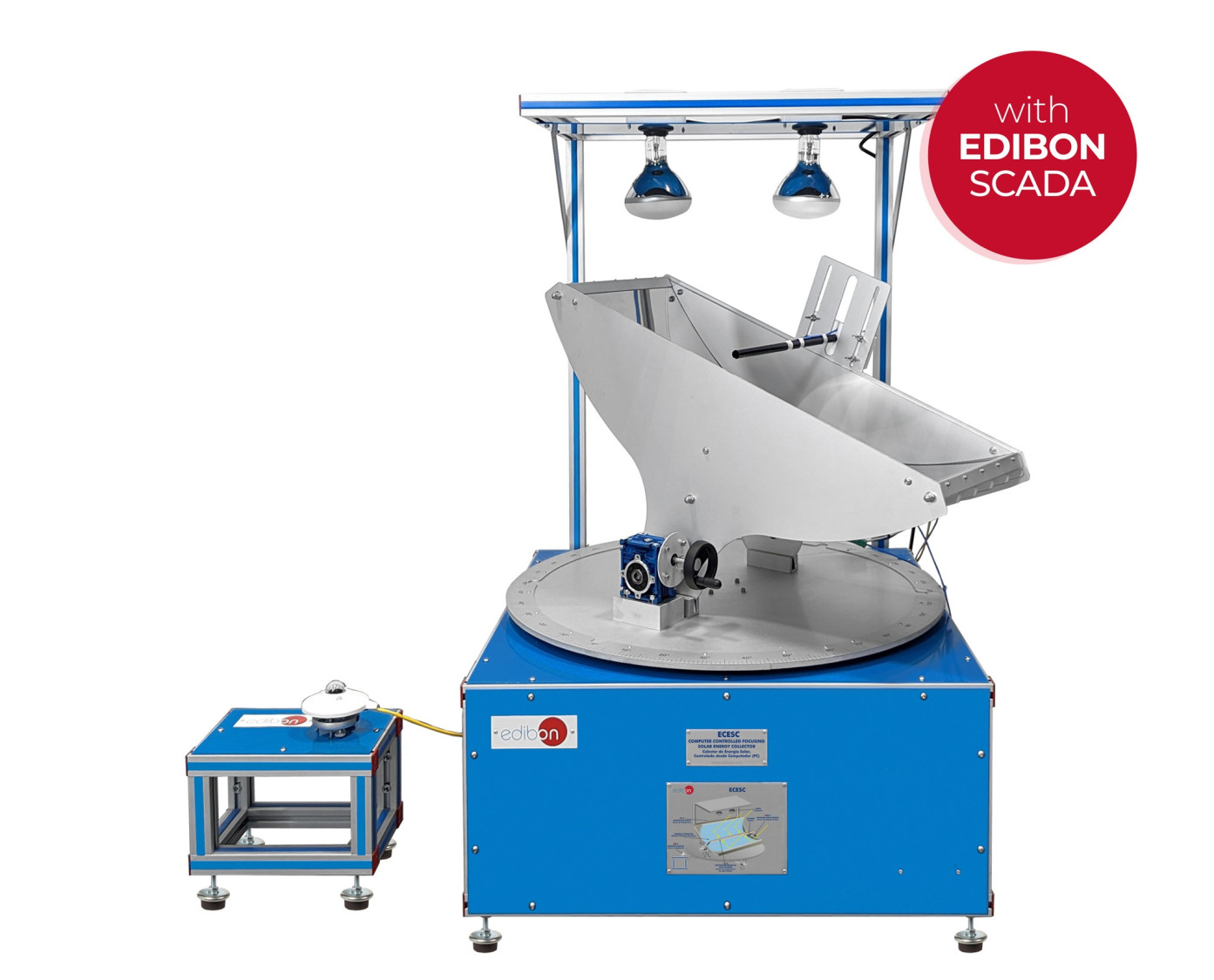

The unit includes a highly polished stainless steel parabolic reflector on a mobile base. It can be horizontally and vertically adjusted so that solar energy is focused on an energy collector from different positions. The reflector includes a pyranometer to measure the incident solar radiation.

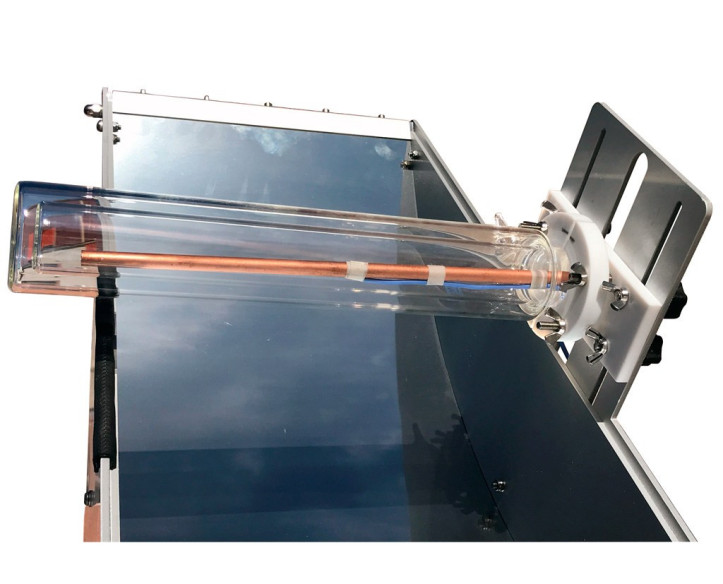

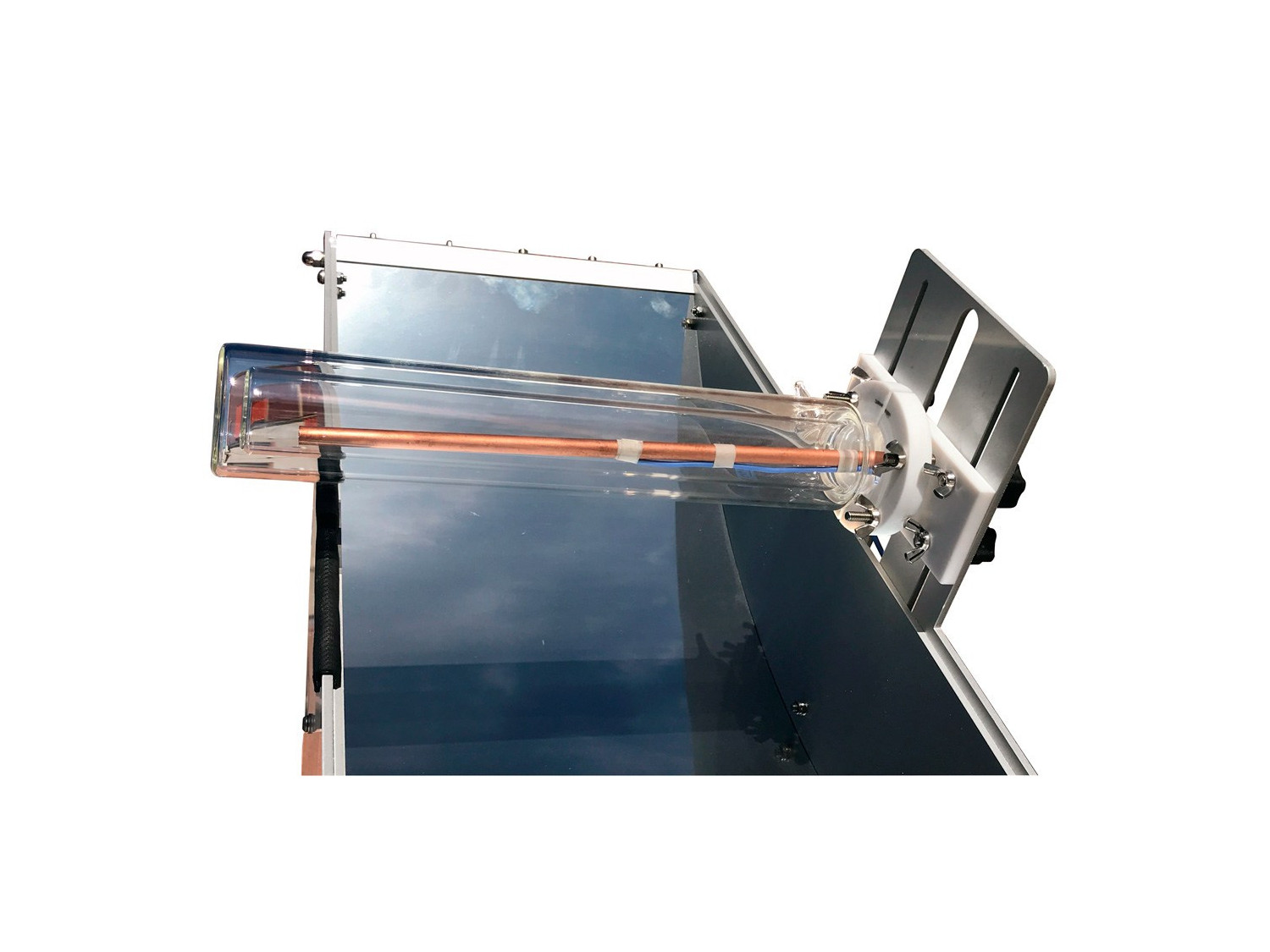

Five interchangeable energy collectors of different sizes are included to study different concentration ratios. One of them has a special black coating to study its effect. Each one has a "J" type temperature sensor to measure the temperature of the collector. Additionally, another insulating glass collector with vacuum coating is included to study the effect of a shielded collector.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

LATIHAN DAN PRAKTEK PEDOMAN

LATIHAN PRAKTIS YANG DIANDAL TERMASUK DALAM PANDUAN

  1. Operation of a cylindrical solar collector.
  2. Study of different energy concentration levels depending on the size of the collector.
  3. Comparison of the energy concentration levels of an unshielded cylinder and a shielded cylinder.
  4. Measurement of maximum temperatures reached by the energy collectors.
  5. Optimization and adjustment of a parabolic trough to obtain high concentration levels.
  6. Sensors calibration.

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the ECESC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the ECESC unit process.
  9. Several other exercises can be done and designed by the user.

KUALITAS

LAYANAN PURNA JUAL

Meminta informasi
