ZWAVE-LC Kontrol Pencahayaan dengan Z-WAVE

4.2.2.- APLIKASI WIRELESS ZIGBEE DAN Z-WAVE
Z-WAVE LIGHTING CONTROL - ZWAVE-LC

SISTEM INOVATIF

With this Z-WAVE Lighting Control, the user can acquire the following learning: star-up and registration of the control central, connecting the tablet or smartphone (not included), programming of each device based on rules and preset scenes.

Lihat uraian umum

BERITA TERKAIT

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Baca lebih lanjut
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Baca lebih lanjut
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Baca lebih lanjut

GAMBARAN UMUM

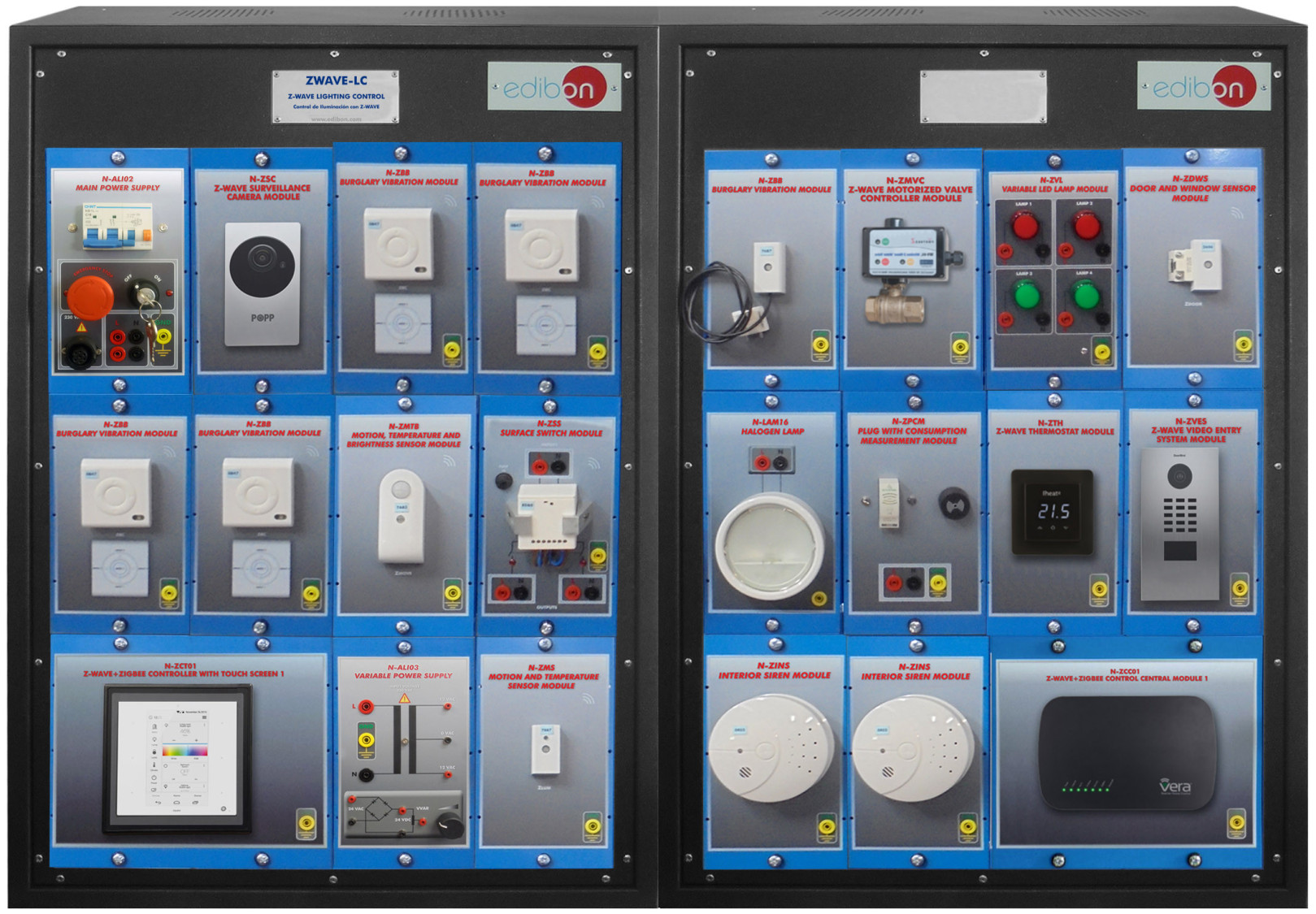

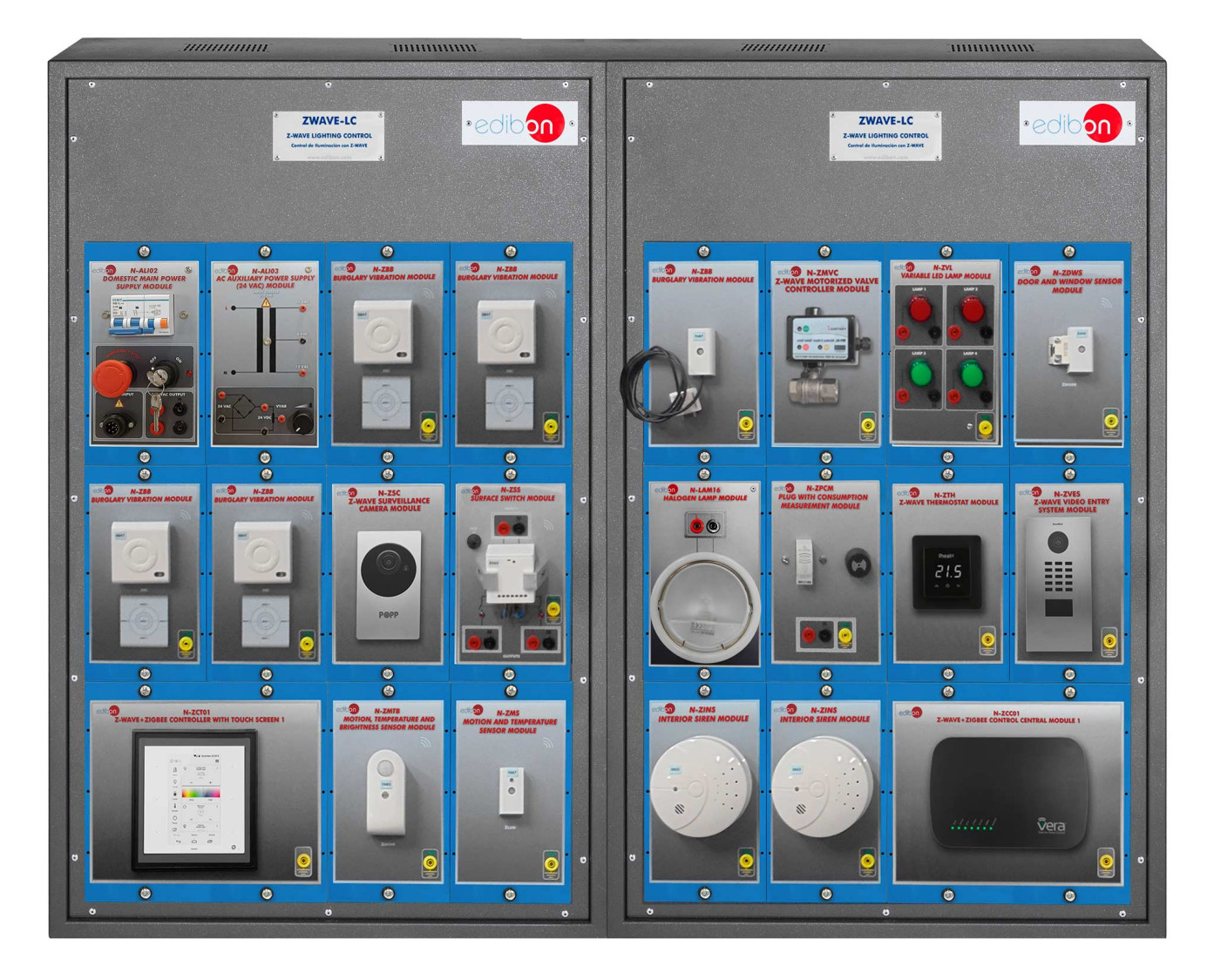

This Z-WAVE Lighting Control consists of a conjunction of sensors, actuators and loads which allow the user to simulate different events to program illumination control scenes and energy consumption. For this, the Z-WAVE Lighting Control includes a motion, temperatures and brightness multi sensor module whose purpose is to detect the presence of a person. With a properly scheduling, this sensor will activate/deactivate a lamp according to different conditions such as, for instance, day or night or if this lamp was turned on with a manual switch previously. Additionally, the Z-WAVE Lighting Control includes a commutator actuator, a remote control with 5 buttons, a commutation plug with energy measurement, a push button and a dimmer. In the other hand, this Z-WAVE Lighting Control has three types of loads: halogen lamp and led lamp to compare the energy consumption.

The third load is a resistive component to be connected to the smart plug to monitor the energy consumption and on/off functions.

The Z-WAVE Lighting Control includes two actuators: a siren to warn us of danger events and a motorized valve for water and gas.

With these elements could be simulated different events and the previously acquired knowledge about security systems will be tested by the user.

With this Z-WAVE Lighting Control, the user can acquire the following learning: star-up and registration of the control central, connecting the tablet or smartphone (not included), programming of each device based on rules and preset scenes.

LATIHAN DAN PRAKTEK PEDOMAN

LEBIH BANYAK LATIHAN PRAKTIS YANG AKAN DILAKUKAN DENGAN UNIT

  1. Setting of the motion, temperature and brightness multi sensor module.
  2. Setting of the plug with energy measurement module.
  3. Setting of the smoke detection module.
  4. Setting of the 5 push-button remote controller.
  5. Setting of the surface commutation module.
  6. Setting of the dimmer module for illumination control.
  7. Setting of the led lamp module for illumination control.
  8. Star-up and registration of the control central, connecting the tablet or smartphone (not included), programming of each device based on rules and preset scenes.
